0.23 inch 640x400 Micro OLEDoS Display 5000nits HDMI

Category： MICRODISPLAY
Size:0.23 inch Micro OLED Display
Resolution:640(RGB)X400
Brightness:5000 cd/m2
frame rate:90Hz
INQUIRY EMAIL

0.23 inch 640x400 Micro OLED 5000nits for AR vr headsets

This 5000-nit ultra-high brightness 0.23 inch OLED Microdisplay panel ,640x400 native resolution,90Hz refresh rate. this microdisplay delivers exceptional visibility under direct sunlight while maintaining low power consumption. It is highly optimized for premium smart AR glasses, high-brightness VR headsets, and flexible wearable near-eye display terminals.
For rapid prototyping and evaluation, a fully compatible plug-and-play Micro-HDMI driver board solution is available for this Micro-OLED screen

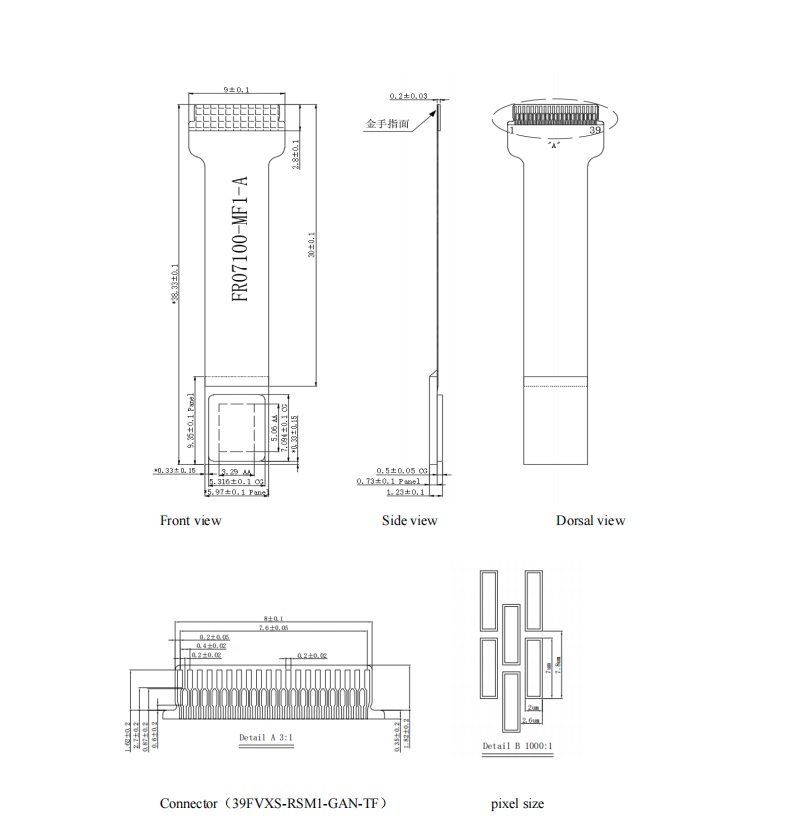

0.23 inch Micro OLED Display 640x400 parameter

Features	Specification	Unit
Display Technology	Silicon-based Micro OLED (Si-OLED)
Optical Configuration	Standalone Screen (Without Lens)
Screen Size	0.23 inch	diagonal
Pixel Resolution	640 (RGB) x 400	Pixels
Peak Brightness	5000	cd/m²
Contrast Ratio	100,000:1
Frame Rate	90	Hz
Display Color	Full Color
Interface Type	24-bit Parallel RGB / YCbCr / I²C
Driver Board Options	Plug-and-Play Micro-HDMI Controller Board	(Sold Separately)
Operating Temperature	-40 to 65	°C

Product Features

5000 Nits Outdoor Visibility

Delivers exceptional high-brightness rendering and sharp contrast even under direct sunlight or extreme outdoor lighting conditions.

90Hz Fluid Refresh Rate

Provides a smooth, flicker-free visual experience, effectively mitigating motion sickness for fast-paced AR/VR tracking applications.

Flexible HDMI Interface Option

Can be paired with our dedicated standalone controller board for immediate micro-HDMI video input and rapid hardware prototyping.

Bare Screen Customization

Offers electronic hardware engineers the ultimate freedom for independent optical lens calibration and custom housing layouts.

HDMI Driver Board for5000-nit 0.23" Micro OLEDoS panel

Micro-HDMI Driver Board: Supports standard digital video signal input, allowing immediate connection to PCs, laptops, or embedded single-board computers.
