Product Details

The 1 inch Monochrome Micro Display 20000nits 2560×2560, manufactured by SeeYA Technology Corporation, is a cutting-edge Monochrome micro display that utilizes Si OLED (Silicon Organic Light Emitting Diode) technology. With its impressive Resolution of 2560×2560 pixels and a pixel density of 3527PPI, this display screen delivers stunning visual clarity and sharpness. The Rectangular pixel format ensures precise and accurate image reproduction.

The Monochrome Si OLED Screen boasts a Luminance of 20000 cd/m², provides exceptional visibility even in bright outdoor environments. Its high Contrast Ratio of 500000:1 ensures deep blacks and vibrant Grayscale images. These features make it ideal for applications such as Aviation Head-up Displays (HUD) and Head-mounted Displays (HMD).

Aviation Head-Up Displays (HUD)
In the aviation industry, safety and precision are of utmost importance. The 1 inch Monochrome Micro Display , with its Resolution 2560×2560, 20000nits Brightness, and 500000:1 Contrast Ratio, proves to be an excellent choice for Aviation head-up displays (HUD).

HUDs project critical flight information directly onto the pilot’s field of view, allow for improved situational awareness and reduced pilot workload. The SY103WAM10 ensures clear and legible display of flight Parameters, Navigation Data, and Symbology, even in bright daylight conditions.

Head-Mounted Displays (HMD)
Head-mounted displays (HMD) have revolutionized various industries, including gaming, Virtual Reality, and Augmented Reality. The SY103WAM10 micro display Compact Size, High Resolution, and Luminance make it a perfect fit for HMD applications. Whether it’s immersive gaming experiences, Realistic Virtual Simulations, or Augmented Reality Overlays, this display delivers crisp imagery, enhance the overall user experience.

1.03 inch micro oled 2560x2560 parameter

Product Number:JKSY103WAM10
Display Type:Micro OLED
Resolution:2560 x 2560
Screen Size:21.09mm x 22.77mm x 1.5mm
Active Area:18.432mm x 18.432mm/ 1.03" diagonal
Luminance(Brightness):20000nits(Typ.)
Color:MONO Green
Contrast Ratio:50,000:1
Interface:MIPI+I2C
Frame Rate:30Hz~90Hz
Operating Temperature:-20℃ to +70℃
Storage Temperature:-40℃ to +80℃
Plan:Mass Production
Application:AR VR devices, EVF, Night vision, sight...

1.03 inch 2560*2560 Micro display Screen Features

◆ Small size high definition type
◆ High contrast
◆ Wide color reproduction range
◆ High-speed response
◆ Thin type and light weight
◆ Power saving function
◆ Up/down and/or right/left inverse display function
◆ Orbit supported

1.03 inch 2560*2560 Micro display Screen Applications:

Mechanical Dimension

1.03 inch micro oled screen

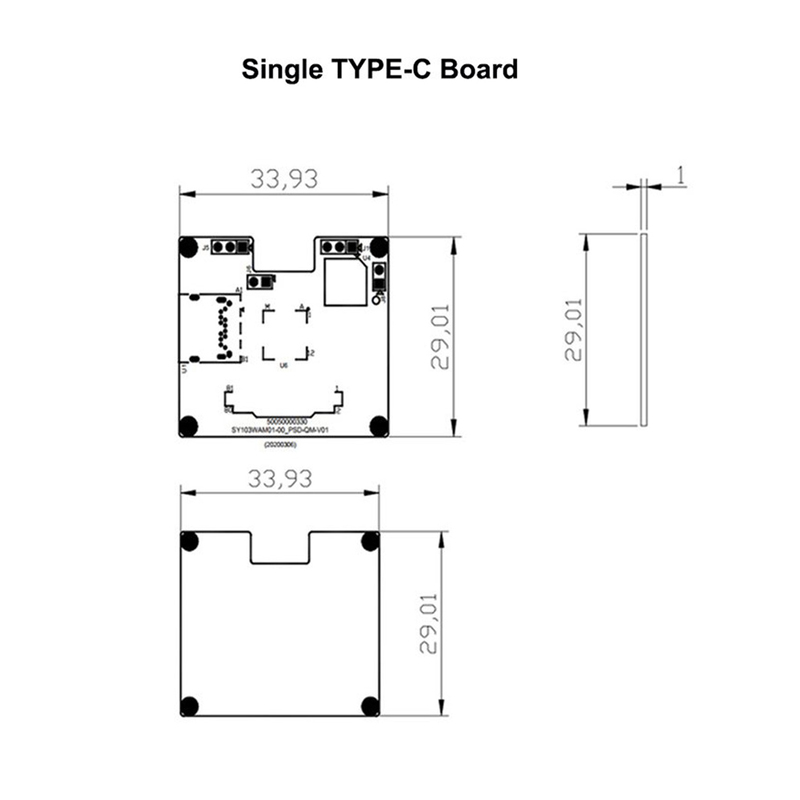

Monocular TYPE-C driver board

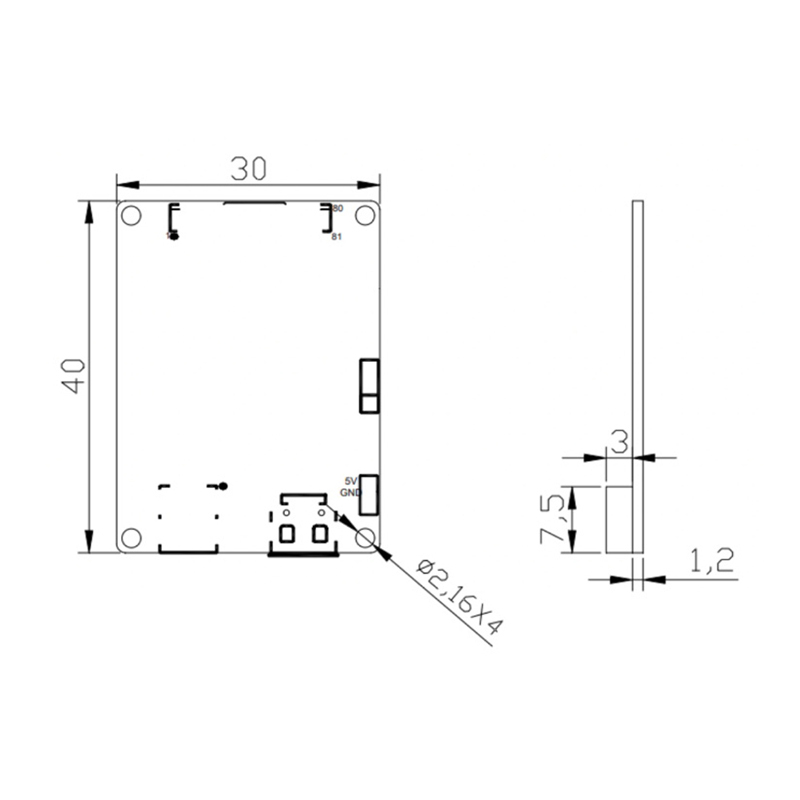

Monocular HDMI driver board

Monocular MINI HDMI driver board

Binocular TYPE-C driver board
