0.32 inch Micro OLEDoS Display 800x600 2000nits 120Hz I2C RGB MIPI

Category： MICRODISPLAY
Size:0.72 inch Micro OLED
Resolution:1920xRGBx1200
Brightness:2000cd/m2
Interface: MIPI
INQUIRY EMAIL

Product Details

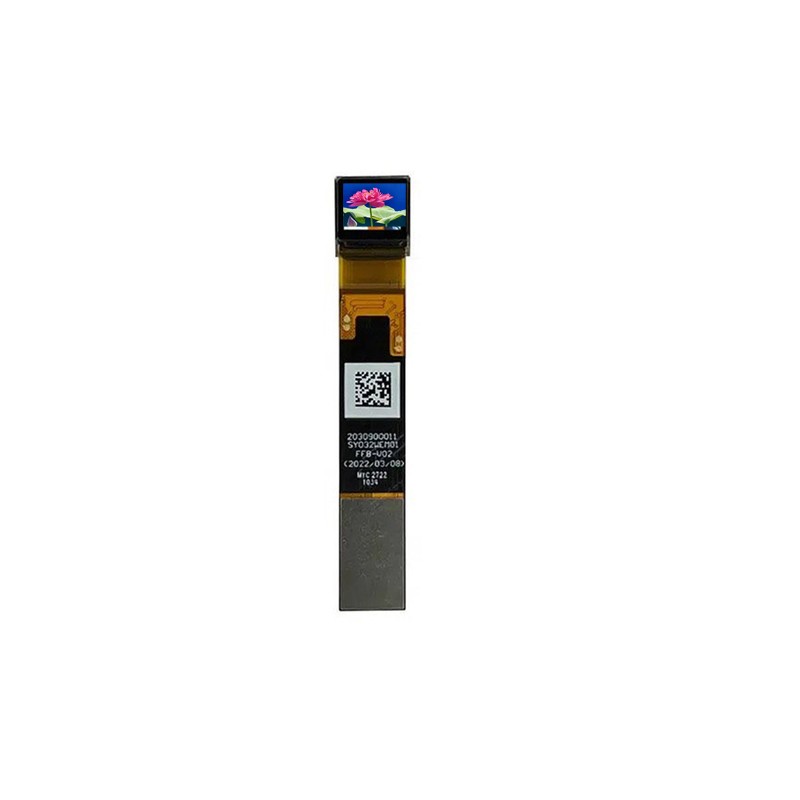

The 0.32 inch Micro Display OLEDoS with 800×600 pixels and 2000nits brightness, is manufactured by SeeYA. Which is one brand that has been at the forefront of Micro Display technology, they have developed the OLEDoS Micro Screens, which offers exceptional performance and versatility.

The OLEDoS Micro Display is renowned for its high resolution, brightness, and refresh rate, making it an ideal choice for various applications. Whether it’s for VR, AR, EVFs, Medical Imaging Devices, or Military Products, the 0.32 inch .049 inch, 0.72 inch, 1.03 inch OLEDoS Micro Display sets the standard for Micro Display technology.

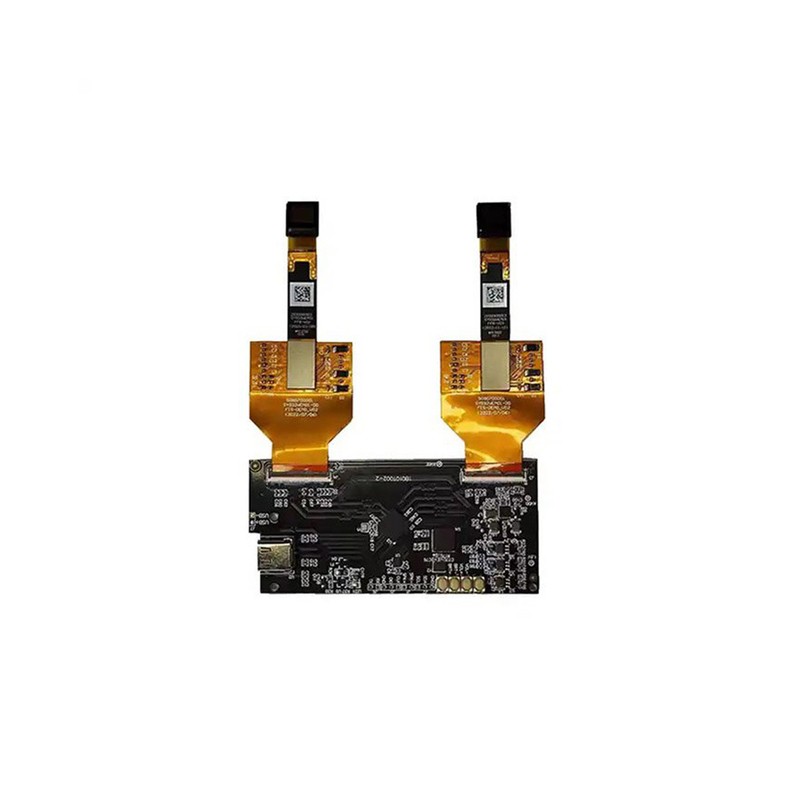

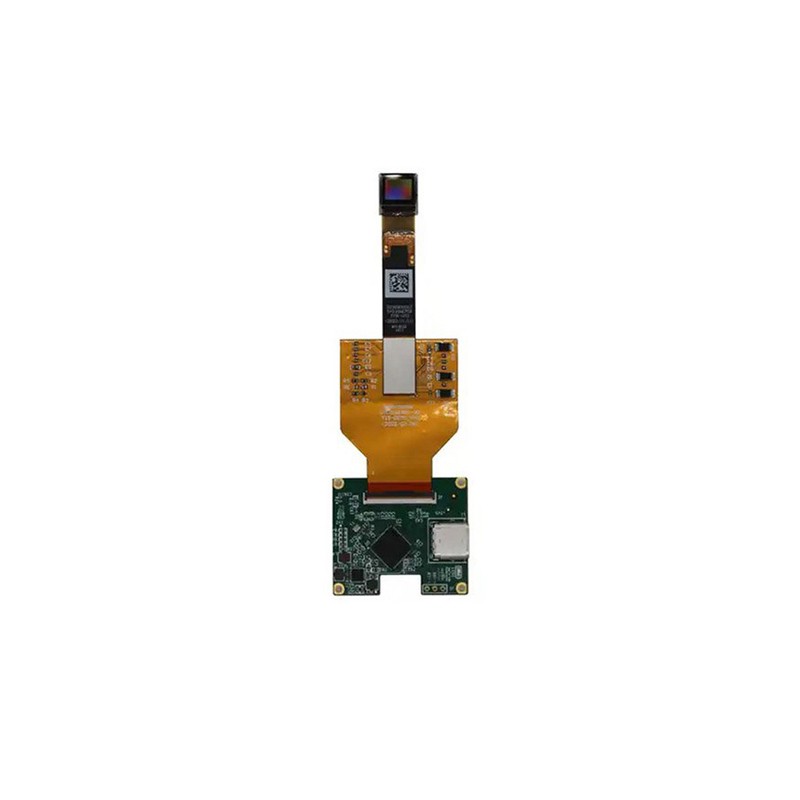

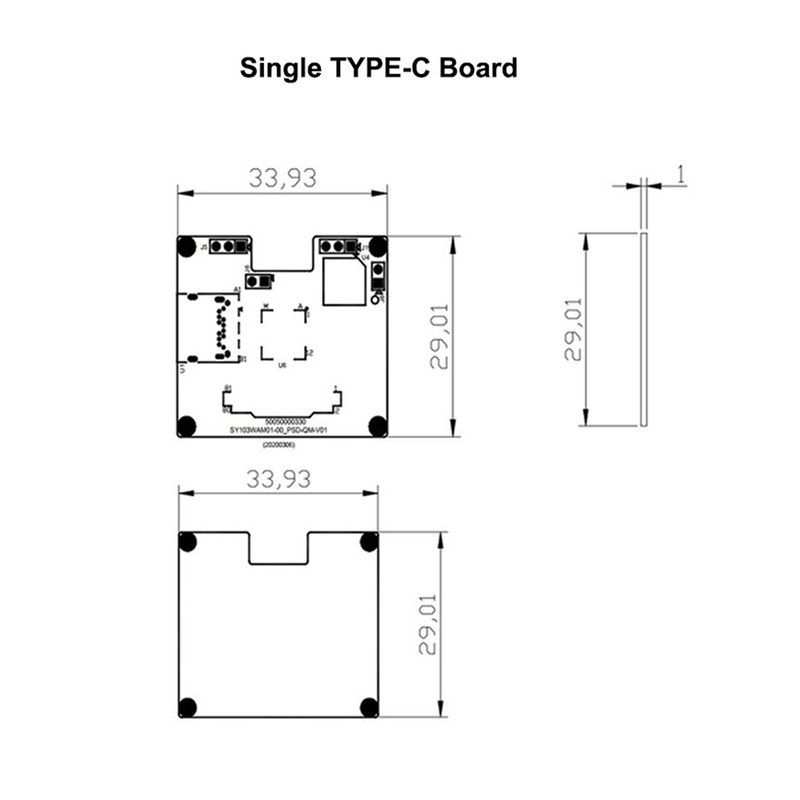

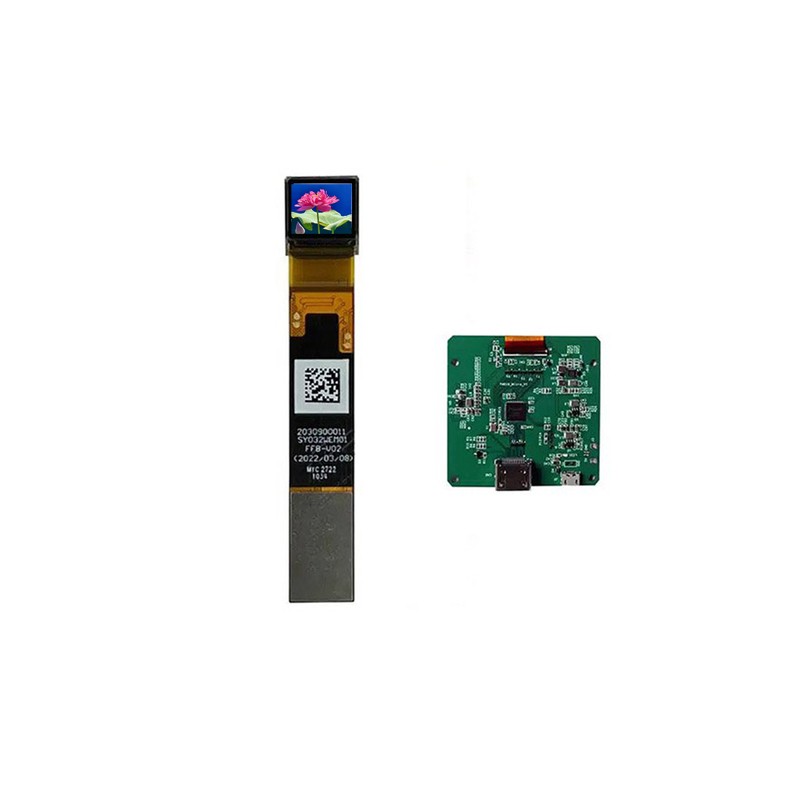

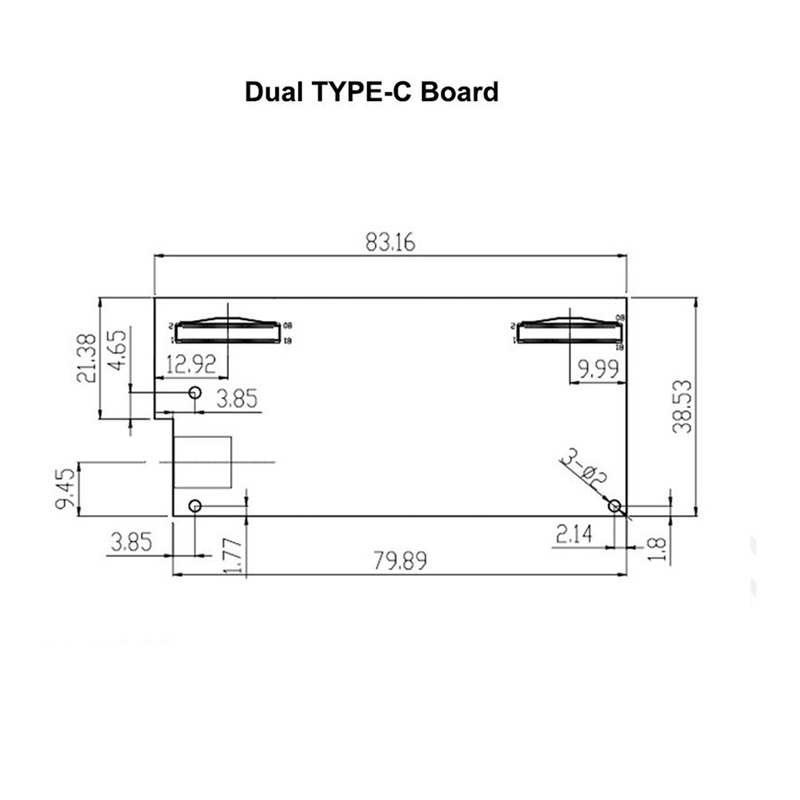

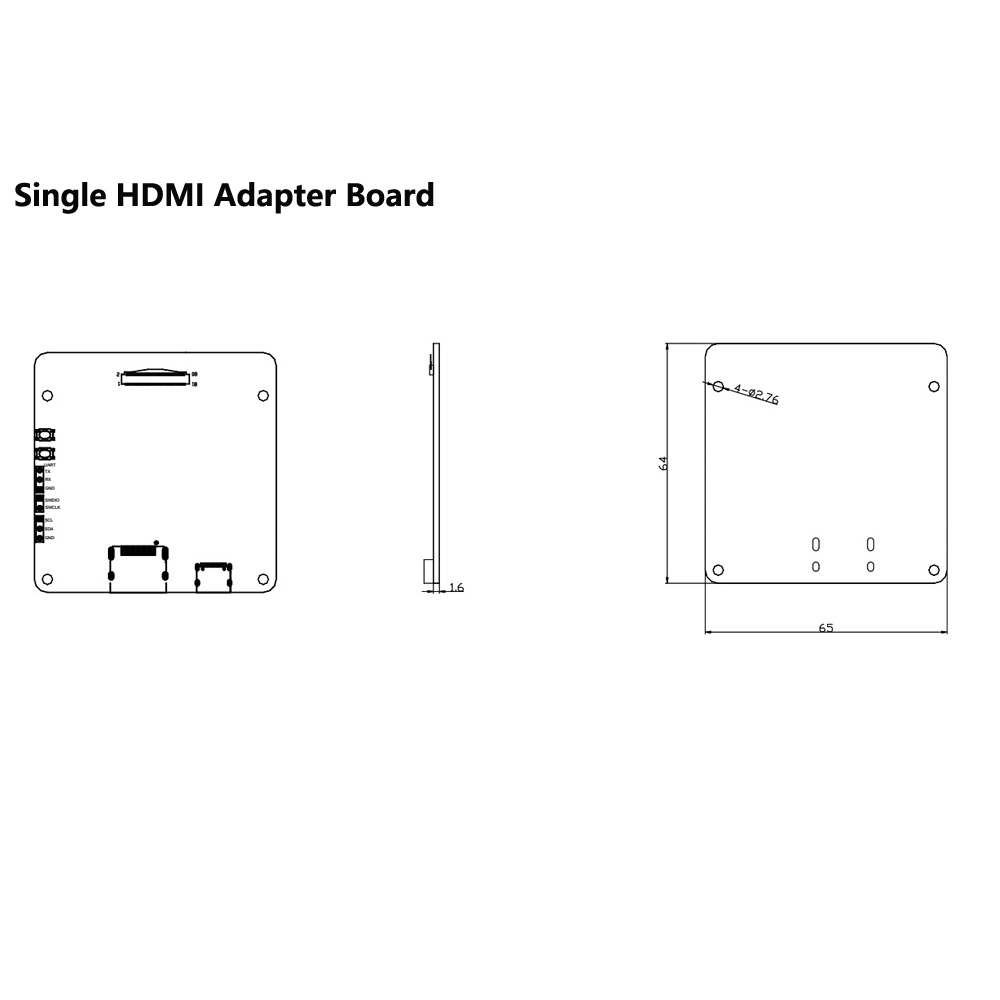

For easier demo and bring a better experiences for the developer, there is also HDMI Controller Board and TYPE-C Driver Board for your option.

0.72 inch Micro OLED display 1920x1200 Parameter

Features	Specification	Unit
Display Type	OLED Display
Display Size(Diagonal)	0.32"	inch
Resolution	*800(RGB)600**	Pixels
Pixel Size	8.1µm x 8.1µm
Pixel Arrangement	Hexagon, delta arrangement
Display Color	Full color
Number of dots	1.44M (800x600x3)
Brightness	2000	cd/m2
Interface Type	I2C+RGB and MIPI
Driver Board Solution	HDMI PORT/TYPE-C/ Board

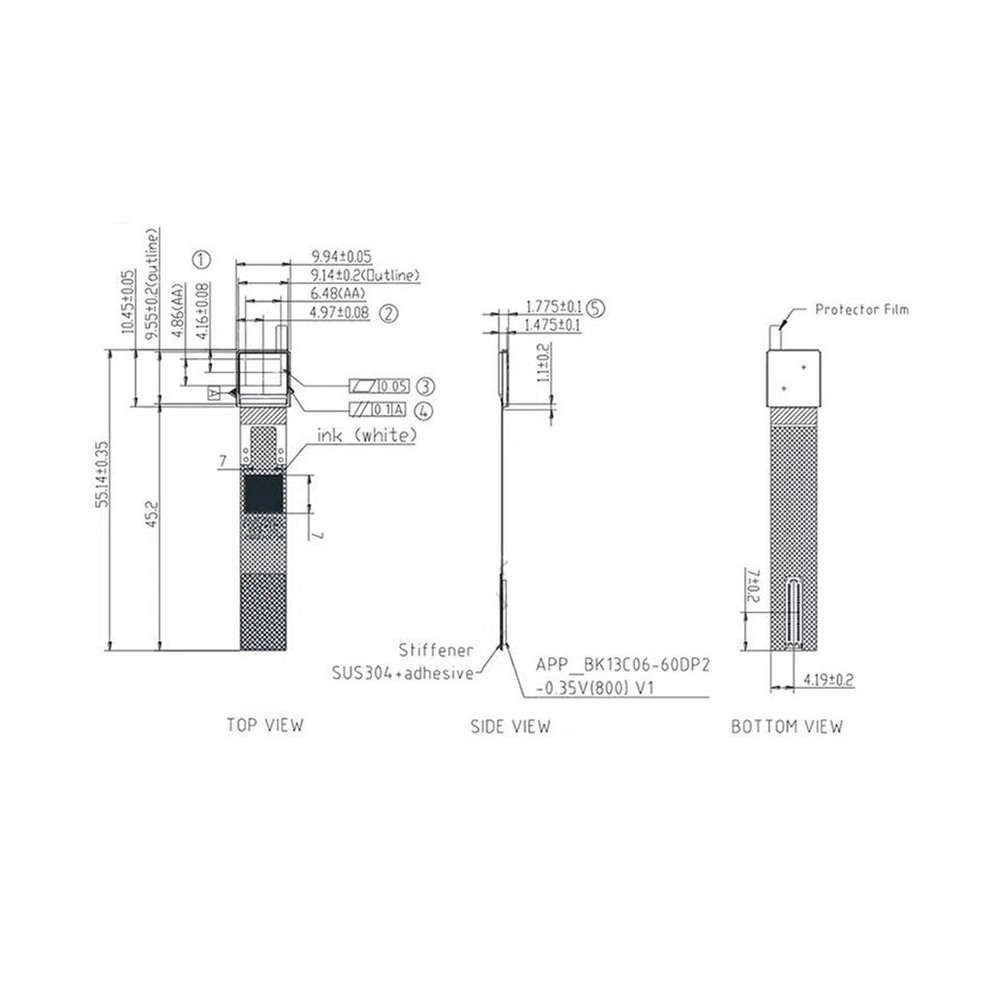

Panel Size	*9.9410.451.75*	(mm)
Active Area	6.48mm x 4.86mm / 0.32"diagonal	(mm)
Frame Rate	15~120Hz
Contrast Ratio	100,000:1
Power Consumption	220	mW
Gray Level	256
Mass Production	Available
Operation Temperature	-20℃~70℃
Storage Temperature	-40℃~80℃

0.32 inch Micro Display 800X600 features

High Resolution
With a resolution of 800×600, 4:3 Aspect Ratio, the 0.32 OLEDoS Screen offers sharp and detailed visuals. This high resolution ensurs that users can enjoy a truly immersive experience, whether they are using the display for VR, AR, or other applications.

Brightness and Contrast
One of the standout features of the OLEDoS Micro Display is its High Brightness level of 2000 nits. This brightness ensures that the display remains clear and visible, even in bright ambient lighting conditions. Additionally, the display offers a contrast ratio of 100000:1, allowing for deep blacks and vibrant colors.

Fast Refresh Rate
With a fast refresh rate of 120Hz, the OLEDoS delivers smooth and fluid visuals. This high refresh rate reduces motion blur and enhances the overall viewing experience, making it ideal for applications that require quick response times.

Wide Color Gamut
The 0.32 OLED Display Screen boasts a wide color gamut, covering 92% of the DCI-P3 color space. This wide color gamut ensures that the display can accurately reproduce colors, resulting in vibrant and true-to-life visuals.

Versatile Interface Options
The OLEDoS Display offers versatile interface options, including MIPI and RGB. This flexibility allows for seamless integration into various devices and systems, making it a popular choice among manufacturers.
