Micro AR Display 0.49 inch 0.5 inch OLED Microdisplay 1600x1200 resolution 1000nits MIPI

Category： MICRODISPLAY
Size:0.5 inch OLED MicroDisplay
Resolution:1600(RGB)x1200
Brightness:1000cd/m2
Interface: MIPI+I2C
INQUIRY EMAIL

Product Details

The 0.5 inch Micor OLED Display is a coloful 1600*1200 AMOLED Grayscale micro display, with FHD 1600*1200 High resolution and high luminance level up 3000cd/m2, popular used in virtual devices such as AR Glasses and VR Headset, thanks to its micro Si-OLED (Silicon Organic Light Emitting Diode) technology, this micro screen is with very impact size, light weight and low power consumption, also applicable for the medical and military industry such as Head-mounted Displays (HMD),viewfinder,Head-Mounted Displays (HMD) etc.

0.5 inch Micro OLED Display parameter

0.5 inch Si-OLED micro display Parameter
Product Number:JKSY049WGM01
Display Type:Micro OLED
Resolution:1600 x 1200

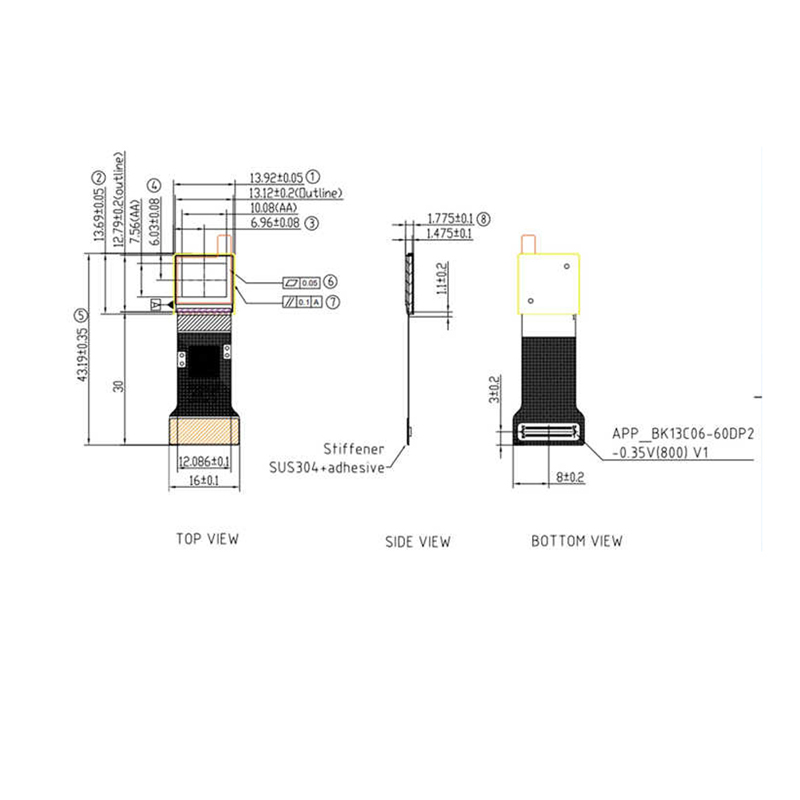

Screen Size:13.92mm x 13.69mm x 1.775mm
Active Area:10.08mm x 7.560mm/ 0.5" diagonal
Luminance(Brightness):1000nits(Typ.)
Color:Full RGB
Contrast Ratio:100,000:1
Interface:MIPI+I2C
Frame Rate:60Hz~120Hz
Operating Temperature:-20℃ to +70℃
Storage Temperature:-40℃ to +80℃
Plan:Mass Production
Application:AR VR devices, EVF, Night vision, sight...

0.5 inch Micro OLED 1000nits Features:

◆ High contrast
◆ Wide color reproduction range
◆ High-speed response
◆ Thin type and light weight
◆ Power saving function
◆ Up/down and/or right/left inverse display function
◆ Orbit supported

0.49" 1600x1200 Micro display Screen Applications:

AR/VR display, electronic viewfinder of digital camera/video camera；
Portable equipment such as miniature projectors, video glasses, 3D displays, head-mounted entertainment equipment,etc；
Security monitoring /military:individual helmet display, electronic sight, infrared night vision device,Thermal imager displays,electronic telescopes,flight helmets,gun sights,life detection video devices；
Medical and industrial:human and machine video engineering research, endoscope, portable B-ultrasound machine,Vision correction equipment,multi-scope,various portable inspection and testing equipment;
Aircraft model:aerial photography:remote control aircraft parameter display system:remote control car video display terminal:etc.
