0.39 inch OLED Microdisplay 1024x768 resolution 1000nits for electronic viewfinders

Category： MICRODISPLAY
Size:0.39 inch OLED Display
Resolution:1024(RGB)X768
Brightness:1000 cd/m2
Interface: parallel RGB 24-bit/YCbCr 16-bit input
INQUIRY EMAIL

Product Details

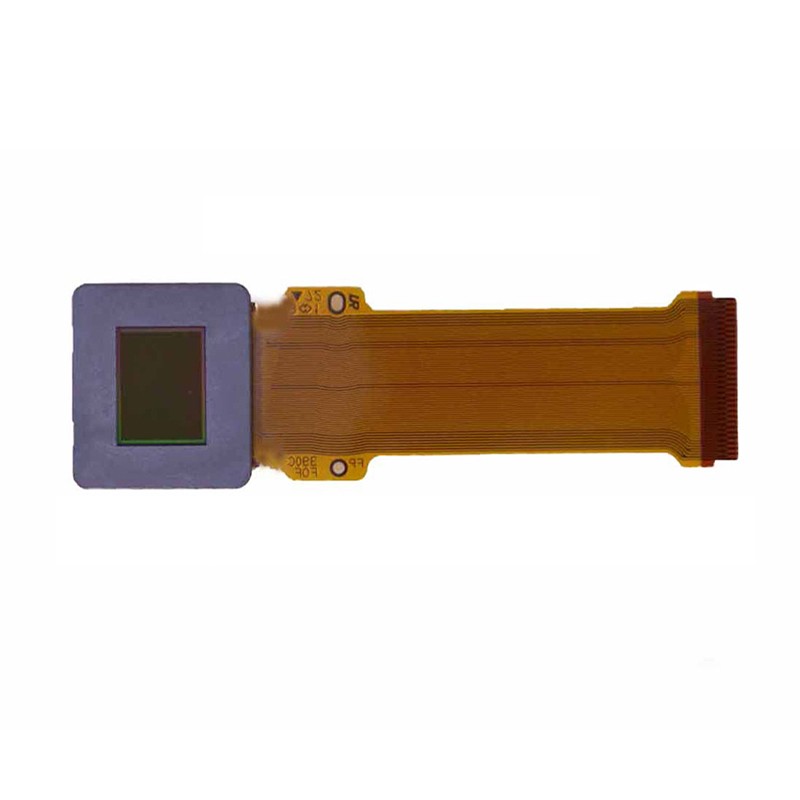

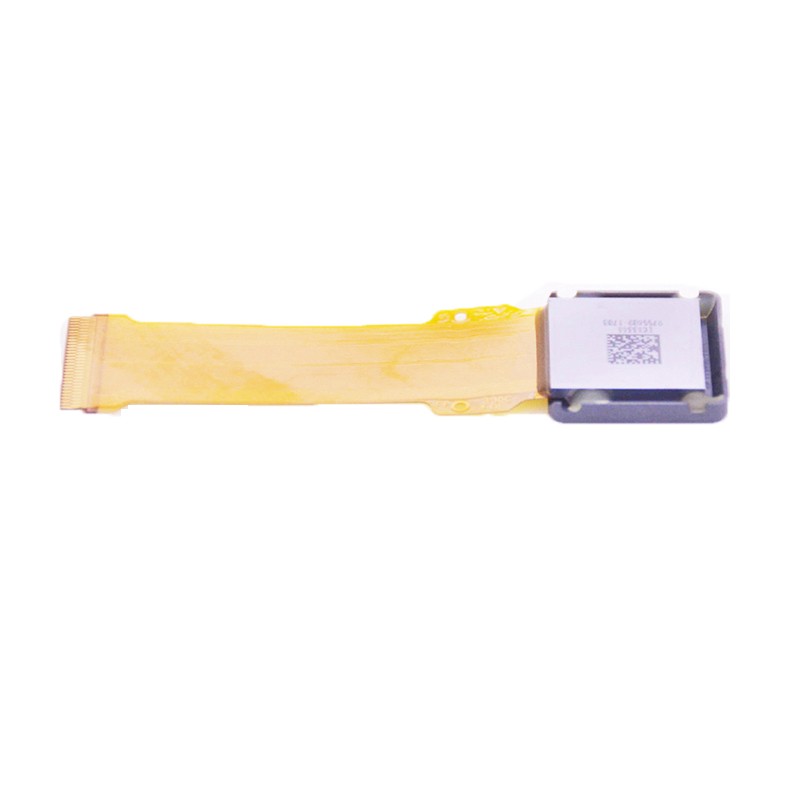

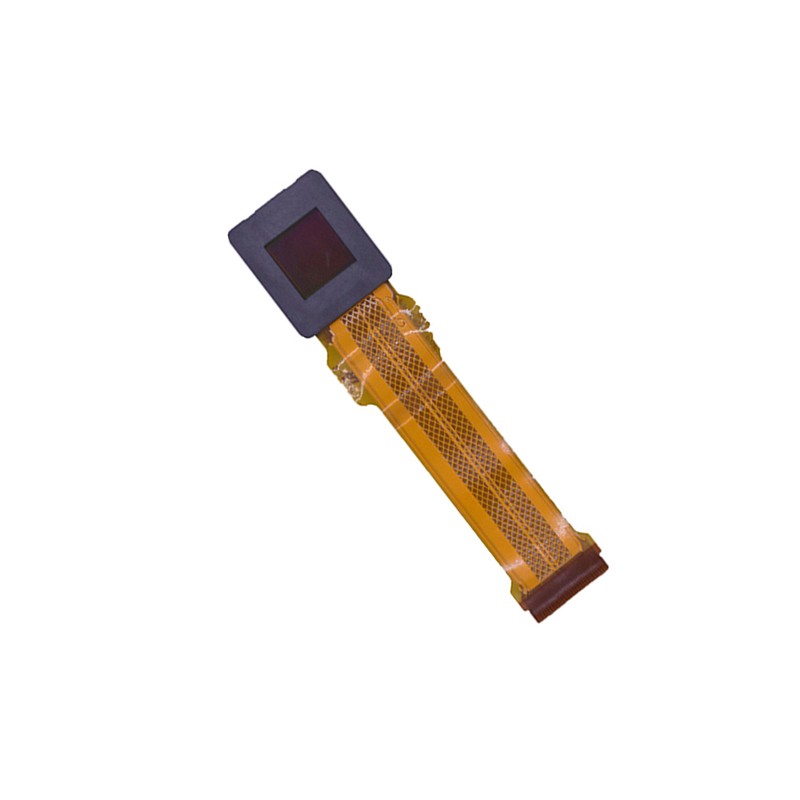

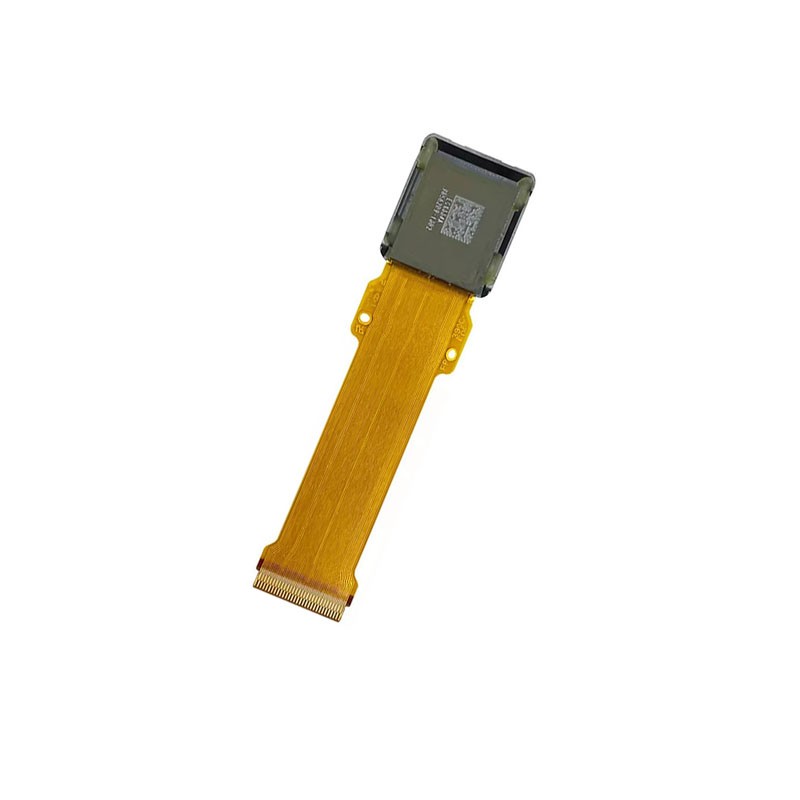

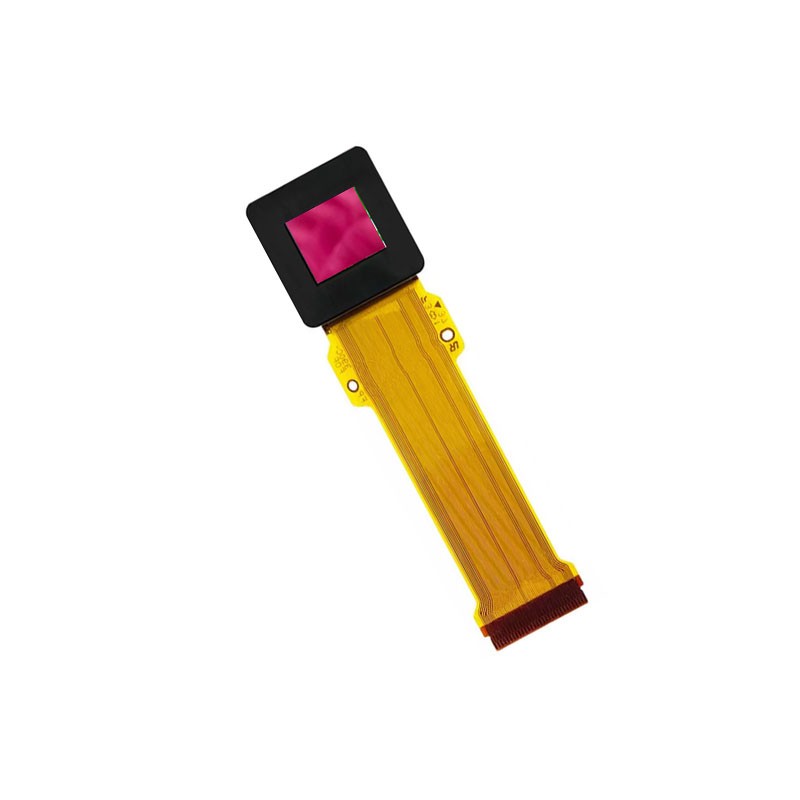

The 0.39"Micro OLED Display is a 1.0 cm (type 0.39) diagonal, 1024 (RGB) × 768 high-resolution color OLED panel module using single-crystal silicon transistors. This micro display incorporates panel driver and logic driver and to realizes features of small size, light weight and high definition.This microoled embeds low-latency video processing capabilities and manages look-up tables, is a key to guarantee high quality images. It is based on MICROOLED's proprietary OLED-on-CMOS technology featuring very high resolution at an extremely small footprint, low power consumption and excellent video picture quality.

**0.39" micro screen 1024*768 parameter**

Features	Specification	Unit
Display Type	OLED Display
Display Size(Diagonal)	0.39"	inch
Resolution	*1024(RGB)768**	Pixels
Display Color	Full color
Pin No	61P	cd/m2
Brightness	1000
Interface Type	parallel RGB 24-bit, YCbCr 24-bit and YCbCr 16-bit input

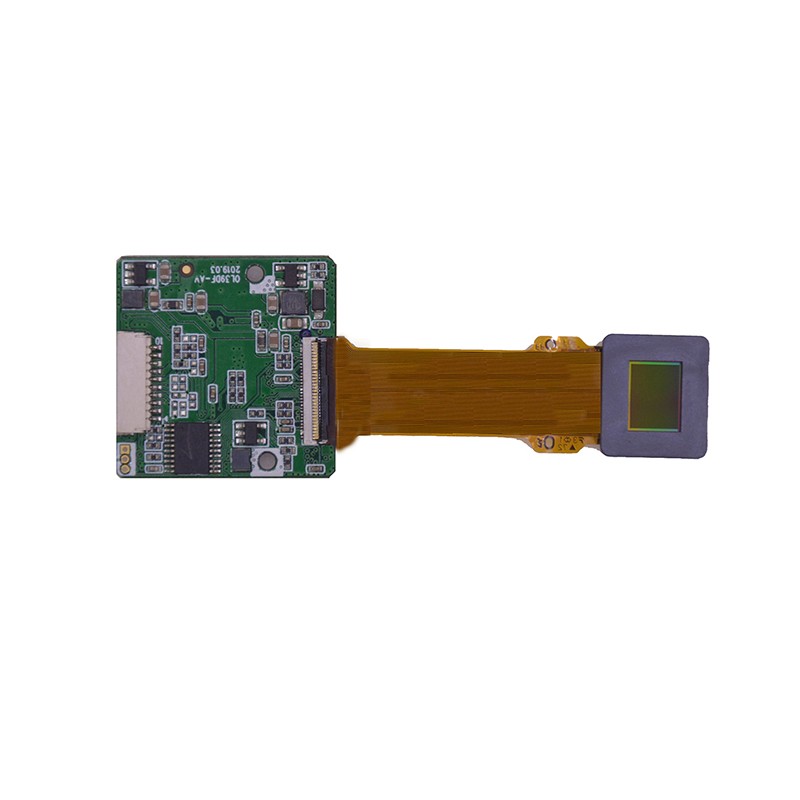

Driver Board Solution	HDMI PORT/CVBS/AV Board

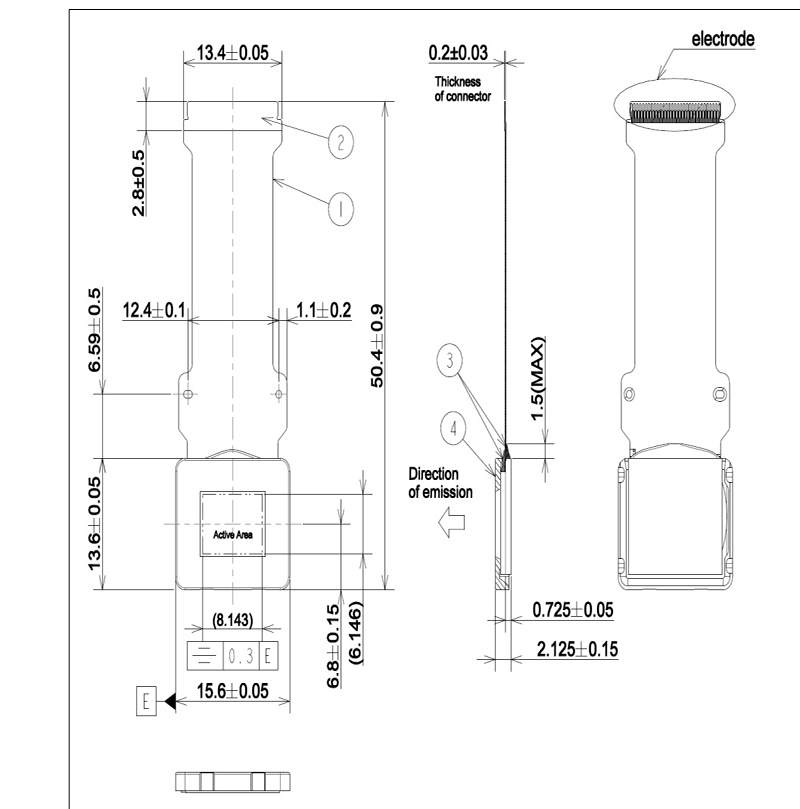

Panel Size	15.6 x 13.6 x 0.2	(mm)
Active Area	8.143 x 6.146	(mm)
Frame Rate	60 Hz
Contrast Ratio	100,000:1
Mass Production	Available
Operation Temperature	-10℃~70℃
Storage Temperature	-30℃~80℃

**0.39" micro screen 1024*768 Features**

◆ Small-size, high-definition-type 0.39 XGA display dots 1024 (RGB) × 768 = 2.38M dots
◆ High contrast
◆ Wide color reproduction range
◆ High-speed response
◆ Thin type and light weight
◆ Power-saving function
◆ Up/down and/or right/left inverse display function
◆ Orbit supported
◆ Input interface that supports parallel RGB 24-bit and YCbCr 16-bit input

Product Application:

AR/VR display, electronic viewfinder of digital camera/video camera；

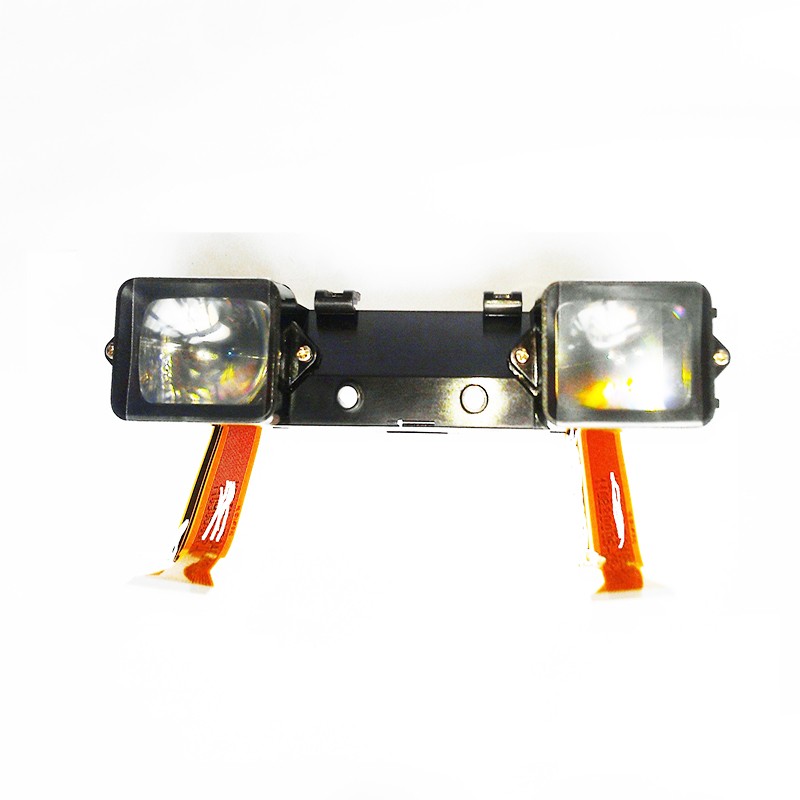

Portable equipment such as miniature projectors, video glasses, 3D displays, head-mounted entertainment equipment,etc；
Security monitoring /military:individual helmet display, electronic sight, infrared night vision device,Thermal imager displays,electronic telescopes,flight helmets,gun sights,life detection video devices；
Medical and industrial:human and machine video engineering research, endoscope, portable B-ultrasound machine,Vision correction equipment,multi-scope,various portable inspection and testing equipment;
Aircraft model:aerial photography:remote control aircraft parameter display system:remote control car video display terminal:etc.
