sony 0.5 INCH OLED MICRODISPLAY 1024X768 RESOLUTION RGB FOR GUN SIGHTS

Category： MICRODISPLAY
Size:0.5 inch OLED Display
Resolution:1024(RGB)X768
Brightness:500 cd/m2
Interface: parallel RGB 24-bit/YCbCr 16-bit input
INQUIRY EMAIL

Product Details

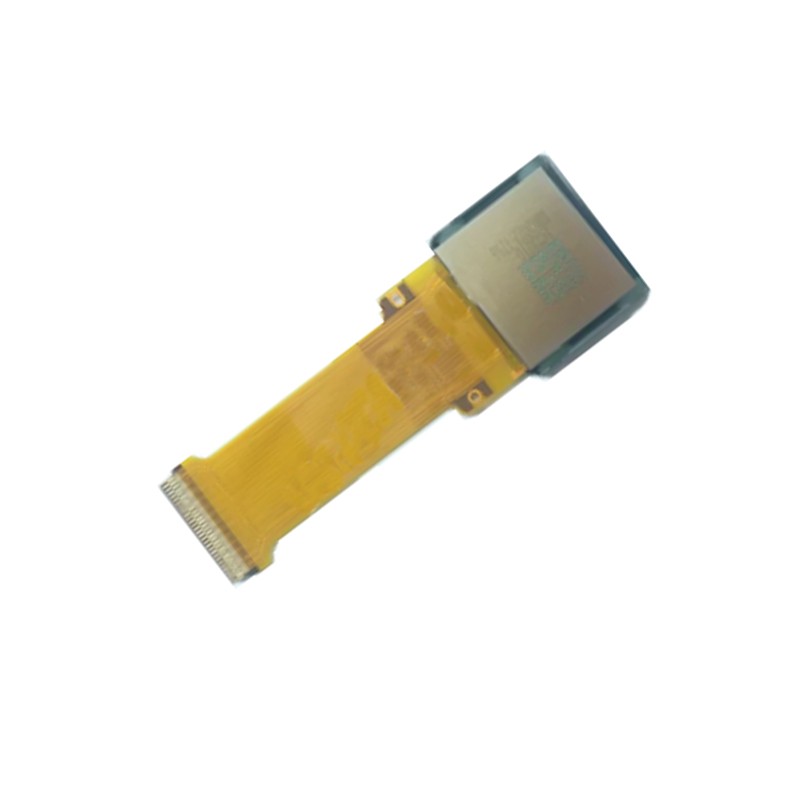

This Microdisplay is a 1.3 cm (0.5 type) 0.5 inch in diagonal active matrix color OLED panel module that uses single crystal silicon transistor. this 0.5 inch oled micro display is with a high-resolution of 1024x768 pixels and a 500cd/m2 high luminace. The panel adopts panel drive and logic drive to achieve small size, light weight and high definition. It enables NTSC/PAL progressive system of full color display.

Application: HMD,AR (augmented reality) ,VR (virtual reality) glasses,viewfinder, video glasses, head-mounted display, Night Vision,etc.

Parameter for the 0.5" 1280x960 Micro screen

Features	Specification	Unit
Display Type	OLED Display
Display Size(Diagonal)	0.5"	inch
Resolution	*1024(RGB)768**	Pixels
Display Color	Full color
Pin No	61P	cd/m2
Brightness	500
Interface Type	parallel RGB 24-bit, YCbCr 24-bit and YCbCr 16-bit input

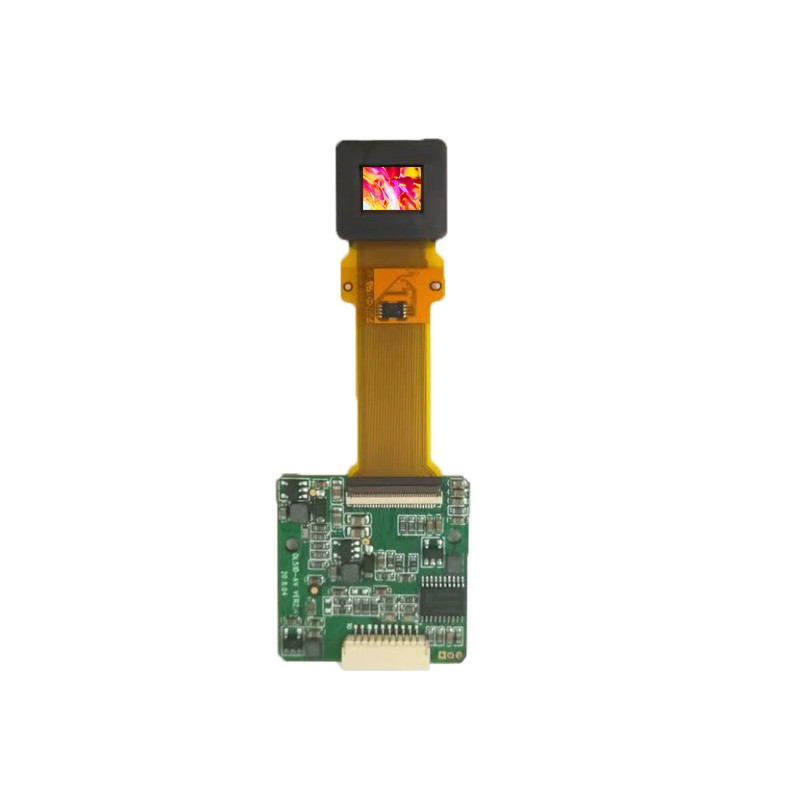

Driver Board Solution	HDMI PORT/CVBS/AV Board

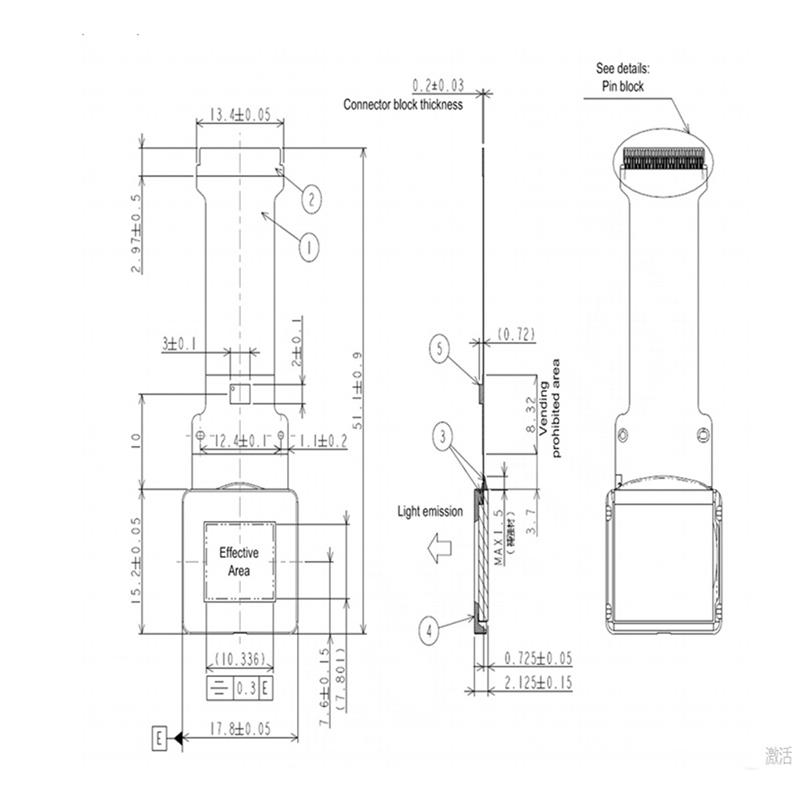

Panel Size	10.14(H) × 7.644(V)	(mm)
Active Area	8.143x 6.146	(mm)
Frame Rate	60Hz
Contrast Ratio	100,000:1
Mass Production	Available
Operation Temperature	-10℃~70℃
Storage Temperature	-30℃~80℃

Applications:

1. Electronic viewfinder for AR/VR display and digital camera/video camera

2. Portable civil equipment such as micro-projector, video glasses, 3D display, headwear entertainment equipment, etc

3. Security monitoring, military use: individual helmet display, electronic sight, infrared night vision

Thermal imager display, electronic telescope, flight helmet, gun sight, life detection video device

4. Medical and industrial use: human and machine visual engineering research, endoscope, portable B-ultrasound machine,

Vision correction equipment, magnifying glass, various portable inspection and detection equipment

5. Aircraft model: aerial photography, remote control aircraft parameter display system, remote control vehicle video display terminal, etc

Features of 0.5 Inch 1024x768 Micro OLED Display

Small size high definition type 0.5 display dots: 1024 (RGB) 768 = 2.36 M dots
High contrast
Wide color reproduction range
High-speed response
Thin type and light weight
Power saving function
Up/down and/or right/left inverse display function
Orbit supported
Element Structure
Active matrix color OLED display element with on-chip driver using single crystal silicon transistors.
