Product Details

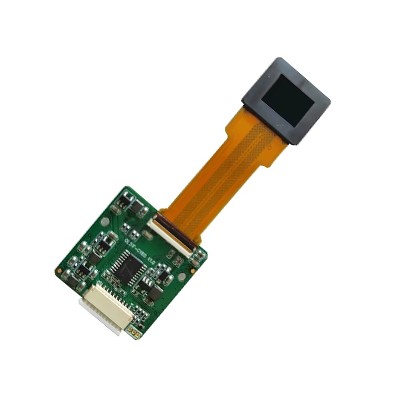

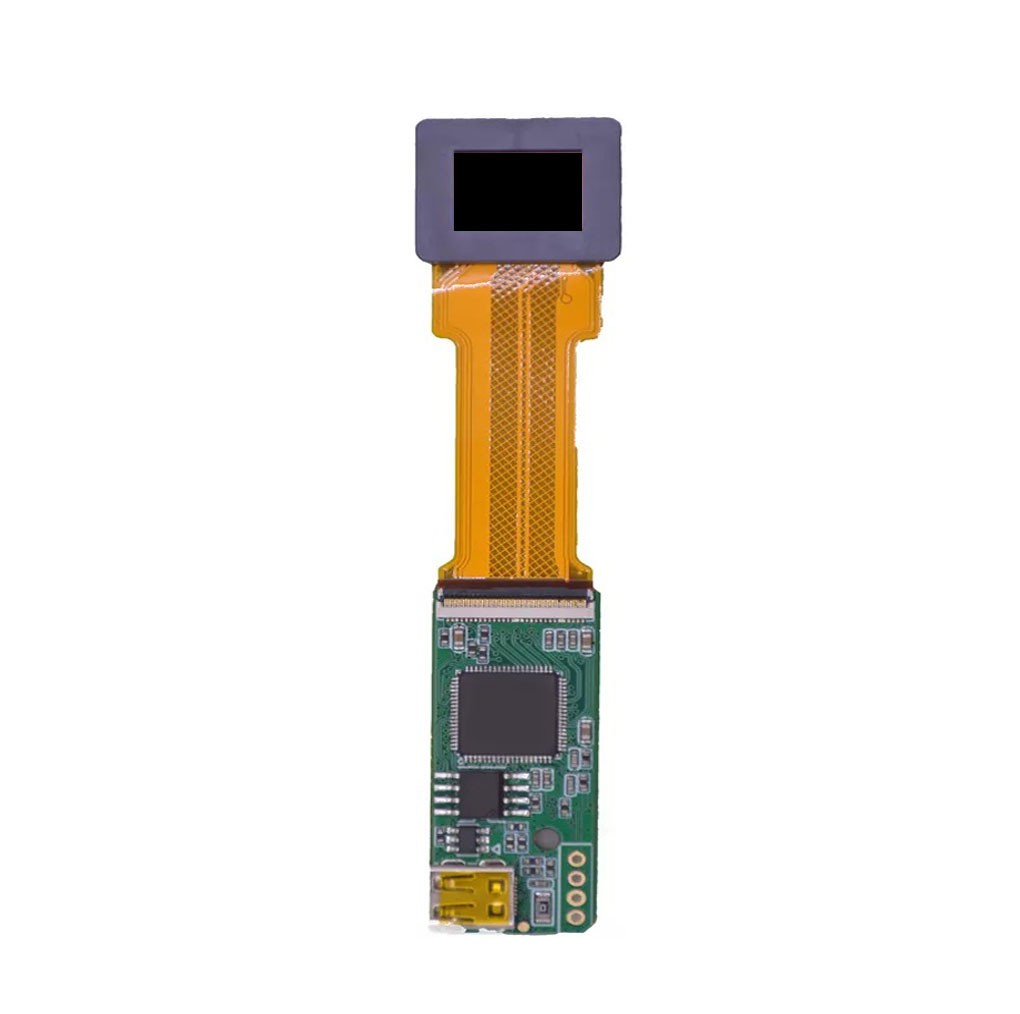

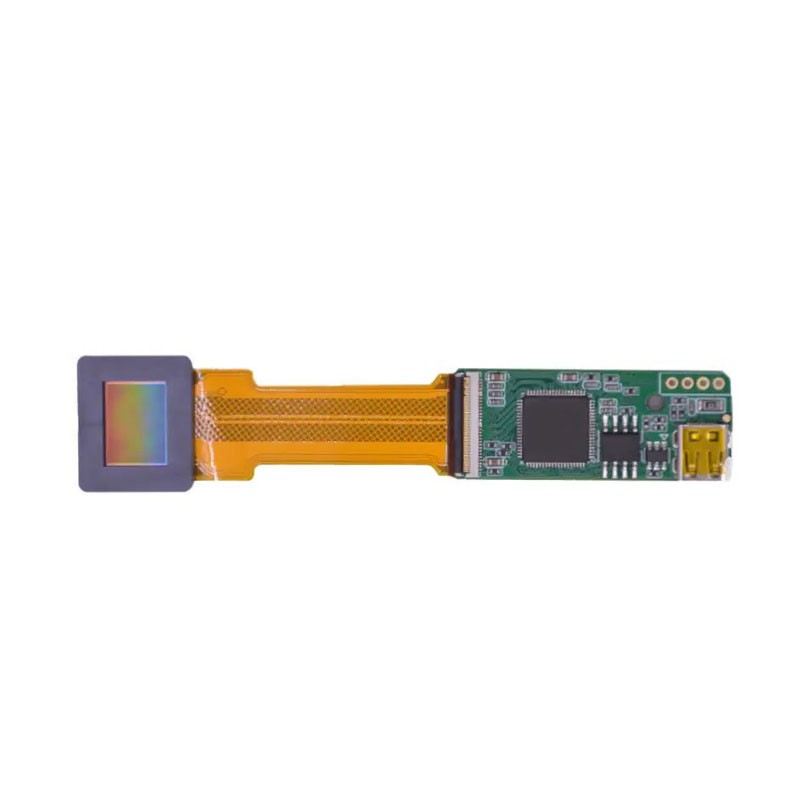

Sony ECX337A  0.5"Micro OLED Display is a 1.3 cm (0.5 inch) diagonal, with a high resolution of 1280(RGB) × 960 pixeles active matrixthis and high luminance up 1000cd/m2 in Max, this microoled is based on single crystal silicon transistors and make the display module integrates panel driver and logic driver, that have this micro display achieves various features of smaller size, light in weight and high resolution. what's more, this micro-oled display can be equipped with HDMI or AV interface driver board,can be applied to AR (Augmented Reality), VR (Virtual Reality), video glasses, night vision, infrared thermal imaging, 3D display, handheld display, head Wear entertainment equipment, etc.

Parameter for the 0.5" 1280x960 Micro screen

Features	Specification	Unit
Display Type	OLED Display
Display Size(Diagonal)	0.5"	inch
Resolution	1280(RGB)*960	Pixels
Display Color	Full color
Pin No	61P	cd/m2
Brightness	1000
Interface Type	parallel RGB 24-bit, YCbCr 24-bit and YCbCr 16-bit input

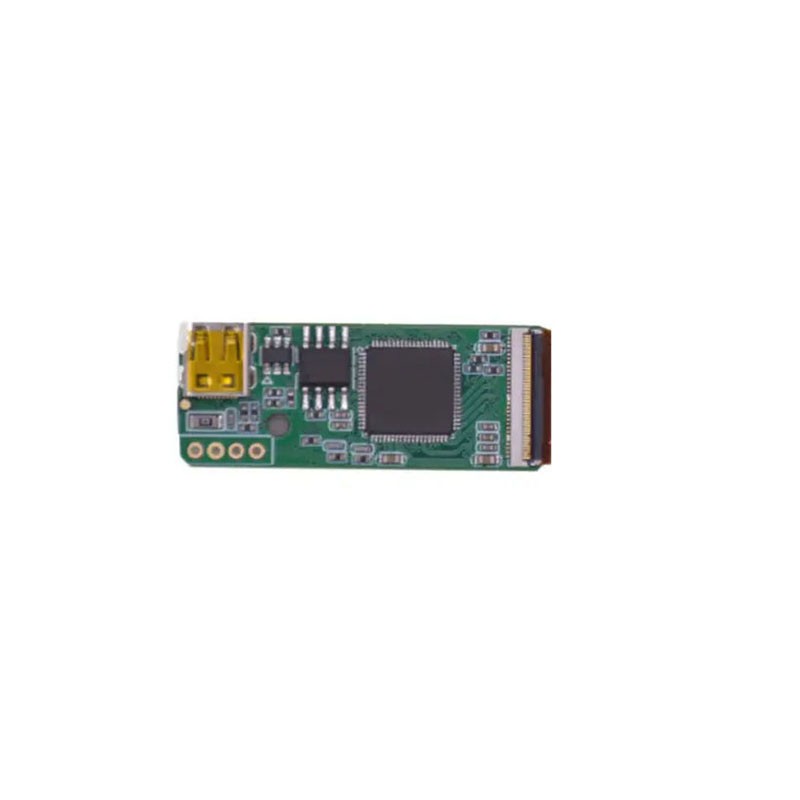

Driver Board Solution	HDMI PORT/CVBS/AV Board
Panel Size	17.8(H) × 15.2(V)	(mm)
Active Area	10.14(H) × 7.644(V)	(mm)
Frame Rate	60Hz
Contrast Ratio	100,000:1
Mass Production	Available
Operation Temperature	-10℃~70℃
Storage Temperature	-30℃~80℃

Applications fields of the 0.5" micro oled screen

◆Portable civil equipment, such as helmet display, head-up display, video glasses, 3D display, head-mounted entertainment
equipment, etc.

◆AR/VR display, electronic viewfinder of digital camera/video camera.
◆Security monitoring and military use: individual soldier helmet display, scope, infrared night vision device, thermal imager
display, gun sight, life detection video device.
◆Aircraft model: aerial photography, remote control aircraft parameter display system, remote control car video display
terminal, etc.Head-mounted Displays, Viewfinders, Small Display,AR VR etc.

◆Medical and industrial uses: human and machine video engineering research, endoscopes, portable B-ultrasound machines, vision
correction equipment, mirrors, and various portable inspection and testing equipment.

Features of 0.5" micro screen 1280x960

◆Small size, high resolution
◆High contrast
◆Wide color gamut
◆Quick response
◆Thin and light
◆Power saving (PS) mode
◆Mini Screen Size: 0.5 inch
◆◆High Resolution OLED Panel:1280x960
◆Brand: Sony
◆Refresh Rate: 60Hz

◆High brightness: 1000cd/m2

Dimensions

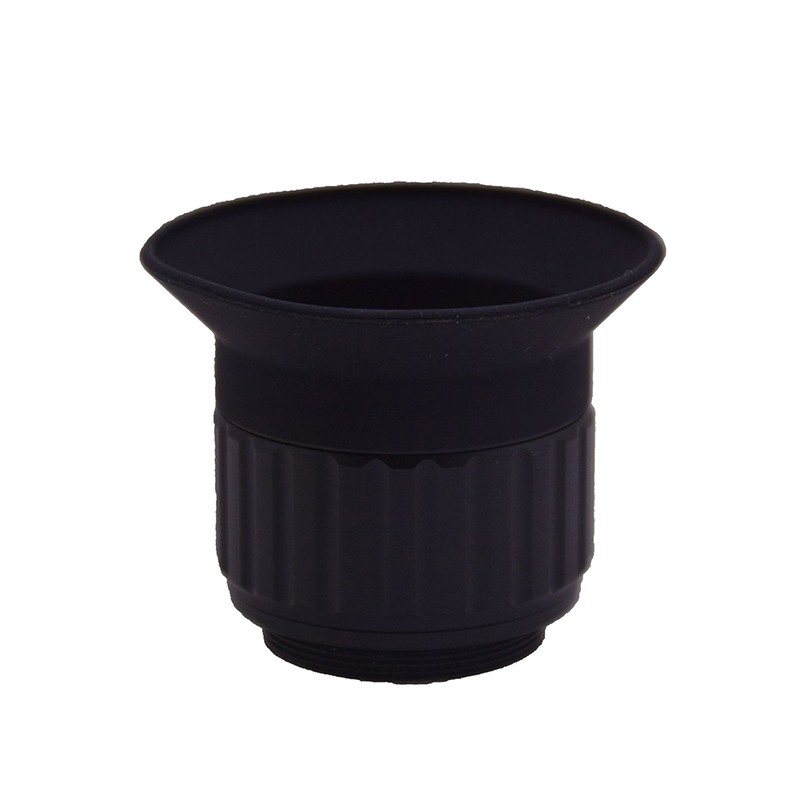

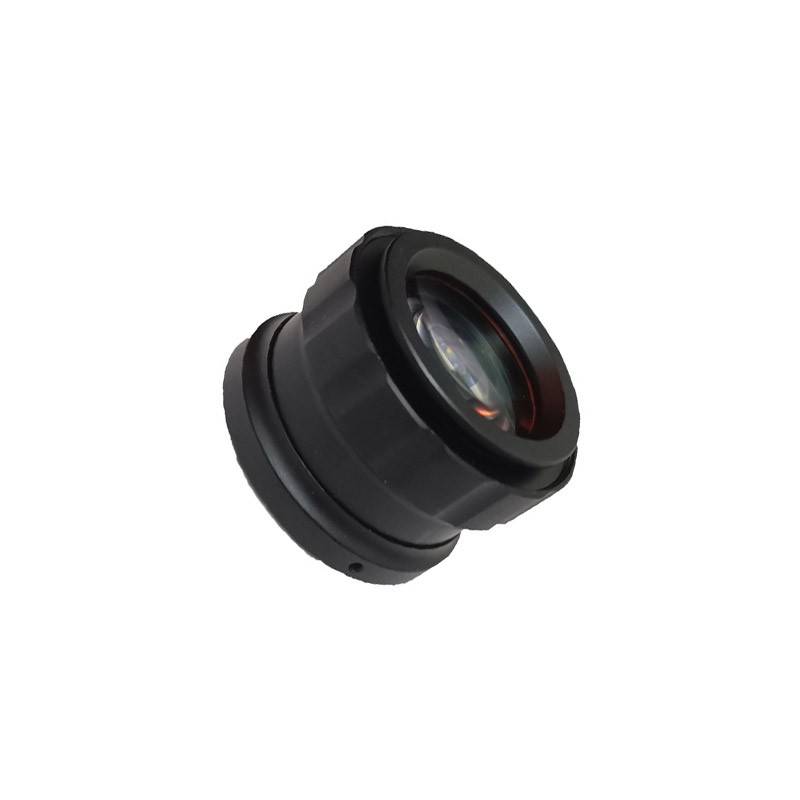

Magnifition optical optics

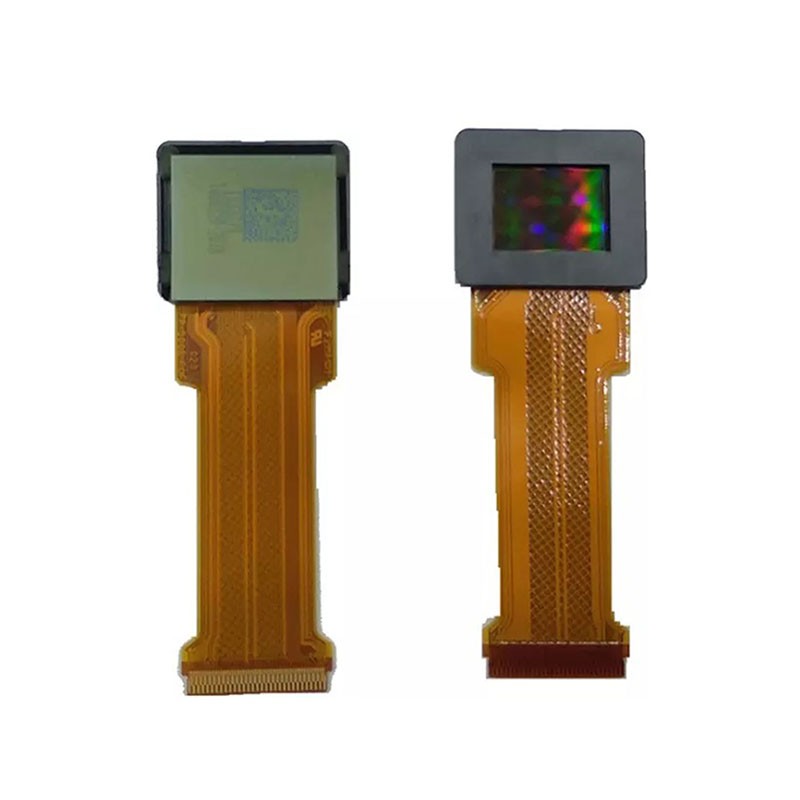

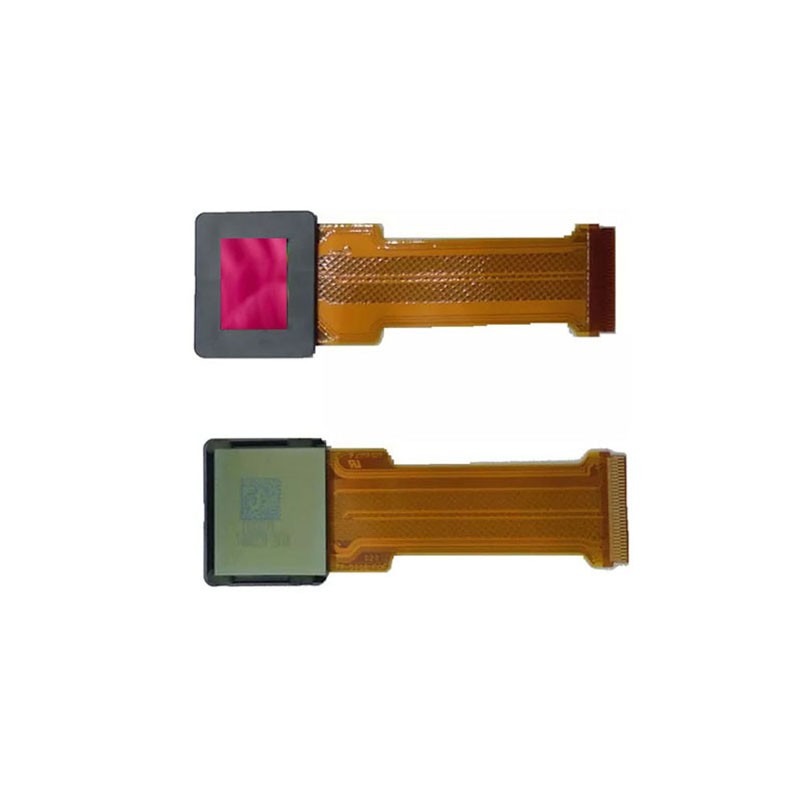

0.5" Micro oled screen
