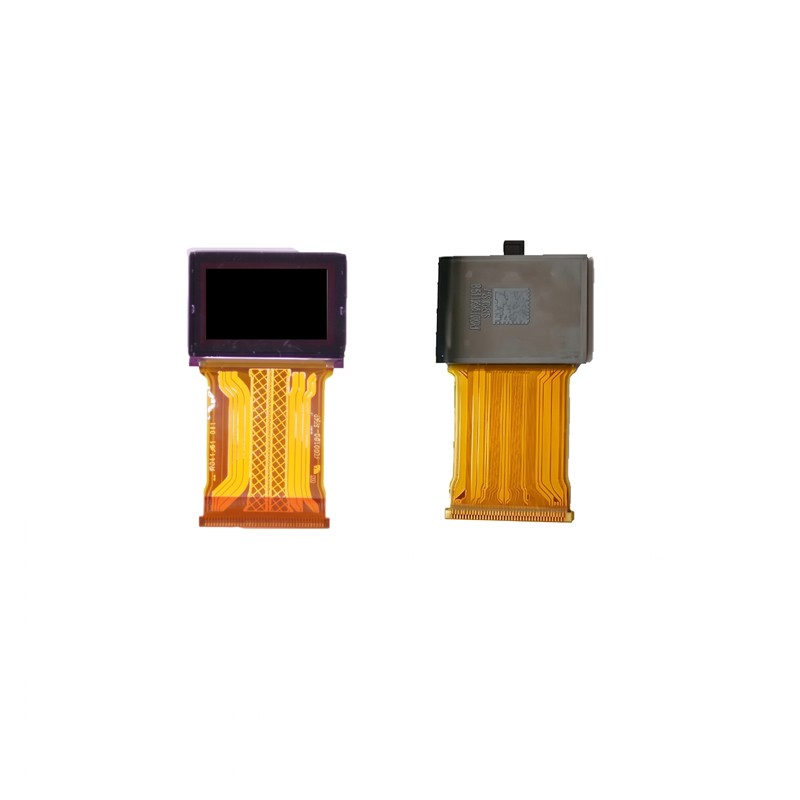

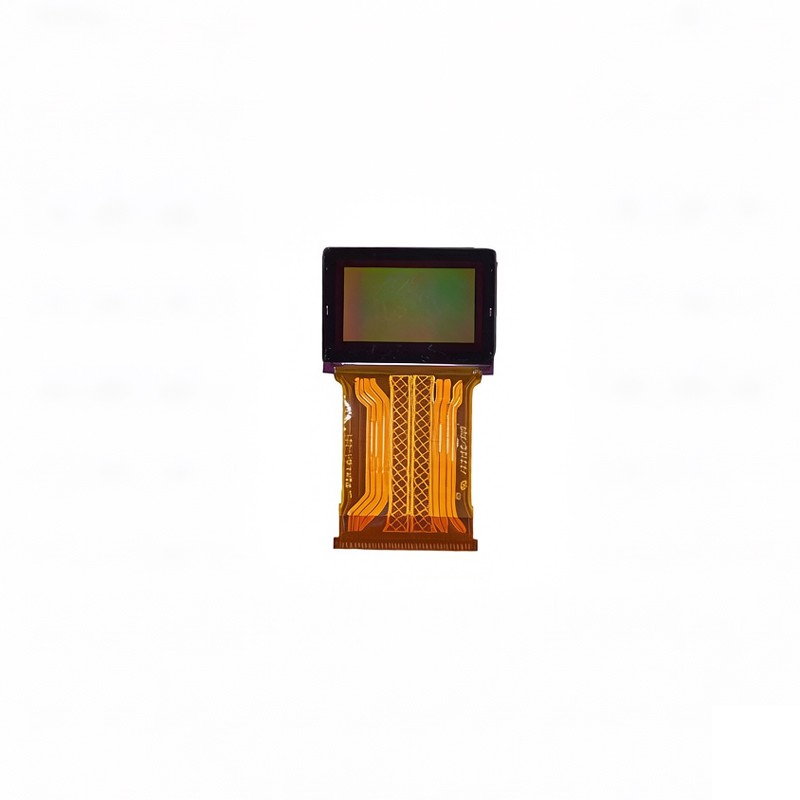

0.71 inch 1080P Binocular Micro OLED Display Module Dual HDMI

0.71 inch High Brightness Microdisplay 1920x1080 Micro-OLED Binocular Display -LVDS,Dual HDMI Board

This 3000 nits 0.71-inch Micro OLED display module with high-resolution 1920x1080 pixels, comes complete with a dedicated HDMI controller board capable of running two screens simultaneously.the VR display Module provides exceptional visual clarity even under challenging lighting conditions. It is the ideal plug-and-play kit for smart glasses, EVF, and near-eye display systems.

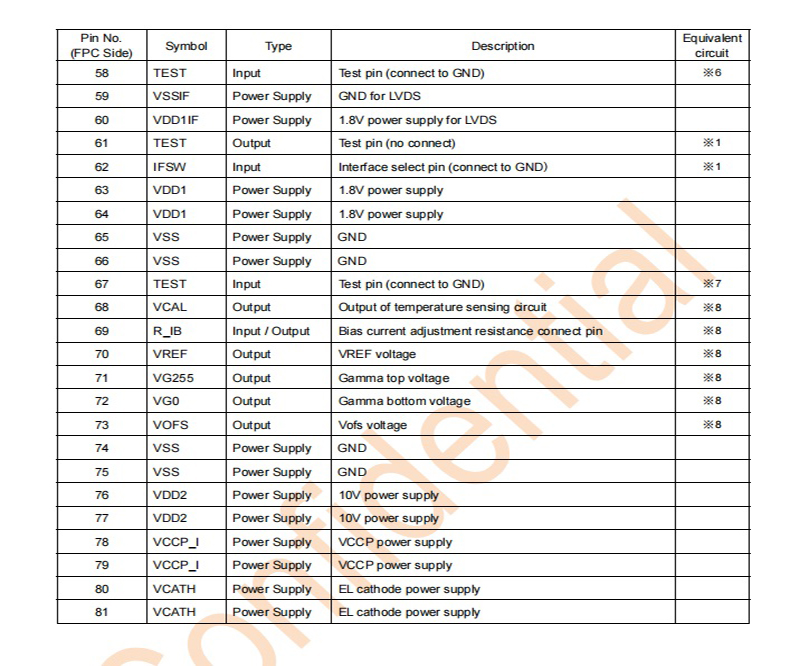

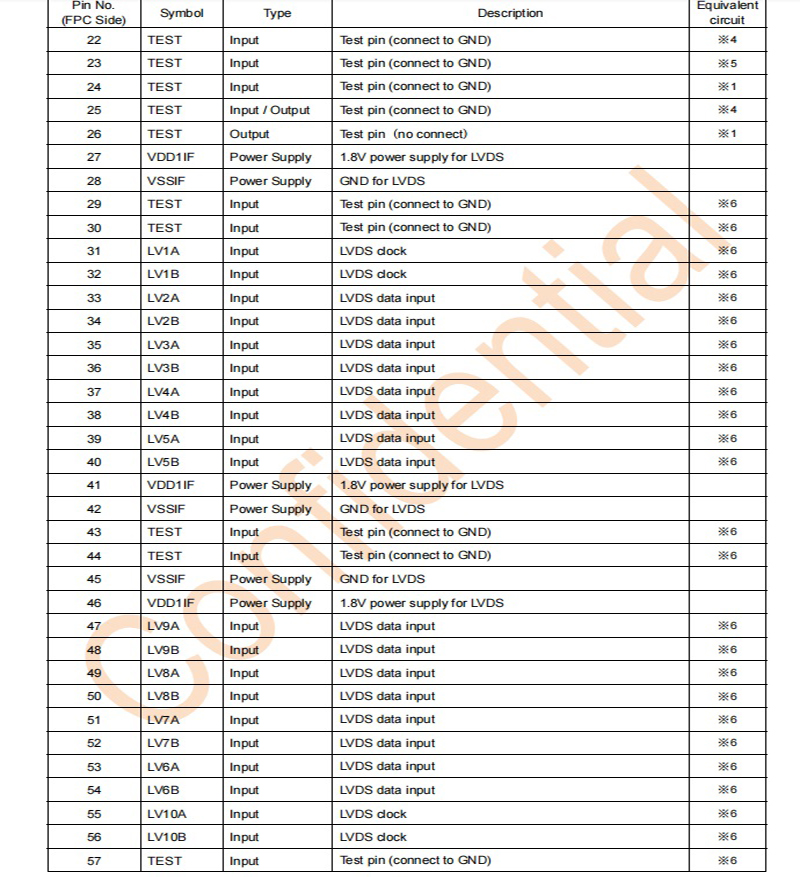

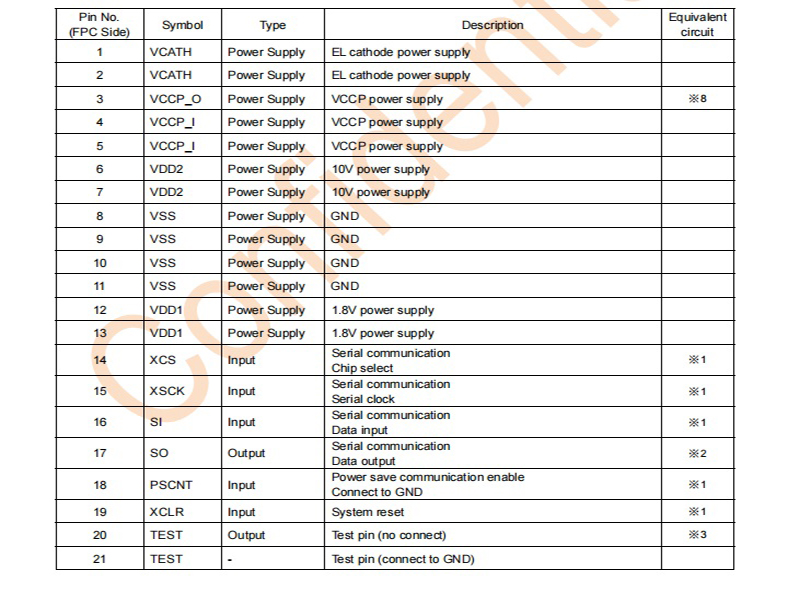

Technical Parameter

1080P Micro OLED Binocular Display Application

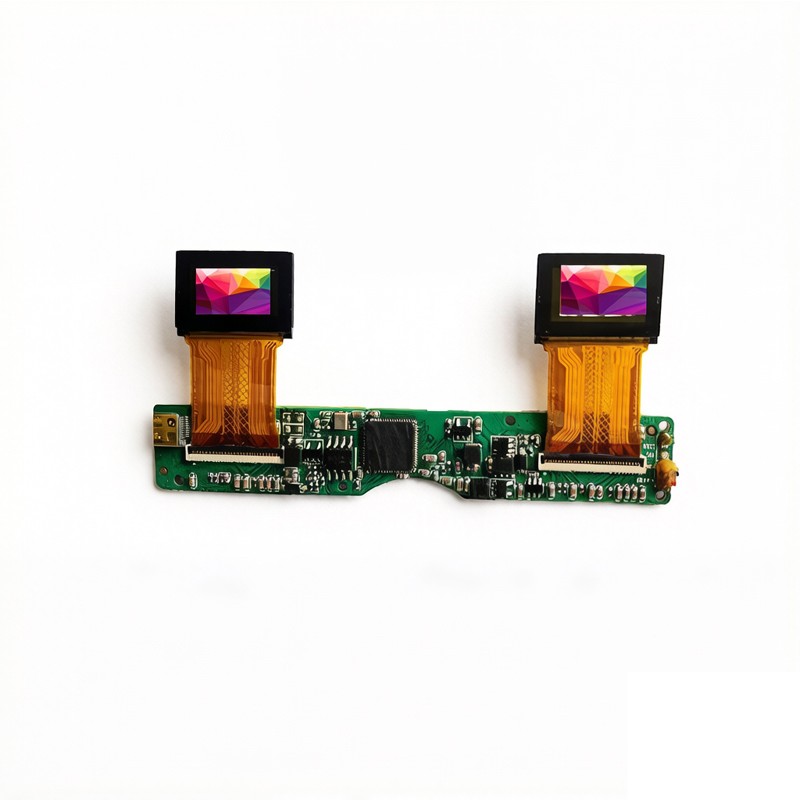

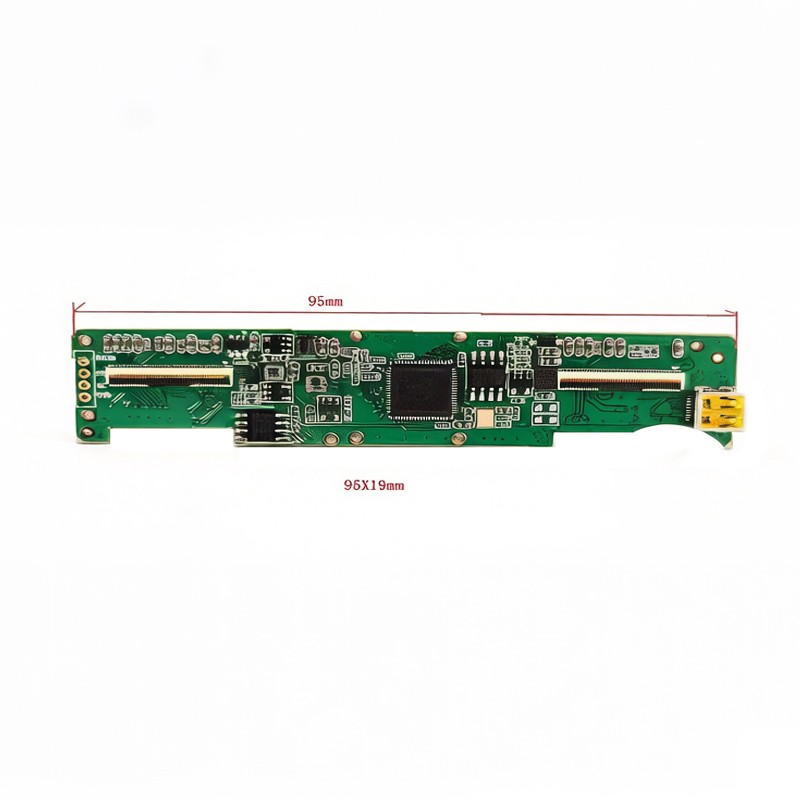

• Complete Turn-key Kit: Seamlessly drives two 0.71" Micro OLED displays with a single HDMI controller board.
• Fast Response Speed & Low Latency: Prevents motion sickness in high-speed head-tracking environments.
• Flexible Image Adjustment:Supports scan direction selection (up/down and right/left) and orbit function.

3000 nits Sunlight Readable High-Brightness Screen

• Ultra-High Brightness: 3000 cd/m² (nits) provides excellent sunlight readability and counteracts optical engine light loss.
• Crisp 1080p FHD Resolution: 1920 (RGB) × 1080 dots deliver stunning, high-definition near-eye visual effects.
• High Contrast & Rich Color Gamut: Offers deep blacks and wide color saturation for immersive viewing.

Low Power Consumption & Compact Design

• Lightweight & Thin Panel: Perfect for portable, battery-powered wearable smart glasses.
• Power Saving (PS) Function: Built-in power optimization to extend device operation time.

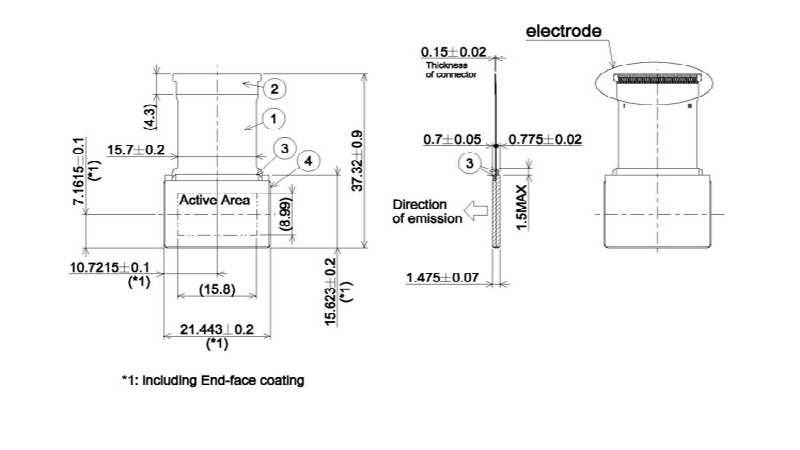

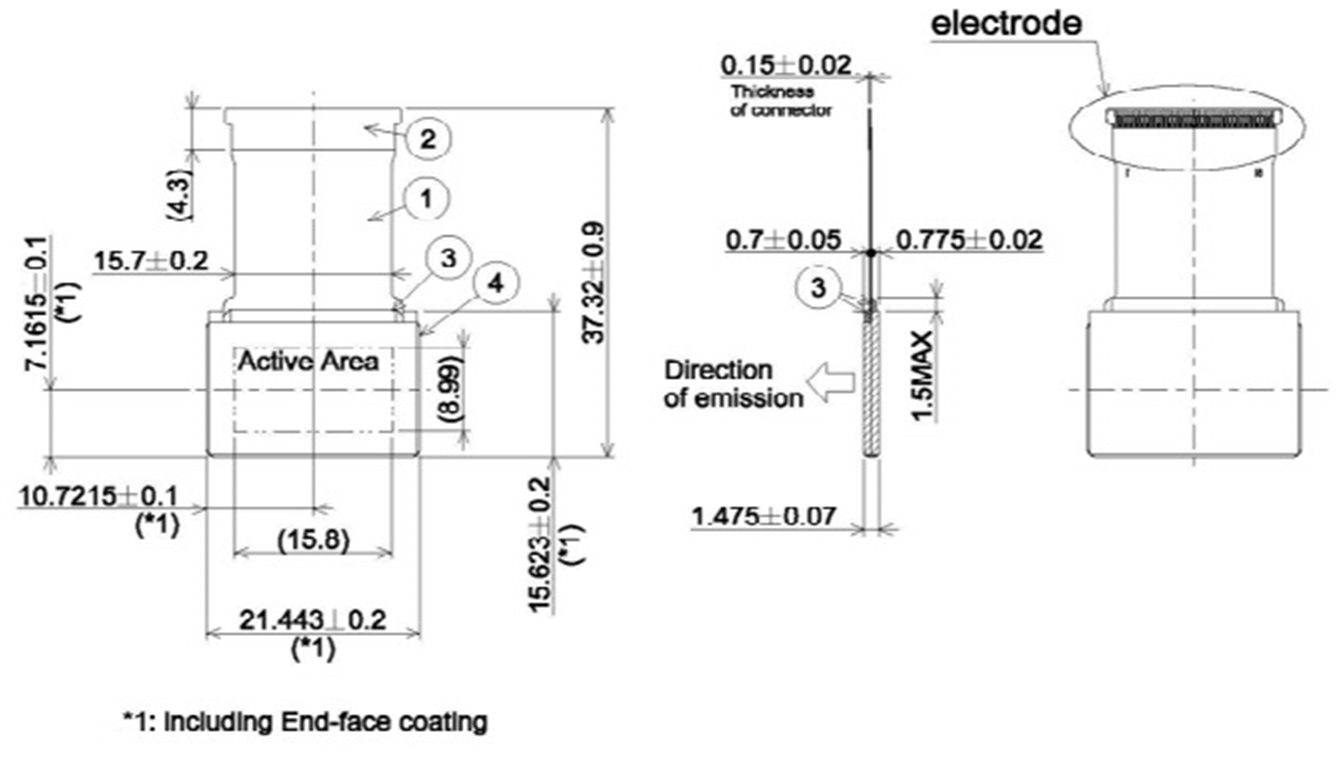

0.71 Micro OLED Display Dimension

Technical Sources

0.71 inch Micro OLED Display Module data sheet
10X Magnifying Prism Datasheet
