0.71 inch 1080P Micro OLED Display 3000nits with HDMI Board

0.71 Inch 1920x1080 Microoled 3000 Nits Micro Near Eye Display -LVDS

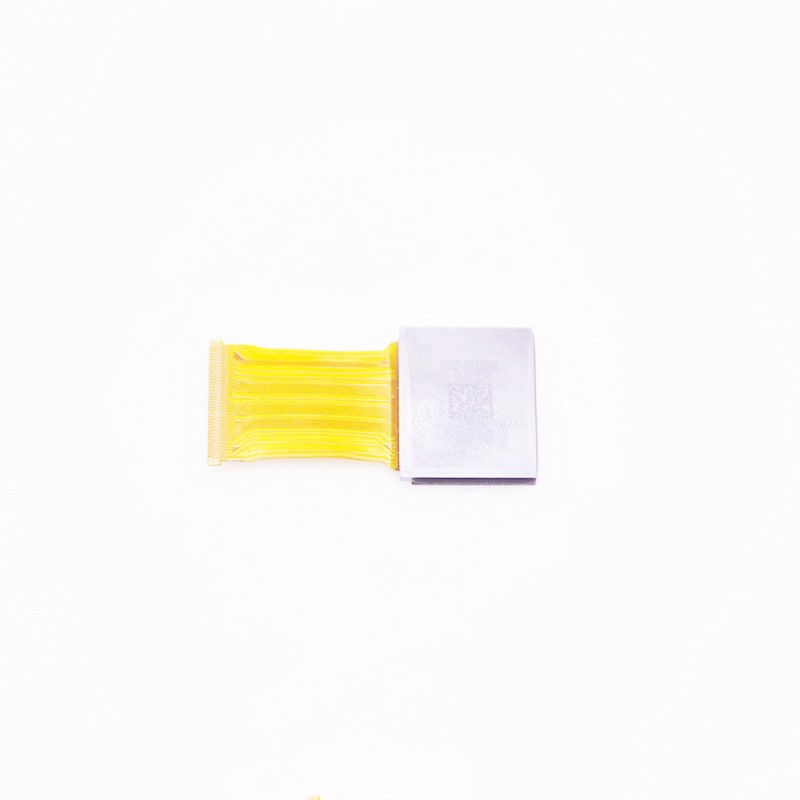

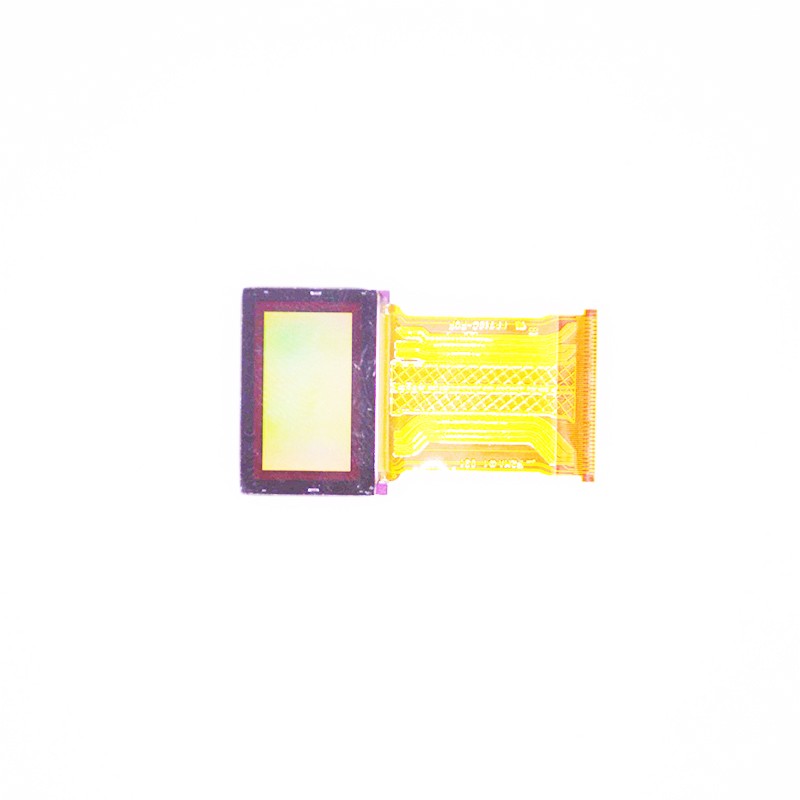

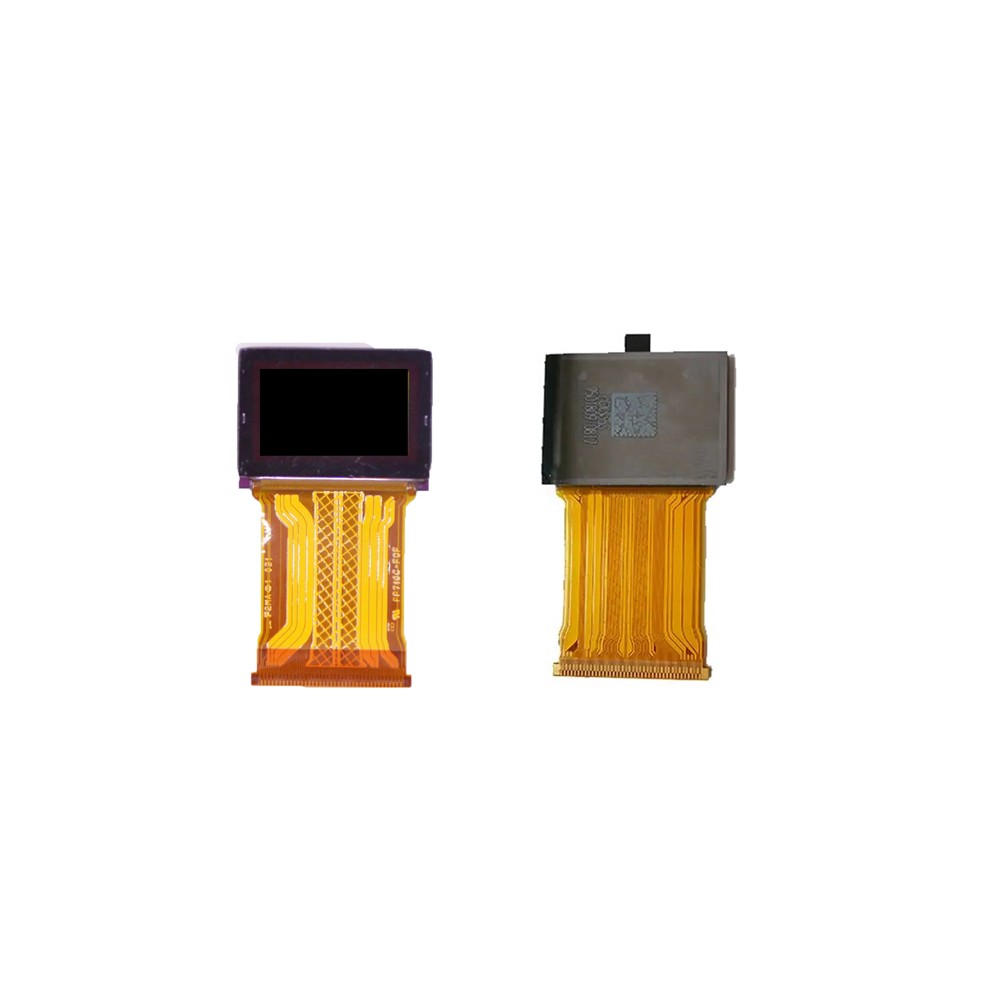

This 0.71-inch Micro OLED display module is an original Sony ECX335SN active matrix color OLED panel, featuring high resolution of 1920x1080 Full HD resolution and an ultra-high brightness of 3000 nits, it delivers stunning, daylight-readable visuals.this 1080P OLED Microdisplay is designed for versatility,comes with a native high-speed LVDS interface and an optional plug-and-play HDMI conversion driver board, perfect all-in-one display kit for industrial embedded systems, advanced AR/VR headsets, and military-grade optical equipment.

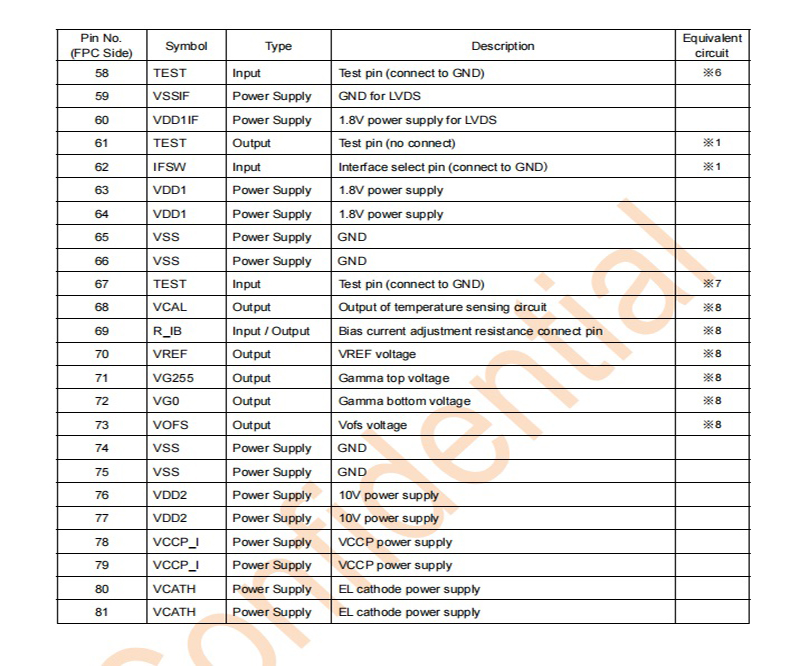

Technical Specifications of 0.71" OLED Microdisplay

Why Choose this 0.71"1080 Microdisplay Panel

• Premium Sony ECX335SN Panel

Leverages Sony's cutting-edge OLED technology to deliver an infinite contrast ratio, wide color gamut, and ultra-fast microsecond response times.

• Dual Interface Flexibility

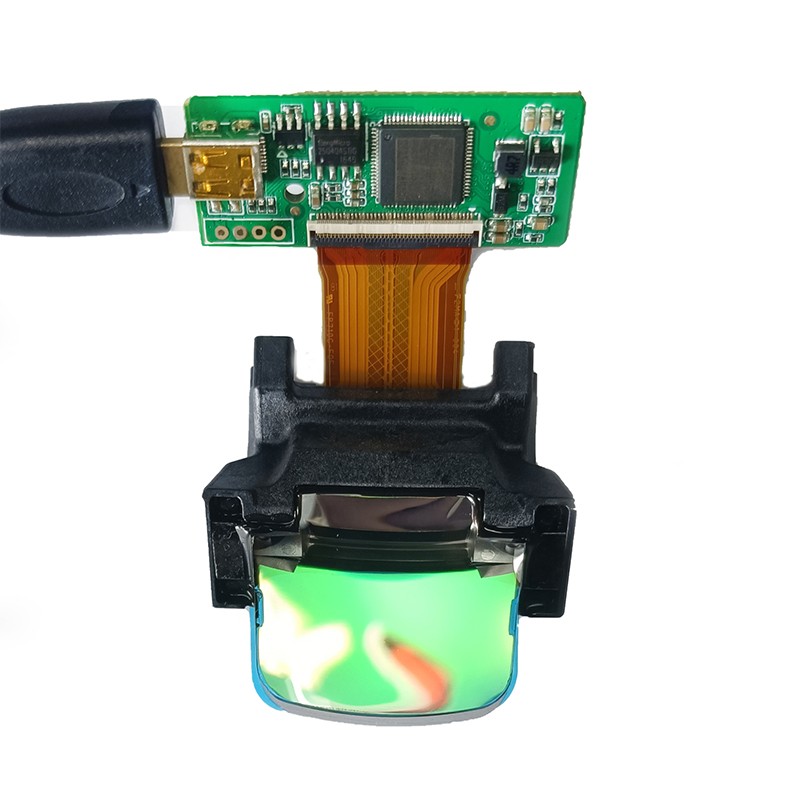

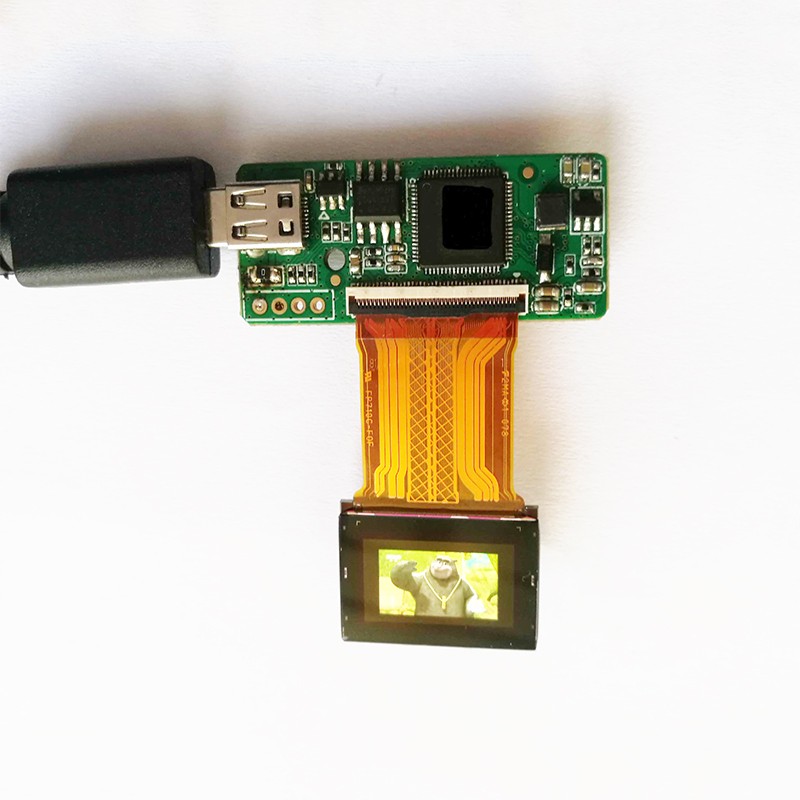

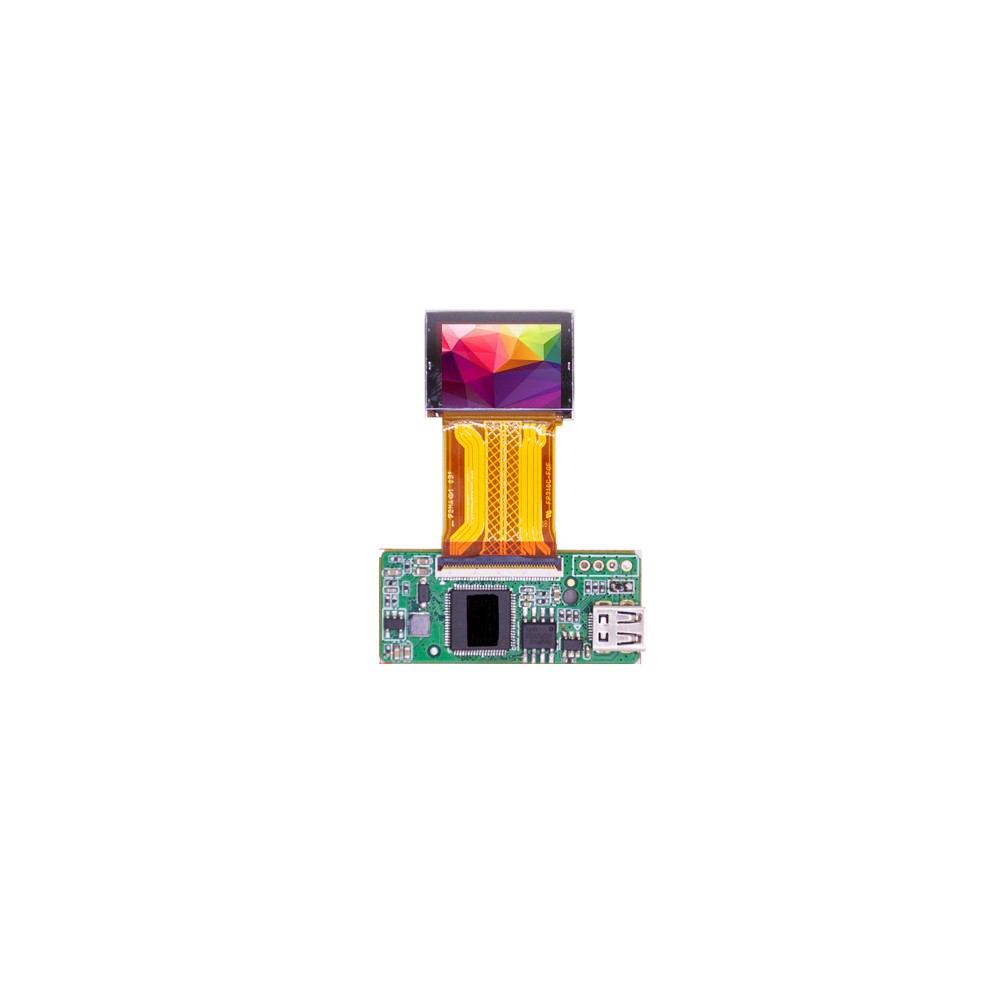

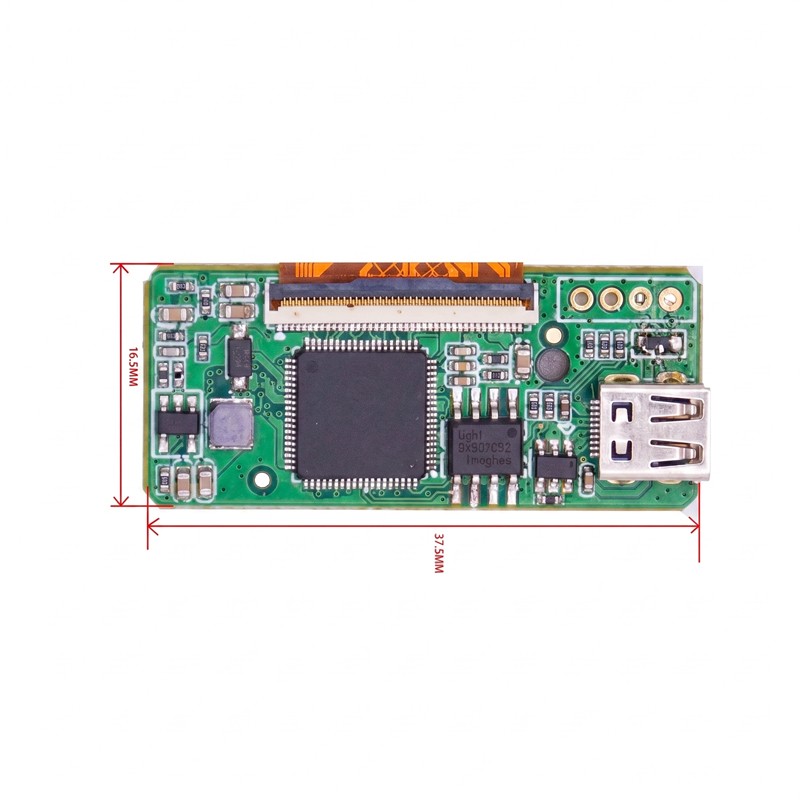

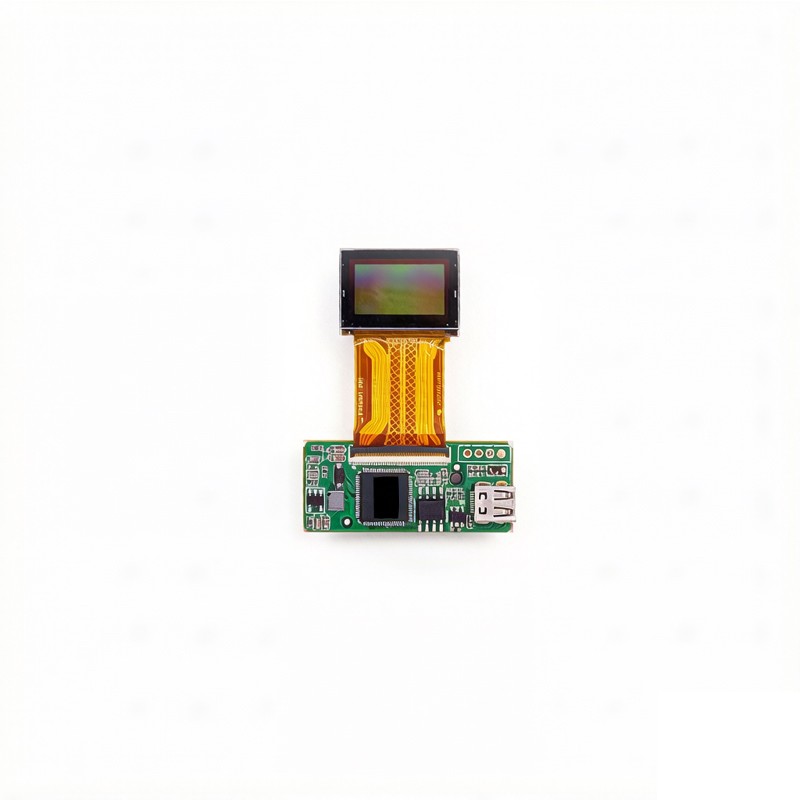

Use the native LVDS interface for direct integration into your custom motherboard or system. Alternatively, connect our compact HDMI controller board for instant plug-and-play functionality with PCs, Raspberry Pi, or drone receivers.

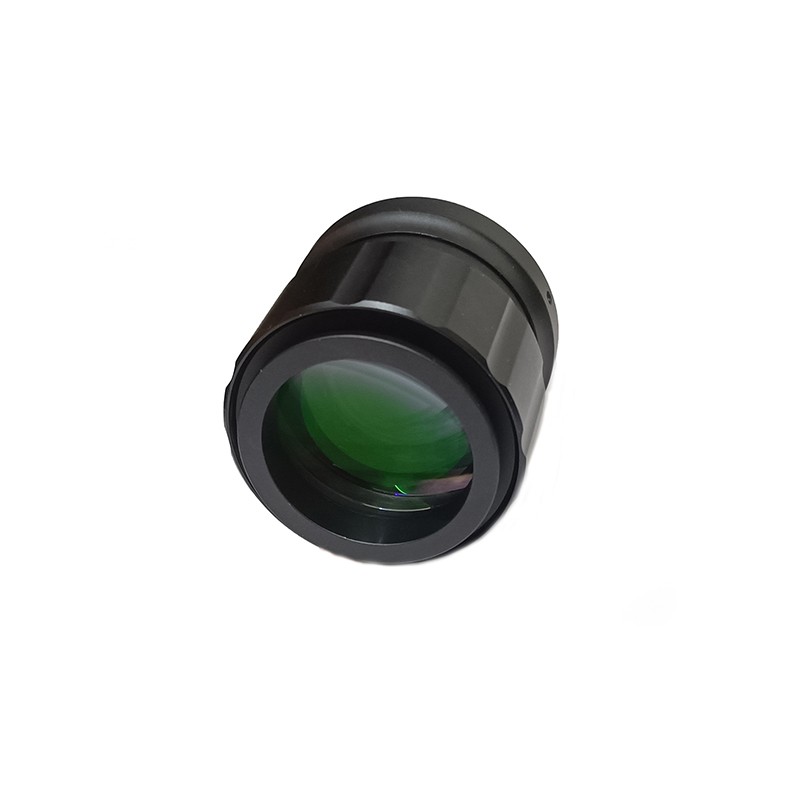

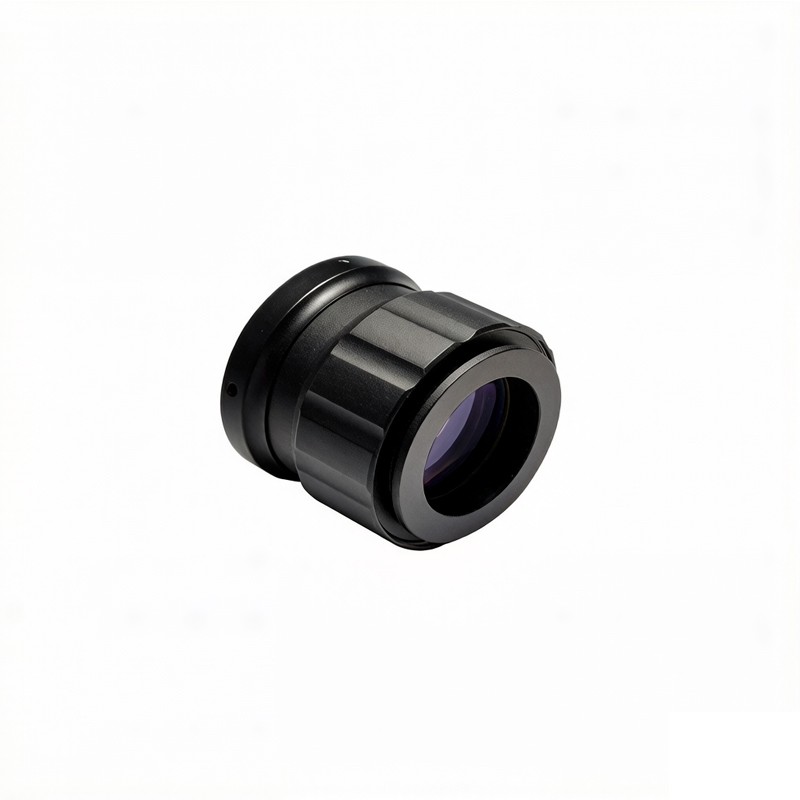

• Integrated Optical Prism

Equipped with a professional magnifying optical lens assembly, ensuring optimal eye relief and a perfectly focused, comfortable virtual viewing experience.

• Sunlight-Readable 3000 Nits

Industrial-grade high brightness ensures vivid, clear display performance even under harsh outdoor ambient light or inside high-end helmet HUDs.

• Ultra-Compact & Low Power

Lightweight architecture with minimal power consumption, tailormade for portable, wearable, and battery-powered electronics.

Wide Applications

Our 0.71" Micro OLED module bridges the gap between industrial reliability and rapid DIY prototyping

• AR/VR & Smart Glasses

Lightweight and high-resolution for immersive Augmented Reality and Virtual Reality head-mounted displays (HMD).

• Thermal Imaging & Night Vision

Ideal for military, hunting, and commercial infrared thermal scopes, providing crystal-clear imagery in total darkness.

• FPV Drone Goggles

Low latency, 1080p resolution, and 3000 nits brightness offer FPV drone pilots a glare-free, immersive outdoor flight view.

• Medical Equipment

High-density pixel display for surgical navigation systems and electronic endoscope monitors.

• Head-Up Displays (HUD)

Perfect for automotive, aviation, or tactical industrial helmet HUD systems.

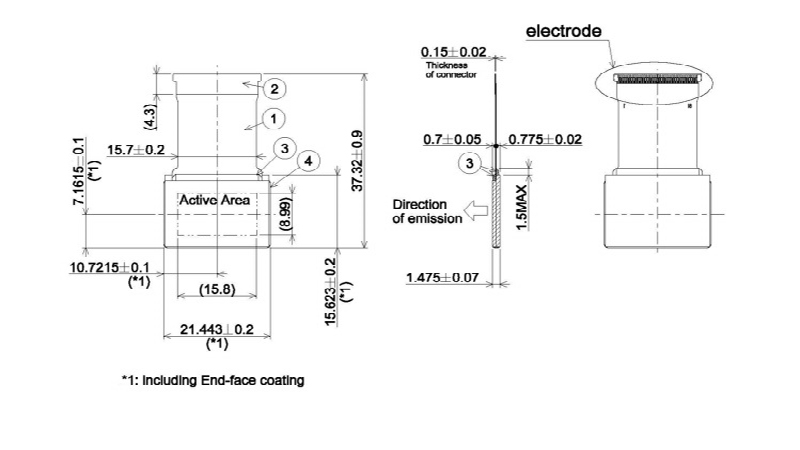

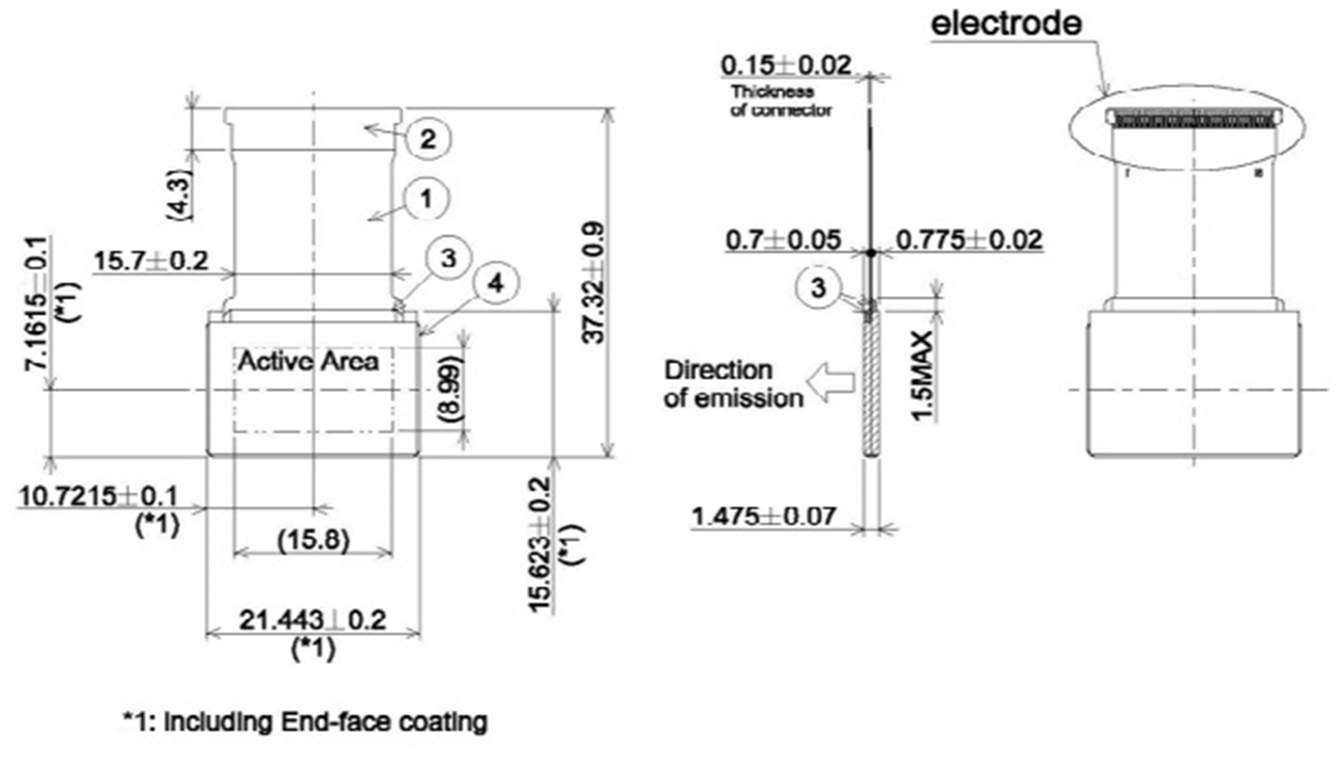

Dimension of the 1080P Micro OLED Panel

Technical Sources

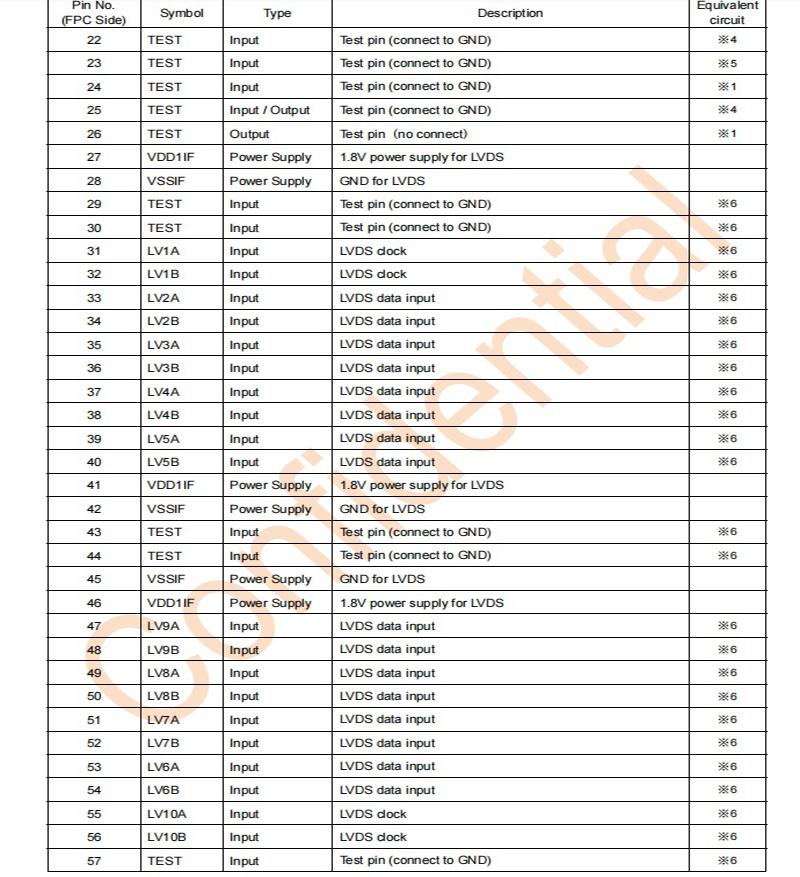

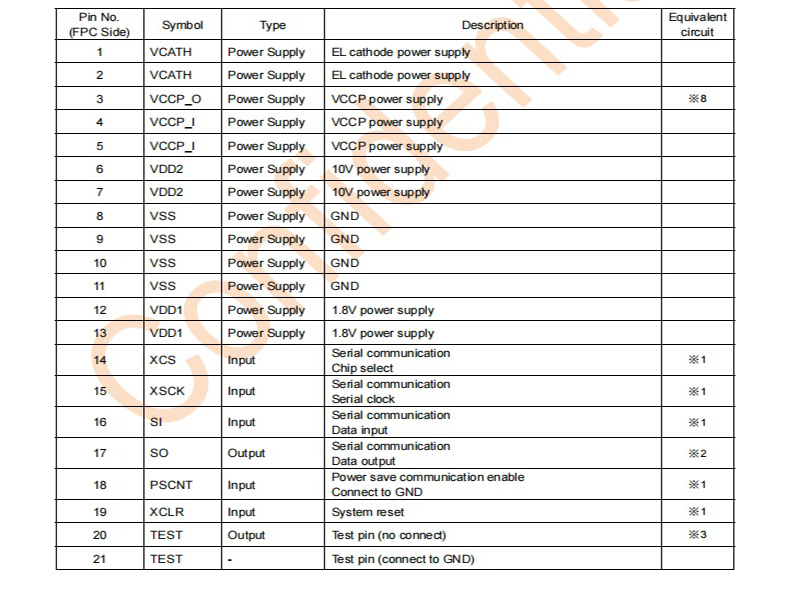

0.71 inch micro oled dispaly data sheet

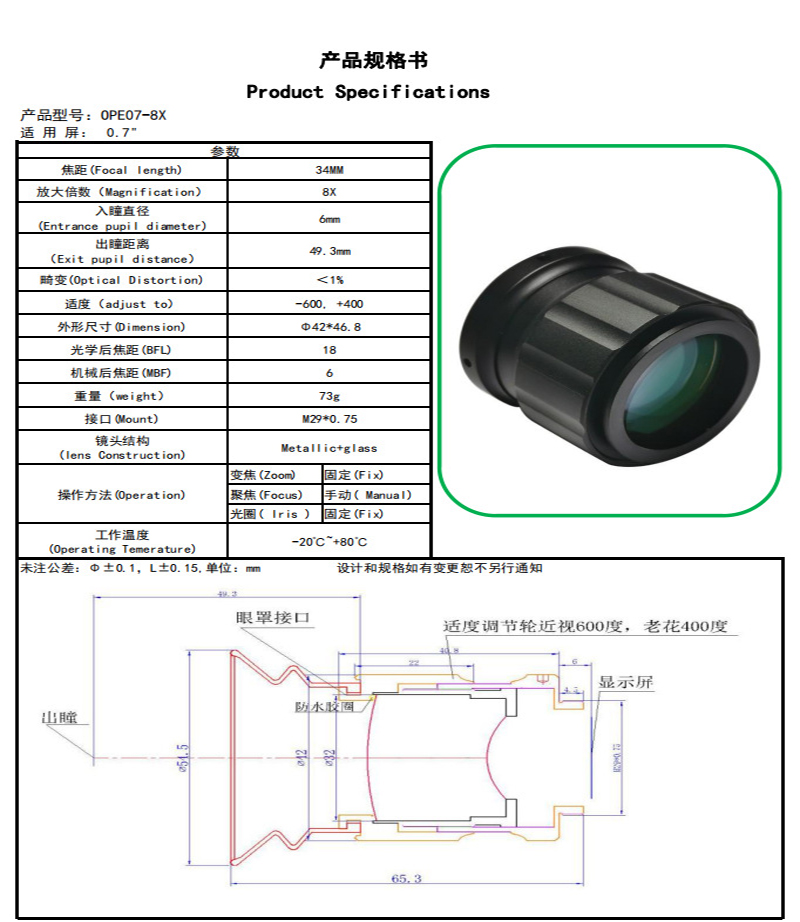

Magnifying Lens Data sheet
