Product Details

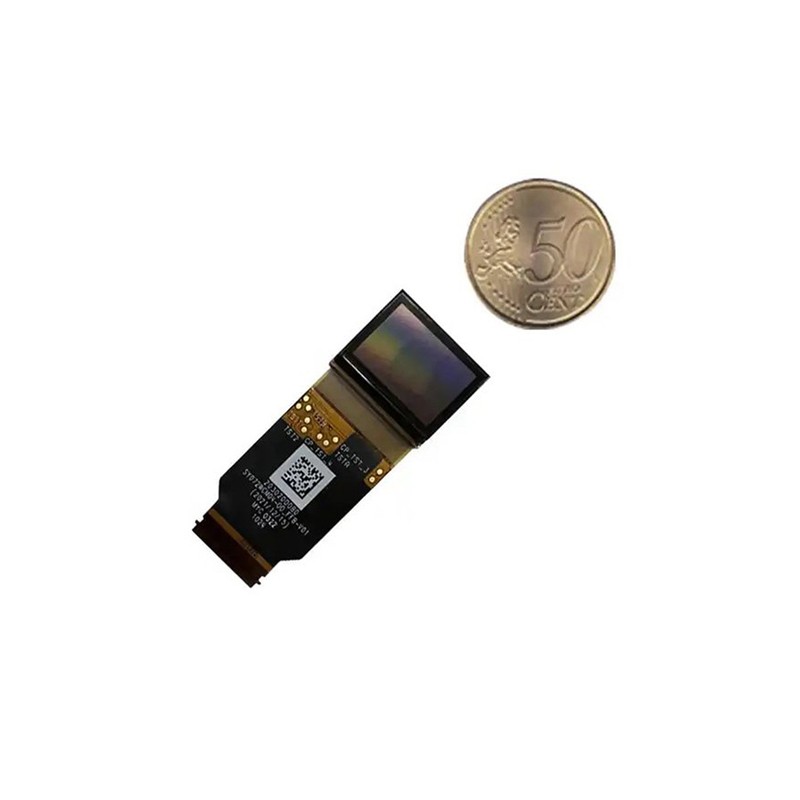

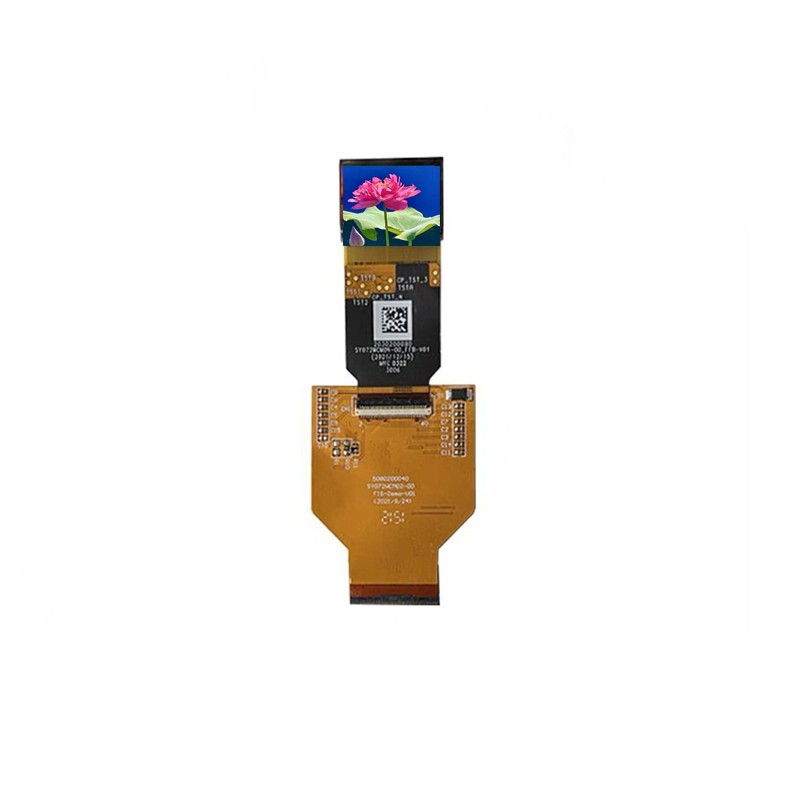

The 0.72 inch Micro Si OLED display SY072WCM06 with a resolution of 1920×1200 pixels and Luminance 2000 cd/m2 is becoming popular in the field of VR AR. This is due to the exceptional image quality that it offers, with vivid colors and deep blacks that provide an immersive experience for users. In HMDs (head-mounted displays), these Micro OLED displays are used to offer a high quality visual experience for users.

Without doubt, in VR (virtual reality) applications, the 0.72 inch Micro OLED displays can help create a lifelike environment by offering high quality visuals. SY072WCM02 are also useful in AR (augmented reality) applications where digital information can be overlaid on real world objects.

In addition, the 0.72 inch Si OLED display also has a brightness level of 2000 cd/m2. This means that SY072WCM06 can produce bright images even in environments with high ambient light levels. The contrast ratio of the display is also noteworthy, with a ratio of more than 10,000:1. All these specifications work together to create an immersive viewing experience for users.

Above all, users can enjoy a more realistic and engaging experience thanks to the high resolution and contrast ratio that provides excellent detail and depth perception.




0.72 inch Micro OLED Display parameter


  • Product Number:ZO072WCM04JK
    Display Type:Micro OLED
    Resolution:1920 x 1200
    Screen Size:9.09mm x 15.68mm x 1.475mm
    Active Area:15.552mm x 9.720mm/ 0.72" diagonal
    Luminance(Brightness):2000nits(Typ.)
    Color:Full RGB
    Contrast Ratio:50,0000:1
    Interface:MIPI
    Frame Rate:60Hz~90Hz
    Operating Temperature:-20℃ to +70℃
    Storage Temperature:-40℃ to +80℃
    Plan:WS
    Application:AR VR devices, EVF, Night vision, sight...






0.72 inch Micro OLED 2000nits Features:


◆ High contrast◆ Small size high definition type
◆ High contrast
◆ Wide color reproduction range
◆ High-speed response
◆ Thin type and light weight
◆ Power saving function
◆ Up/down and/or right/left inverse display function
◆ Orbit supported
◆ Orbit supported



0.72" 1920x1200 Micro display Screen Applications:


AR/VR display, electronic viewfinder of digital camera/video camera;
Portable equipment such as miniature projectors, video glasses, 3D displays, head-mounted entertainment equipment,etc;
Security monitoring /military:individual helmet display, electronic sight, infrared night vision device,Thermal imager displays,electronic telescopes,flight helmets,gun sights,life detection video devices;
Medical and industrial:human and machine video engineering research, endoscope, portable B-ultrasound machine,Vision correction equipment,multi-scope,various portable inspection and testing equipment;
Aircraft model:aerial photography:remote control aircraft parameter display system:remote control car video display terminal:etc.

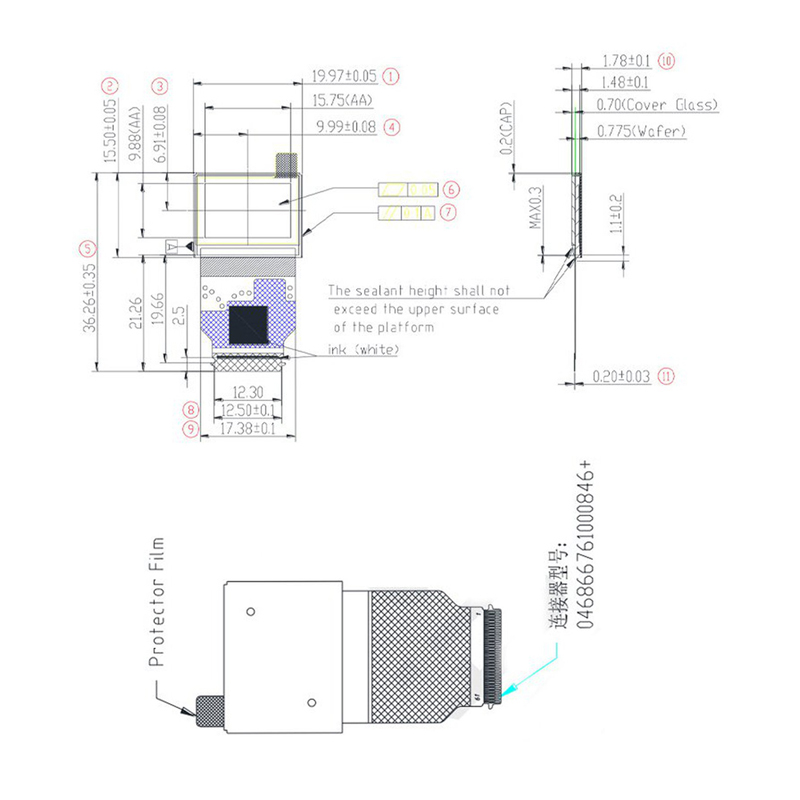

Mechanical Dimension


0.72" micro screen


1920X1200 MICEO OLED DISPLAY FOR AR

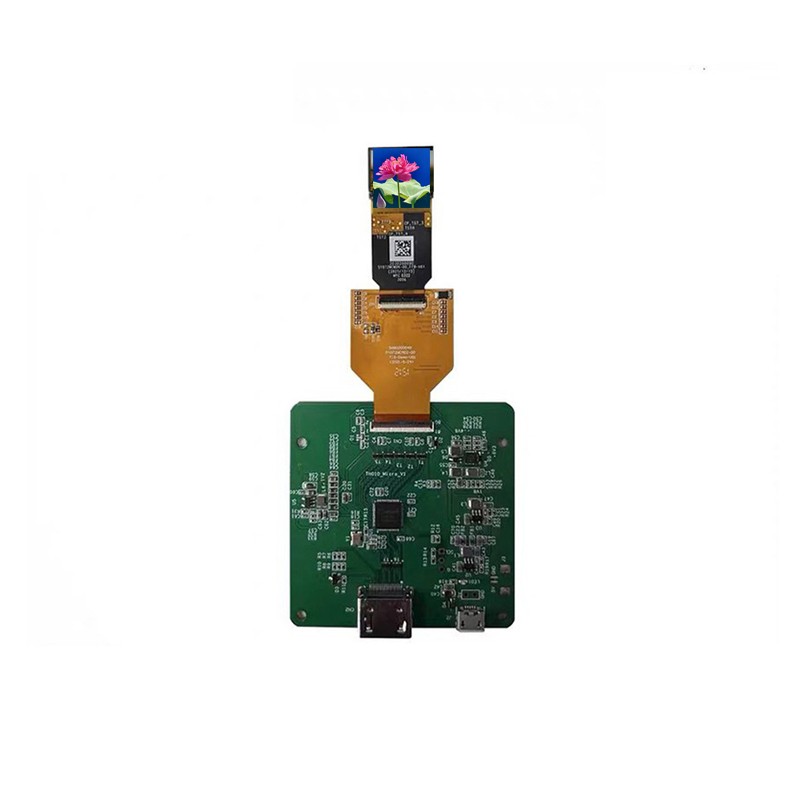

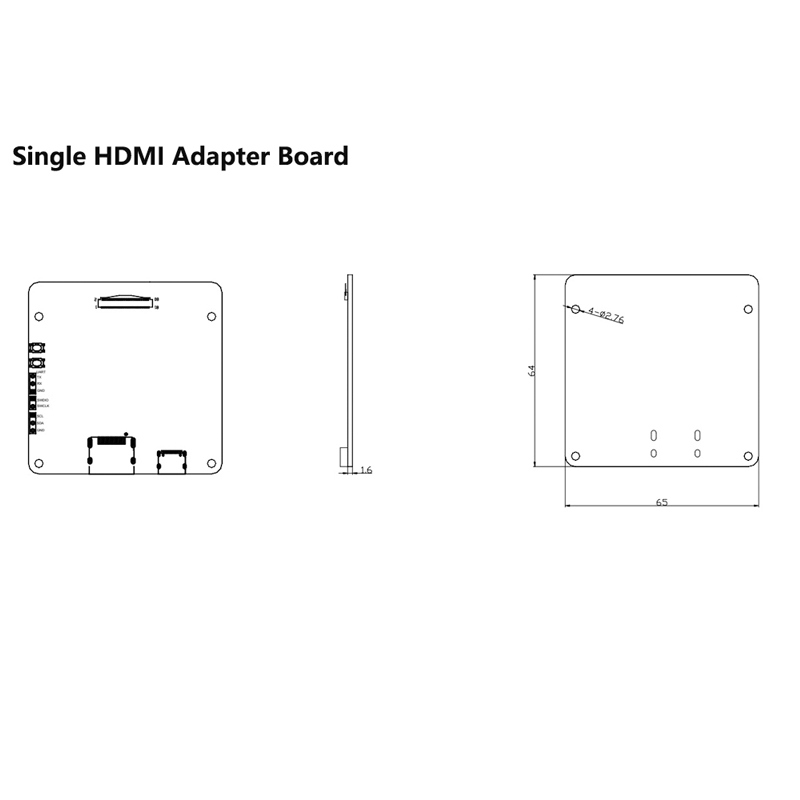

Monocular HDMI Board

MICRO AR DISPLAY OLED MICRO DISPLAY

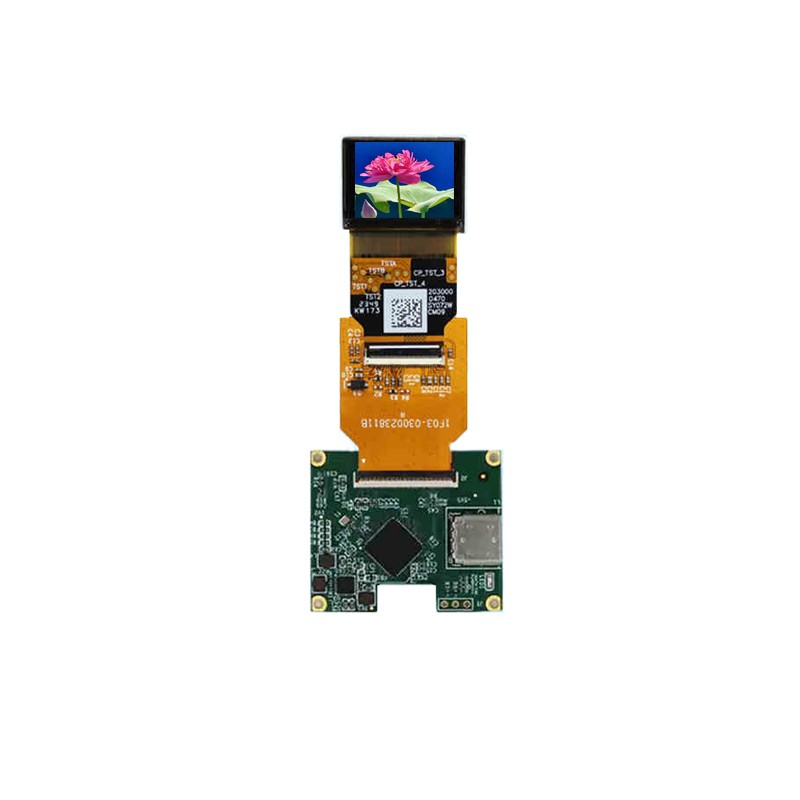

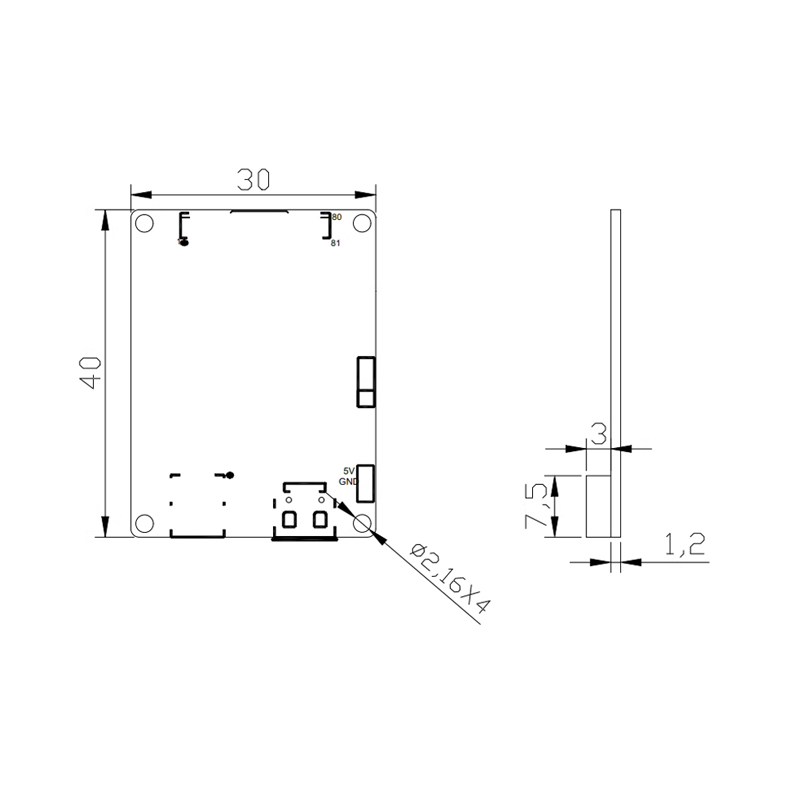

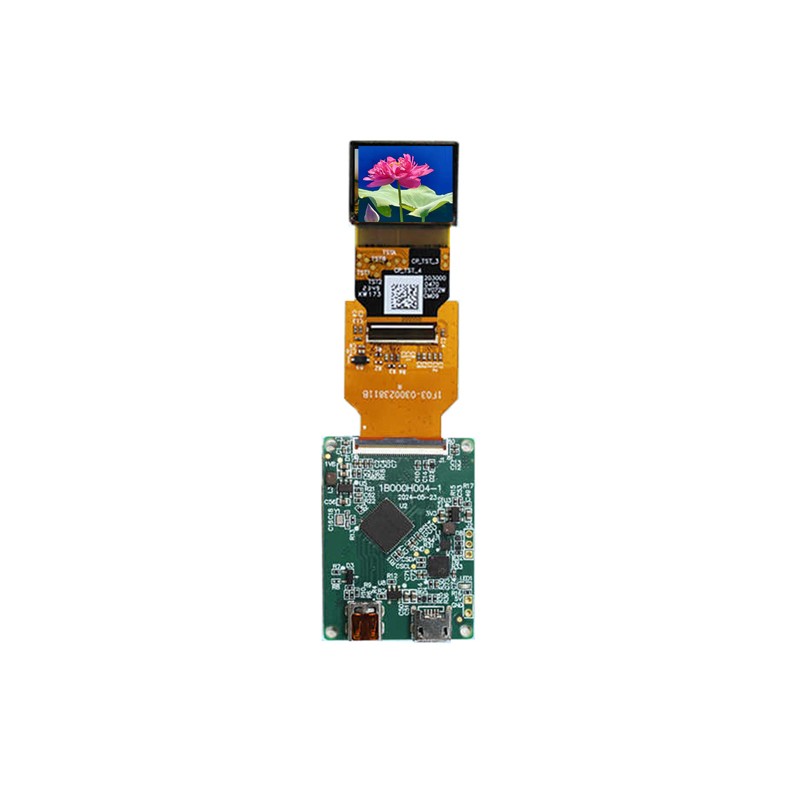

Monocular TYPE-C (USB-C) Board

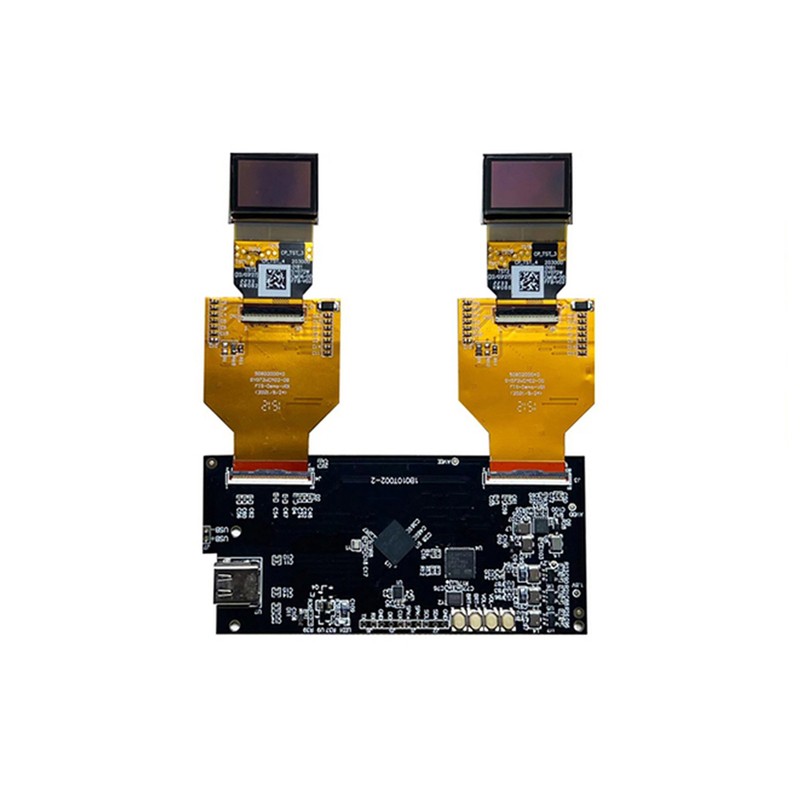

Dual TYPE-C (USB-C) Board
