0.62 inch OLED Micro Display With High Resolution 1728x1368 for Vr Ar Wearable Display

Category： MICRODISPLAY
Size: 0.62 inch OLED Display
Resolution:17280(RGB) ×1368
Brightness:1800nits(Typ.)

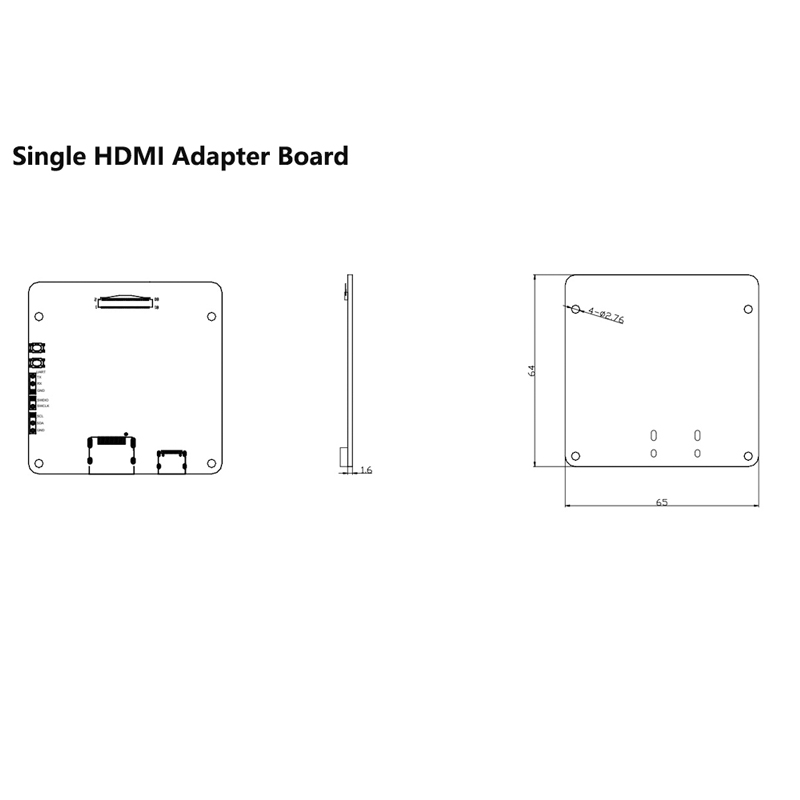

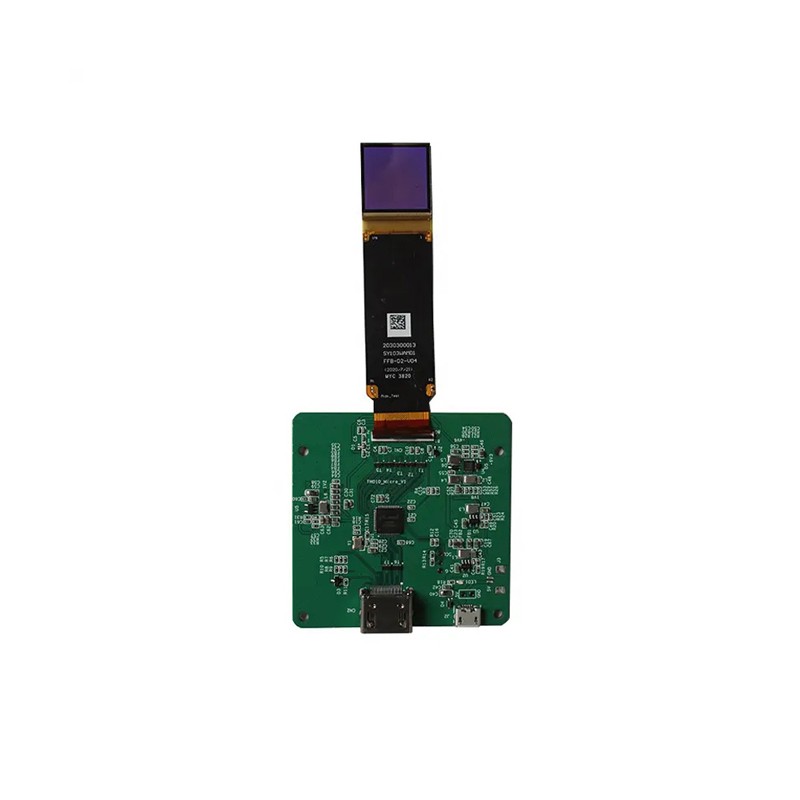

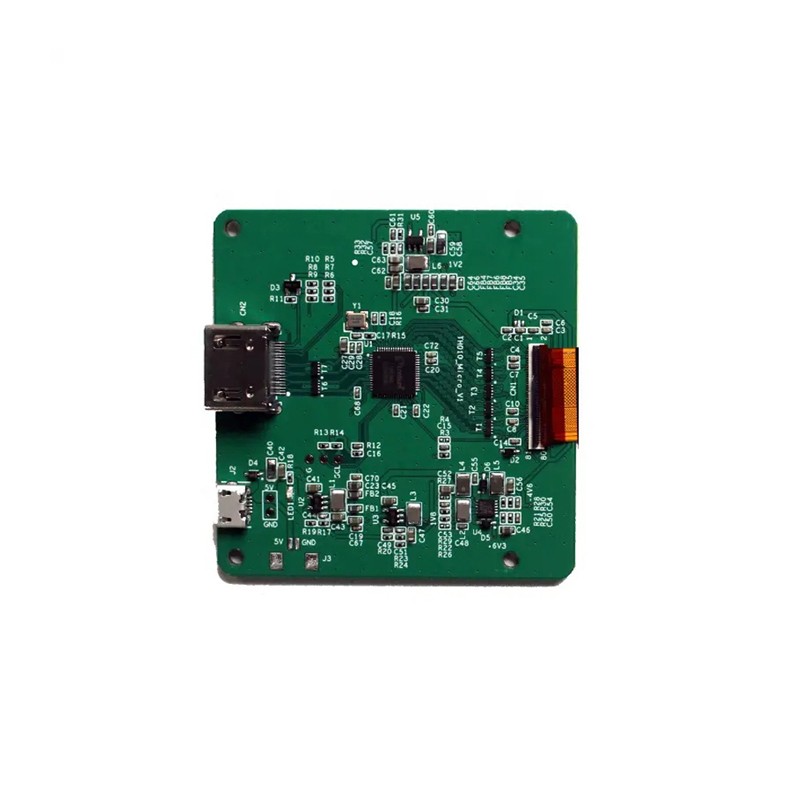

Driver Board: HDMI /type-c Port
INQUIRY EMAIL

Product Details

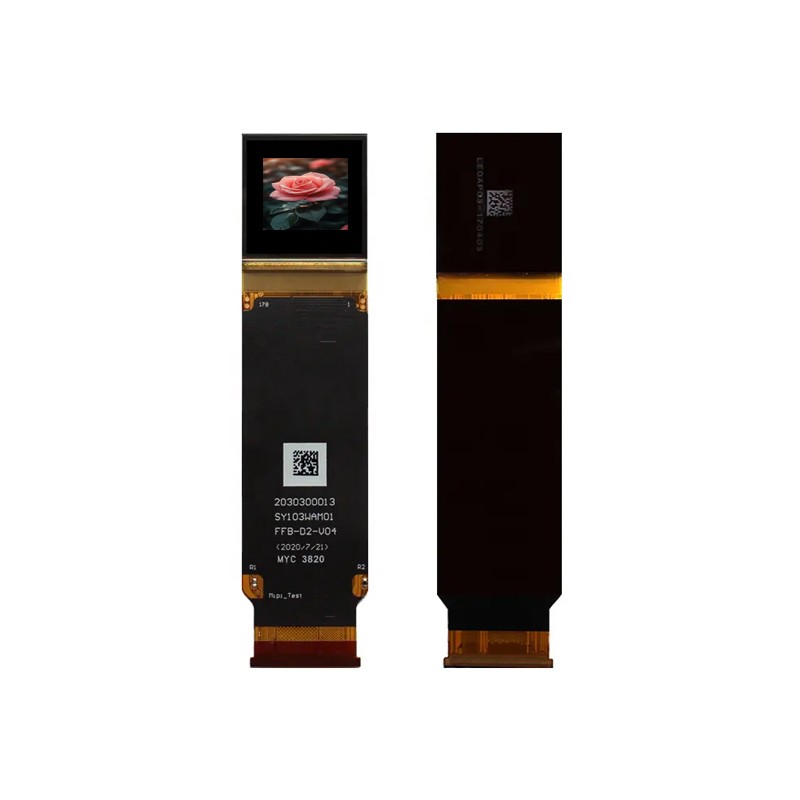

The 0.62 inch Micor OLED Display is a coloful 1728*1368 AMOLED Grayscale micro display, with FHD 1728*1368 High resolution and high luminance level up 1800cd/m2, popular used in virtual devices such as AR Glasses and VR Headset, thanks to its micro Si-OLED (Silicon Organic Light Emitting Diode) technology, this micro screen is with very impact size, light weight and low power consumption, also applicable for the medical and military industry such as Head-mounted Displays (HMD),viewfinder,Head-Mounted Displays (HMD) etc.

0.62 inch Micro OLED Display parameter 1728 x 1368

Product Number: JKSY062WAM01
Display Type:Micro OLED
Resolution:1728 x 1368

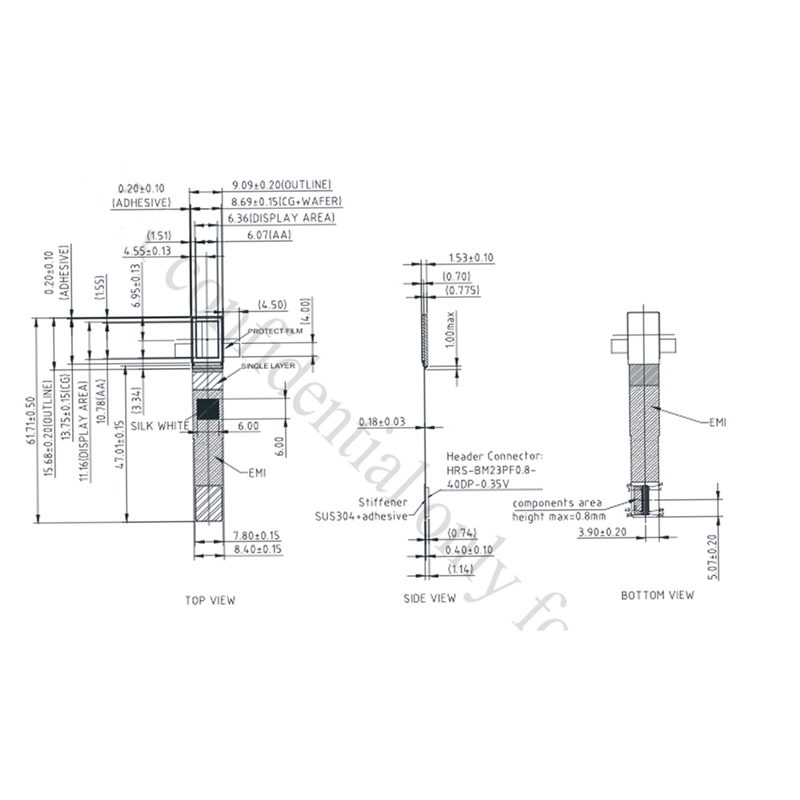

Screen Size:21.09mm x 22.77mm x 1.5mm
Active Area:12.4416mm x 9.8496mm/ 0.62" diagonal
Luminance(Brightness):1800nits(Typ.)
Color:Full RGB
Contrast Ratio:50,0000:1
Interface:MIPI+I2C
Frame Rate:90Hz
Operating Temperature:-20℃ to +70℃
Storage Temperature:-40℃ to +80℃
Plan:Mass Production
Application:AR VR devices, EVF, Night vision, sight...

0.62 inch Micro OLED 1800nits Features:

◆ Small size high definition type
◆ High contrast
◆ Wide color reproduction range
◆ High-speed response
◆ Thin type and light weight
◆ Power saving function
◆ Up/down and/or right/left inverse display function
◆ Orbit supported

0.62"1728 x 1368 Micro display Screen Applications:

AR/VR display, electronic viewfinder of digital camera/video camera；
Portable equipment such as miniature projectors, video glasses, 3D displays, head-mounted entertainment equipment,etc；
Security monitoring /military:individual helmet display, electronic sight, infrared night vision device,Thermal imager displays,electronic telescopes,flight helmets,gun sights,life detection video devices；
Medical and industrial:human and machine video engineering research, endoscope, portable B-ultrasound machine,Vision correction equipment,multi-scope,various portable inspection and testing equipment;
Aircraft model:aerial photography:remote control aircraft parameter display system:remote control car video display terminal:etc.
