0.72 inch Micro OLED 1920x1200 2000nits Micro Display For AR glasses

Category： MICRODISPLAY
Size:0.72 inch Micro OLED
Resolution:1920xRGBx1200
Brightness:2000cd/m2
Interface: MIPI
INQUIRY EMAIL

Micro AR 0.72 inch 0.7 inch 1920x1200 high resolution MIPI 2000cd/m2 Silicon-Based Micro OLED Display for smartglass

Overview

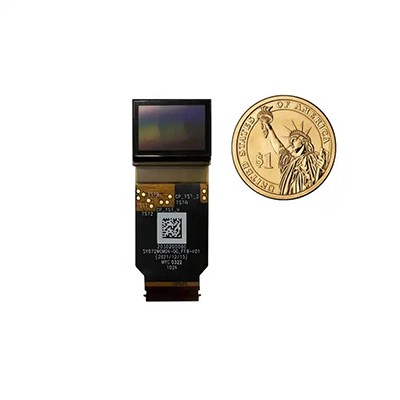

The 0.72 inch Micro OLED is Silicon-Based OLED Micro Display, with its key features of high resolution of 1920x1200 pixels and high brightness of 2000nits, is becoming more popular in the AR VR application field since this Micro Screen can offer exceptional image quality, vivid colors and deep blacks to the users with an immersive virtual experience.

Besides, since this Micro-oled display is with a high contrast ratio of more than 10,000:1 and a brightness level of 2000 cd/m2, which can bring a bright images even in environments with high ambient light levels, meanwhile based on single-crystal silicon transistors technology. This OLED Microdisplay integrates panel driver and logic driver, and realizes small size, light weight, low power consumption, with these features, which is perfectly used for not only AR (virtual reality) glasses and VR (augmented reality) headset, but also in medical and such as View finders, Head mounted displays, etc.

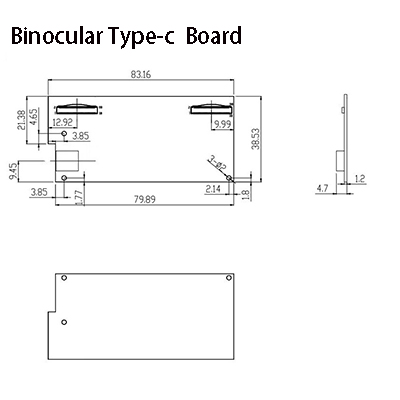

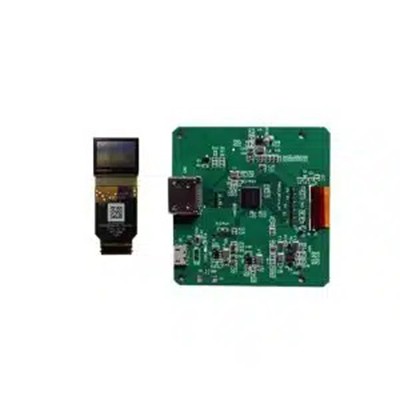

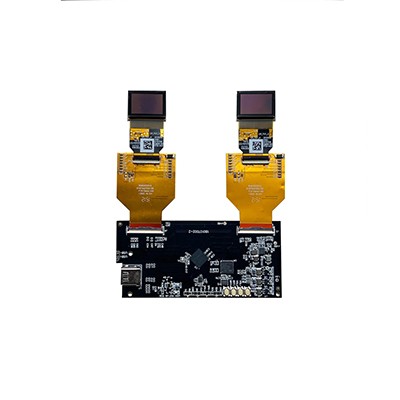

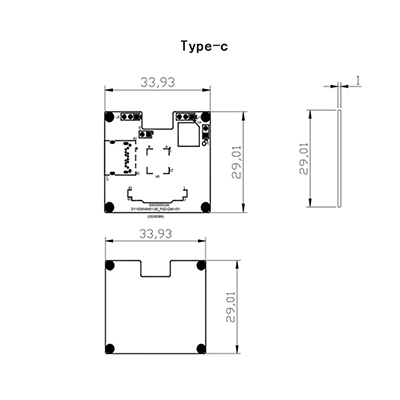

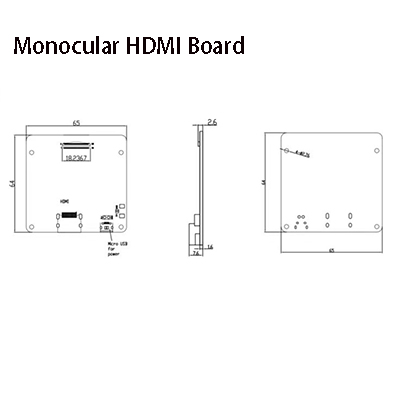

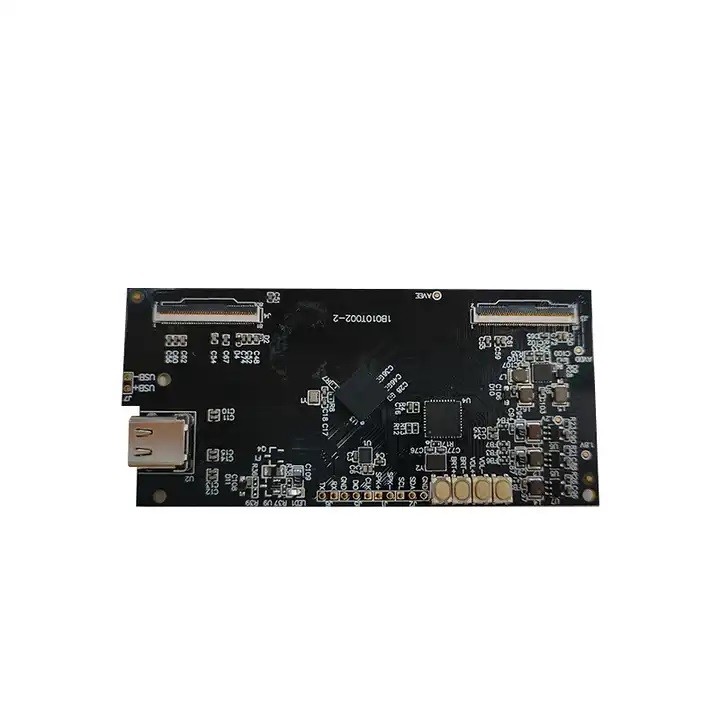

For easier demo and bring a better experiences for the developer, there is also HDMI Controller Board and TYPE-C Driver Board for your option.

0.72 inch Micro OLED display 1920x1200 Parameter

Diagonal Size:0.72″/0.7"
Panel Type: Micro Si-OLED,Micro-oled
Resolution:1920(H)x1200(V)
Number of dots:6.912M(1920x1200x3)
Pixel Size:8.1µm x 8.1µm
Pixel Arrangement:RGB π type
Useable Display Area:15.552mm x 9.72mm / 0.72"diagonal

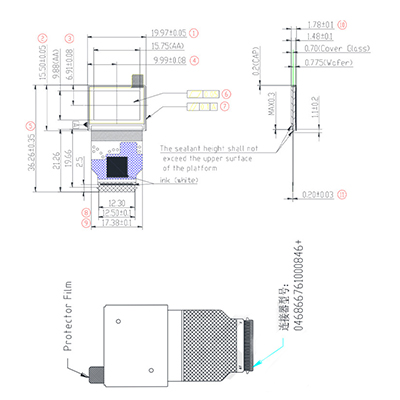

Outline Size:19.09 x 15.68 x 1.475(H×V×D)
Luminance:2000 cd/m² (Typ.)
Contrast Ratio:200000 : 1 (Typ.) ™
Interface:MIPI (1portD-PHY)
Frame Rate:50Hz~70Hz
Power Consumption:900mW
Gray Levels:256
Backlight:self
Weight：1.3g
Operating Temperature:-20℃~70℃
Storage Temperature：-40℃~80℃
Application:HMD(Head mounted displays) VR AR

0.72 inch Micro Display 1900x1200 features

• 1920 x 1200 Real RGB Resolution
• Multi resolution: 1920x1200 (16:10), 1920x1080 (16:9), 1600x1200 (4:3), 1280x1024 (5:4), 1280x720 (16:9),
1024x768 (4:3)
• Frame rate: 60Hz
• Normal operation supports full color mode: 16.7M colors
• Interface
-- MIPII + I2C
-- MIPI DPHY v1.2 with one port (4 lanes), 1.0Gbps/Lane
-- MIPI DSI v1.01 R11 Video mode
• Scan direction selection, up or down and right or left
• Orbit supported
• Wide range Brightness adjustment
• Temperature compensation
