LCOS Display 0.38 inch 1280*720 Microdisplay for VR AR

Category： MICRODISPLAY
Size:0.38 inch FLCOS Display
Resolution:1280(RGB)X720
Brightness:200 cd/m2 Min
Interface: YCbCr(4:2:2)-parallel (16 data, Hd, Vd, Clock)
INQUIRY EMAIL

Product Details

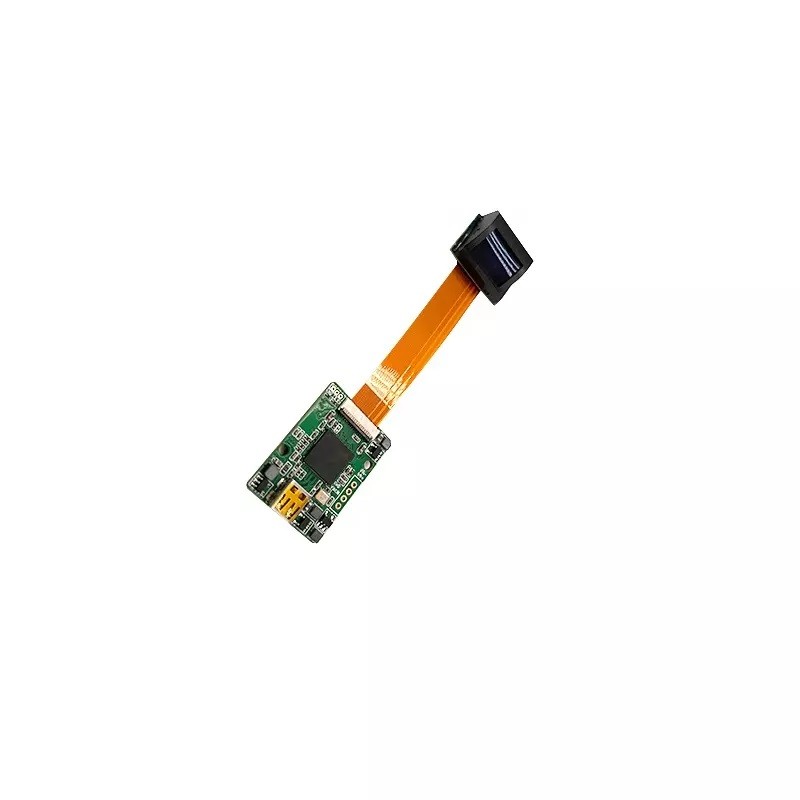

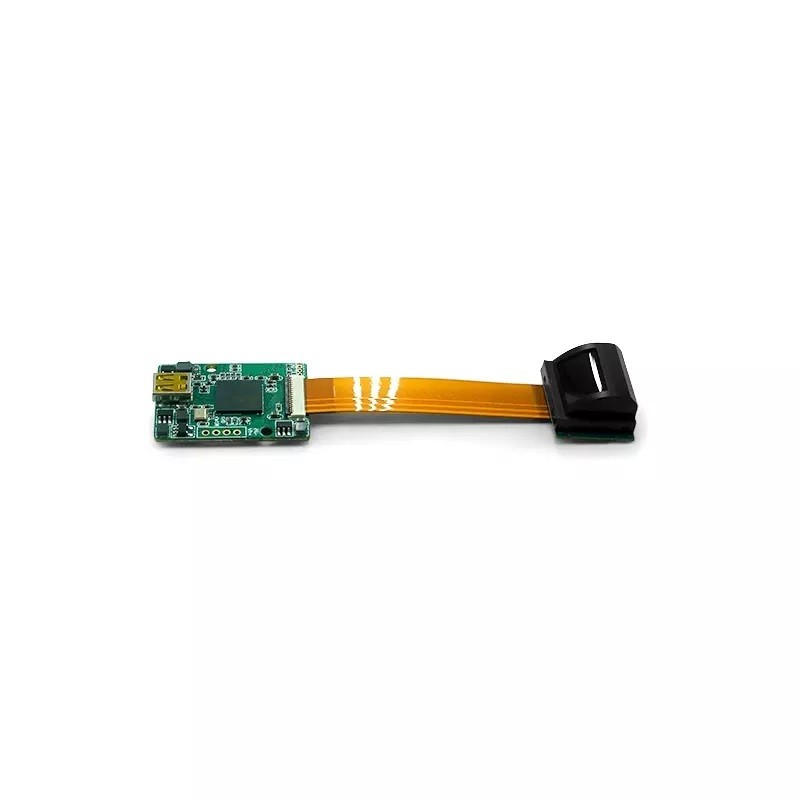

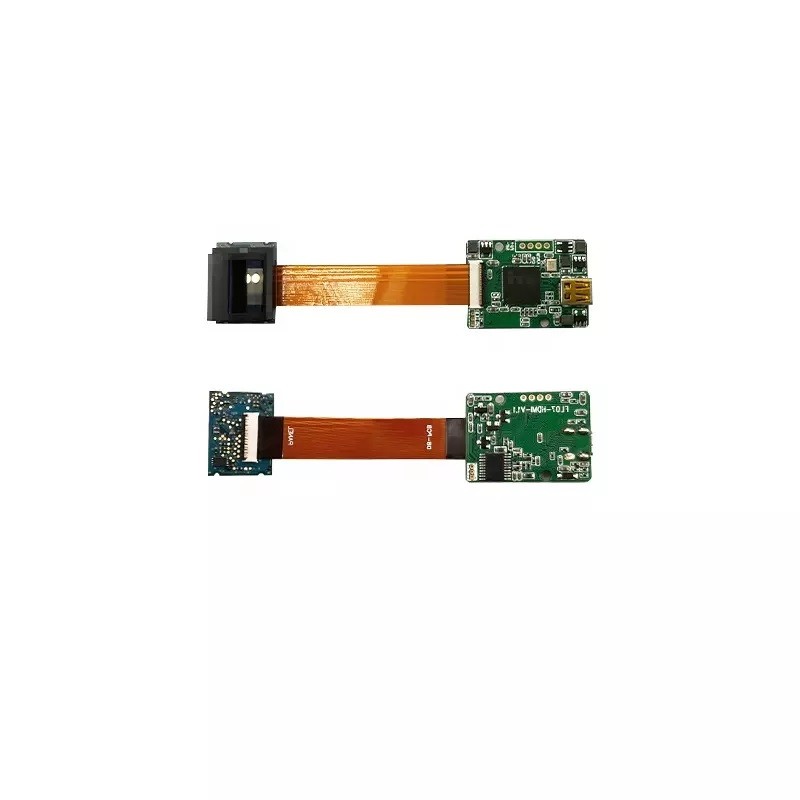

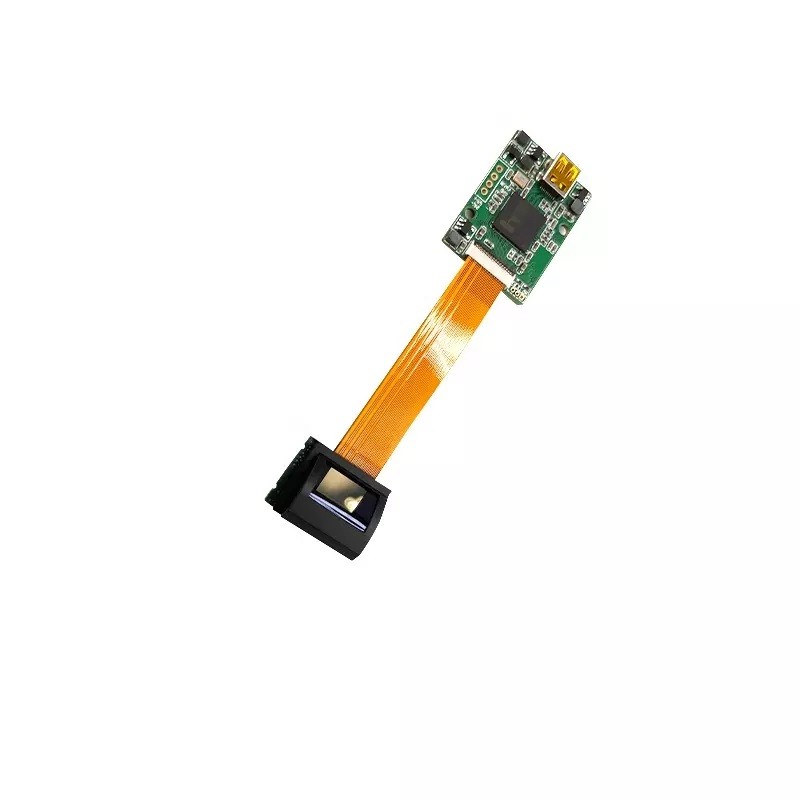

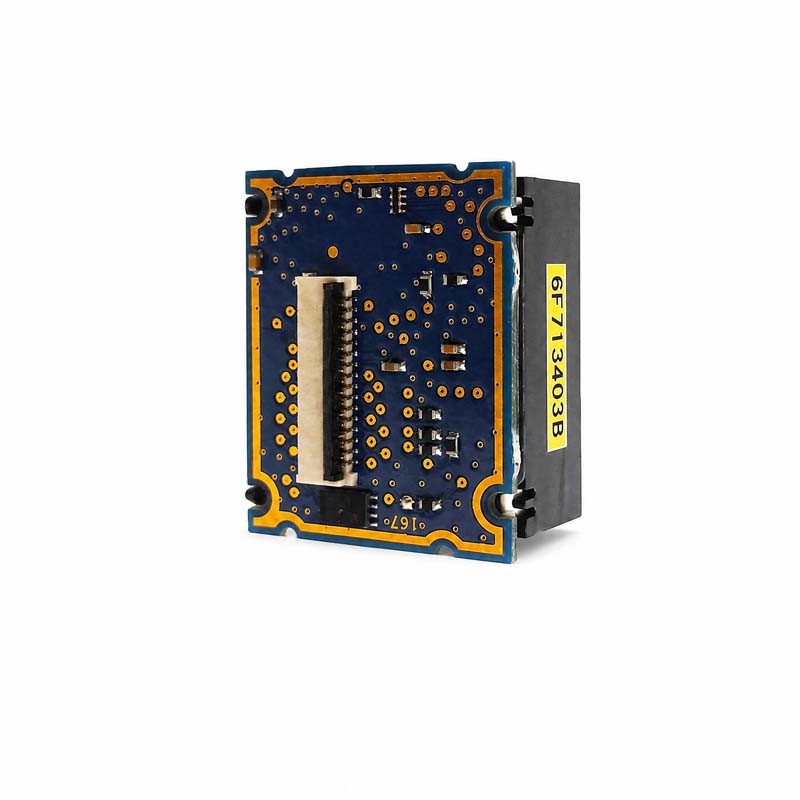

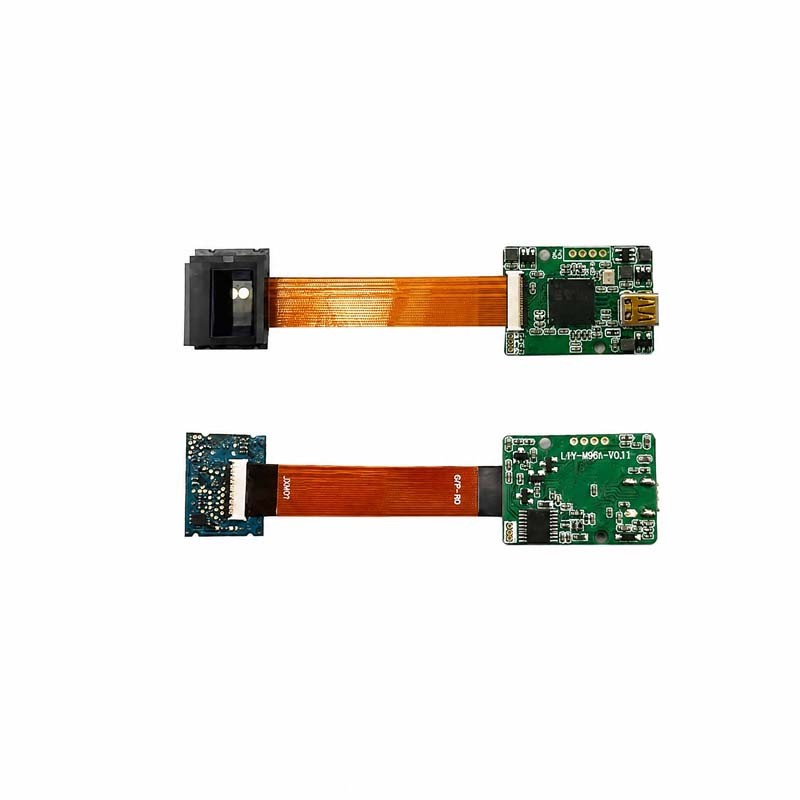

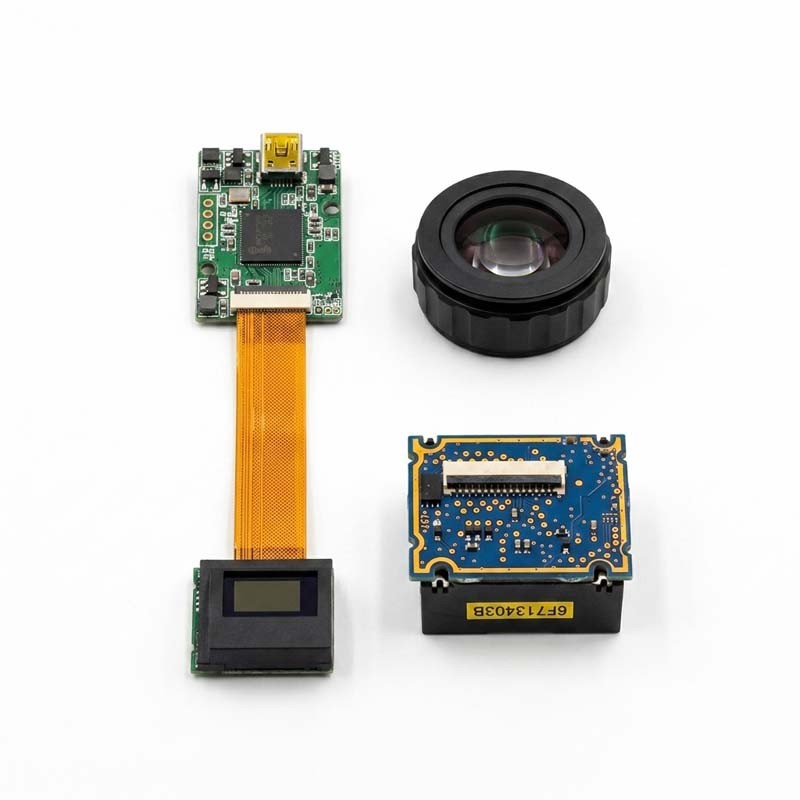

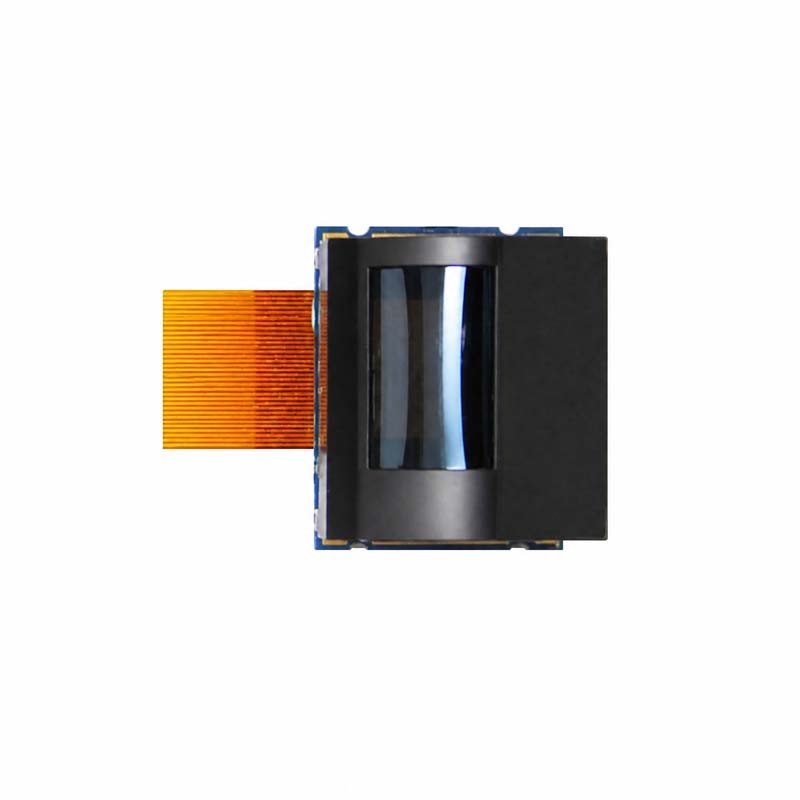

This display module is composed of a FLCOS display screen and a controller board. It has a diagonal 0.38 inch size and a 1280 X720 resolution.

FLCOS Ferroelectric Liquid Crystal (FLC) on reflective CMOS, 0.38 inch microdisplay

1280*720 resolution microdisplay, with a brightness of 700nit, Display Frame Rate is 60 Hz/360Hz (NTSC), 50/300 Hz (PAL), the Digital Display Interface is YCrCb(4:2:2)-parallel (16 data, Hd, Vd, Clock), Control Interface is I2C.

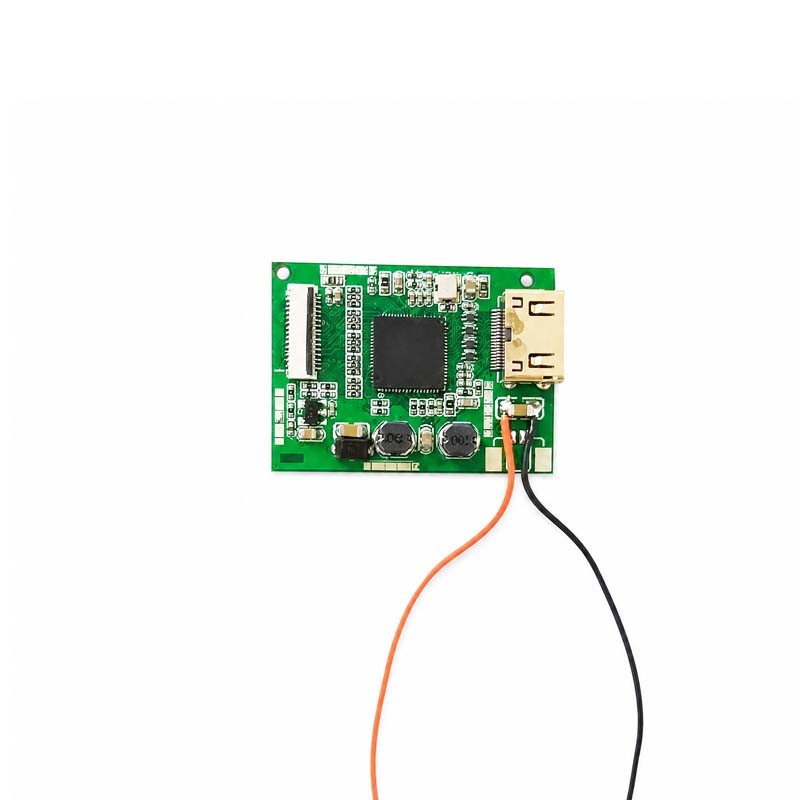

Provide HDMI board
Other control boards customized according to your requirements

Specifications of 0.38 inch 1280x720 Flcos Module

◆Display Technology: Ferroelectric Liquid Crystal (FLC) on reflective CMOS
◆Display Mode:Field sequential color
◆Display Format:720p : 1280(H) x 720(V)

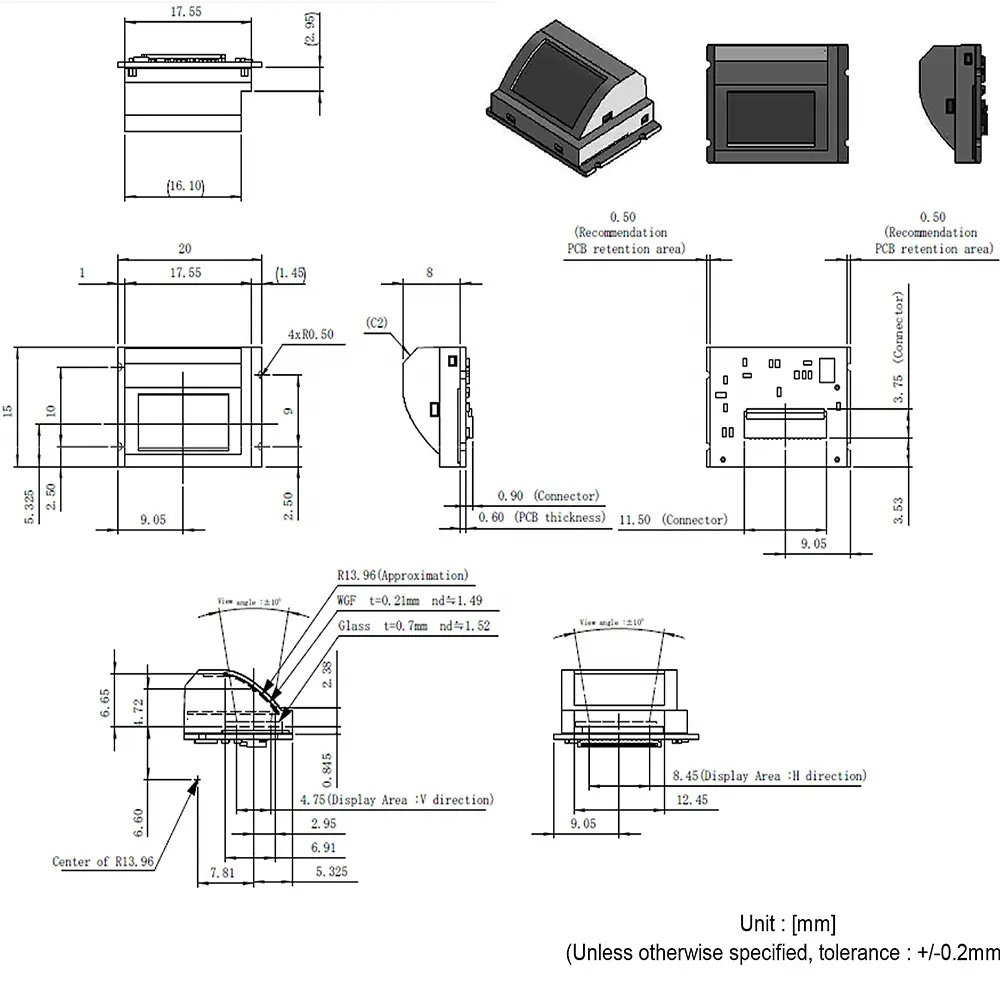

◆Display Panel Active Area:8.448 x 4.752mm
◆Display Area diagonal:9.693mm (0.38'')
◆Input Grayscale: 256 levels
◆Color Depth: 4.2Million unique colors (YCrCb video interface)
◆Display Pixel Pitch: 6.6um
◆Display Frame Rate:60 Hz/360Hz (NTSC), 50/300 Hz (PAL)
◆Brightness:200 cd/m2 Min.
◆Contrast Ratio:150:1 (Typical)

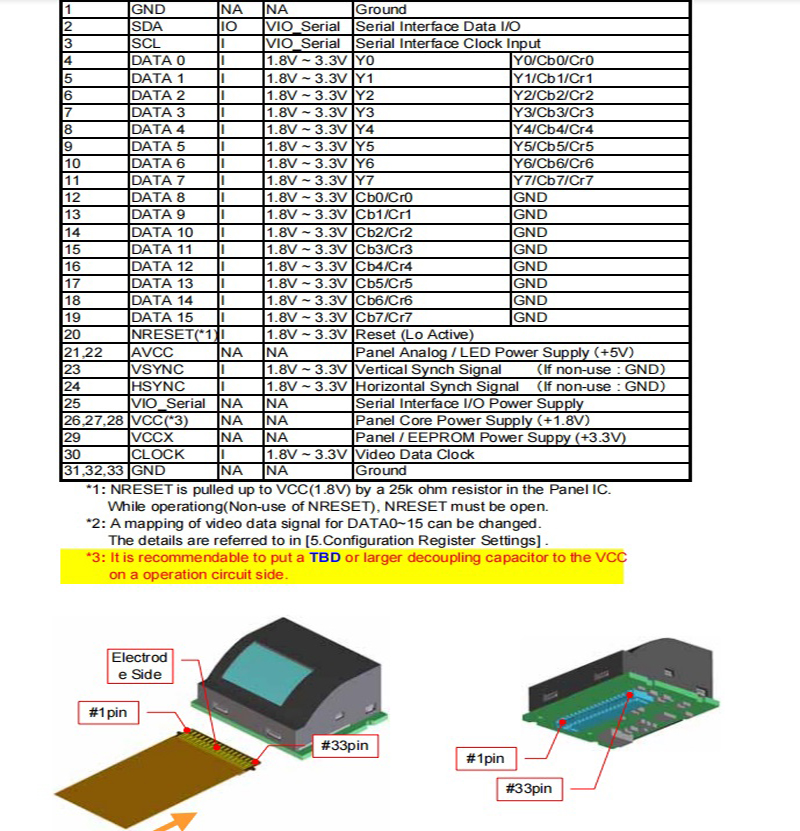

◆Digital Display Interface:YCbCr(4:2:2)-parallel (16 data, Hd, Vd, Clock)
◆Storage Temperature:-30℃ ~ 83℃

Applications of 0.38 inch 1280x720 Flcos Module:

◆The electronic viewfinder of the digital camera / camera
◆Portable civilian equipment such as micro projector, video glasses, head entertainment equipment, 3D display, game helmet and so on.
◆Security monitoring, military use: single soldier helmet display, electronic sight, infrared night vision instrument, thermal imaging display, electronic telescope, aircraft helmet, gun sight, life detection visual device.
◆Medical and industrial applications: man-machine visual engineering research, endoscopy, portable B-ultrasound, vision correction equipment, spectacles, various portable testing equipment
◆Aero model: aerial, remote control aircraft parameter display system, remote control car video display terminal, etc.
◆Minerals: coal exploration, metal mineral exploration

Features of 0.38 inch 1280x720 Flcos Module:

◆The display module can reduce customer development time and cost. It has small volume and can be easily applied to customer product development and design.
◆It uses FLCOS (Ferroelectric Liquid Crystal on Silicon) Display technology.
◆Nice display color, high contrast ratio, low power consumption, low cost, clearer and more realistic display effect.
◆Weight: About 5g (screen)
◆Mode of work: Digital

Functions by available register setting

Parameter	Specification
Gamma Correction	Register setting of Gamma ranging from 1.7 to 2.1 is available.
Cropping / Overscan	By setting the delay from H,V assertion, undisplayed area can be set
Down Scaling / Up Scaling	It enables to down-scale and up-scale arbitrary input resolutions.
Color Space Conversion	Coefficient and Offset values of the color space conversion can be changed.
Dither	Spatial Dither, Temporal Dither or the combination can be set
Brightness Adjustment	By adjusting a period of LED lighting, the brightness can be adjusted.
Sleep Mode	Low Power Consumption Mode can be set.
