0.38 inch 1280x720 lcos Micro Display Module

Category： MICRODISPLAY
Size:0.38 inch LCOS Display
Resolution:1280(RGB)X720
Brightness:200 cd/m2 Min
Interface: YCbCr(4:2:2)-parallel (16 data, Hd, Vd, Clock)
INQUIRY EMAIL

Product Details

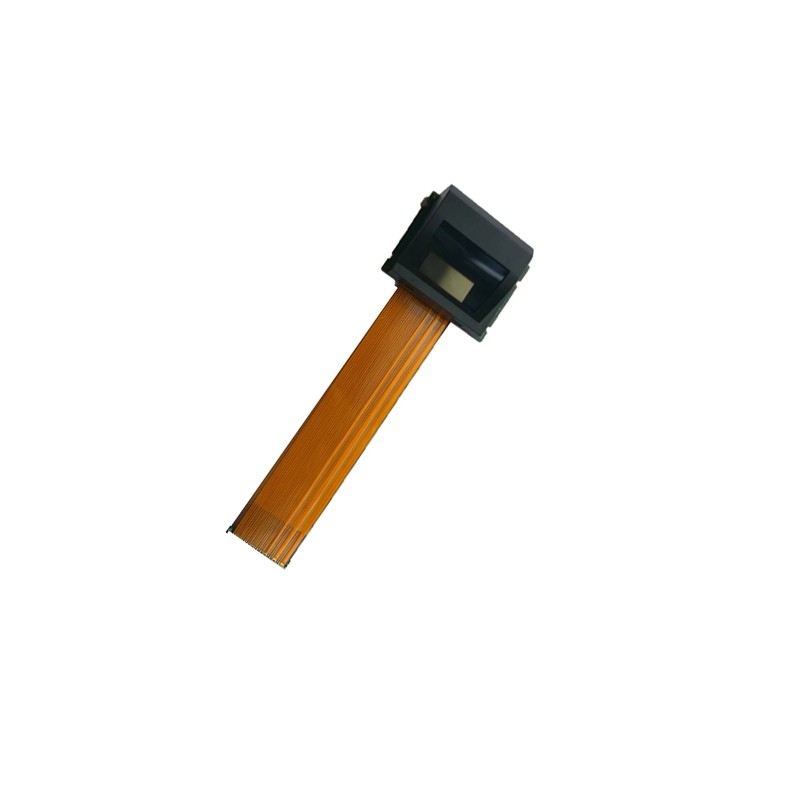

FLCOS Ferroelectric Liquid Crystal (FLC) on reflective CMOS, 0.38 inch microdisplay

1280*720 resolution microdisplay, with a brightness of 700nit, Display Frame Rate is 60 Hz/360Hz (NTSC), 50/300 Hz (PAL), the Digital Display Interface is YCrCb(4:2:2)-parallel (16 data, Hd, Vd, Clock), Control Interface is I2C.

0.38" lcos display screen 1280x720 parameter

◆Display Technology: Ferroelectric Liquid Crystal (FLC) on reflective CMOS
◆Display Mode:Field sequential color
◆Display Format:720p : 1280(H) x 720(V)

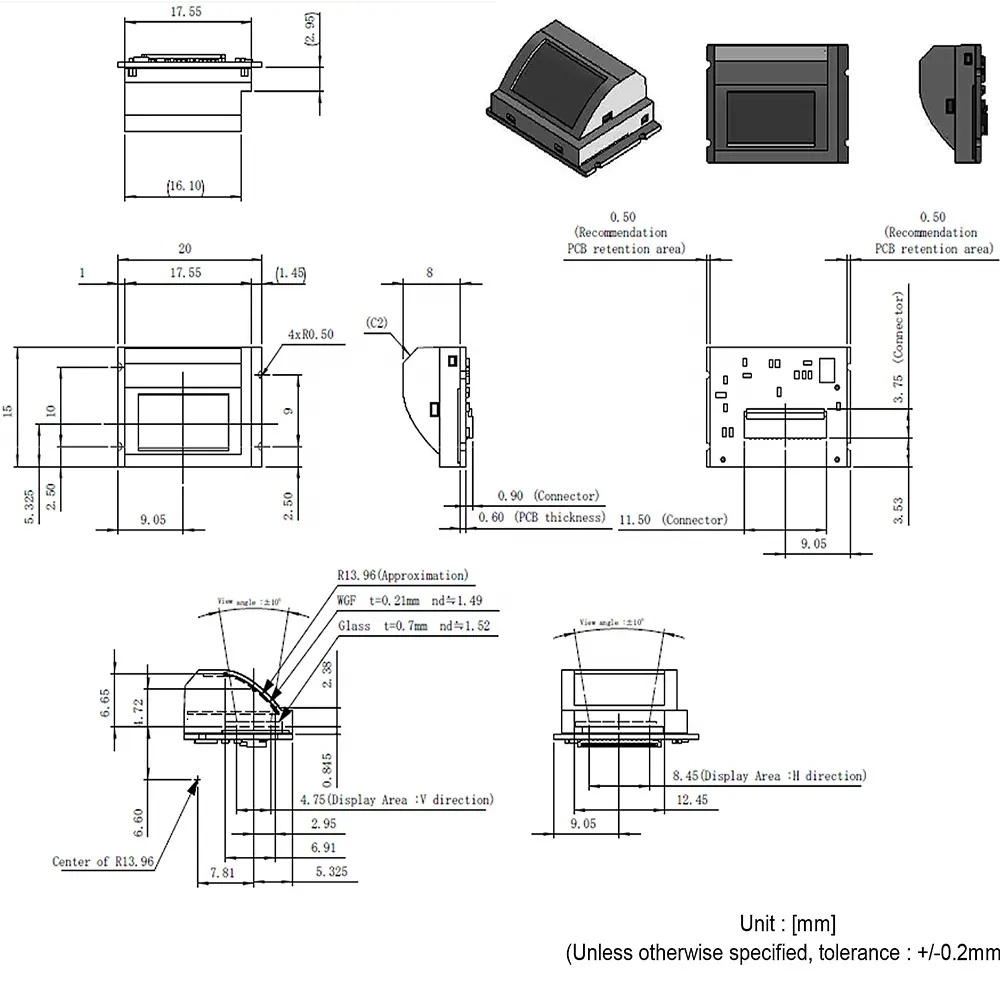

◆Display Panel Active Area:8.448 x 4.752mm
◆Display Area diagonal:9.693mm (0.38'')
◆Input Grayscale:256 levels
◆Color Depth:4.2Million unique colors (YCrCb video interface)
◆Display Pixel Pitch:6.6um
◆Display Frame Rate:60 Hz/360Hz (NTSC), 50/300 Hz (PAL)
◆Brightness:200 cd/m2 Min.
◆Contrast Ratio:150:1 (Typical)
◆Digital Display Interface:YCbCr(4:2:2)-parallel (16 data, Hd, Vd, Clock)
◆Storage Temperature:-30℃ ~ 83℃

what applications it could be used:

◆The electronic viewfinder of the digital camera / camera
◆Portable civilian equipment such as micro projector, video glasses, head entertainment equipment, 3D display, game helmet and so on.
◆Security monitoring, military use: single soldier helmet display, electronic sight, infrared night vision instrument, thermal imaging display, electronic telescope, aircraft helmet, gun sight, life detection visual device.
◆Medical and industrial applications: man-machine visual engineering research, endoscopy, portable B-ultrasound, vision correction equipment, spectacles, various portable testing equipment
◆Aero model: aerial, remote control aircraft parameter display system, remote control car video display terminal, etc.
◆Minerals: coal exploration, metal mineral exploration

0.38" lcos display screen Features:

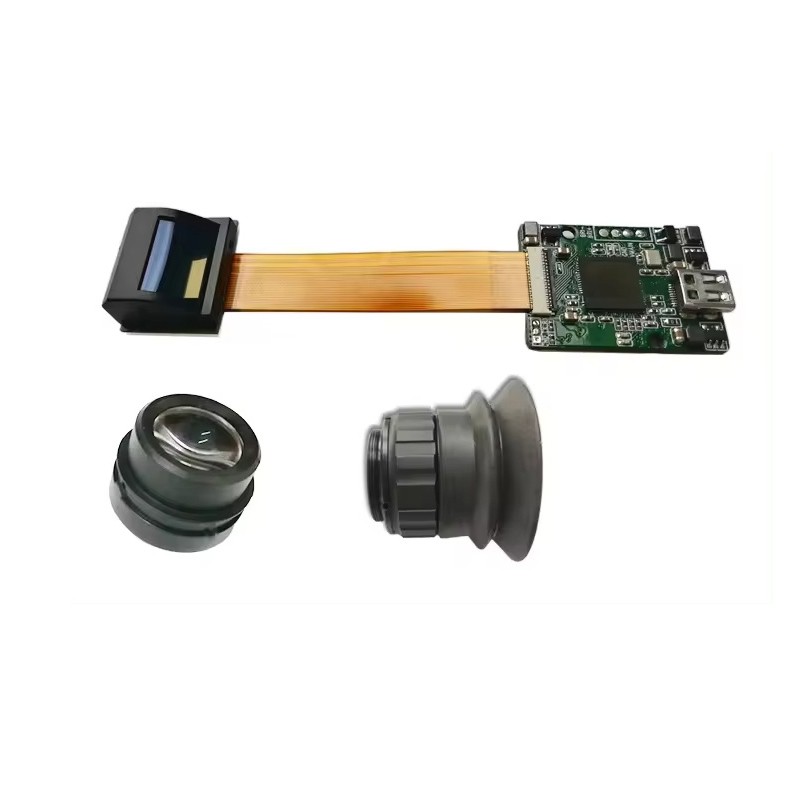

◆The display module can reduce customer development time and cost. It has small volume and can be easily applied to customer product development and design.
◆It uses FLCOS (Ferroelectric Liquid Crystal on Silicon) Display technology.
◆Nice display color, high contrast ratio, low power consumption, low cost, clearer and more realistic display effect.
◆Weight: About 5g (screen)
◆Mode of work: Digital
