Sony 0.5 Inch Micro OLED Display 1024x768 ECX331D HDMI/CVBS

Category： MICRODISPLAY
Size:0.5 inch OLED Display (sony ECX331D)
Resolution:1024(RGB)X768
Brightness:500 cd/m2
Interface: parallel RGB 24-bit/YCbCr 16-bit input
INQUIRY EMAIL

Sony ECX331D 0.5 Inch Micro OLED Display Kit 1024x768 with HDMI/CVBS for AR VR Goggles

This premium Sony 0.5 Inch Micro OLED Display kit (ECX331D) features a clear 1024x768 resolution and 500nits high brightness. Built for B2B industrial systems, this micro oled display module combines a microdisplay screen with a plug-and-play HDMI/CVBS driver board. This complete micro oled display kit gives engineers a simple microdisplay module solution, making it easy to test and build your project quickly.

this microdisplay module is with very impact size, light weight and low power consumption, also applicable for the medical and military industry such as Head-mounted Displays (HMD),viewfinder,Head-Mounted Displays (HMD) etc.

Parameter of 0.5 inch micro oled display kit

Product Parameter	Technical Specifications
Display Type	OLED Display (Silicon-based Micro OLED)
Diagonal Display Size	0.5 Inch
Panel Model Number	Sony ECX331D
Display Resolution	1024(RGB) x 768 Pixels (XGA)
Display Color	Full Color
Pin Number	61 Pins (61P)
Screen Brightness	500 cd/m2 (500 nits)
Contrast Ratio	100,000:1
Frame Rate	60Hz
Interface Type	Parallel RGB 24-bit, YCbCr 24-bit, YCbCr 16-bit Input
Driver Board Solution	Dual-Signal HDMI Port / CVBS / AV Board
Panel Size	10.14(H) x 7.644(V) mm
Active Area	8.143(H) x 6.146(V) mm
Operating Temperature	-10℃ to 70℃
Storage Temperature	-30℃ to 80℃
Mass Production Status	Available
Optical Eyepiece	Optional 12X Magnifying Lens Component
Kit Configuration	Complete Micro OLED Display Kit (Plug-and-Play)

Key Features of the Micro OLED Display Kit

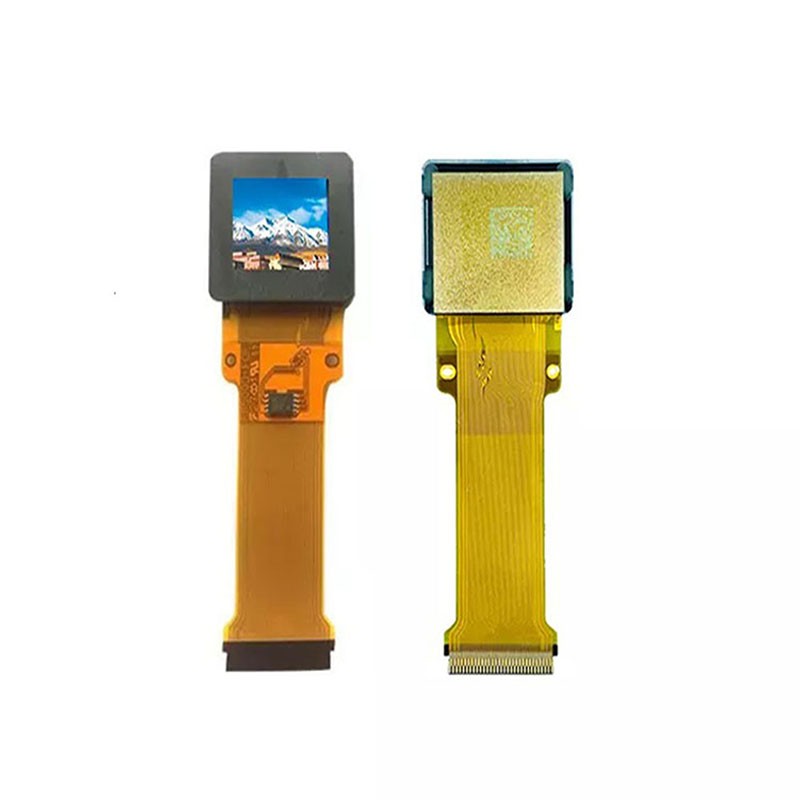

Sony Micro OLED Display Screen Panel (ECX331D)

Original Sony micro oled display panel with 1024x768 resolution and 4:3 aspect ratio.
High pixel density 0.5 inch micro oled screen ensures sharp and clear image quality.
Advanced silicon-based microdisplay technology with an incredible 100,000:1 contrast ratio.
Industrial-grade microdisplay screen with ultra-low power consumption for long-term reliability

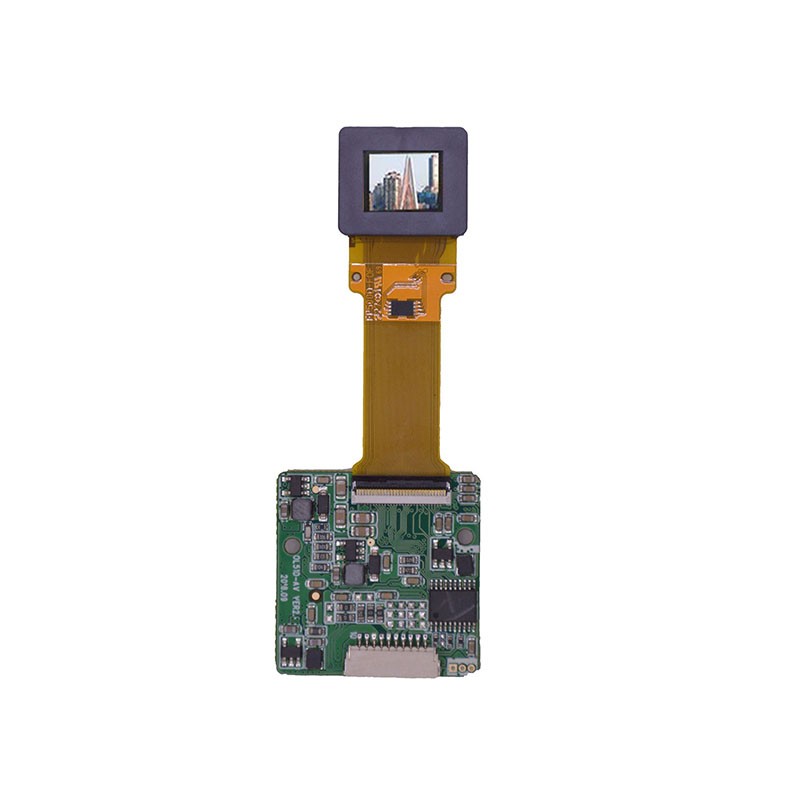

Signal HDMI/CVBS Driver Board

Versatile HDMI/CVBS microdisplay board supports digital HDMI and analog CVBS/AV signals.
Plug-and-play micro oled driver board solution simplifies testing and product development.
Built-in 61-pin (61P) interface for stable power and video signal transmission.
Compact driver board layout, optimized for lightweight and small space integration.

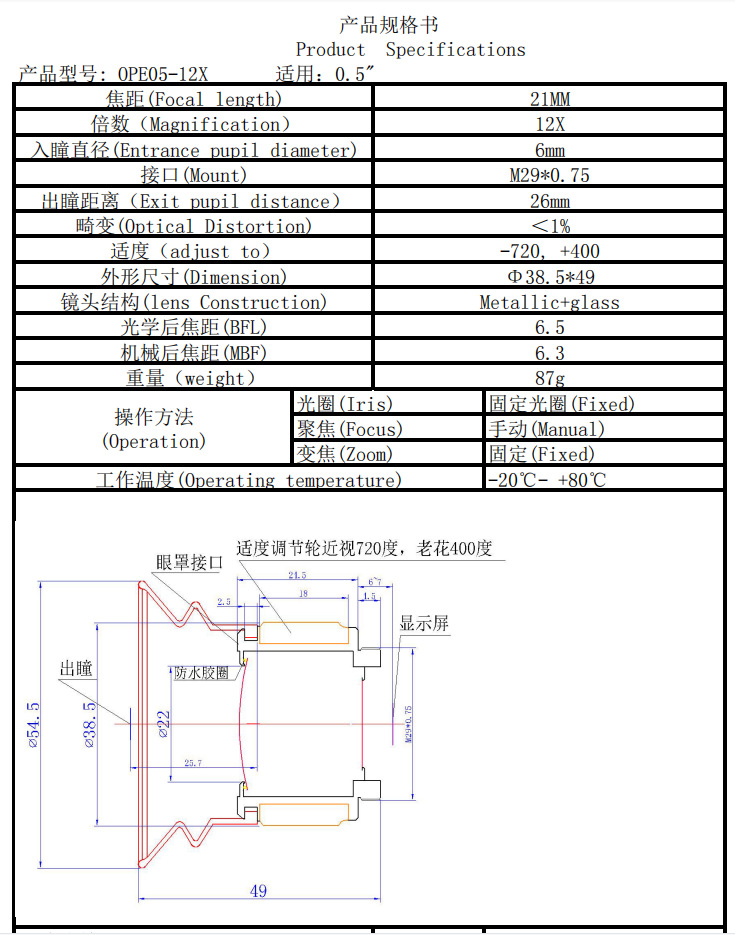

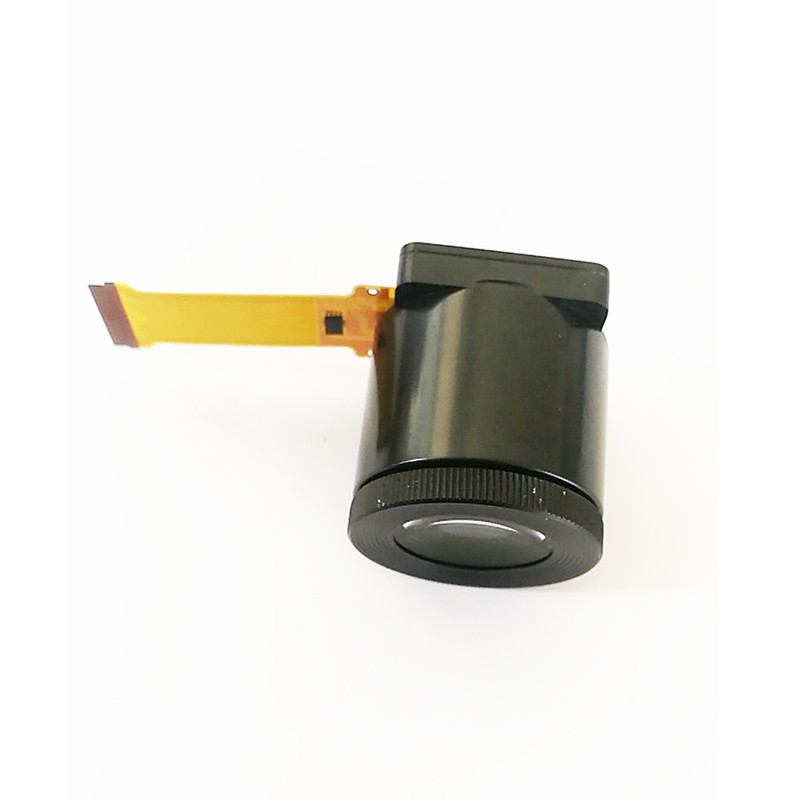

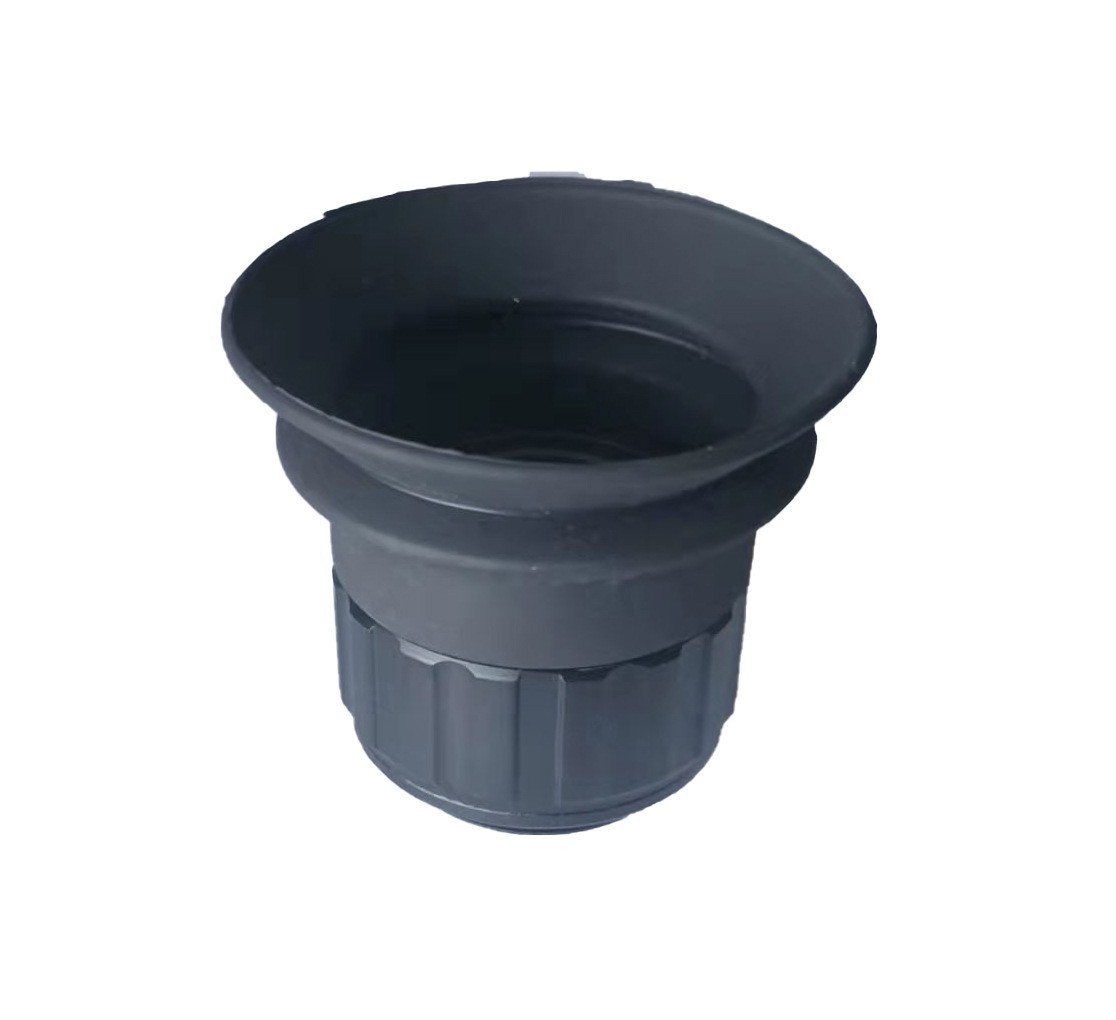

Optional 12X Optical Magnifying Lens

Compact driver board layout, optimized for lightweight and small space integration.
High-quality 12X optical magnifying lens for comfortable and sharp near-eye viewing.
Premium eyepiece optic provides a wide field of view without image distortion.
Allows developers to easily view the detailed graphics on the 500 nits micro oled display.
Flexible near-eye display configuration, perfect for rapid prototyping and device integration.

Industrial Applications for the Microdisplay Module

Thermal Imaging Displays and Target Scopes

With its dual HDMI/CVBS microdisplay board and fast response time, this micro oled display kit serves as an ideal microdisplay module for outdoor thermal imaging devices, digital spotting scopes, and commercial monoculars.

Night Vision Goggles and Wearable Systems

The true-black performance of the Sony micro oled screen ensures vital details are fully visible in zero-light environments. This 0.5 inch micro oled display module fits perfectly into professional night vision goggles (NVG) and helmet-mounted display architectures.

Industrial Inspection and Medical Endoscopes

The high-definition 1024x768 resolution of this micro oled display allows technicians to read precise data streams. It is widely adopted as a high brightness micro display component in non-destructive industrial inspection scopes and medical endoscopes.

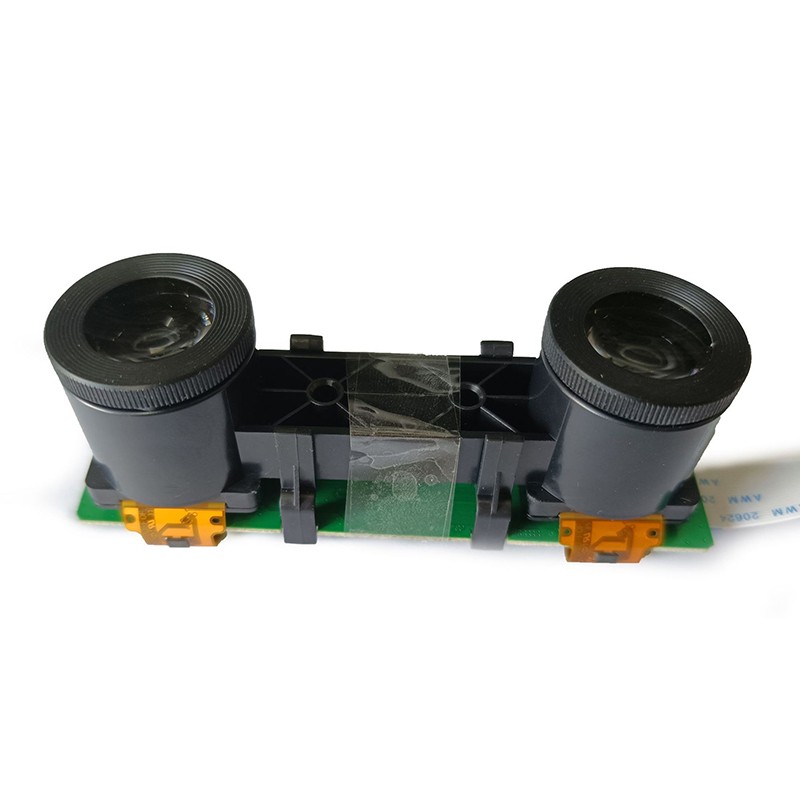

AR/VR Smart Glasses and Optical Research

The ultra-compact form factor of this microdisplay module makes the micro oled display kit a perfect sandbox tool for researching near-eye optical systems, AR/VR smart glasses prototypes, and near-eye display simulation headsets.
