1.3 inch Micro OLED Display 3552x3552 resolution 1600nits 90HZ Micro display-MIPI

Category： MICRODISPLAY
Size:1.3 Micro OLED
Resolution:35520XRGBX3552
Brightness:1600nits at 20% emission duty cycle(Typ.)
Interface: MIPI+I2C
INQUIRY EMAIL

Product Details

The Micor OLED Display is a 1.3 inch diagonal, high resolution (3552×3552), High Luminance of 1600nits, active matrix color OLED (Organic light Emitting Display) panel module based on singal crystal silicon backplane. The pixel circuits and driving IC are integrated on the silicon backplane to get the compact size and very low consumption.

Micro OLED, or Silicon OLED, as a new display combining semiconductor and OLED technology, will be the main solution for VR, AR, and other next-generation smart wearable displays. As 5G and AI technology continue to advance, more and more wearable display products will become more attractive!

It`s widely used in AR, VR, wearable device, gunsight, night vision, telescope, engineering, medical facility.

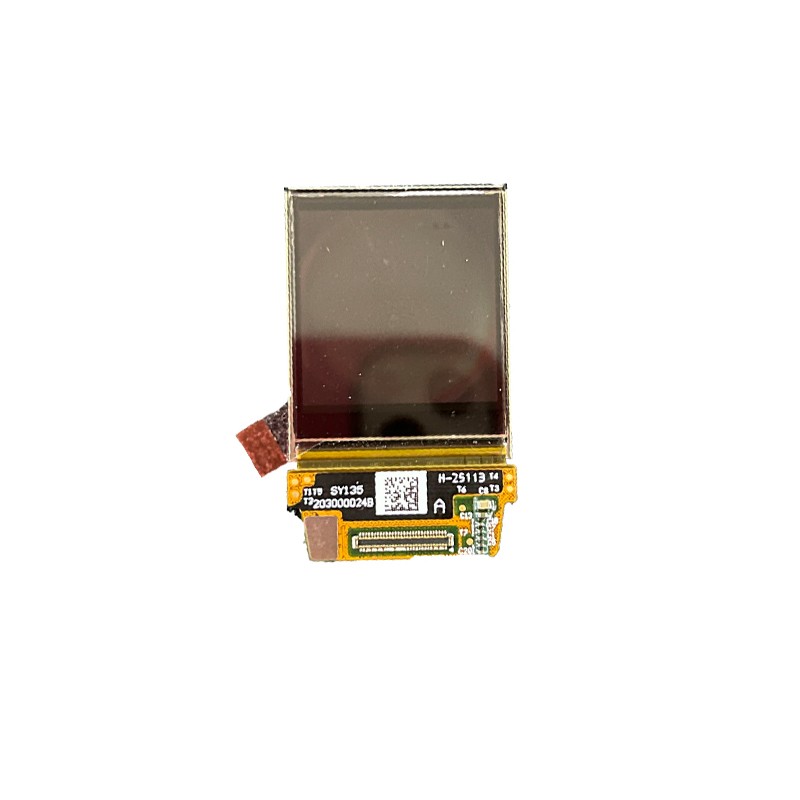

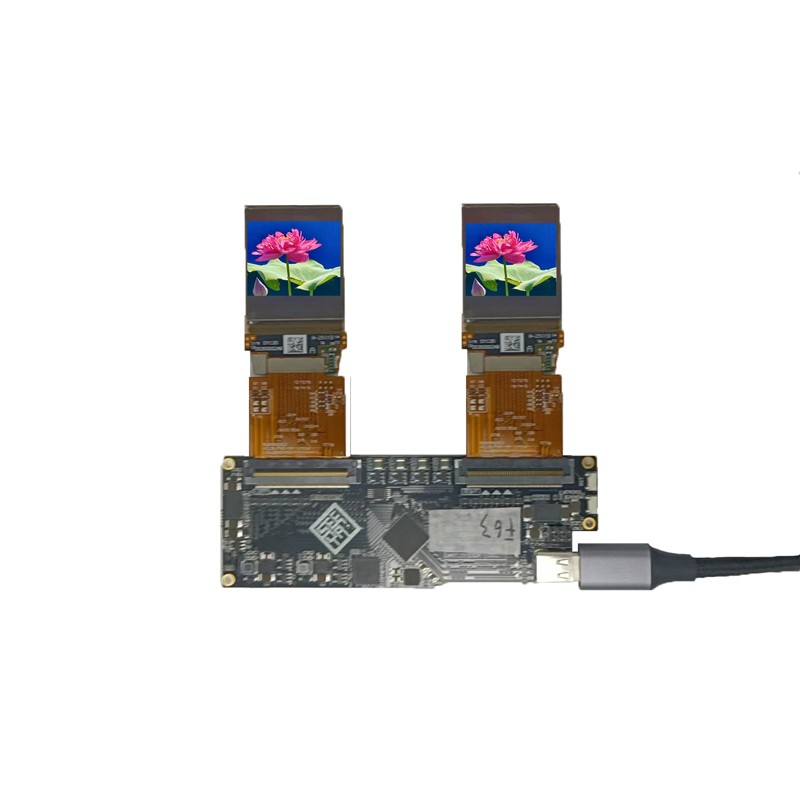

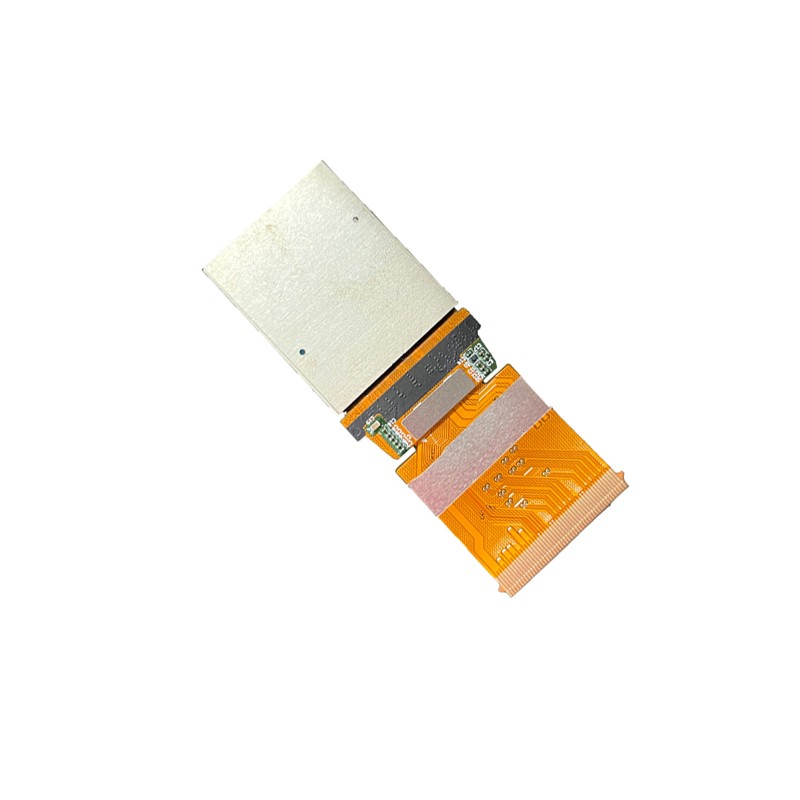

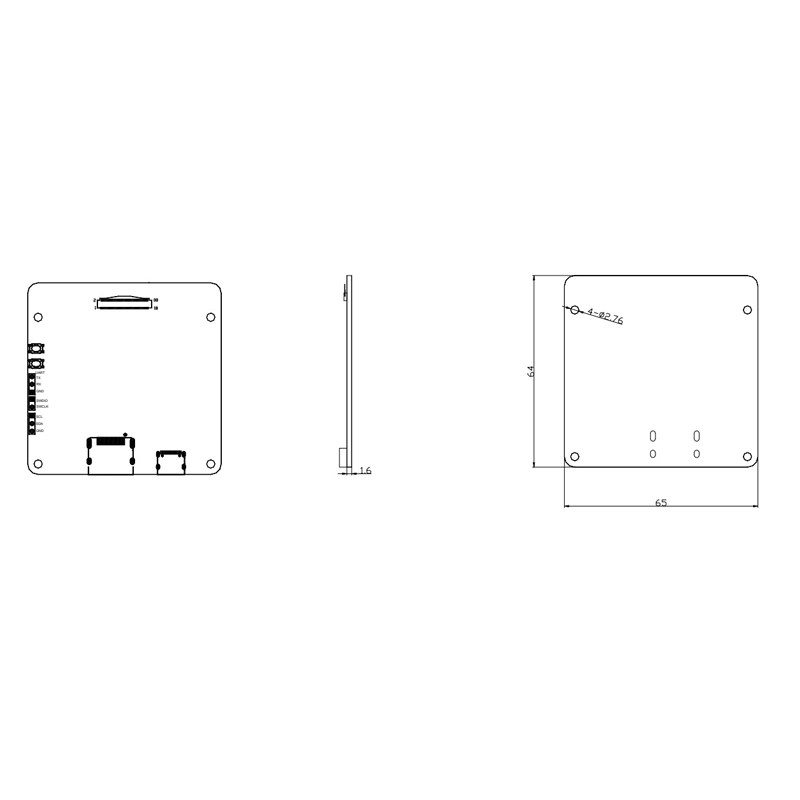

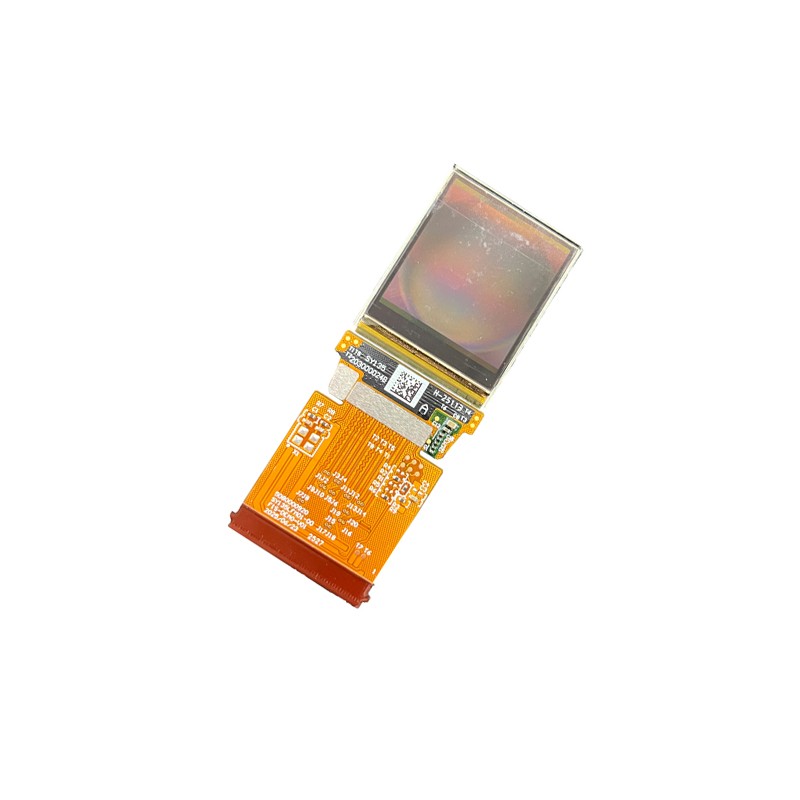

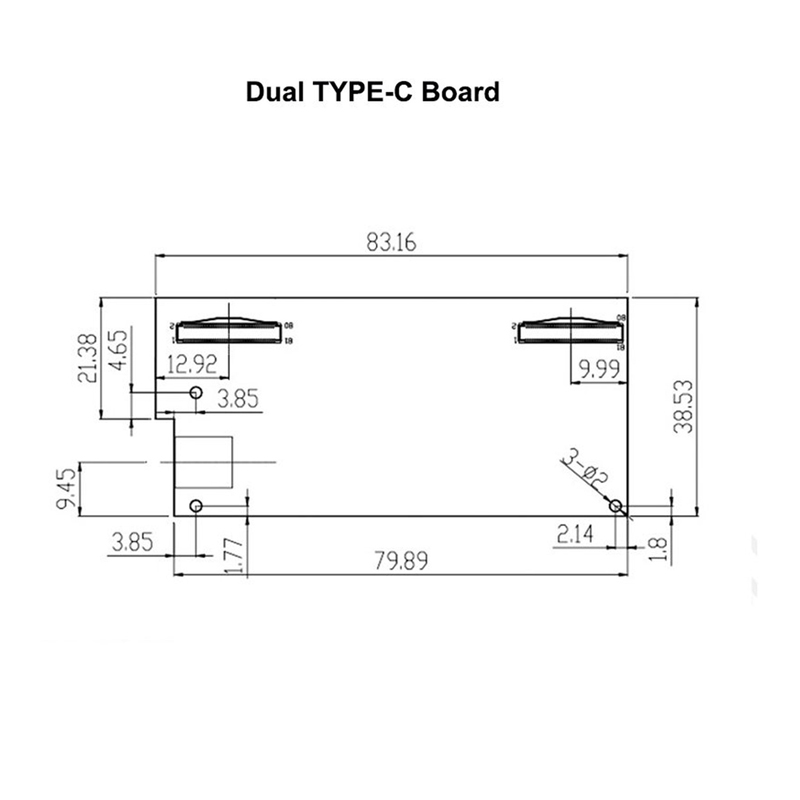

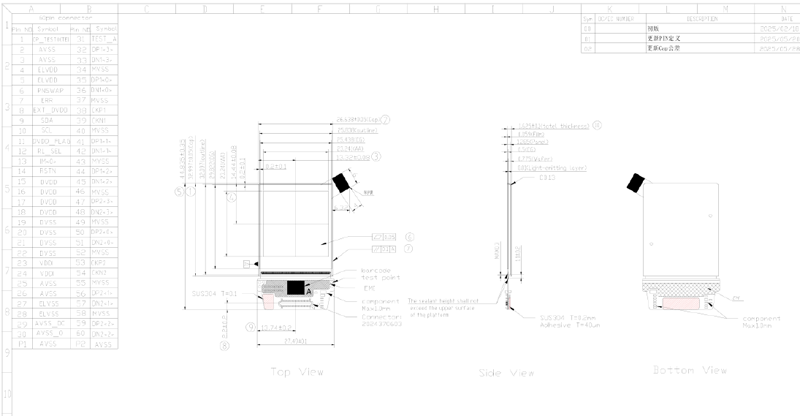

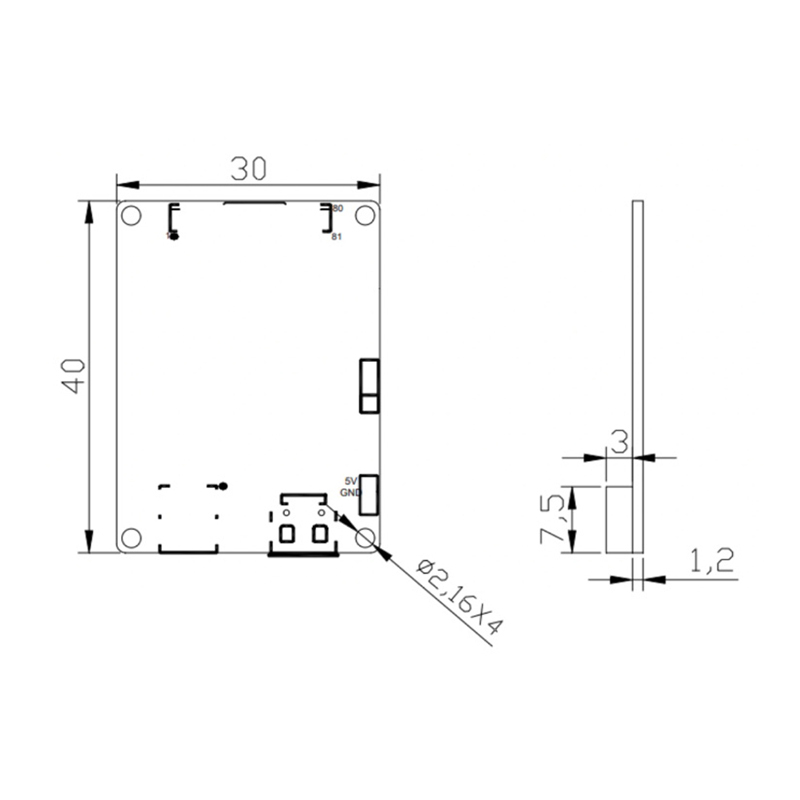

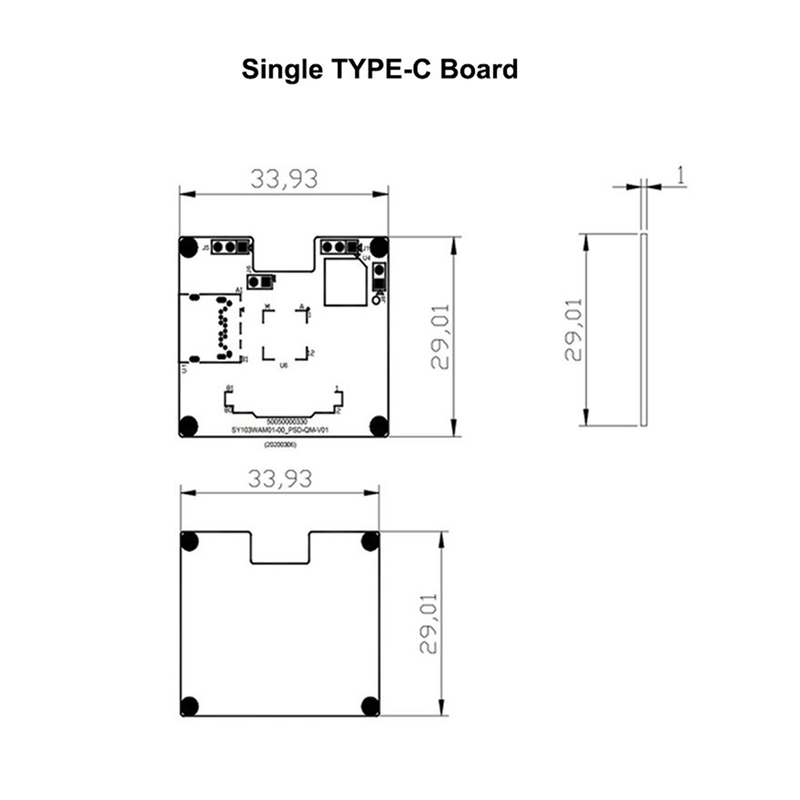

Screen adapter driver board (HDMI Board and TYPE-C) and pancake optics for this Microdisplay to demo.

1.3 inch micro oled 3552x3552 parameter

Display Type:Micro OLED
Resolution:3552(H) x 3552 (V)
Pixel Arrangement:Hexagon, delta arrangement
Number of dots:37.8M (3552x3552x3)
Pixel Pitch:6.543μm
Screen Size:26.638mm x 44.835mm x 1.625mm
Active Area:23.241×23.241mm/ 1.3 inch diagonal
Luminance(Brightness):1600nits at 20% emission duty cycle(Typ.)
Color:Full RGB
Contrast Ratio:200,000:1
Interface:MIPI+I2C
Frame Rate:Up to 90Hz
Operating Temperature:-20℃ to +70℃
Storage Temperature:-40℃ to +80℃
Gray Levels:256 or 1024
Plan:Mass Production
Application:AR VR devices, EVF, Night vision, sight...

1.3 inch Micro OLED 3552x3552 Features:

AP Operated Resolution:3552×3552
Frame rate: up to 90Hz
Normal operation supports full color mode: 16.7M colors (24-bits 8(R):8(G):8(B)) or 1.07G colors (30-bits 10(R):10(G):10(B))
With Micro-lens design and light output tuning

Interface

--MIPI-DSI (Display Serial Interface) interface with 2 ports（8 lanes）
--Only support video mode，only support Non-burst mode sync with events and Non-burst mode sync with pulses
--MIPI data rate up to 1.65Gbps
--I2C interface

Support VESA DSC version 1.1, 8/10bpp with 1/3 data compress,10bpp with 1/3.75 data compress
Support Scaling up to x1.0 ~ x2.0
Support Scan Flip control
Border shift 8 pixel (Left/Right/Up/Down)
Wide range Brightness adjustment
Normal Rolling/Rolling Back
BIST (Built-in self-test) engineering pattern for testing
Color Adjust: brightness, contrast, hue, & saturation
Power fail (ELVDD/ELVSS/GVDDP/GVDDS/ELVEE)

Fail indicator:

--Input sync fail
--Power fail (ELVDD/ELVSS/GVDDP/GVDDS/ELVEE)

Power Requirement:
--I/O supply voltage range for VDDI: 1.8V
--Digital supply voltage range for DVDD: 1.26V
--Analog supply voltage for ELVDD: 3.8V
--Analog supply voltage for ELVSS: -7.5V

**1.3 inch 3552*3552 Micro display Screen Applications:**

AR/VR display, electronic viewfinder of digital camera/video camera；
Portable equipment such as miniature projectors, video glasses, 3D displays, head-mounted entertainment equipment,etc；
Security monitoring /military:individual helmet display, electronic sight, infrared night vision device,Thermal imager displays,electronic telescopes,flight helmets,gun sights,life detection video devices；
Medical and industrial:human and machine video engineering research, endoscope, portable B-ultrasound machine,Vision correction equipment,multi-scope,various portable inspection and testing equipment;
Aircraft model:aerial photography:remote control aircraft parameter display system:remote control car video display terminal:etc.
