Micro AR Display 0.32 inch Micro OLEDoS Display 800x600 400nits for night vision googles

Category： MICRODISPLAY
Size:0.32 inch Micro OLED
Resolution:1920xRGBx1200
Brightness:2000cd/m2
Interface: MIPI
INQUIRY EMAIL

Product Details

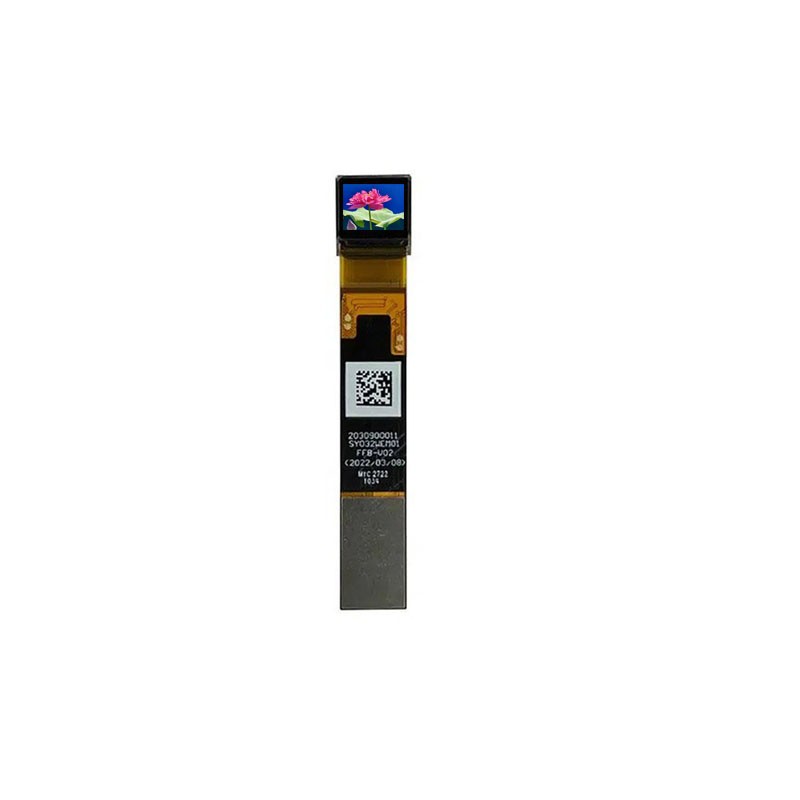

The 0.32 inch Micro OLEDoS Display is a high resolution oled microdisplay, it is exceptional image quality with 800×600 resolution featuring 800×600 pixels and 400cd/m2 high brightness, Featuring multiple interface options including I2C, RGB and MIPI, this display module is engineered for high-performance applications requiring ultra-compact form factors and low power consumption.

The 0.32 inch Micro Display is renowned for its high resolution, brightness, and refresh rate 50-120Hz, making it an ideal choice for various applications such as in VR ( Virtual Reality) ,AR(Augmented Reality), EVFs(Electronic Viewfinders), Night Vision Goggles, Medical Imaging Devices, or Military night vision goggles Products, the 0.32 inch OLEDoS MicroDisplay sets the standard for Micro Display technology.

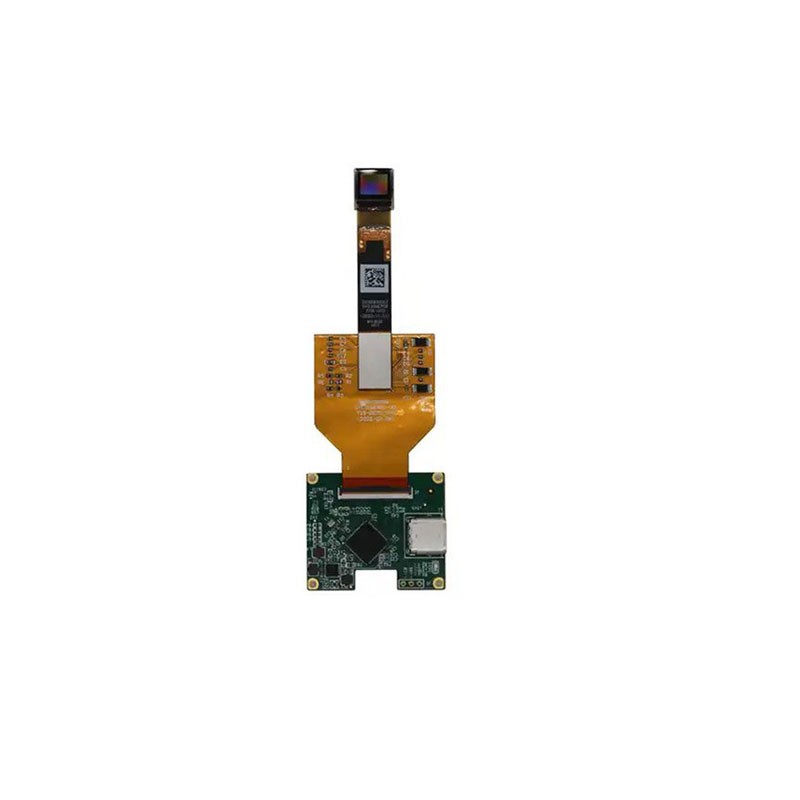

For easier demo and bring a better experiences for the developer, there is also TYPE-C Controller Board and TYPE-C Driver Board for your option.

0.32 inch Micro OLED display 800x600 Parameter

Features	Specification	Unit
Display Type	OLED Display
Display Size(Diagonal)	0.32"	inch
Resolution	*800(RGB)600**	Pixels
Pixel Size	8.1µm x 8.1µm
Pixel Arrangement	Hexagon, delta arrangement
Display Color	Full color
Number of dots	1.44M (800x600x3)
Brightness	400	cd/m2
Interface Type	I2C+RGB and MIPI
Driver Board Solution	HDMI PORT/TYPE-C/ Board
Panel Size	*9.9410.451.75*	(mm)
Active Area	6.48mm x 4.86mm / 0.32"diagonal	(mm)
Frame Rate	50~120Hz
Contrast Ratio	100,000:1
Power Consumption	220	mW
Gray Level	256
Mass Production	Available
Operation Temperature	-20℃~70℃
Storage Temperature	-40℃~80℃

0.32 inch Micro Display 800X600 features

High Pixel Density: With 1.44 million dots (800×600×3) arranged in a hexagon delta pattern, delivering sharp and vibrant images.
Wide Color Gamut: Supporting 16.7M colors (24-bit depth) for rich, accurate color reproduction.
Multiple Interfaces: Compatible with I2C, RGB parallel interface, and MIPI D-PHY with 2 lanes for flexible system integration.
Low Power Operation: Optimized power consumption of just 220mW at typical operating conditions.

Industry Applications

AR/VR HEADSETS
Ideal for augmented and virtual reality applications where high brightness, fast response time, and compact size are critical for immersive experiences.

MEDICAL IMAGING
Perfect for medical viewfinders, endoscopes, and surgical displays requiring high resolution and accurate color reproduction.

INDUSTRIAL EQUIPMENT
Suited for industrial scopes, measurement devices, and portable instrumentation where space constraints and reliability are paramount.
