0.23 inch Micro OLED Display 640x400 HDMI/CVBS Board

Category： MICRODISPLAY
Size:0.23 inch Micro OLED Display
Resolution:640(RGB)X400
Brightness:800 cd/m2

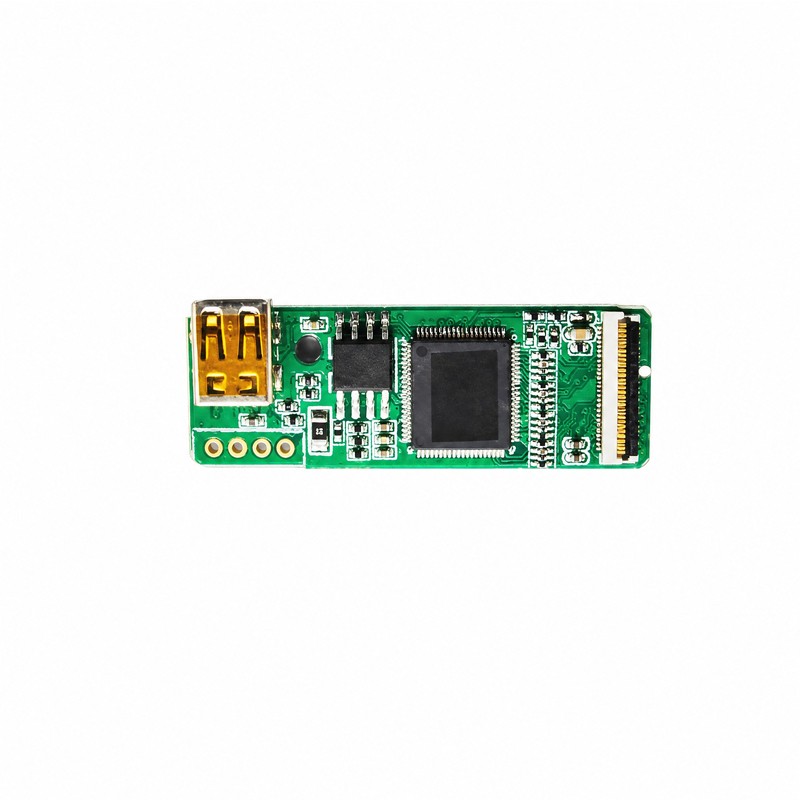

Display Driver Board: HDMI/CVBS
INQUIRY EMAIL

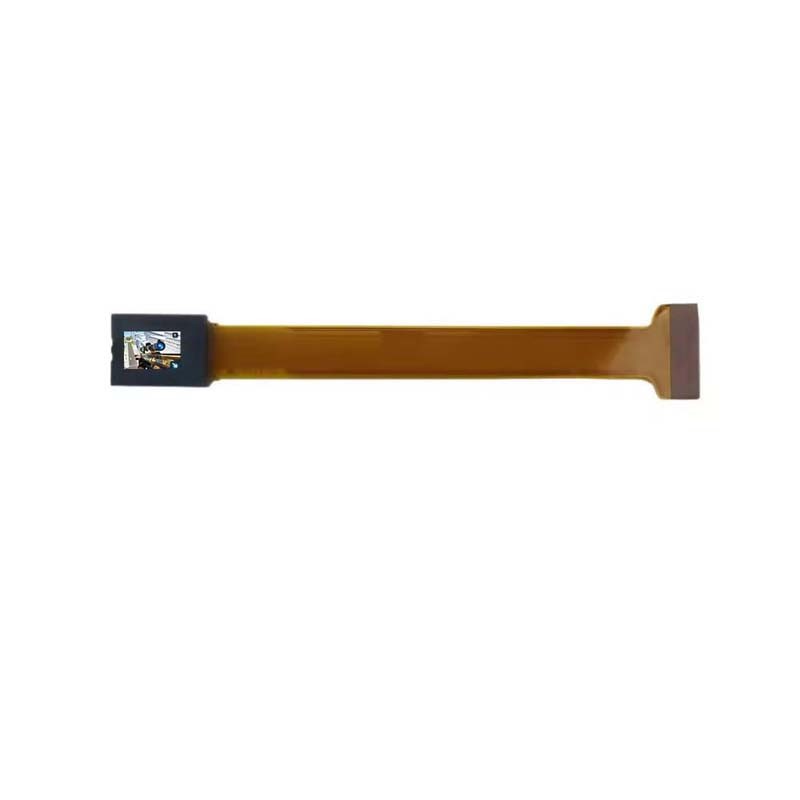

0.23 inch 800 nits Micro OLED Display 640x400 for Augmented Reality Headsets

This high-performance 0.23-inch Micro OLEDoS Display features a crisp 640x400 high resolution and 800cd/m2 high luminance,designed for ultra-compact near-eye architectures;this premium microdisplay integrates timing controllers and panel drivers onto a silicon substrate. It delivers excellent power efficiency and fast response times, perfect for standalone or integrated smart optics.

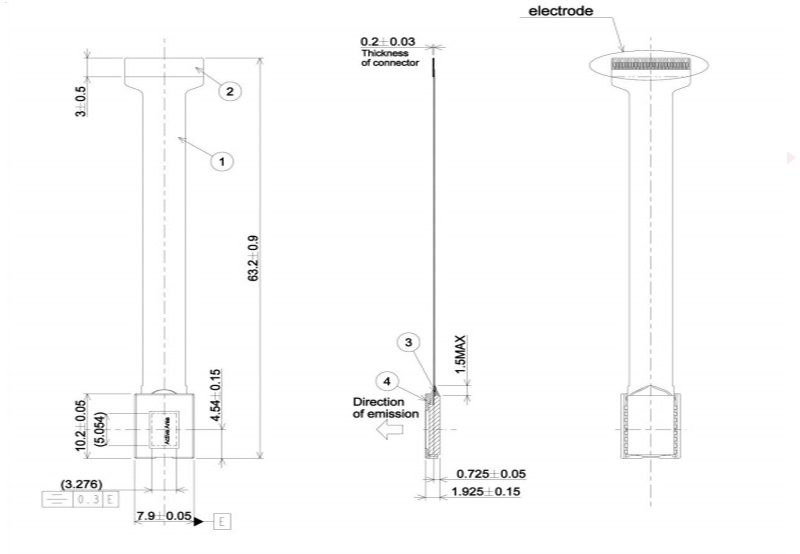

0.23 inch Micro oled display 640X400 Mechanical parameter

Features	Specification	Unit
Display Type	Silicon-based Micro OLED
Display Size (Diagonal)	0.23	inch
Pixel Resolution	640 (RGB) × 400	Pixels
Display Color	Full Color
Interface Type	Parallel RGB 24-bit / YCbCr
Peak Brightness	800	cd/m²
Contrast Ratio	100,000:1
Frame Rate	60	Hz
Panel Size	15.6 × 13.6 × 0.2	mm
Active Area	8.143 × 6.146	mm
Pin Count	51	Pins

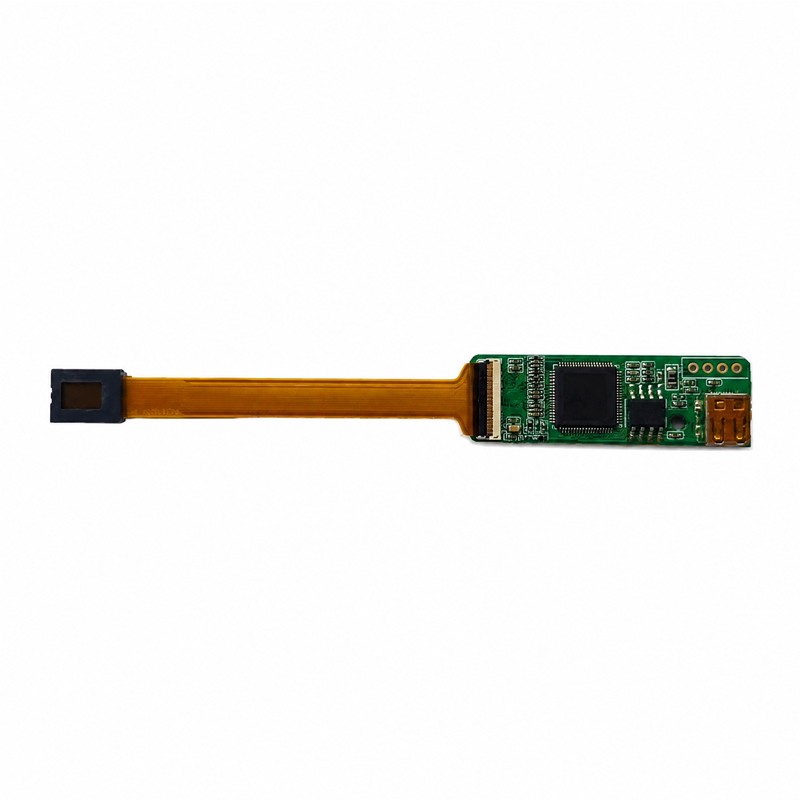

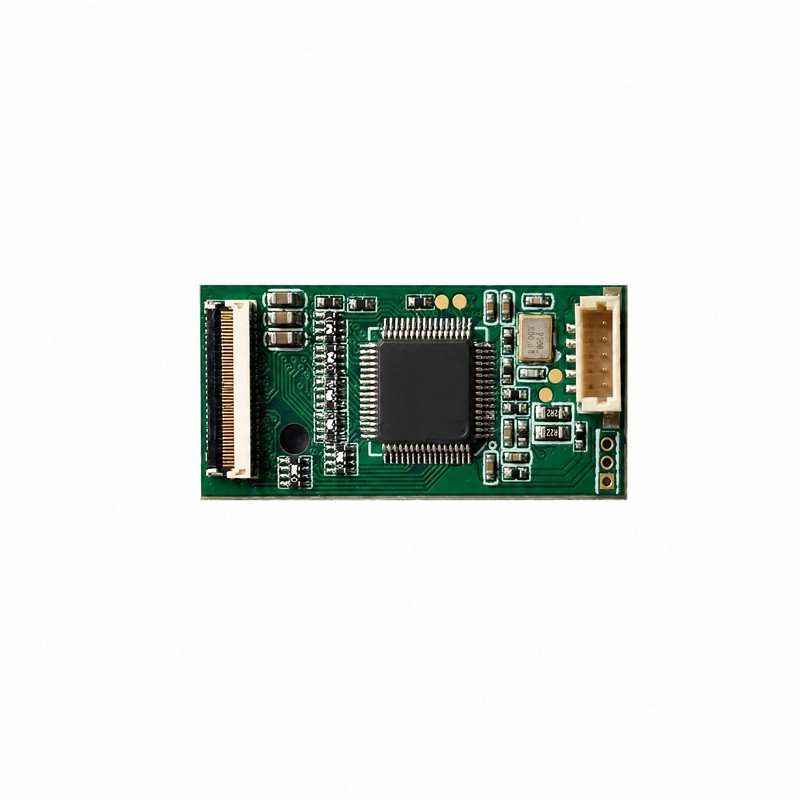

Optional Video Board	HDMI Port / CVBS / AV Board	(Sold Separately)

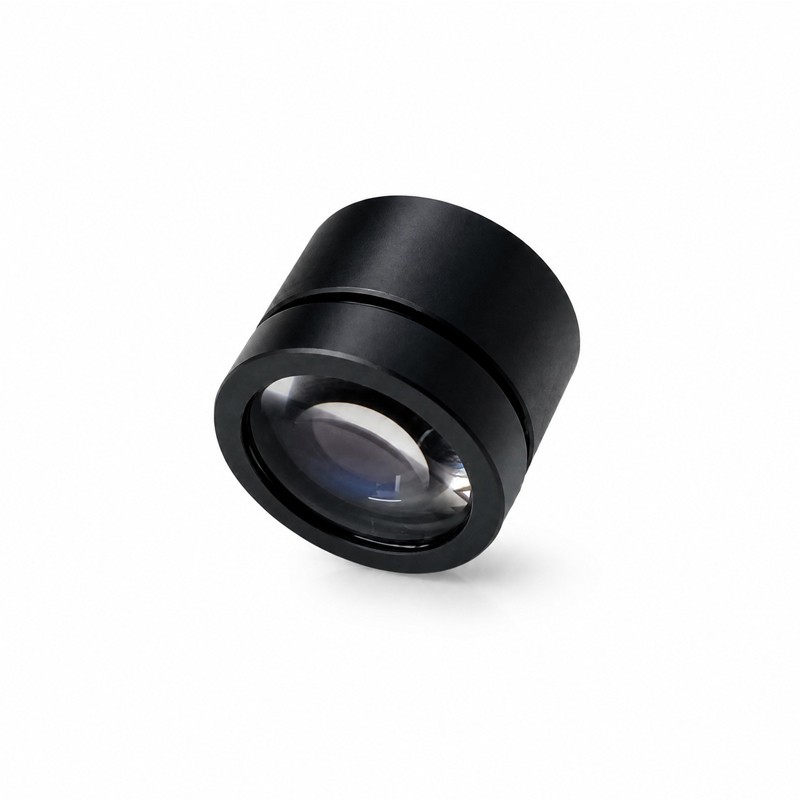

Optional Eyepiece Optics	Magnifying Optical Prism Lens	(Sold Separately)
Operating Temperature	-10 to 70	°C
Storage Temperature	-30 to 80	°C
Production Status	Mass Production Available

Features of 0.23 inch Micro OLEDoS Display Panel

High Energy Efficiency: Optimized to minimize power consumption and reduce heat in portable wearable electronics.

Crisp Near-Eye Visuals: Silicon substrate technology offers incredible contrast for deep blacks and clear text.

Flexible Orientation: Supports built-in hardware image mirroring (up/down, left/right flip) to simplify optical housing layout design.

Applications for Micro AR Display Systems

Smart Glasses & Head-Mounted Displays (HMD)

Perfect for minimalist, lightweight augmented reality (AR) glasses, virtual reality (VR) engineering samples, and smart helmet indicators where low power and low weight are critical.

Portable Industrial & Medical Viewfinders

Widely applied in medical thermal imaging, industrial endoscope viewfinders, and hunting night-vision scopes requiring compact micro-sized screens.

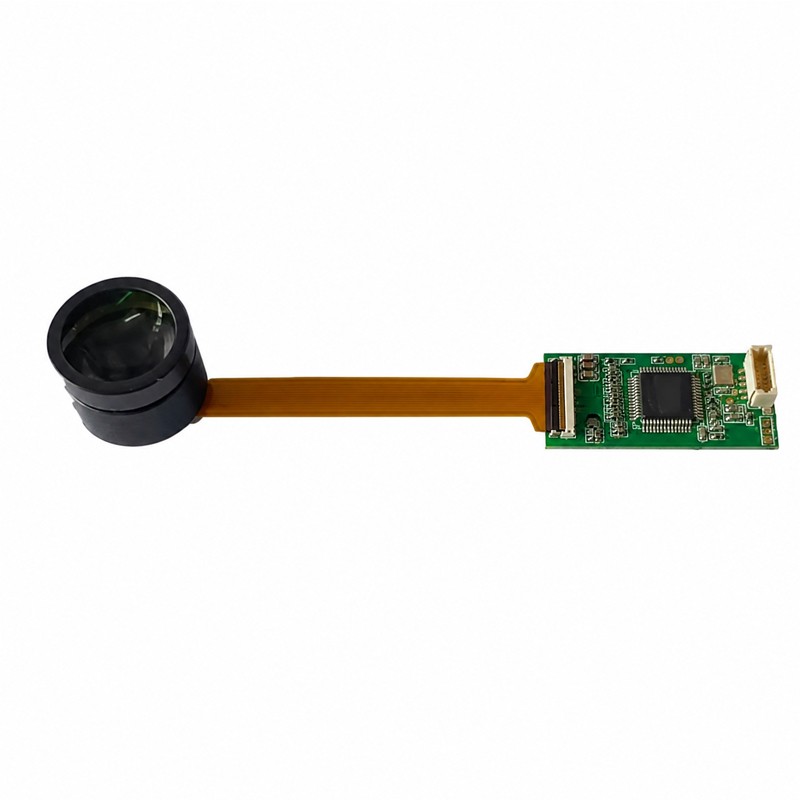

Optional Accessories & Hardware Support

To speed up your engineering prototyping, we provide fully compatible, standalone accessories for this 0.23 micro oled display 640x400 panel (Note: Sold separately, not pre-assembled)
