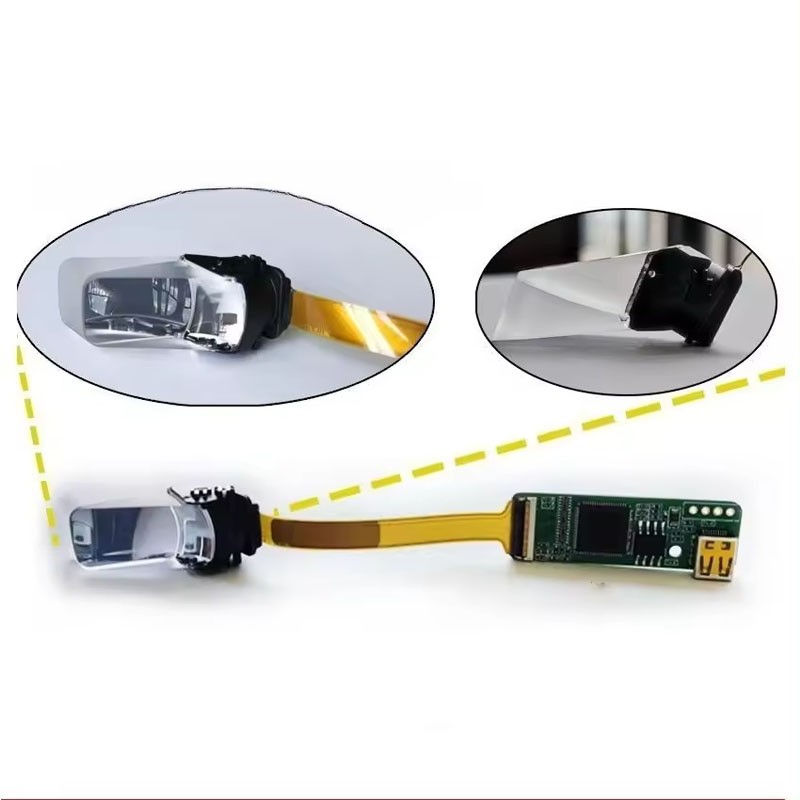

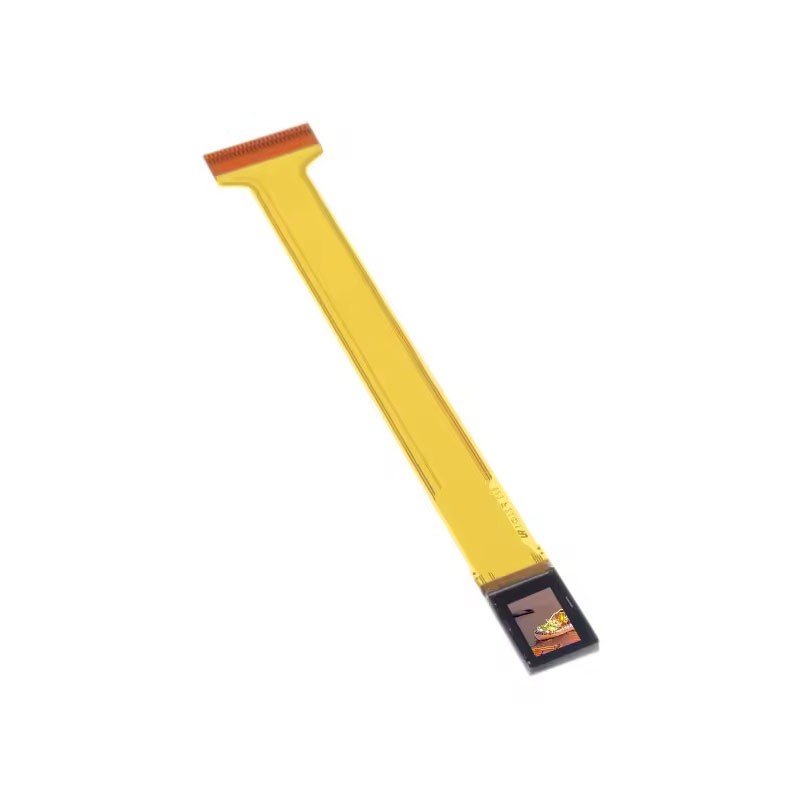

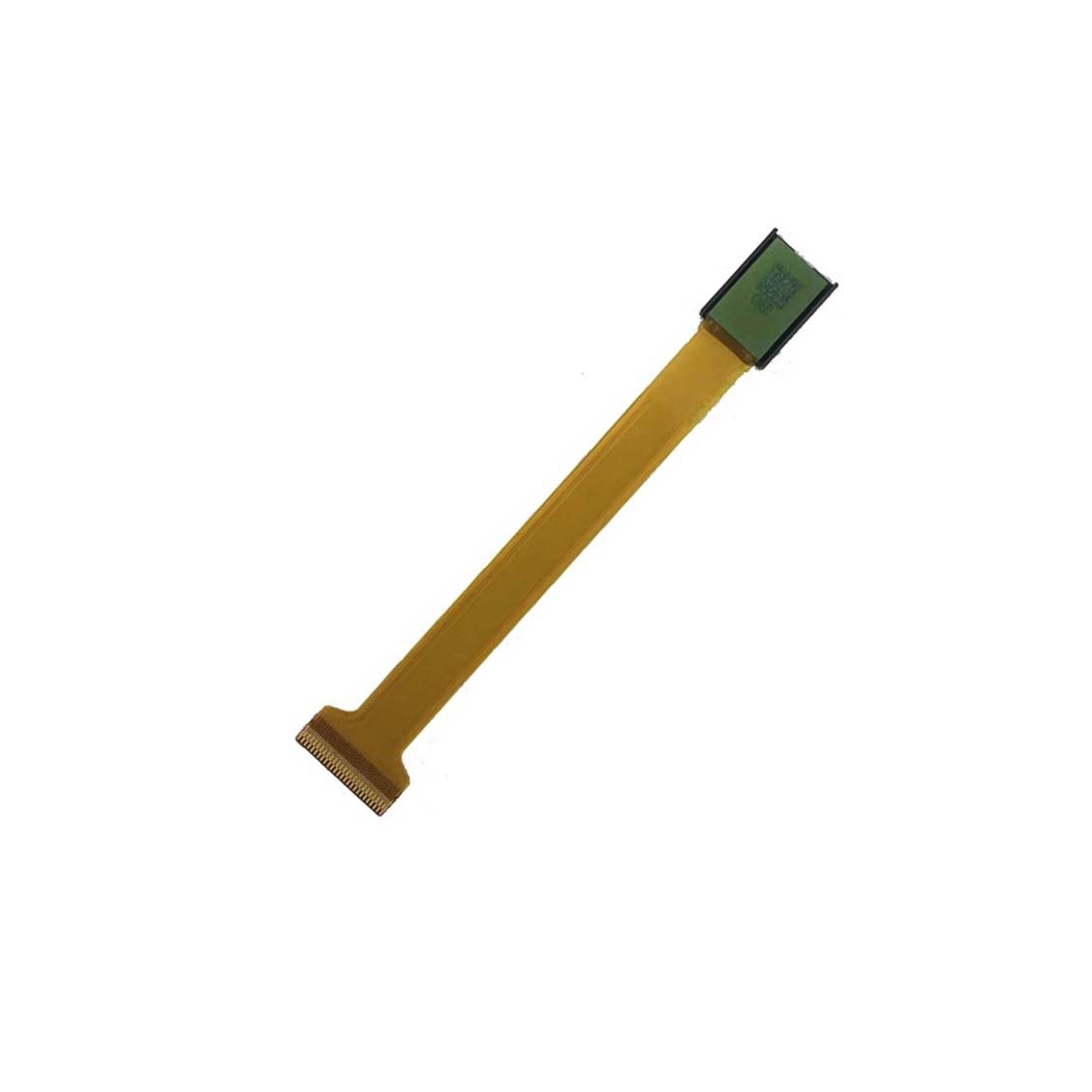

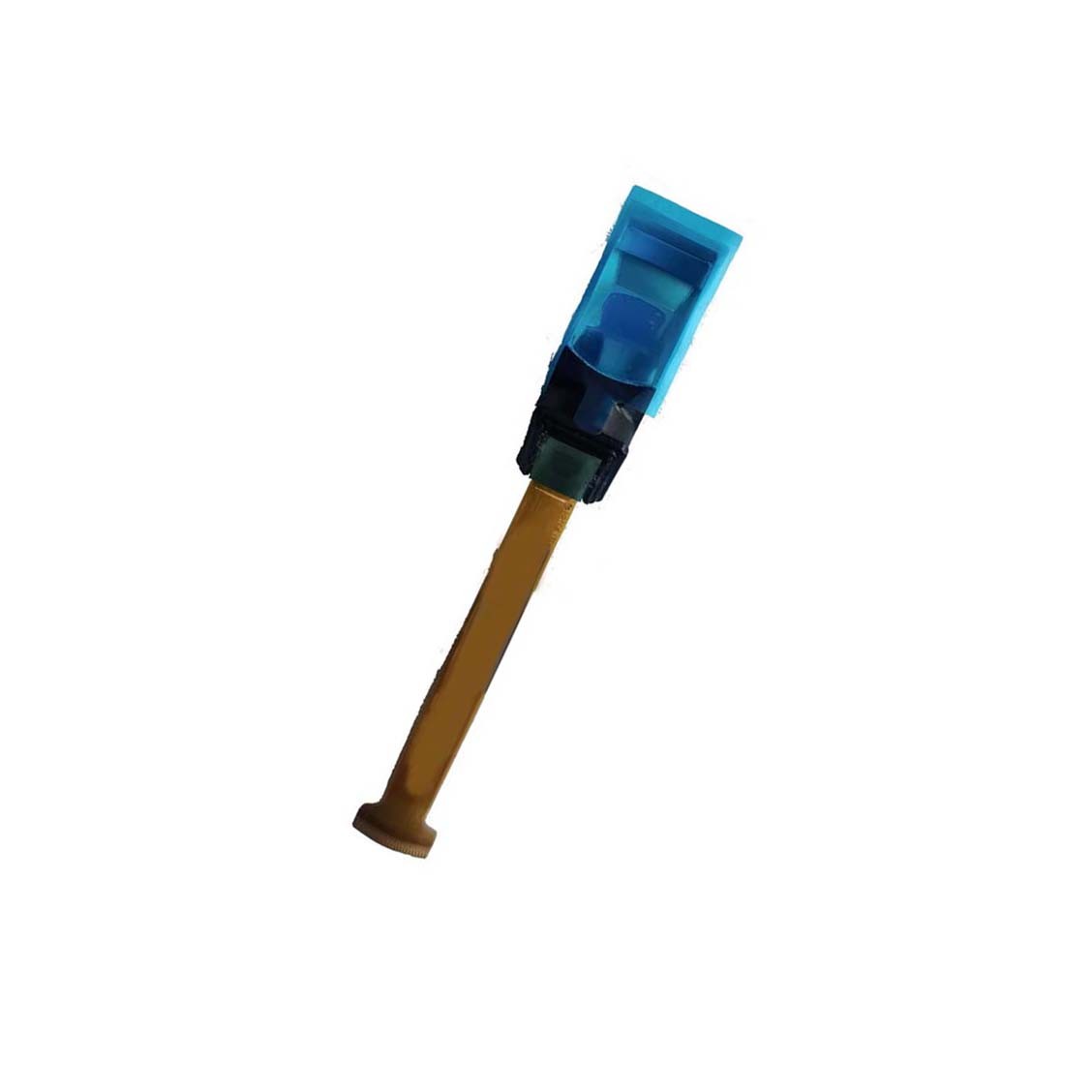

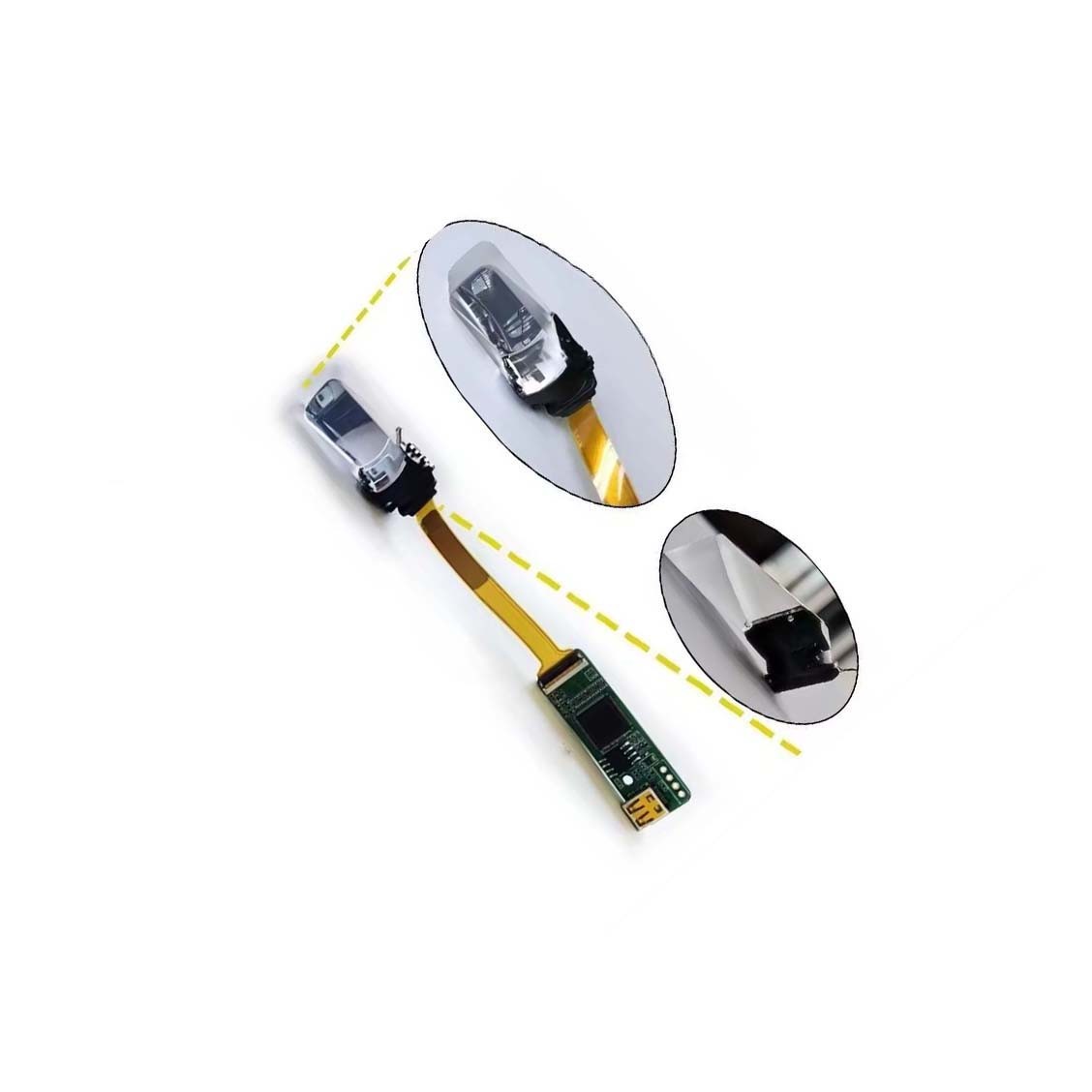

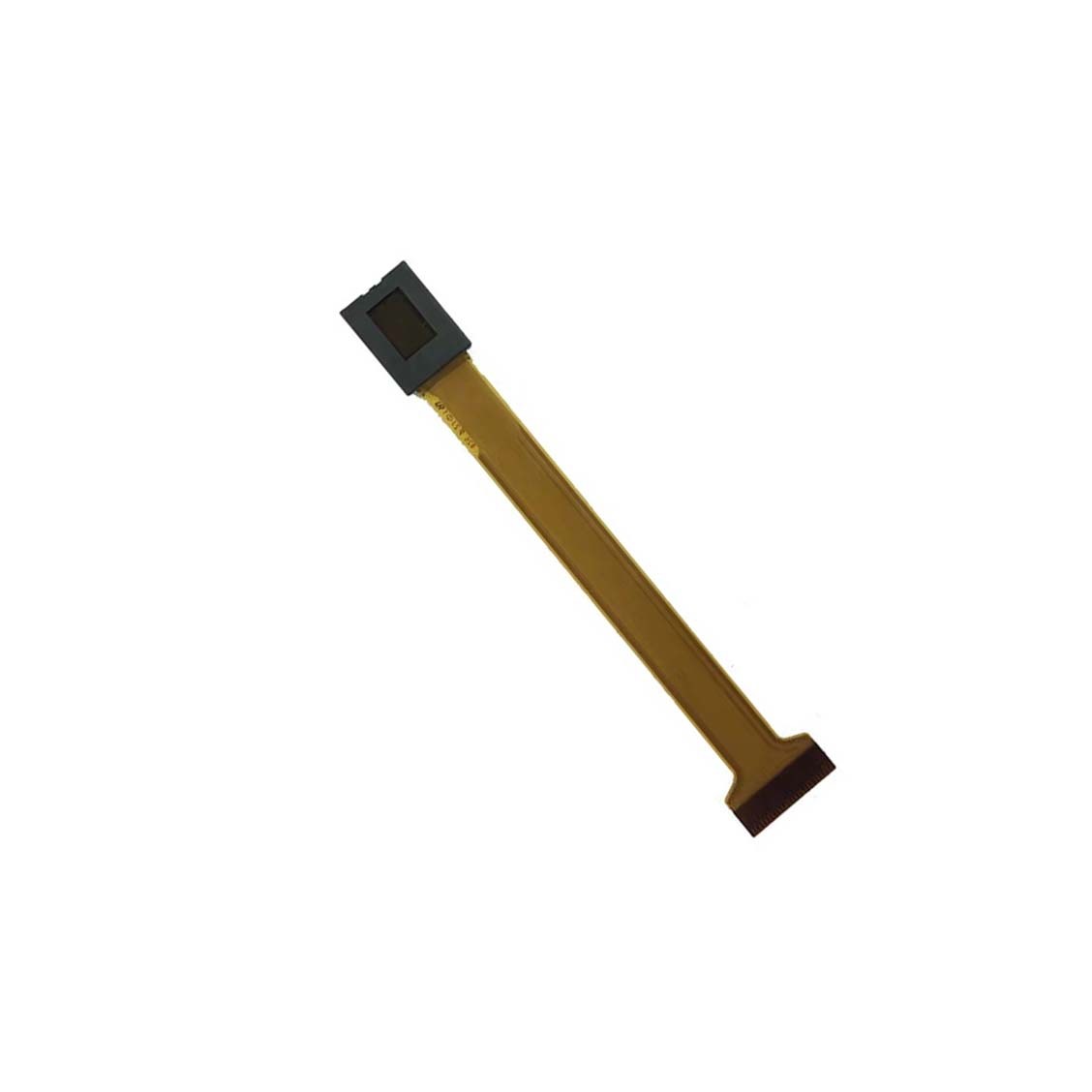

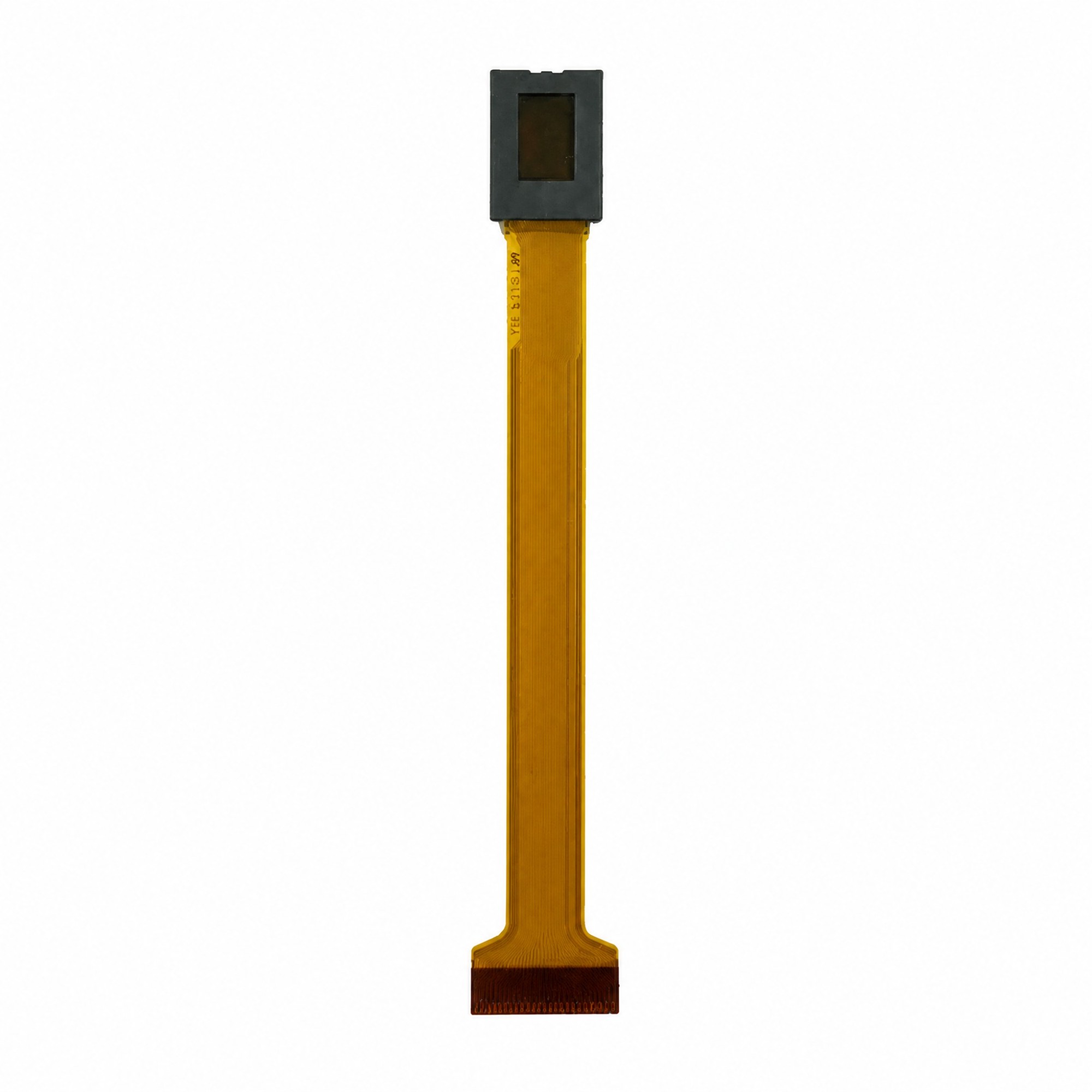

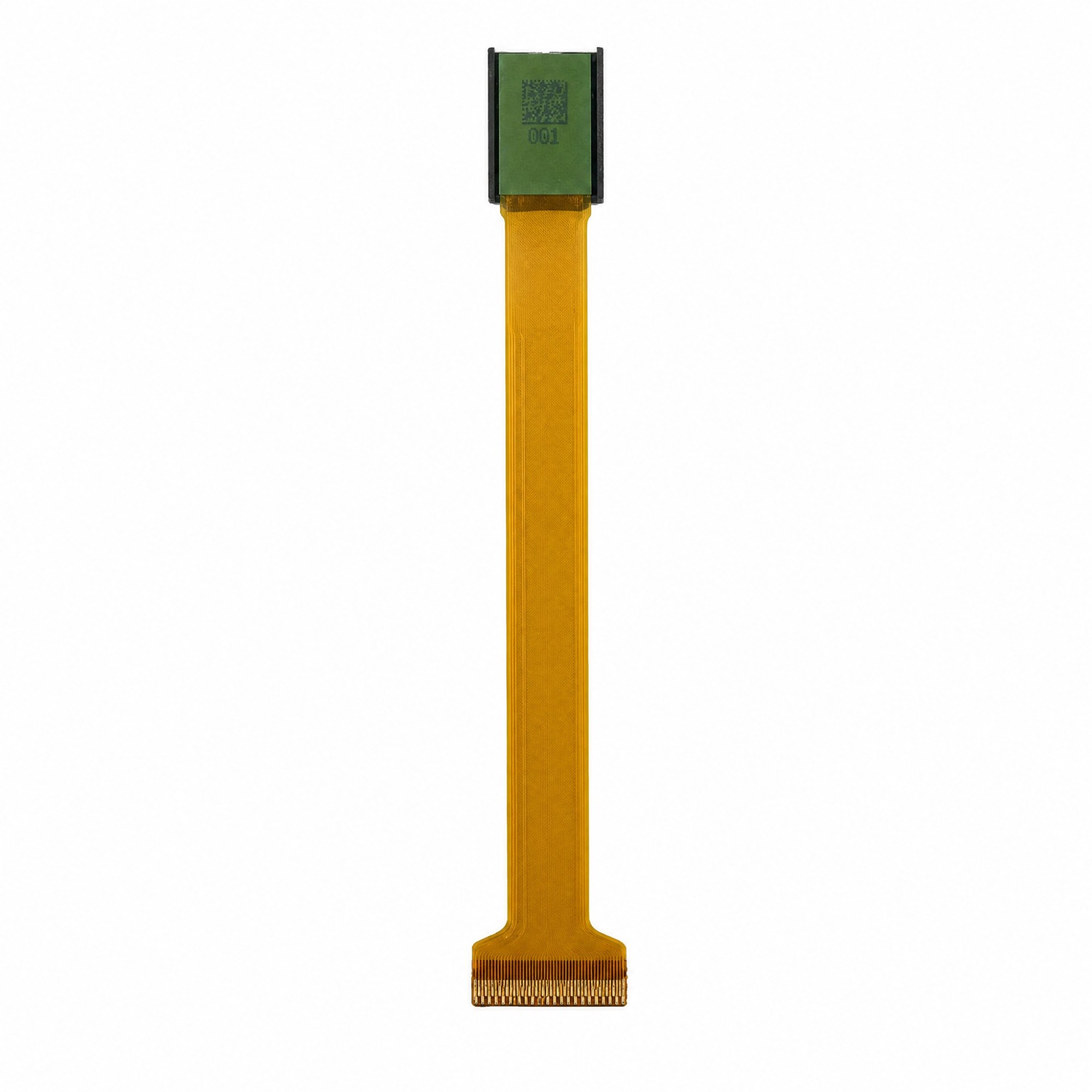

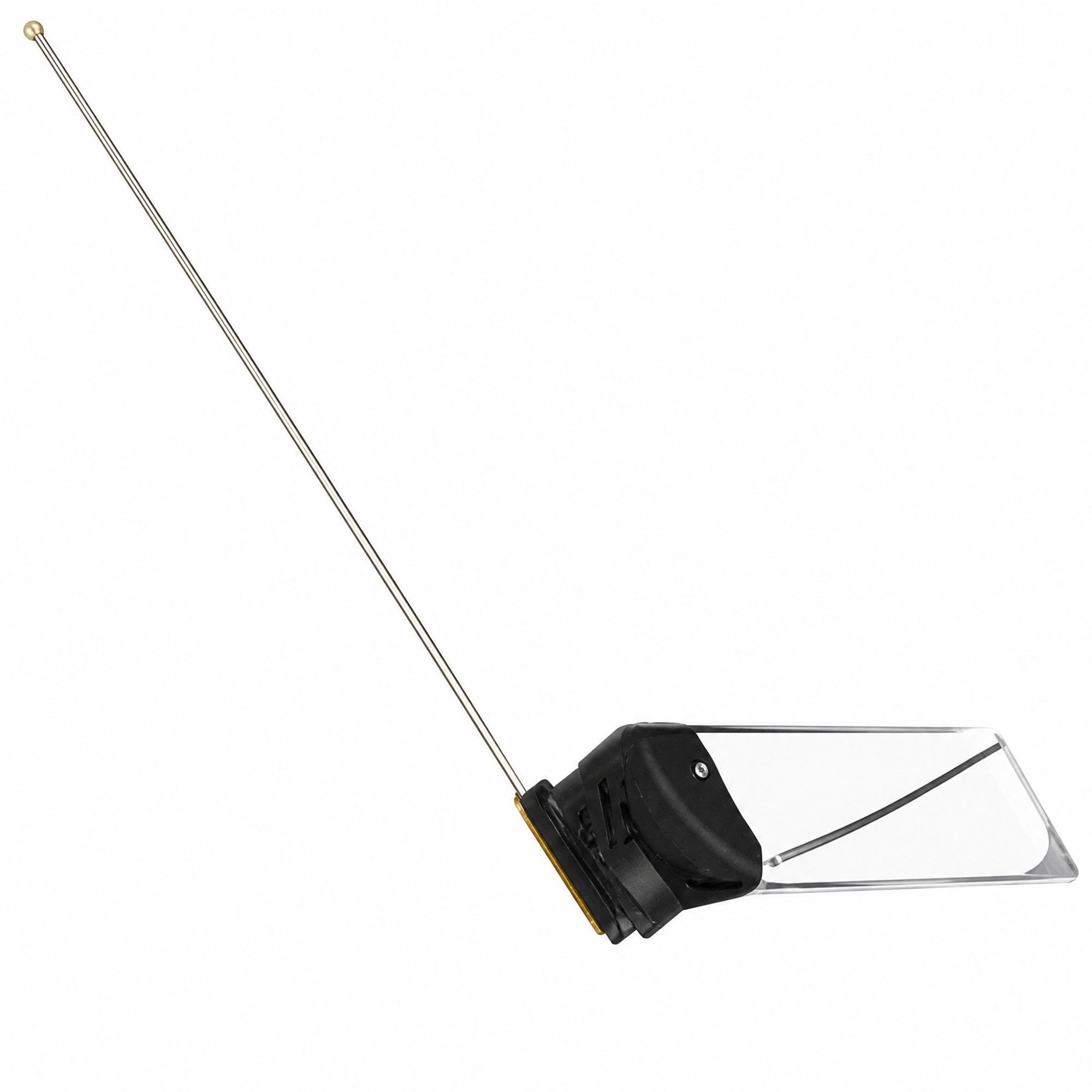

This 0.23 " high-brightness 3000 nits Micro OLEDoS Display optics module ,integrates a 640x400 silicon-based microdisplay panel with a precision magnifying prism lens kit. Featuring a 60Hz frame rate and ultra-low power consumption, this turnkey micro oled AR VR display module is highly optimized for rapid hardware prototyping in AR glasses, VR headsets, electronic viewfinders (EVF), drones, and FPV goggles.

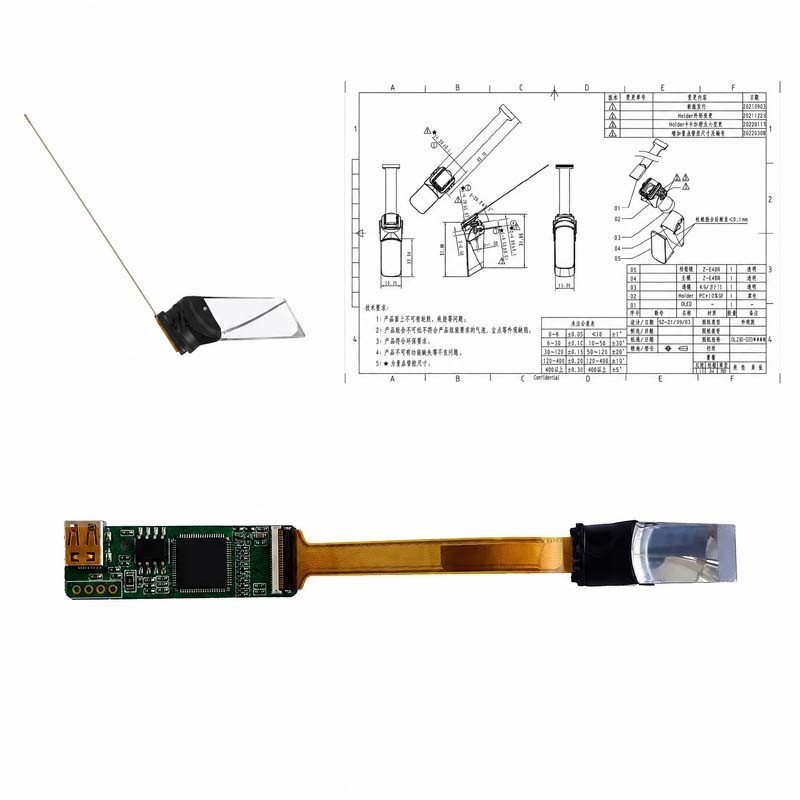

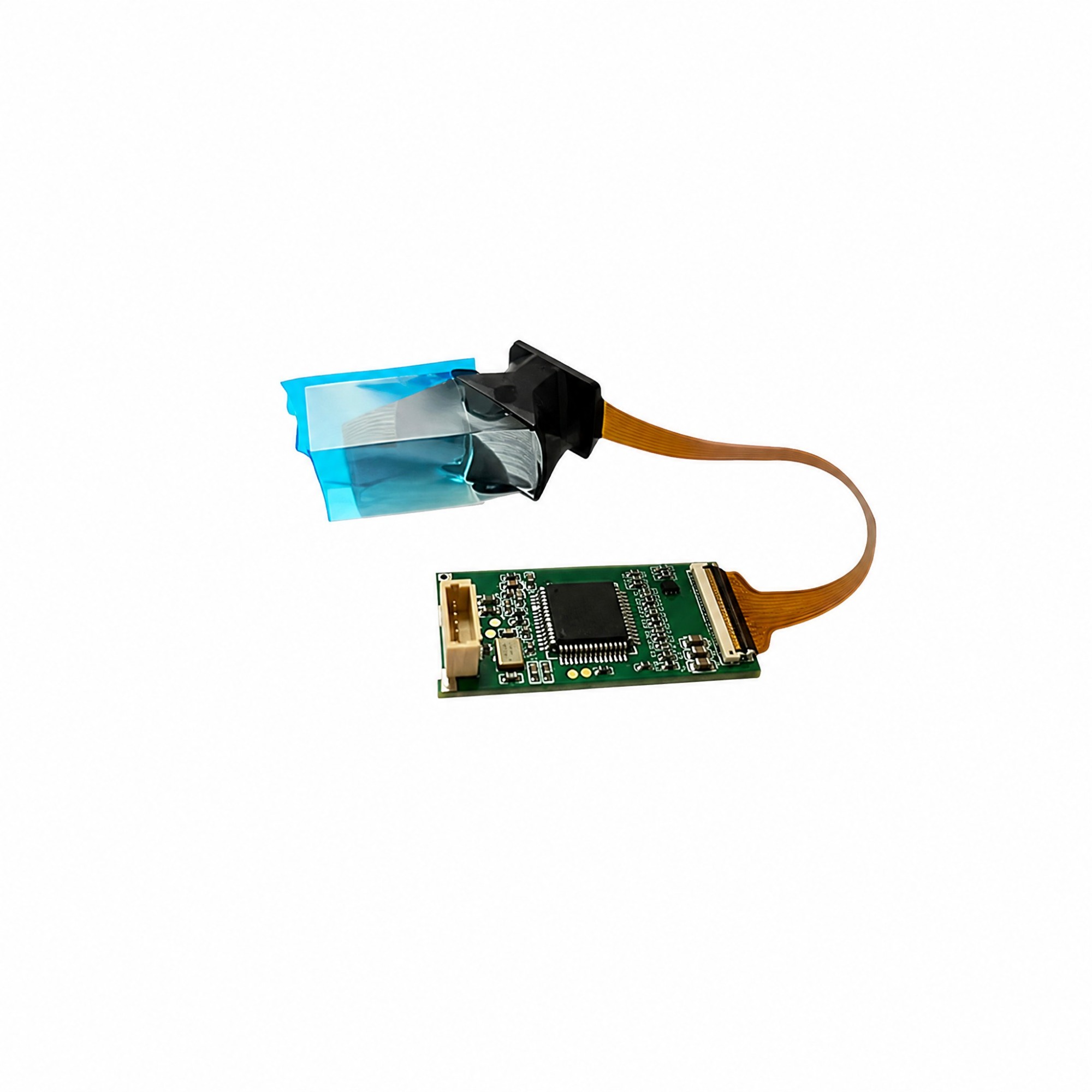

To provide a complete plug-and-play evaluation experience, we offer fully compatible standalone signal controller boards to light up this 0.23" 640x400 Sony Micro OLED optics module

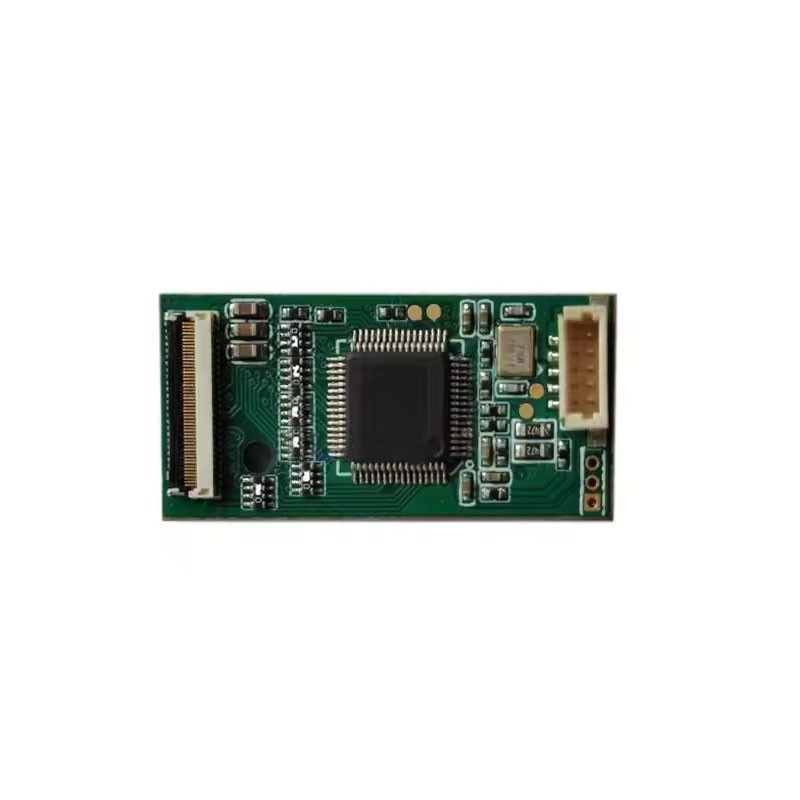

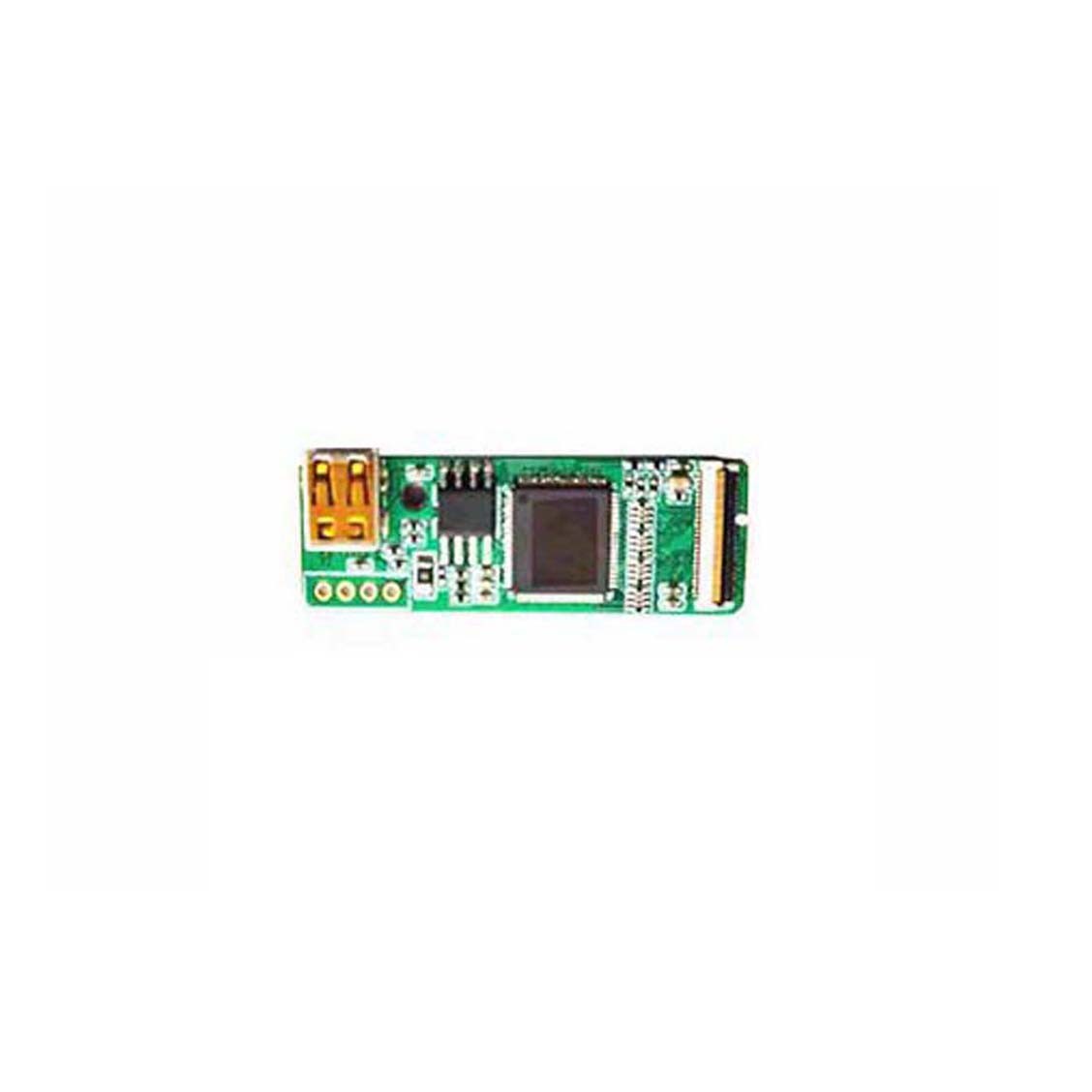

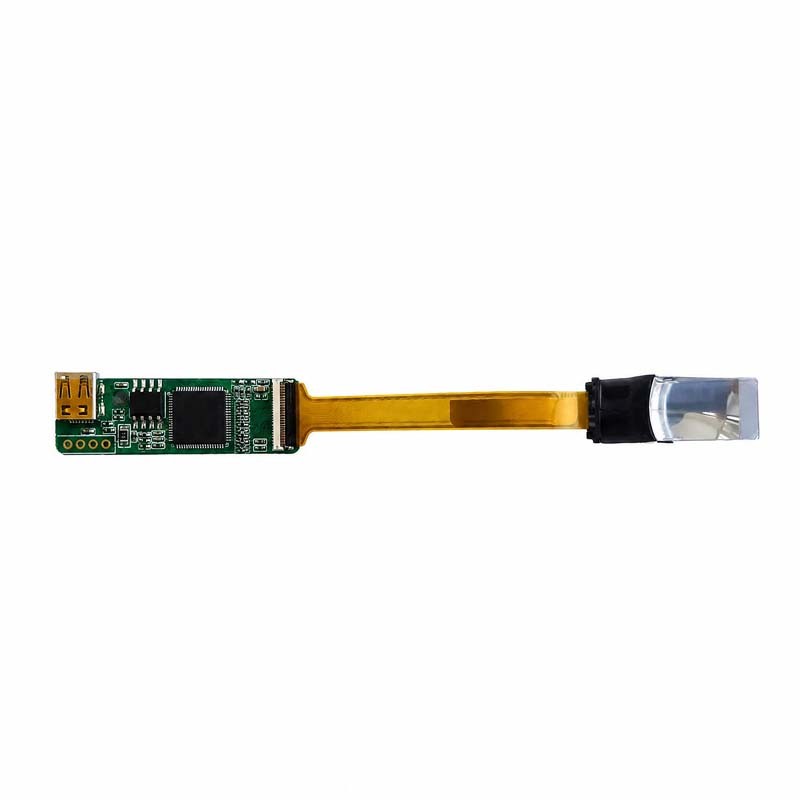

HDMI Driver Board: Micro-HDMI input solution for immediate testing and prototyping via PC, laptop, or industrial mini-computer setups.

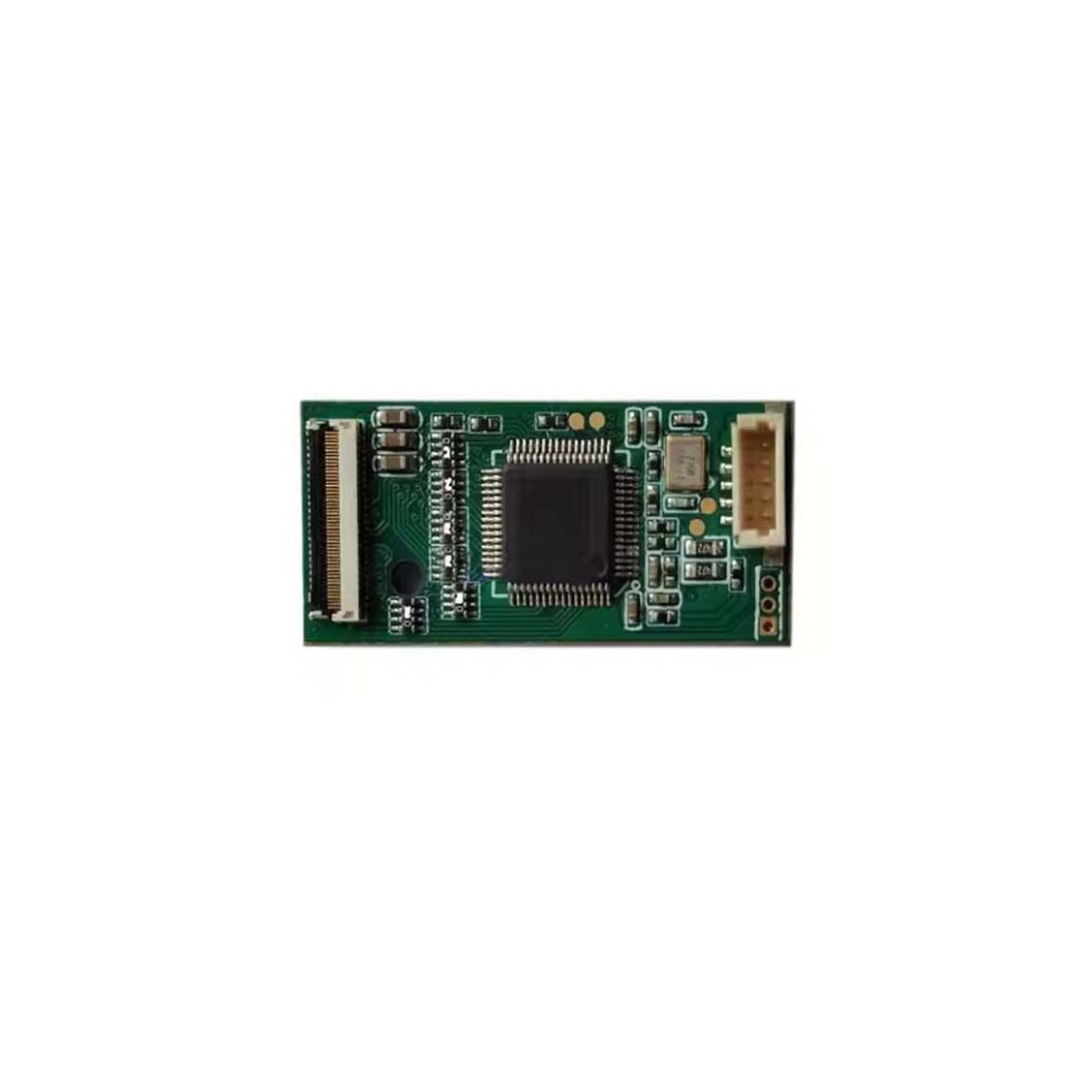

CVBS Display Module: Standard analog video controller board tailored for specialized industrial legacy interfaces or aviation gear.
Features
Specification
Unit
Display Technology
Silicon-based Micro OLED (OLEDoS)
Model Number
Sony ECX336AF
Optical Configuration
Screen with Integrated Prism Lens Kit
Screen Size
0.23 inch
diagonal
Pixel Resolution
640 (RGB) x 400 (nHD+)
Pixels
Peak Brightness
3000
cd/m²
Contrast Ratio
100,000:1
Frame Rate
60
Hz
Display Color
Full Color
Pin Count
51
Pins
Interface Type
Parallel RGB 24-bit / YCbCr / I²C
Optional Driver Boards
Micro-HDMI Board / CVBS (AV) Board
(Sold Separately)

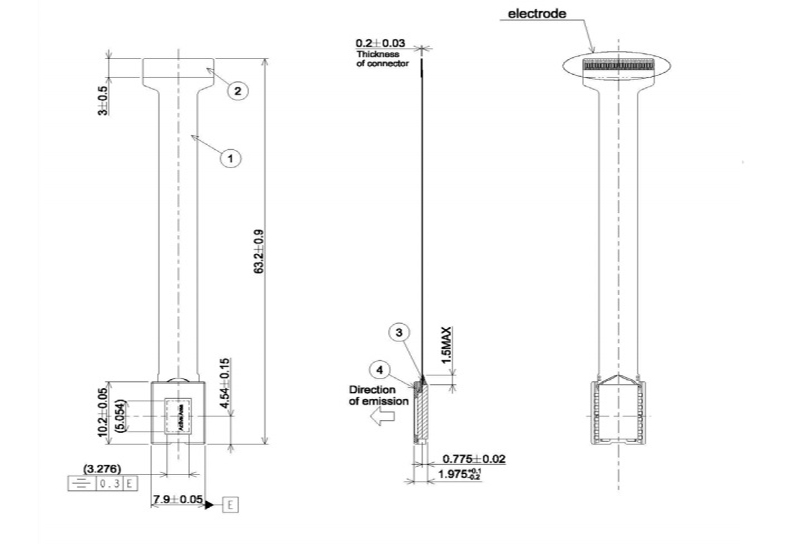

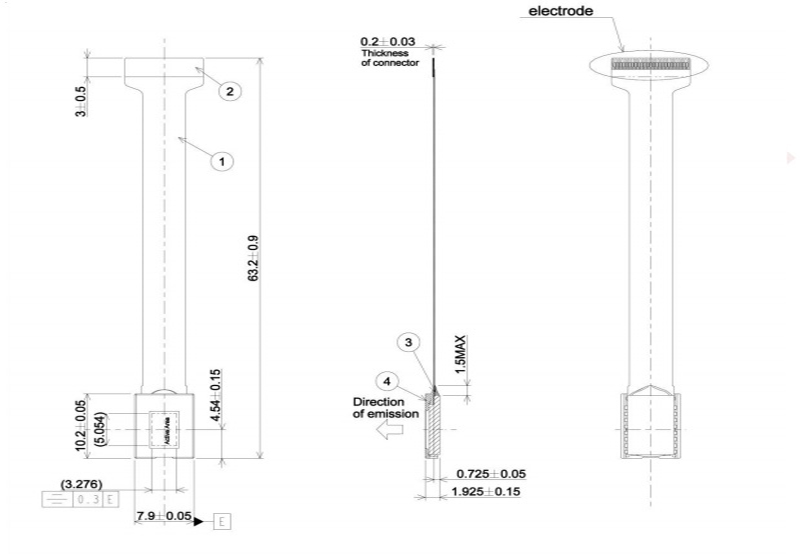

Panel Size
15.6 x 13.6 x 0.2
mm
Active Area
8.143 x 6.146
mm
Operating Temperature
-10 to 70
°C
Storage Temperature
-30 to 80
°C
The screen and magnifying prism eyepiece are pre-aligned at the factory, eliminating the need for complex external optical calibration.
Supports a smooth 60Hz frame rate with microsecond-level response times, effectively preventing motion blur in FPV and drone applications.
Built-in hardware mirroring adjusts orientation instantly to match custom optical prism housing alignments, preventing inverted views in near-eye viewfinders.
Thanks to its ultra-fast response, true blacks, and low power consumption, this integrated turnkey viewing engine is highly optimized for commercial and industrial near-eye devices
AR/VR Hardware: Smart augmented reality glasses, virtual reality engineering samples, and head-mounted displays (HMD).
Aviation & Drones: FPV goggles, UAV remote control video terminals, and aerial photography display systems.
Professional Optics: Electronic viewfinders (EVF) for cameras, digital endoscopes, thermal imaging displays, and night vision goggles.
