0.32 inch Microdisplay 800*600 2000nit MIPI RGB Micro OLED AR VR Display

Category： MICRODISPLAY
Size:0.32 inch Micro OLED
Resolution:800xRGBx600
Brightness:2000cd/m2
Interface: I2C+RGB and MIPI
INQUIRY EMAIL

Product Details

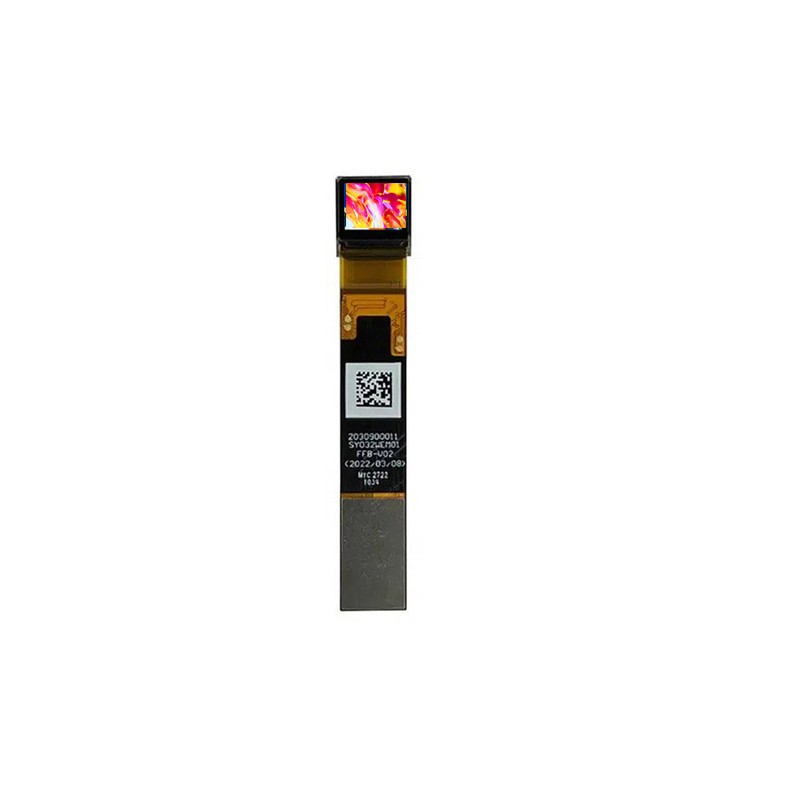

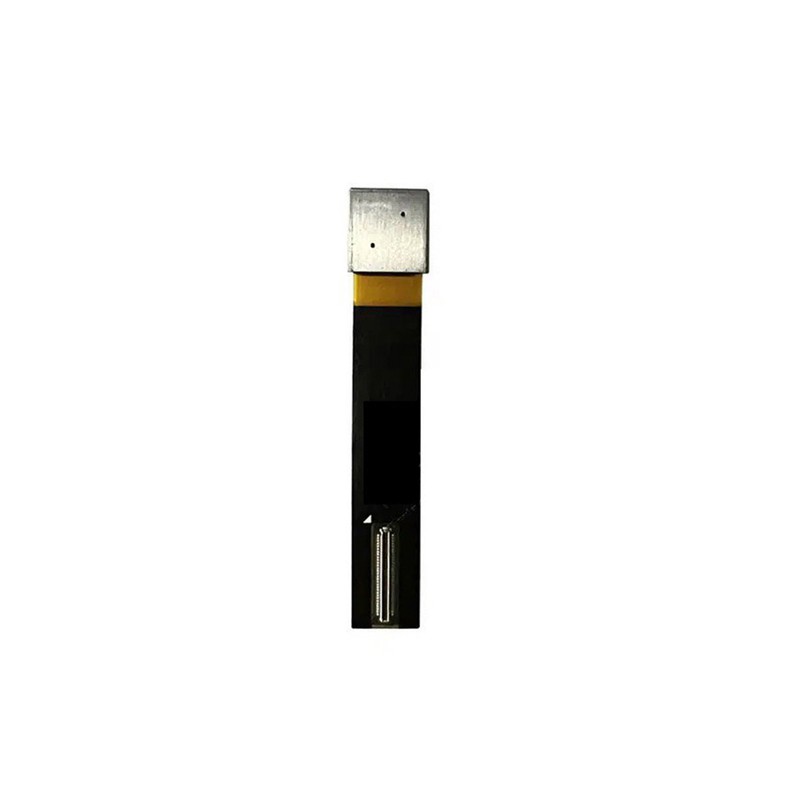

This Micro oled display is a 0.32-inch diagonal, 800(RGB) × 600 dots active matrix color OLED module based on single-crystal silicon transistors. This OLED Microdisplay module integrates the panel driver and logic driver and realizes small size, lightweight, low power consumption, and high resolution.

the 0.32 inch oled Microdisplay combines rich OLED technology with backplane technology for image sensors to achieve high image quality yet high resolution with a high contrast ratio, wide color gamut, and fast response. The main application for OLED Microdisplays is EVFs (electronic viewfinders) for cameras. We also offer a substantial lineup with high luminance, it allows to expand application to AR and VR headsets and various applications.

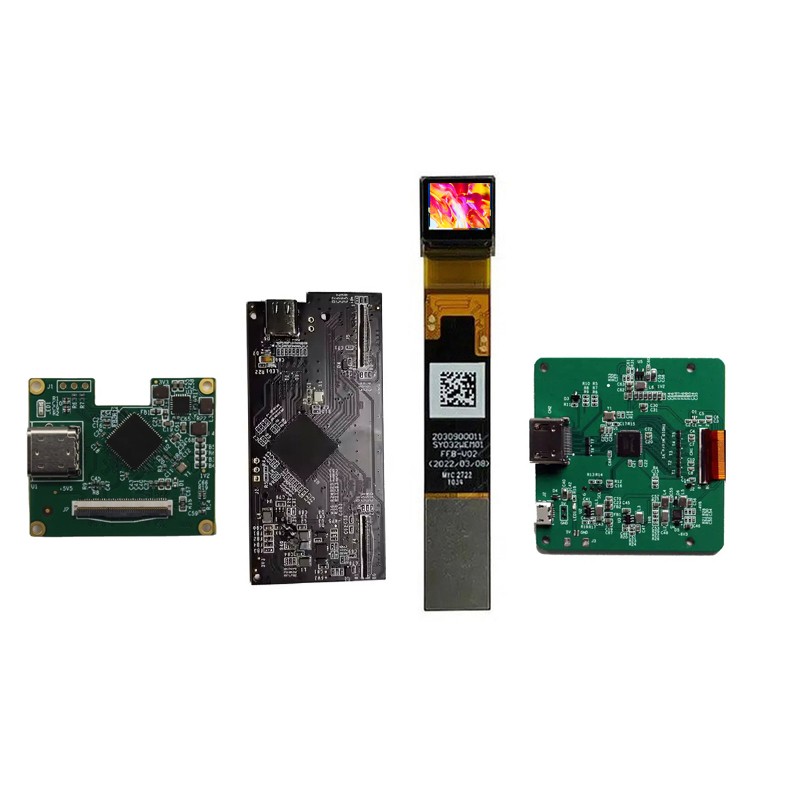

For easier demo and bring a better experiences for the developer, there is also HDMI Controller Board and TYPE-C Driver Board for your option.

0.32 inch Micro OLED display 800x600 Parameter

Features	Specification	Unit
Display Type	OLED Display
Display Size(Diagonal)	0.32"	inch
Resolution	*800(RGB)600**	Pixels
Pixel Size	8.1µm x 8.1µm
Pixel Arrangement	Hexagon, delta arrangement
Display Color	Full color
Number of dots	1.44M (800x600x3)
Brightness	2000	cd/m2
Interface Type	I2C+RGB and MIPI
Driver Board Solution	HDMI PORT/TYPE-C/ Board
Panel Size	*9.9410.451.75*	(mm)
Active Area	6.48mm x 4.86mm / 0.32"diagonal	(mm)
Frame Rate	50~120Hz
Contrast Ratio	100,000:1
Power Consumption	220	mW
Gray Level	256
Mass Production	Available
Operation Temperature	-20℃~70℃
Storage Temperature	-40℃~80℃

0.32 inch Micro Display 800X600 features

800 x 600 SPR Resolution
Multi-Resolution (4*M, M=160~480) x RGB x (4*N, N=120~270)
Frame rate: 800×600 up to 120Hz

Support 8bits or 10bits color depth

Interface

MIPI/ RGB
MIPI DPHY v1.2 with one port (4 lanes), 1.0Gbps/Lane
MIPI DSI v1.01 R11 Video mode
Support VESA-DSC v1.1 in-chip decoder (3X and 3.75X compression ratio)
Support scaling up 1.33x(e.g., 1440×810 to 1920×1080), 1.5x (e.g., 1280×720 to 1920×1080), and 2x (e.g.,960×540 to 1920×1080)

Scan direction selection, up or down, and right or left
Orbit supported
Wide range Brightness adjustment
Sequential/Global emission
Temperature compensation
Image Anchoring
