Product Details

This 0.55 inch Micro OLED Display, featuing a high FHD resolution of 1920x1080 pixels, high brightness up to 5000 nits, high display contrast of 100,000:1 and supports LVDS interface; which makes this micro oled screen popular in the fields of AR Glasses and VR Headsets ;also based on its oled technology of a single-crystal silicon backplane, this Microdisplay makes the pixel circuits and driving IC integrated on the silicon backplane to get the compact size and very low power consumption, which is ideal to be used Head-mounted displays, Near-Eye displays, Military gunsight, and thermal imager,etc.

0.55 inch Micro OLEDos display 1920x1080 parameter

• Display Type: Micro-oled,SI-OLED
• Resolution:1920x1080 RGB=6.22 millions dots;FHD 1080P
• Number of dots: 6.22M dots
• Useable Display Area: 0.55" diagonal
• Dimension:10.5x17.5x1.5mm
• Luminance: up to 5000cd/m2 Max
• Contrast Ratio:100,000:1
• Power Consumption :569mW
• Interface: RGB 24Bit/YCbCr 24bit, 16 bit LVDS, 51 pins, FPC
• Frame Rate:60Hz-120Hz
• Operating Temperature:-20℃~70℃
• Storage Temperature:-30℃~80℃

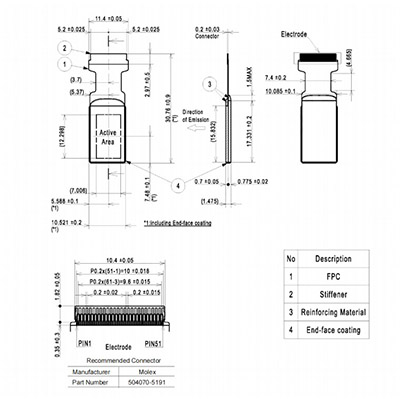

Mechanical Dimensions
