microoled 0.39 inch micro si-oled display 1024x768 RGB for Electronic Viewfinder

Category： AR/VR Display
Size:0.39 inch OLED Display
Resolution:1024(RGB) × 768
Brightness:600nits(Typ.)
Interface:RGB
INQUIRY EMAIL

Product Details

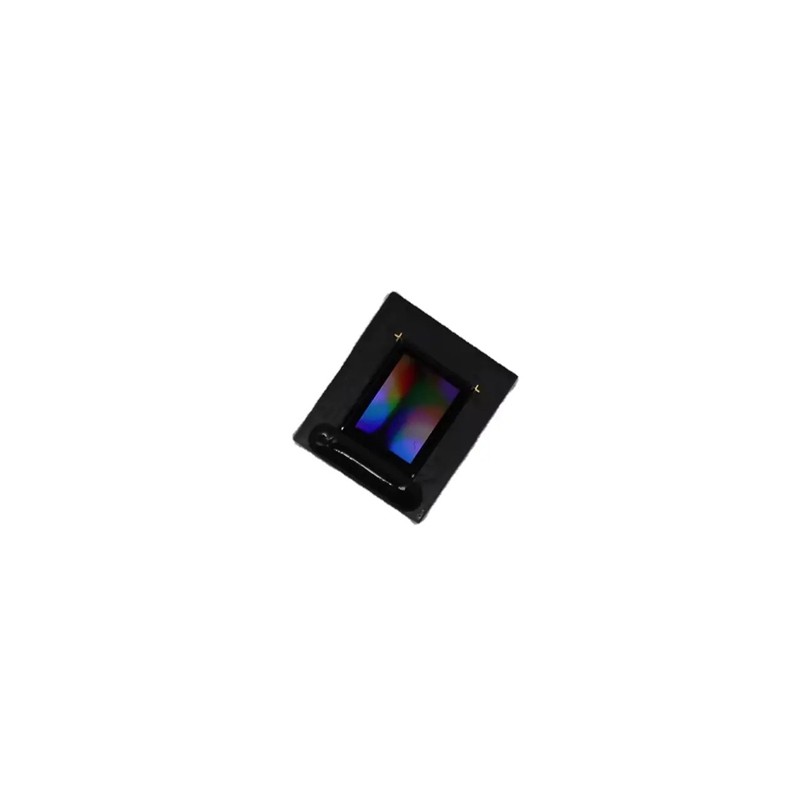

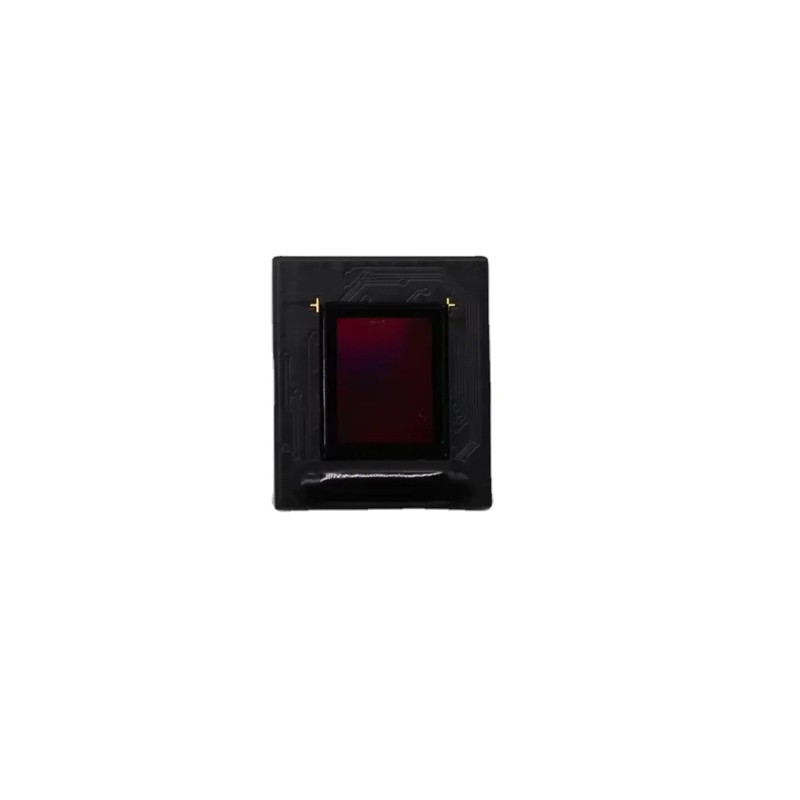

The B039FH8A0 is a 0.39-inch (1 cm) diagonal OLED (Organic Light Emitting Display) panel module featuring Full High Definition (FHD) resolution of 1920 x 1080 pixels. This module utilizes an active matrix color OLED technology with a single crystal silicon backplane. The integration of pixel circuits and driving IC onto the silicon backplane enables a compact form factor and remarkably low power consumption.

This 0.39-inch OLED microdisplay is well-suited for various applications within the Virtual Reality (AR/VR) domain, including Head Mounted Displays (HMDs) and Near-Eye Displays (NEDs). It provides high-quality visuals with its FHD resolution.

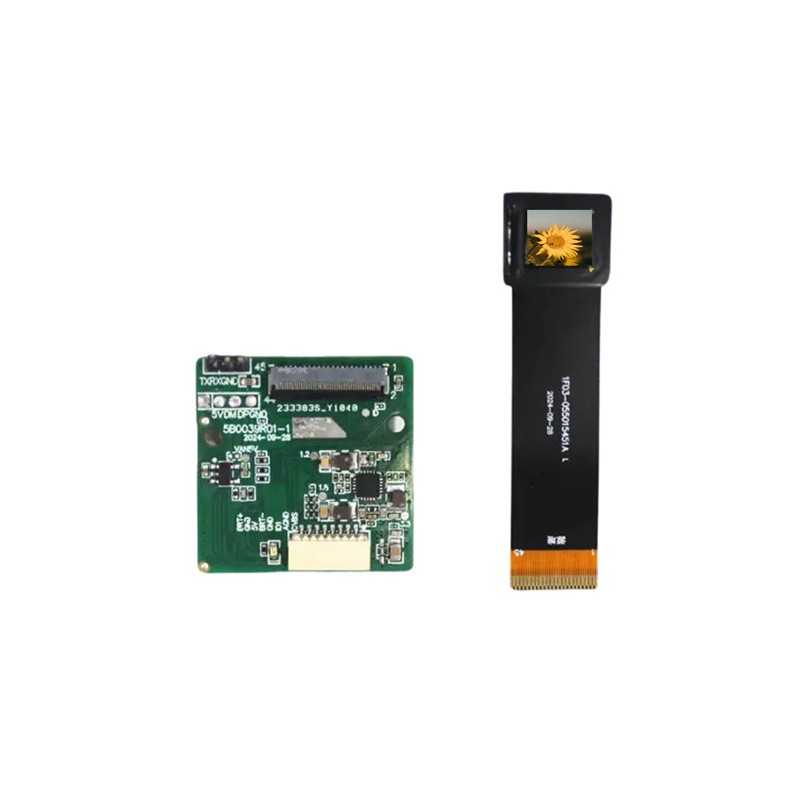

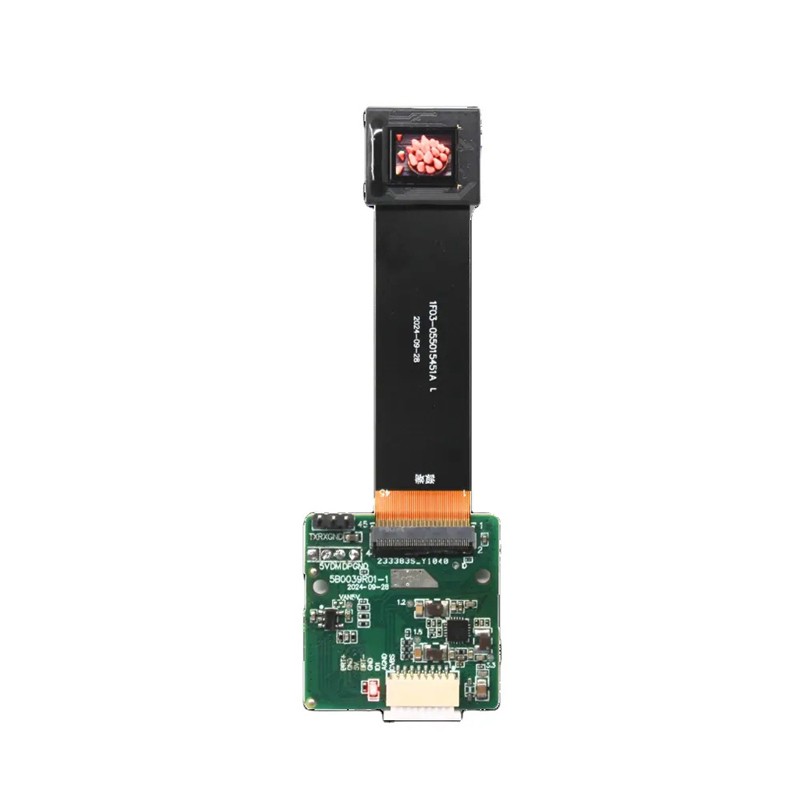

For AR and VR display applications involving this 0.39-inch OLED microdisplay, we offer an HDMI board as a complementary accessory, ensuring seamless connectivity and enhanced functionality.

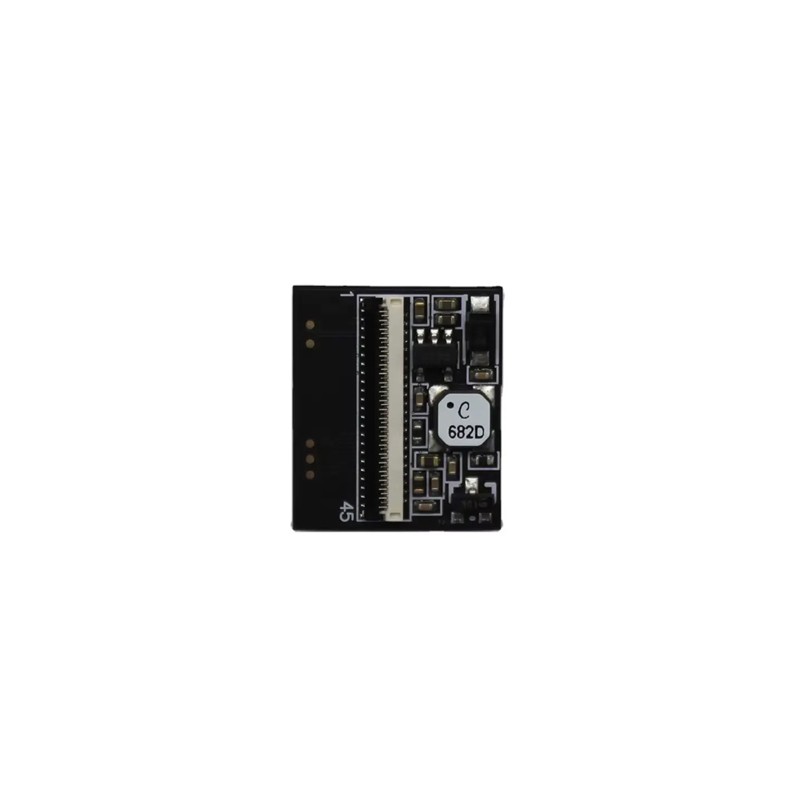

There are designed controller driver board in HDMI/TYPE-C for better demo.

0.39 inch Micro OLED display parameter

Product Number: JKTV039F8CSFS01
Display Type: Micro OLED/AMOLED
Resolution: 1024x 768

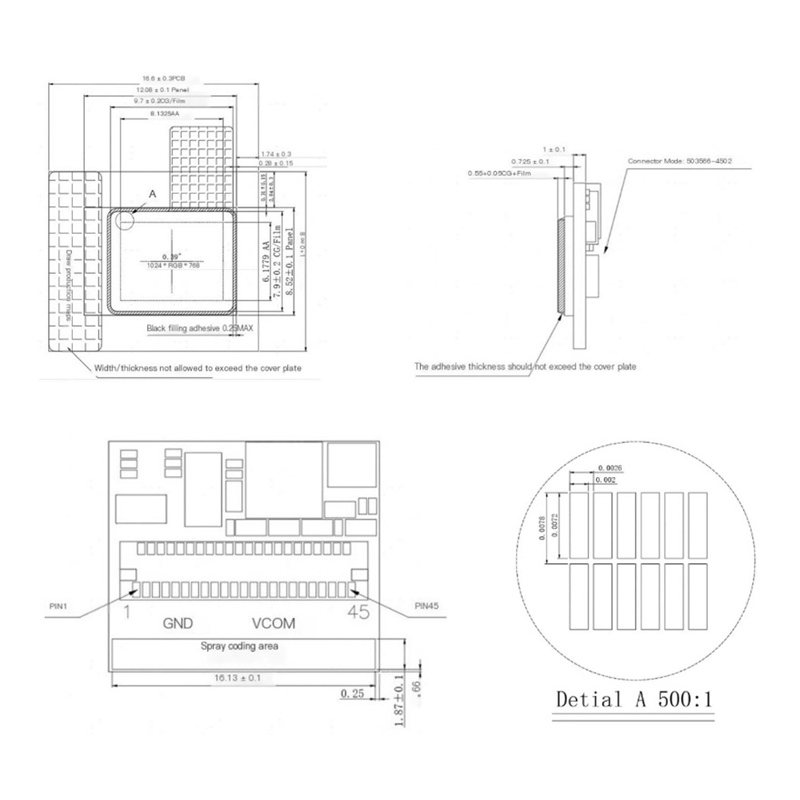

Screen Size: 16.6mm x14.2mm x 3.4mm
Active Area: 8.14mm x 6.15mm
Luminance(Brightness):600nits(Typ.)
Color:Full RGB
Contrast Ratio:100000:1
Interface:MIPI
Frame Rate:25Hz~120Hz
Operating Temperature:-40℃ to +65℃
Storage Temperature:-50℃ to +70℃
Plan:Mass Production
Application：AR VR devices, EVF, Night vision, sight...

0.39 inch Micro oledos display features

High Resolution
With a resolution of 800×600, 4:3 Aspect Ratio, the 0.39 OLEDoS Screen offers sharp and detailed visuals. This high resolution ensurs that users can enjoy a truly immersive experience, whether they are using the display for VR, AR, or other applications.

Brightness and Contrast
One of the standout features of the OLEDoS Micro Display is its High Brightness level of 600 nits. This brightness ensures that the display remains clear and visible, even in bright ambient lighting conditions. Additionally, the display offers a contrast ratio of 100000:1, allowing for deep blacks and vibrant colors.

Fast Refresh Rate
With a fast refresh rate of 120Hz, the OLEDoS delivers smooth and fluid visuals. This high refresh rate reduces motion blur and enhances the overall viewing experience, making it ideal for applications that require quick response times.

Wide Color Gamut
The 0.39 OLED Display Screen boasts a wide color gamut, covering 92% of the DCI-P3 color space. This wide color gamut ensures that the display can accurately reproduce colors, resulting in vibrant and true-to-life visuals.

Versatile Interface Options
The OLEDoS Display offers versatile interface options, including MIPI and RGB. This flexibility allows for seamless integration into various devices and systems, making it a popular choice among manufacturers.
