0.40 inch 1440*1080 1800nits micro oled-screen amoled Display

Category： AR/VR Display
Size:0.4 inch OLED Display
Resolution:1440x1080
Brightness:1800nits(Typ.)
Interface:MIPI+I2C
INQUIRY EMAIL

Product Details

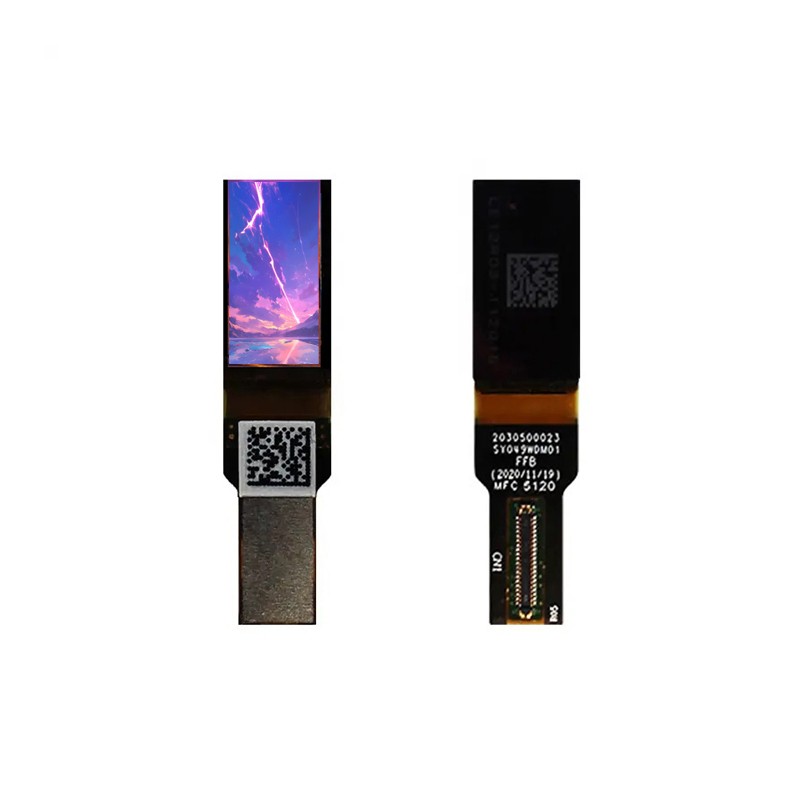

The 0.4 inch VR micro OLED 1920×1080 High Brightness is a cutting-edge display technology that boasts impressive features and specifications. This Micro Si OLED display offers 1920×1080 pixels, ensuring crystal-clear image quality that can enhance the virtual reality experience. The micro Si OLED technology used in this display provides high contrast, deep blacks, and vibrant colors, making it an ideal choice for HMD VR AR and military field.

In addition to its excellent visual performance, the 0.49 inch VR Micro OLED also offers high brightness levels that can reach up to 1,800 nits and . This makes it suitable for use in outdoor environments where ambient light can be a challenge.

In virtual reality, this device is used to create a realistic environment for users by displaying high resolution images that mimic real-life experiences. The high brightness of the pancake ensures that users can see clearly even in low light conditions, making it ideal for use in virtual reality headsets. Overall, the 0.4 inch VR Micro Si OLED 1440X1080 high brightness with pancake has proven to be a trendy solution.

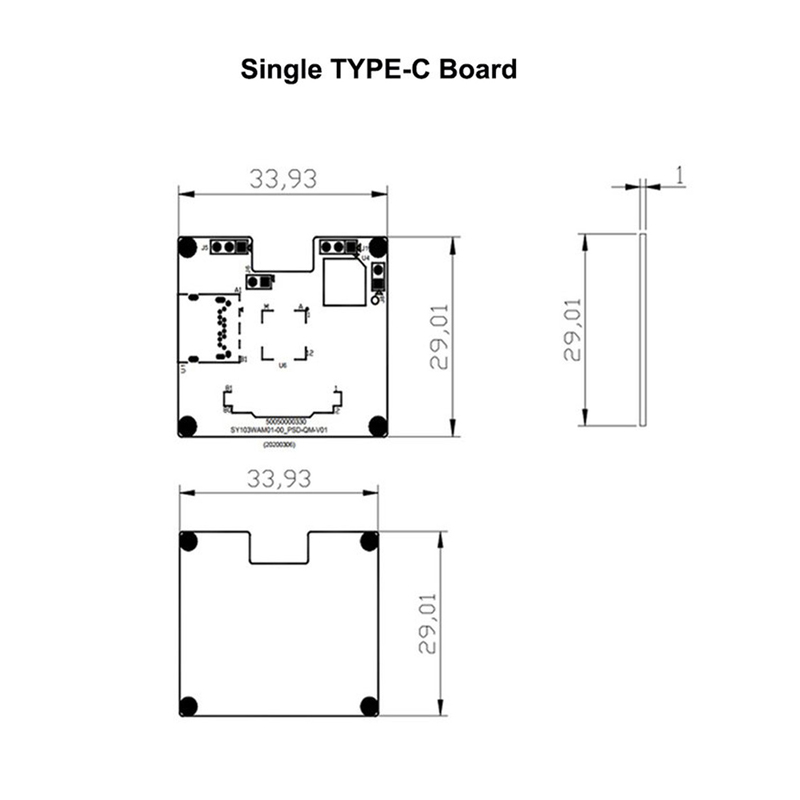

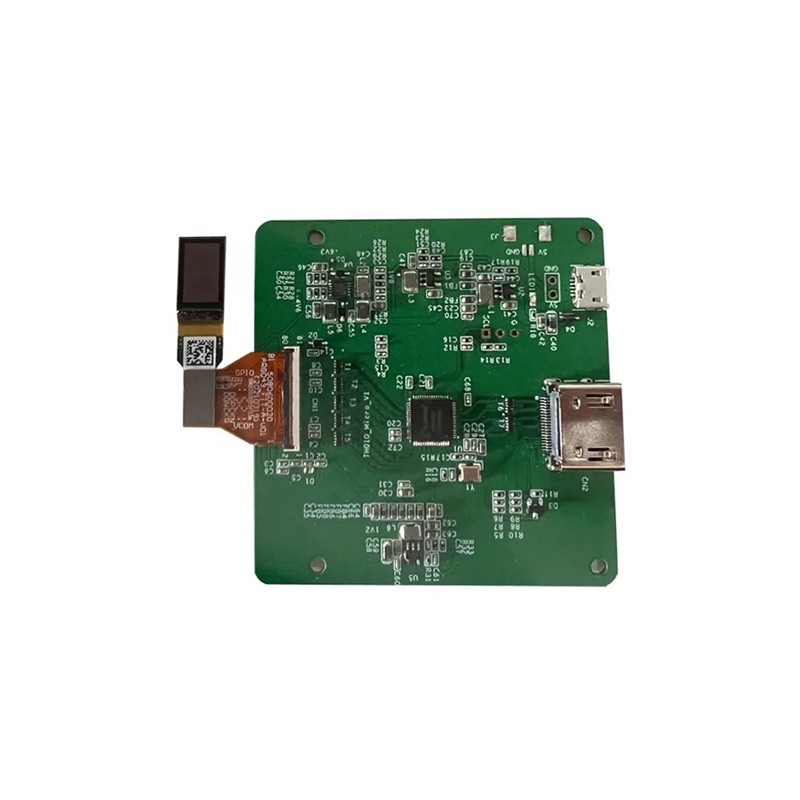

There are designed controller driver board in HDMI/TYPE-C for better demo.

0.4 inch Micro OLED display parameter

Features	Specification	Unit
Display Type	OLED Display
Display Size(Diagonal)	0.4"	inch
Resolution	*1440(RGB)1080**	Pixels
Pixel Size	8.1µm x 8.1µm
Pixel Arrangement	Hexagon, delta arrangement
Display Color	Full color
Number of dots	1.44M (800x600x3)
Brightness	1800	cd/m2
Interface Type	I2C+RGB and MIPI
Driver Board Solution	HDMI PORT/TYPE-C/ Board

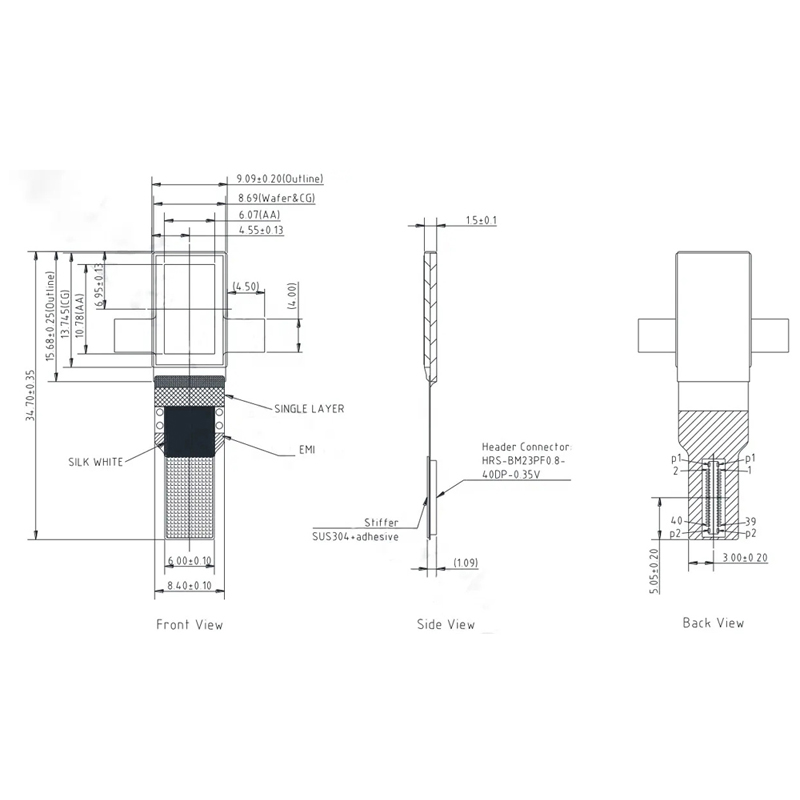

Panel Size	15.68mm x 9.09mm x 1.475mm	(mm)
Active Area	8.09 x 6.065mm/ 0.49" diagonal	(mm)
Frame Rate	60Hz~90Hz
Contrast Ratio	100,000:1
Power Consumption	220	mW
Gray Level	256
Mass Production	Available
Operation Temperature	-20℃~70℃
Storage Temperature	-40℃~80℃
