Product Details

This monocular Electronic Viewfinder optics module support a wider FOV 32 degree and the diopter adjudt +4D~-5D,  consists of the EVF lenses of FOV 32 degree, 0.49 inch Micro OLED micro display with1440 x 1080 resolution , this EVF Electronic Viewfinder module is used in diverse applications such as  the Smart Virtual Reality headset, AR Glasses module, its key feature of the high resolution 1440 x 1080,high luminance of 1800nits , and high Contrast Ratio:500000:1, which supplies the users with an immesive VR experiences. ensuring that users can experience immersive content without any visual distortion.

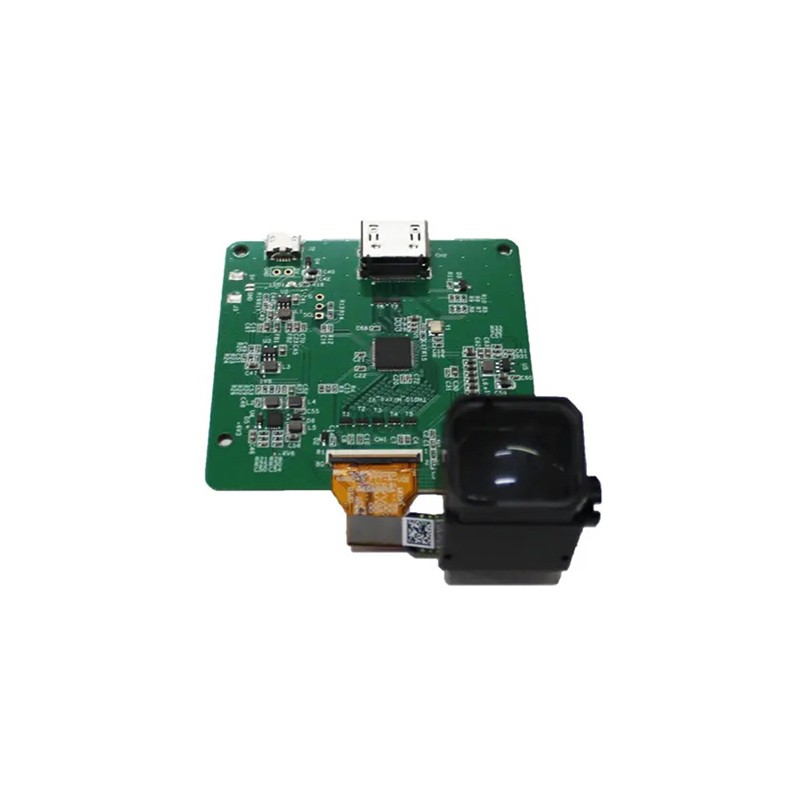

this Electronic Viewfinder optics module goes with HDMI Adapter controller board that can help users's project accelerated.

This technology has applications in fields like retail, tourism and advertising where AR can be used to enhance customer experience. The compact size of the display makes it suitable for use in wearable devices such as smart glasses or head-mounted displays (HMDs).

0.49 inch Micro OLED 1440 x 1080 Parameter

Monocular EVF Electronic Viewfinder Optics Module Parameter

0.4 inch Micro oledos display features

High resolution 1080P
– Specifically designed for VR
– Superior brightness and contrast
– Demo driver board HDMI

Mechanical Dimension

0.49" Electronic Viewfinder :

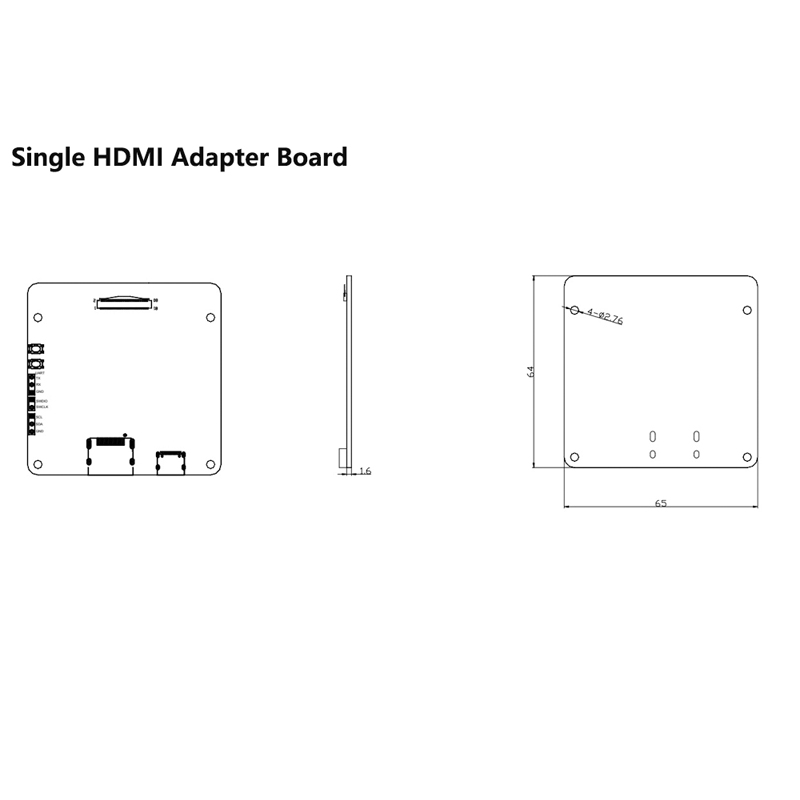

HDMI driver Board:

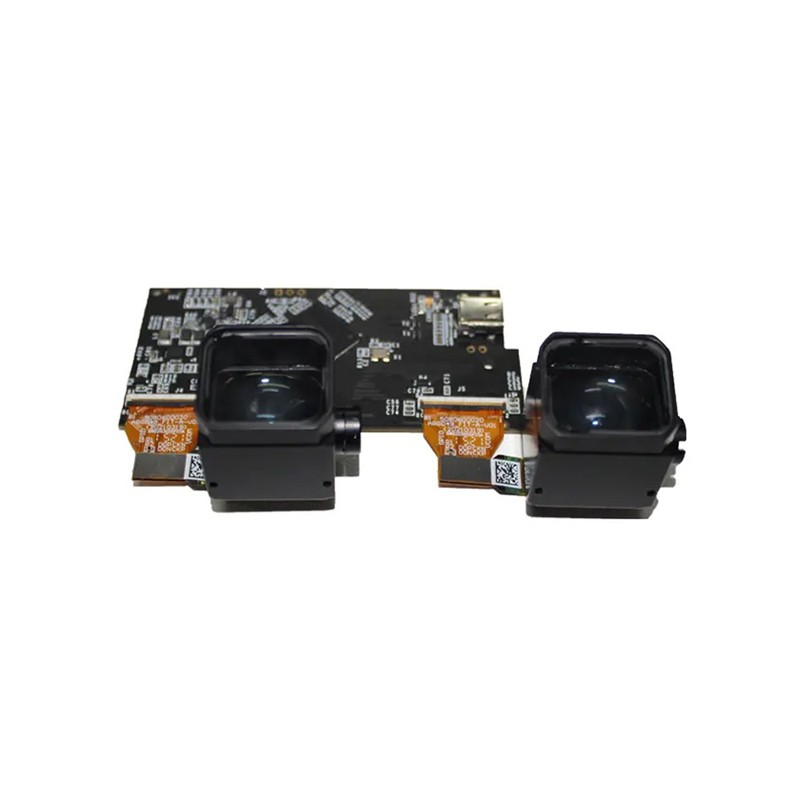

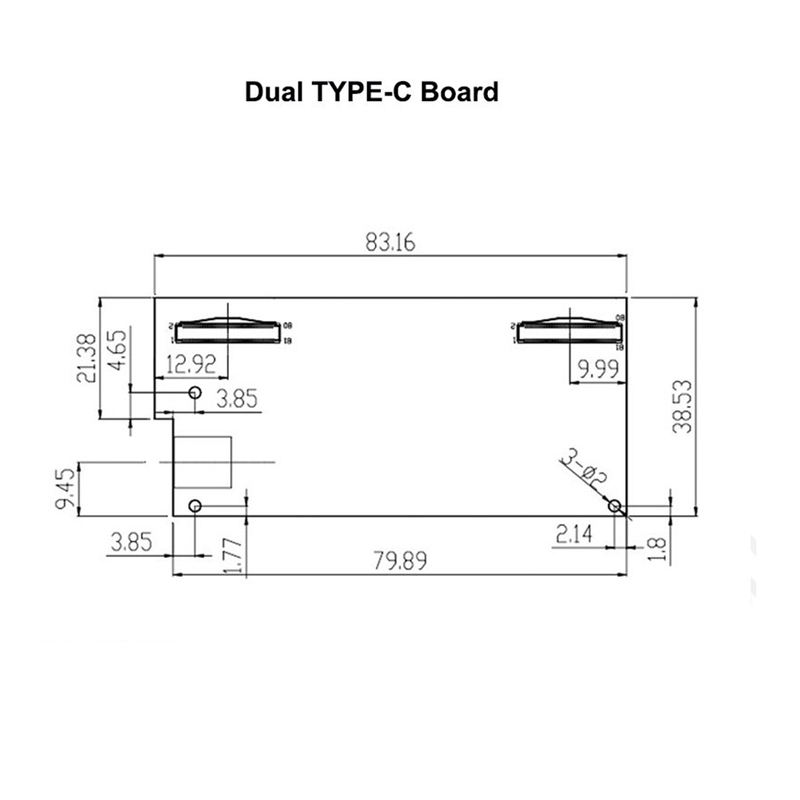

Binocular type-c driver board:
