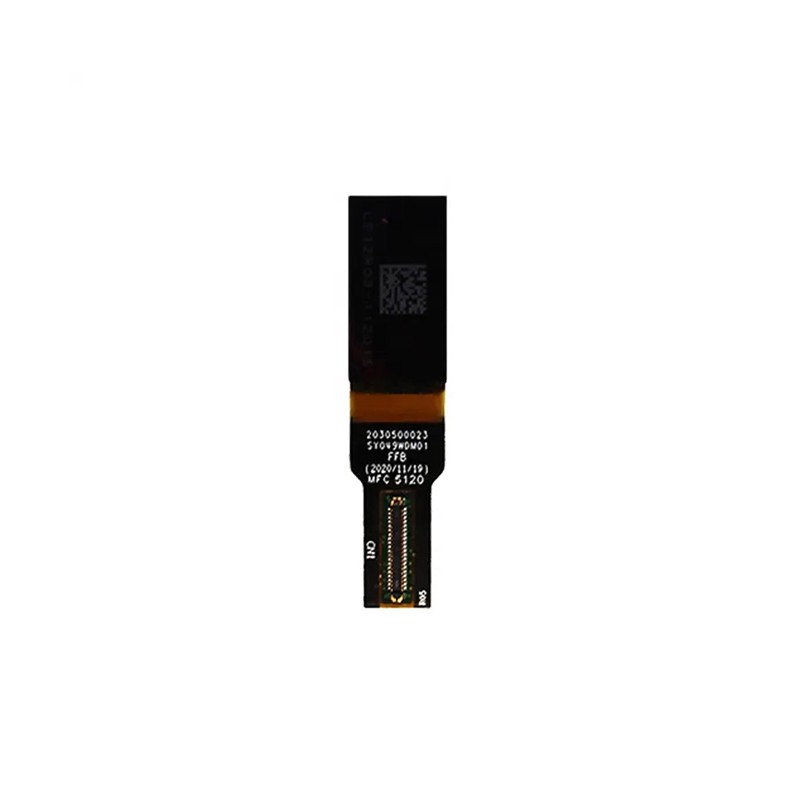

1800nits OLED MIcrodisplay 0.49

Category： MICRODISPLAY
Size:0.49 inch OLED Display
Resolution:1920(RGB) × 1080
Brightness:1800cd/m2

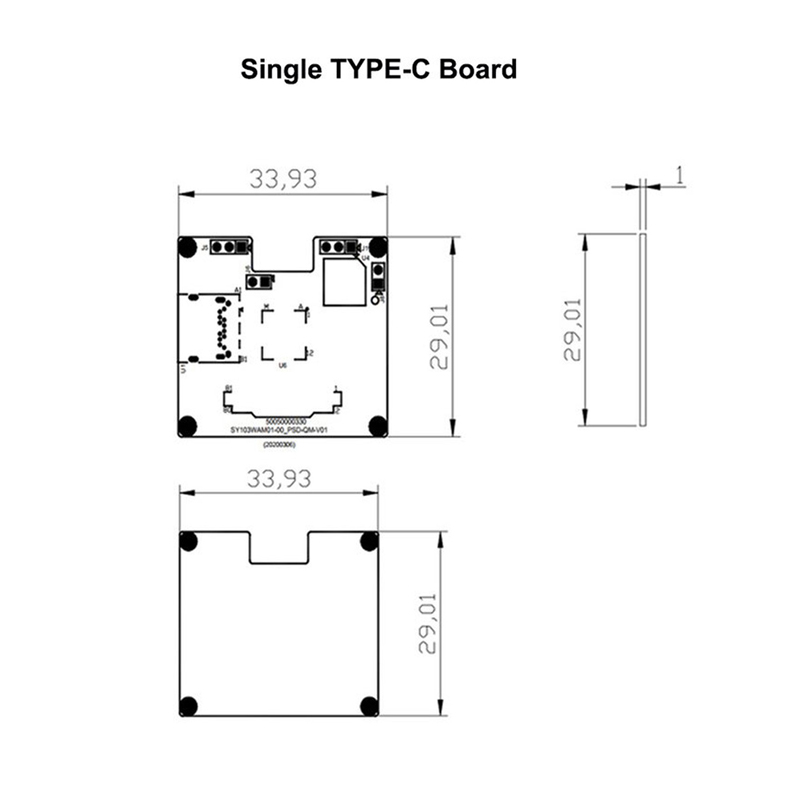

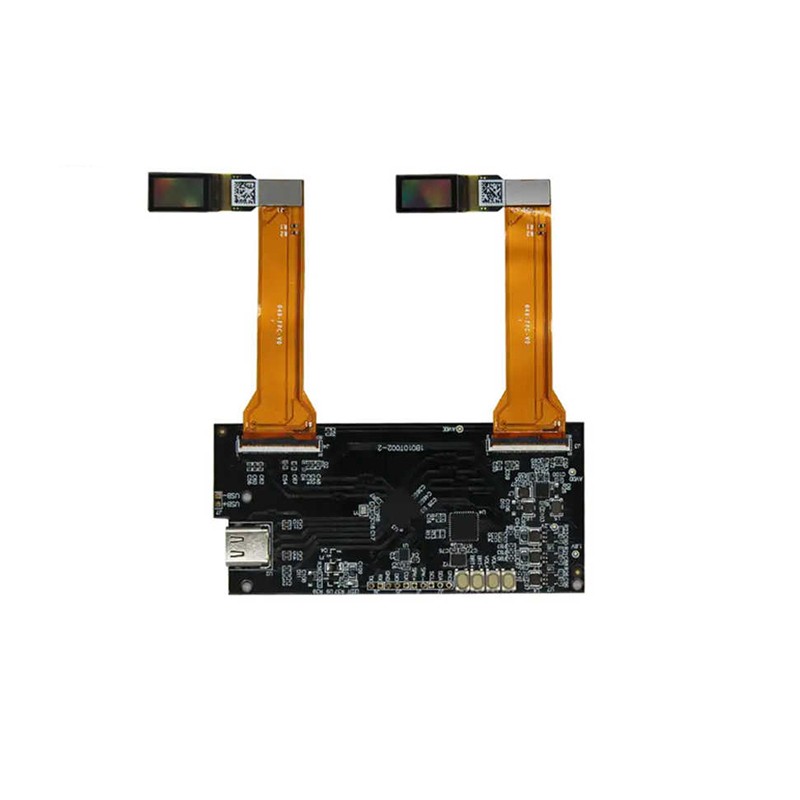

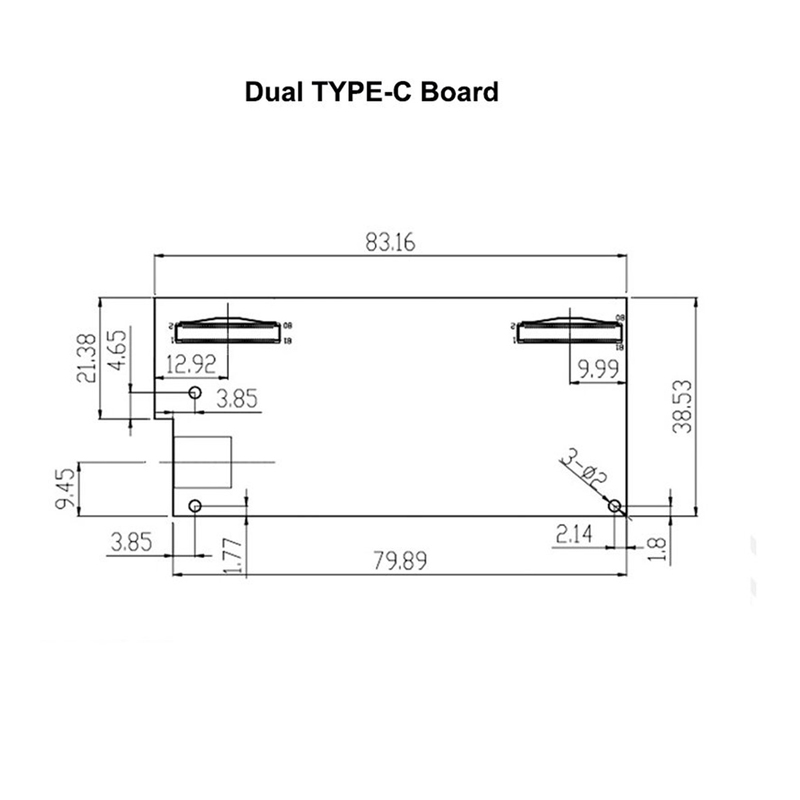

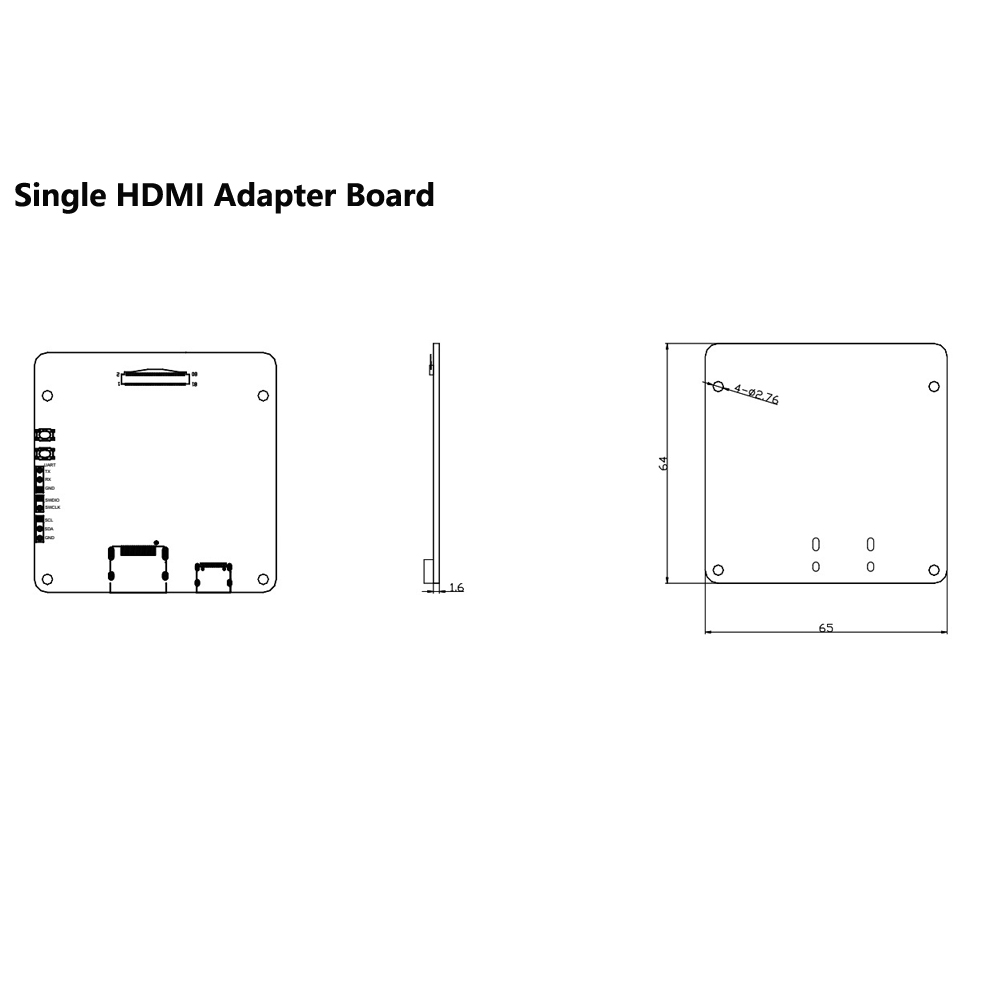

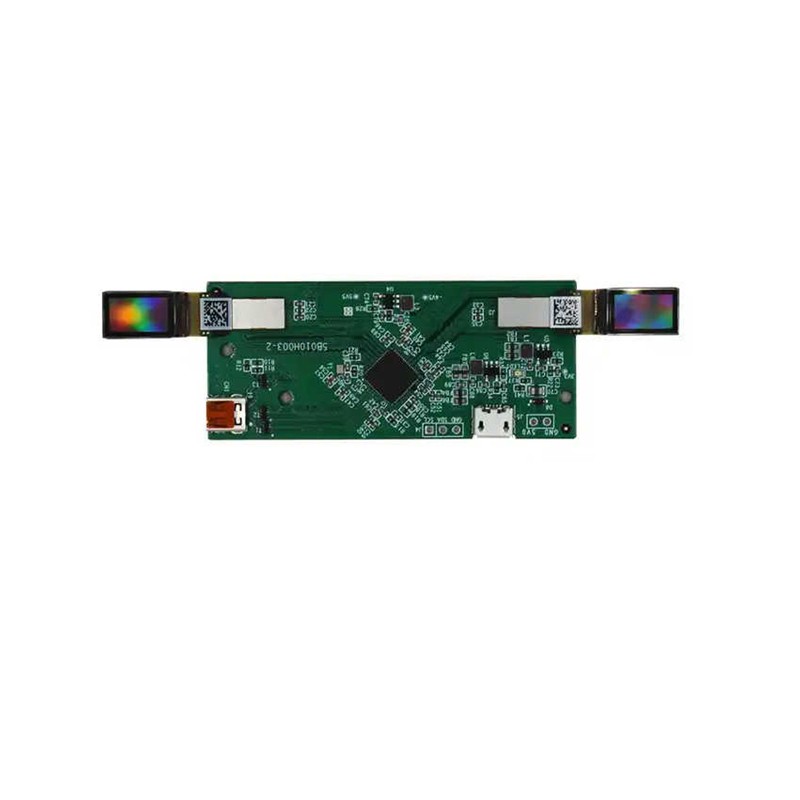

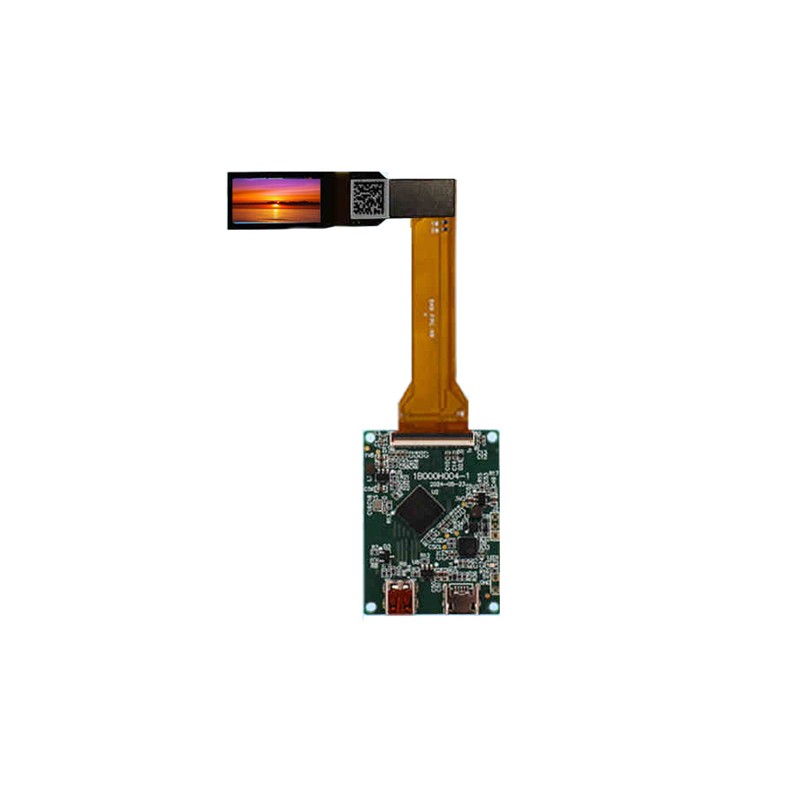

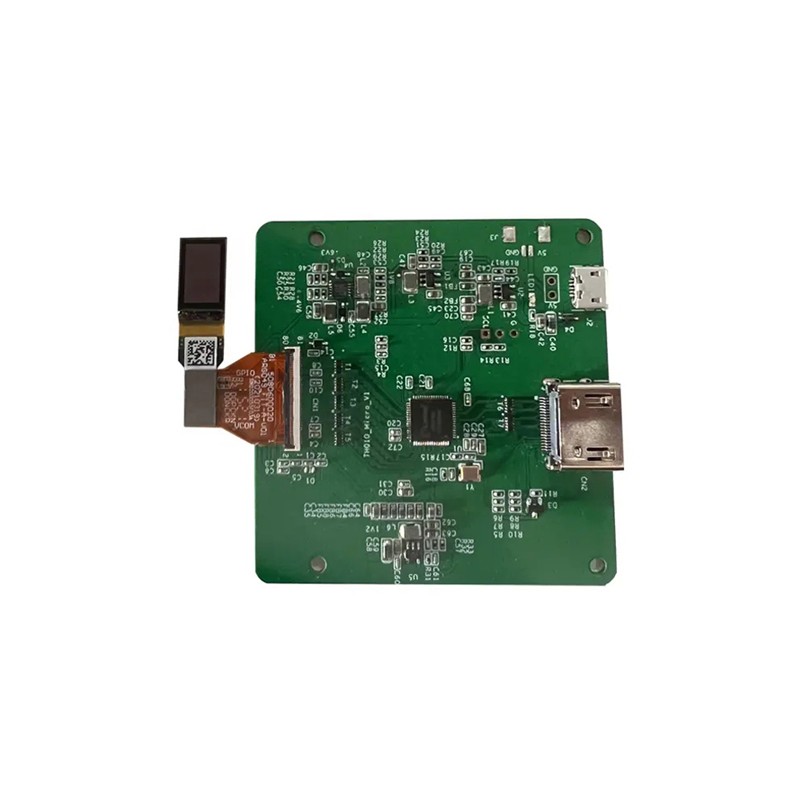

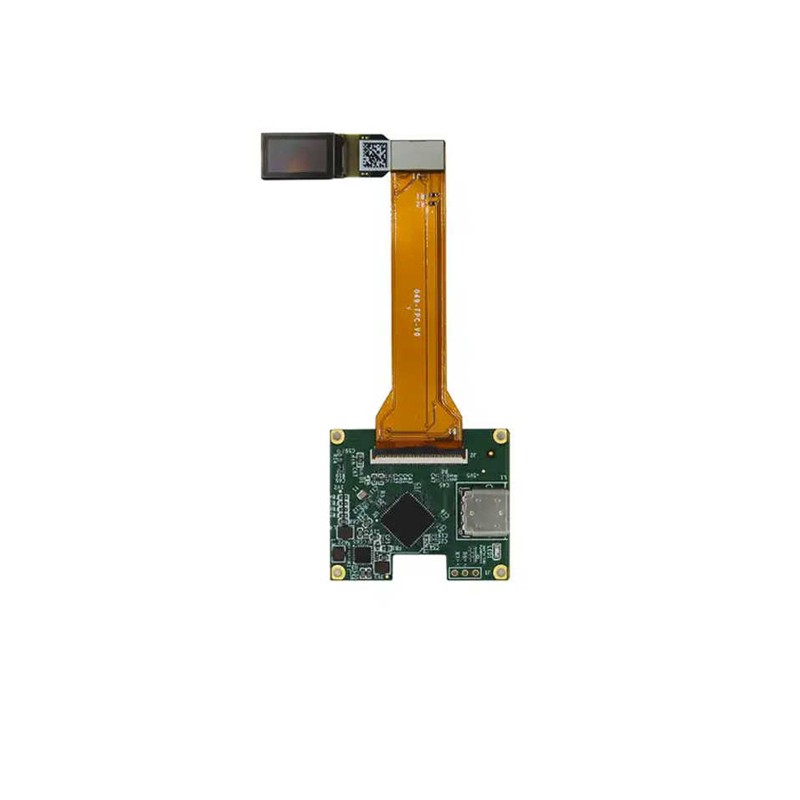

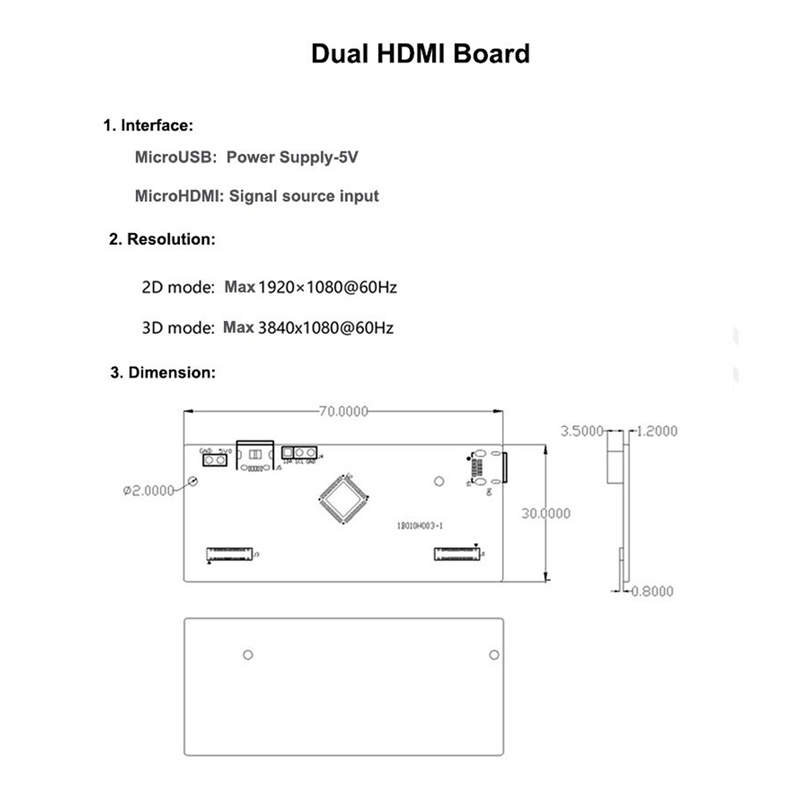

Driver Board: HDMI /type-c Port
INQUIRY EMAIL

Product Details

The 0.49 inch VR micro OLED 1920×1080 High Brightness is a cutting-edge display technology that boasts impressive features and specifications. This Micro Si OLED display offers 1920×1080 pixels, ensuring crystal-clear image quality that can enhance the virtual reality experience. The micro Si OLED technology used in this display provides high contrast, deep blacks, and vibrant colors, making it an ideal choice for HMD VR AR and military field.

In addition to its excellent visual performance, the 0.49 inch VR Micro OLED also offers high brightness levels that can reach up to 1,800 nits and even 20,000 nits. This makes it suitable for use in outdoor environments where ambient light can be a challenge.

In virtual reality, this device is used to create a realistic environment for users by displaying high resolution images that mimic real-life experiences. The high brightness of the pancake ensures that users can see clearly even in low light conditions, making it ideal for use in virtual reality headsets. Overall, the 0.49 inch VR Micro Si OLED 1920×1080 high brightness with pancake has proven to be a trendy solution.

1080P 0.49 inch Micro OLED Display parameter

Display Size:0.49"
Display Type:Micro OLED, Micro Si-OLED
Resolution：1920(H)x1080(V)，FHD1080P
Number of dots：1920x1080x2(2/3 SPR)
Pixel Size：5.616µm x 5.616µm

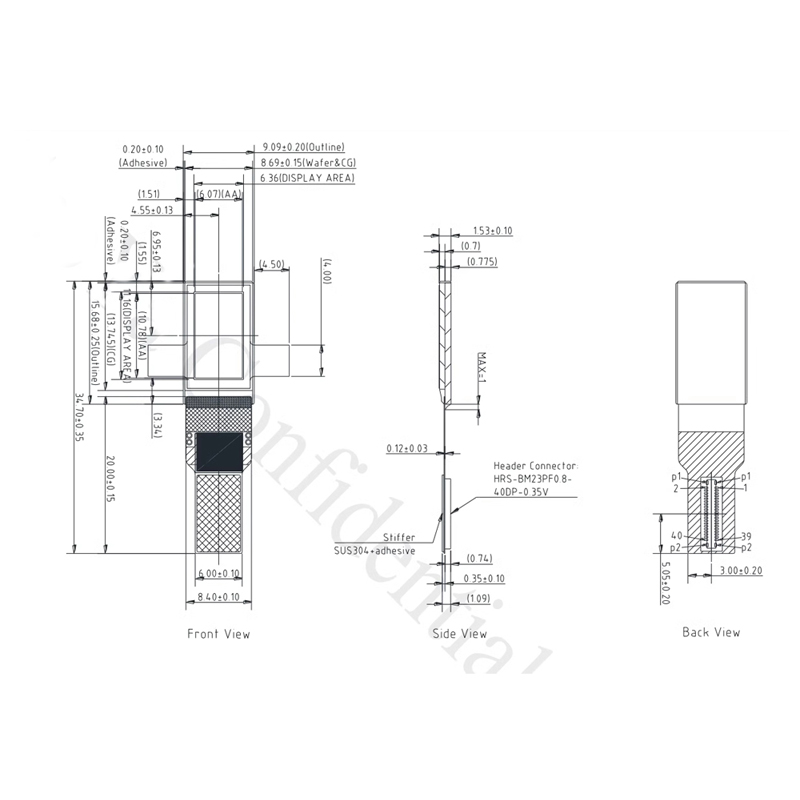

Outline Size:15.68(W)×9.09(H) ×1.6(D) mm
Useable Display Area ：10.783mm x 6.065mm / 0.49" diagonal
Brightness：1800nits/m² typical
Contrast Ratio：50000:1 typical
Power Consumption :480mW
Gray Levels：256 or 1024
Interface：MIPI
Frame Rate：Max 90Hz
Weight:~1g
Operating Temperature：-20℃~70℃
Storage Temperature：-40℃~80℃
Customize:Driver Board, Touch Screen, FPC Connector, Coverlens and etc.
Application:HUD HMD AR glasses /VR headset

0.49 inch Micro OLED 3000nits Features:

– ◆ Small size high definition type 0.49 display dots: 1920 (RGB)×1080 = 6.22 M dots
◆ High contrast
◆ Wide color reproduction range
◆ High-speed response
◆ Thin type and light weight
◆ Power saving function
◆ Up/down and/or right/left inverse display function
◆ Orbit supported

0.49" FHD 1920x1080 Micro display Screen Applications:

AR/VR display, electronic viewfinder of digital camera/video camera；
Portable equipment such as miniature projectors, video glasses, 3D displays, head-mounted entertainment equipment,etc；
Security monitoring /military:individual helmet display, electronic sight, infrared night vision device,Thermal imager displays,electronic telescopes,flight helmets,gun sights,life detection video devices；
Medical and industrial:human and machine video engineering research, endoscope, portable B-ultrasound machine,Vision correction equipment,multi-scope,various portable inspection and testing equipment;
Aircraft model:aerial photography:remote control aircraft parameter display system:remote control car video display terminal:etc.
