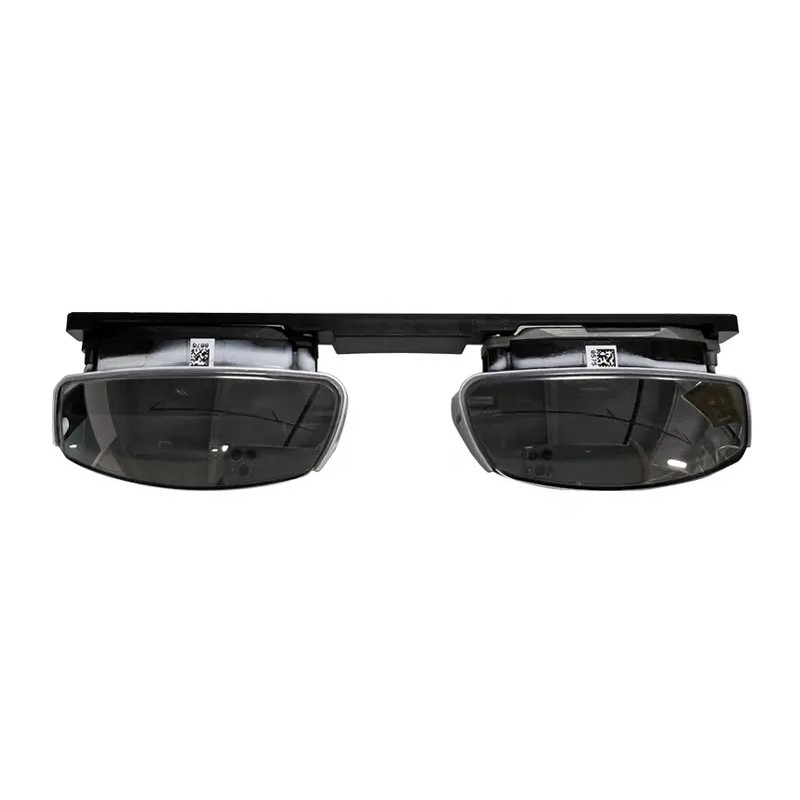

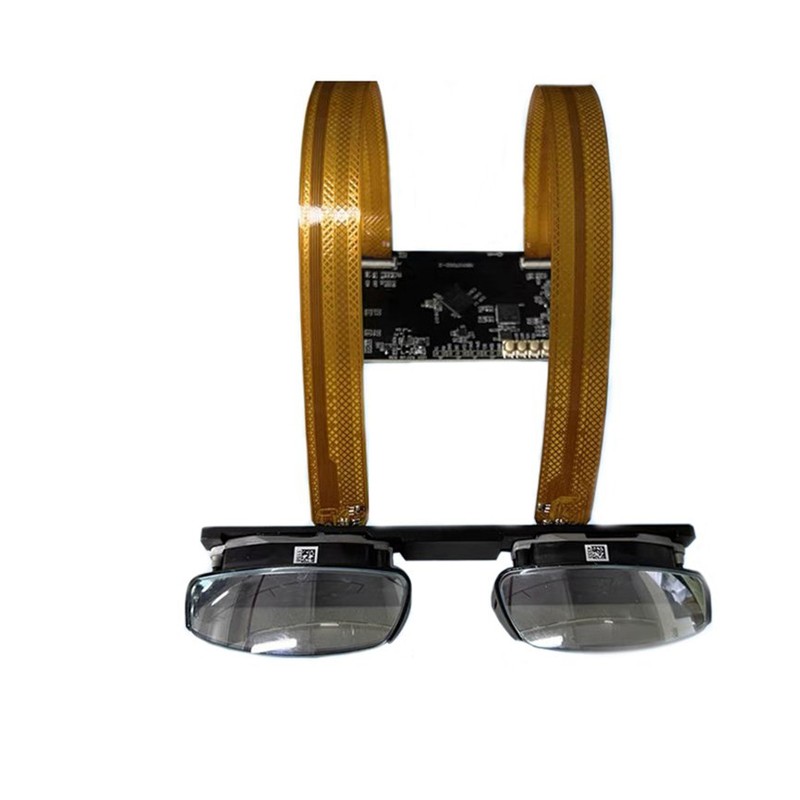

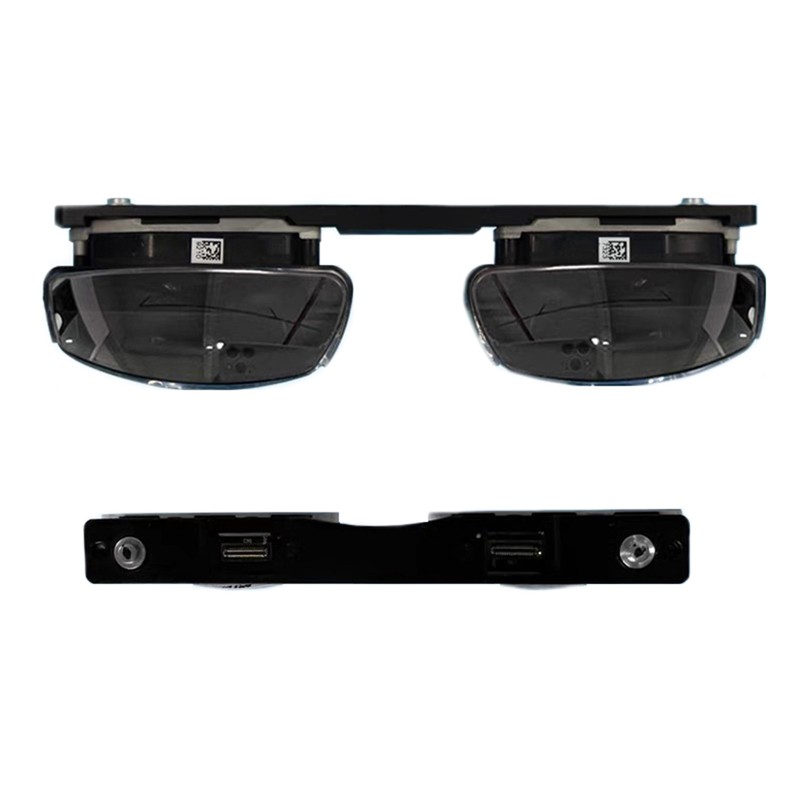

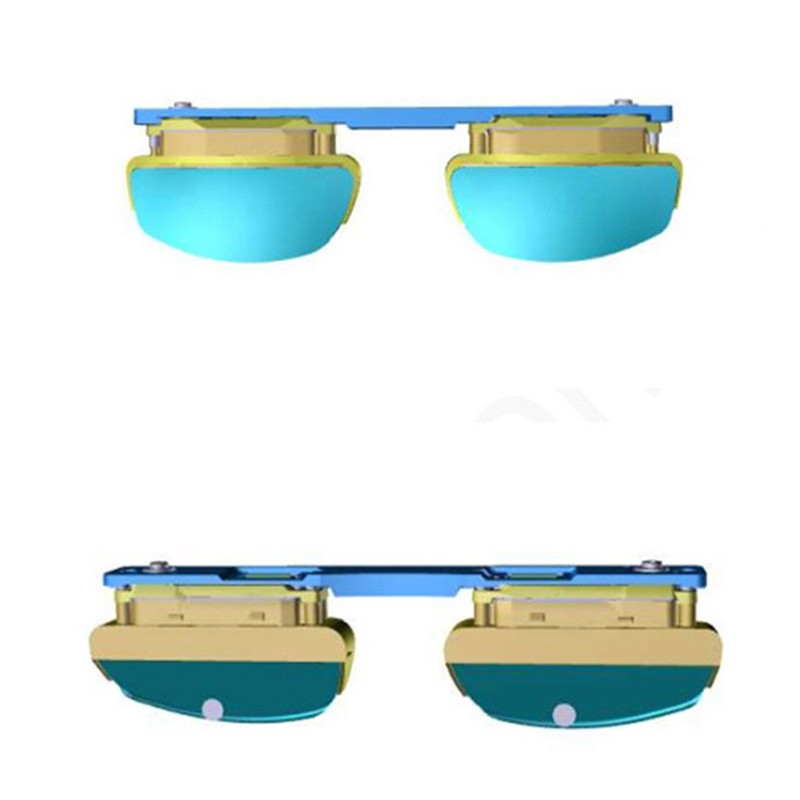

The Binocular birdbath optical module, is composed of a 0.49 inch Micro OLED display and the bird bath optics, this micro display suport 1080P FHD high resolution of 1920x1080 Pixels and 1800nits of high luminance; and this Birdbath lenses consists of 2 pcs of Optical parts and rod structure, the FOV of the bird bath optics is more than 43°, also provides same high resolution 1080P 1920*1080 and 1800cd/m2 brightness with the 0.49 0.5 inch Micro Display.

This see-through optical module is used for AR glasses, particully for those Myopic users.

Bird bath optics Parameter

Features	Specification	Unit
FOV	43°
Display Size(Diagonal)	0.49"	inch
Technology	Bird bath
Resolution	1920*1080（16:9）	Pixels
Luminance	1800	cd/m2
TV distortion	<0.8%
Interface Type	LVDS
Driver Board Solution	TYPE-C DRIVER BOARD
MTF	27% @20 lp/mm	(mm)
Diopter	-0.75D~+0.25D
Frame Rate	60Hz
Contrast Ratio	100,000:1
Mass Production	Available
Operation Temperature	-10℃~70℃
Storage Temperature	-30℃~80℃

1080P 0.49 inch Micro OLED Display parameter

Features	Specification	Unit
Display Type	OLED Display
Display Size(Diagonal)	0.49"	inch
Resolution	1920(H)x1080(V)，FHD	Pixels
Display Color	Full color
Pixel Size	5.616µm x 5.616	µm
Brightness	1800cd/m² typical;3000nits Max	cd/m2
Interface Type	MIPI
Driver Board Solution	HDMI PORT/CVBS/AV Board
Panel Size	15.68(W)×9.09(H) ×1.6(D)	(mm)
Active Area	10.783mm x 6.065mm / 0.49" diagonal	(mm)
Frame Rate	60Hz~90Hz
Contrast Ratio	50000:1
Mass Production	Available
Operation Temperature	-10℃~70℃
Storage Temperature	-30℃~80℃

0.49 inch Micro OLED 1800nits Features:

– ◆ Small size high definition type 0.49 display dots: 1920 (RGB)×1080 = 6.22 M dots
◆ High contrast
◆ Wide color reproduction range
◆ High-speed response
◆ Thin type and light weight
◆ Power saving function
◆ Up/down and/or right/left inverse display function
◆ Orbit supported

0.49" FHD 1920x1080 Micro display Screen Applications:

AR/VR display, electronic viewfinder of digital camera/video camera；
Portable equipment such as miniature projectors, video glasses, 3D displays, head-mounted entertainment equipment,etc；
Security monitoring /military:individual helmet display, electronic sight, infrared night vision device,Thermal imager displays,electronic telescopes,flight helmets,gun sights,life detection video devices；
Medical and industrial:human and machine video engineering research, endoscope, portable B-ultrasound machine,Vision correction equipment,multi-scope,various portable inspection and testing equipment;
Aircraft model:aerial photography:remote control aircraft parameter display system:remote control car video display terminal:etc.

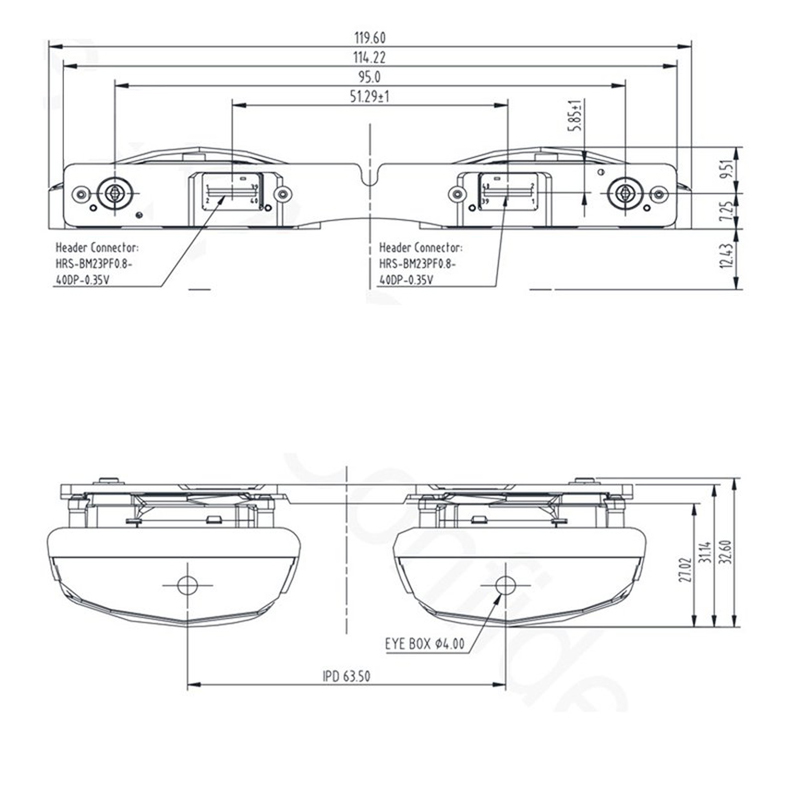

Mechanical Dimension

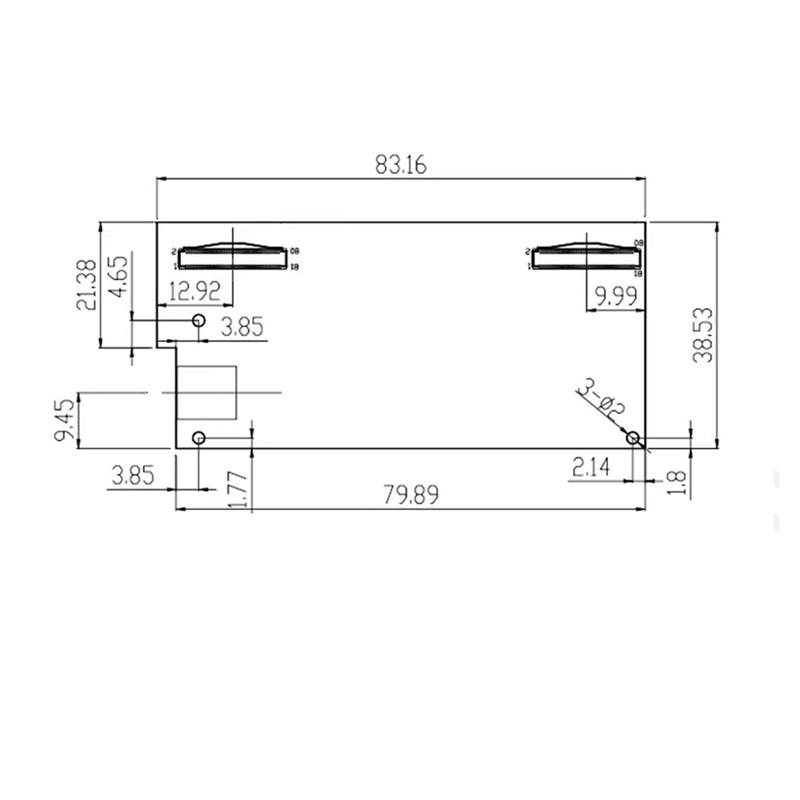

Monocular TYPE-C Board
