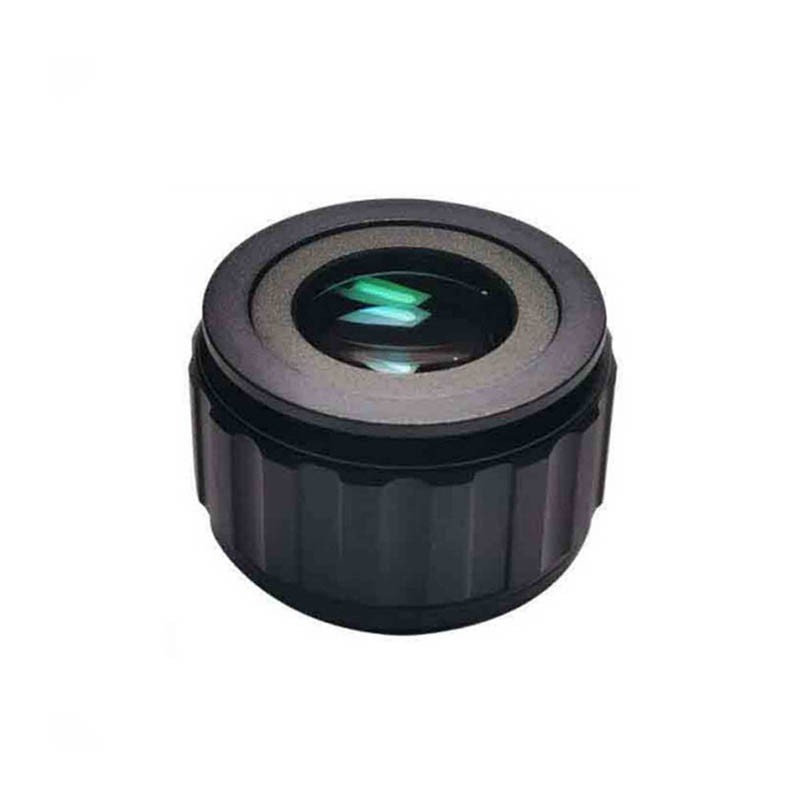

Magnifying Prism Eyepieces 15X magnifyin optical Lens for Thermal Imagering FPV Drones

Category： OPTICAL MODULES
Manification:15X
First Lens Diamerer:20MM
Entrance Pupil Diamerer:6MM
Exit Pupil Distance：39.7MM
INQUIRY EMAIL

Product Details

Description of 15X magnifying Optical lens

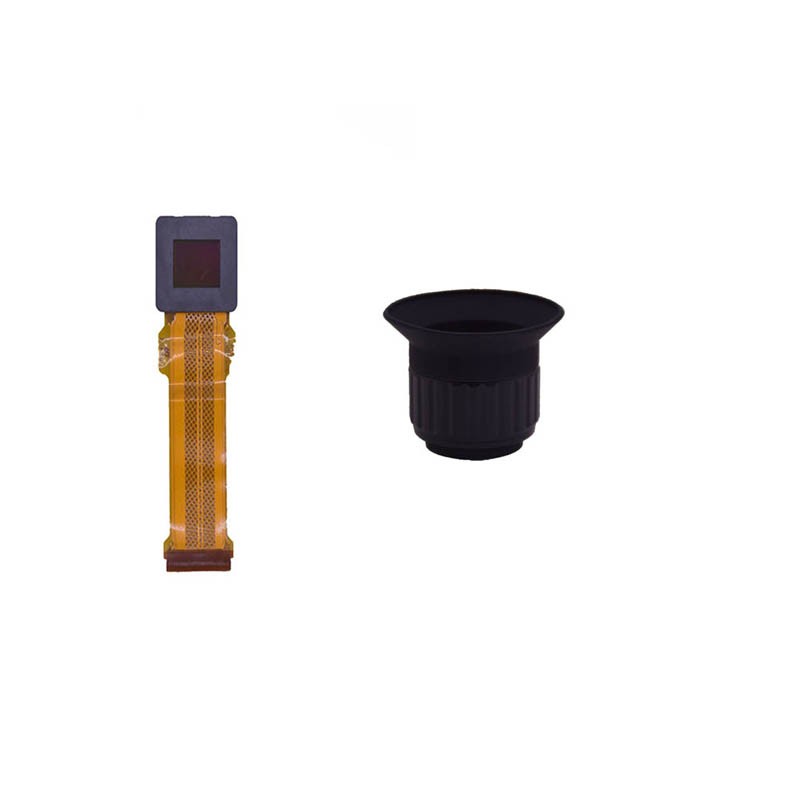

This Optical lens can magnify the images/video of what the devices display, with 15X Manification and First Lens Diamerer of 20MM ,which is applicable for the Microdisplays (0.37"-0.4"" Micro OLED Display) that used in the AR Glasses /VR Headsets/HDMS/EVF/Thermal Imagering.

This Specification is ideal to the 0.37" -0.4"Micro Display.

Specifications of 15X magnifying Optical lens

About This Item:

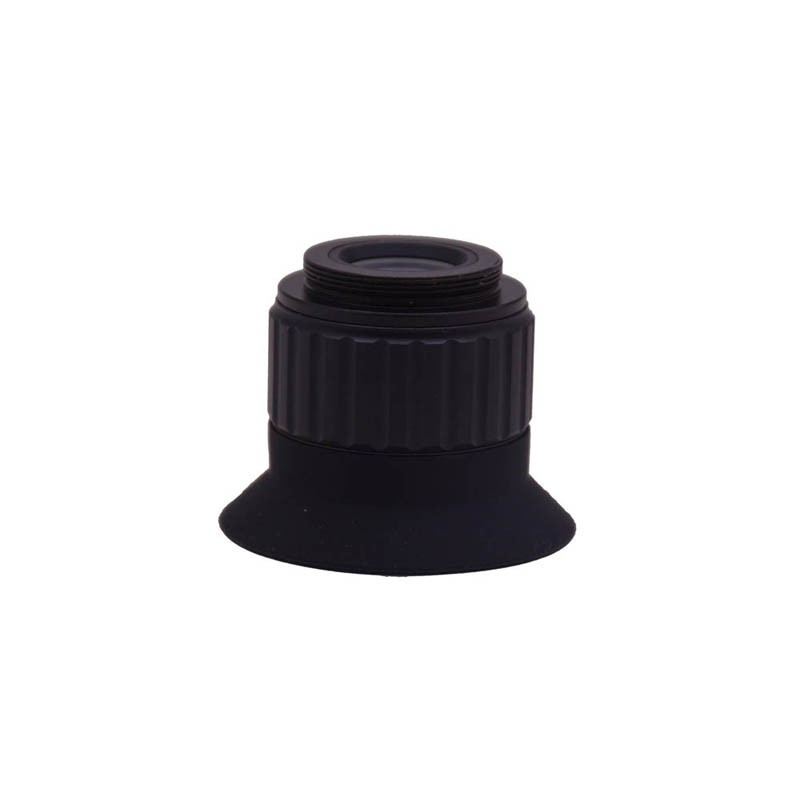

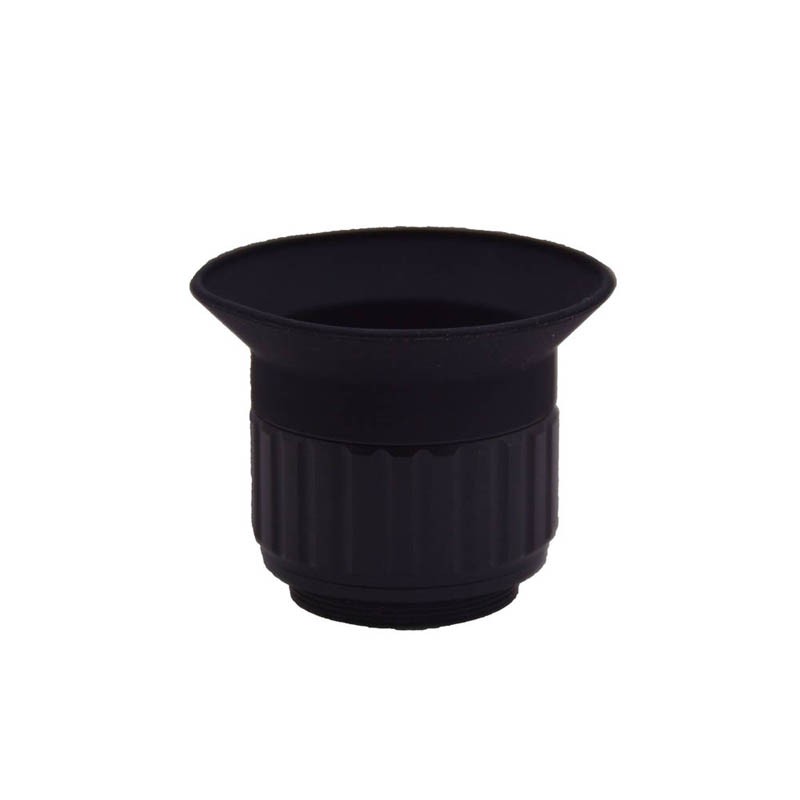

Quality aluminum stock and black anodized body with M29*0.75mm Thread mount: Work as a T-adapter;
15X Magnifications;Entrance pupil diameter of 6mm, which can maginify image or video displayed the microdisplays.
First Lens Diamerer of 20MM; Exit pupil distance of 39.7mm,Dimension of Φ38.5*27.5, enabling lower magnification with a wider field of view;
Used in microdisplays in multiple fields: AR VR, Night Vision goggles, Drones,EVF,HDMS,Thermal Imagering...
Made of genuine optically processed glass; premium optical prism inside rather than mirror which makes image clear and sharp

15X magnifying Optical lens Parameter

Model No:0PE-15X
First Lens Diamerer:20MM
Manification:15X
Entrance Pupil Diamerer:6MM
Exit Pupil Distance：39.7MM
Optical Distrtion:<1%
Adjust to:-600,+400

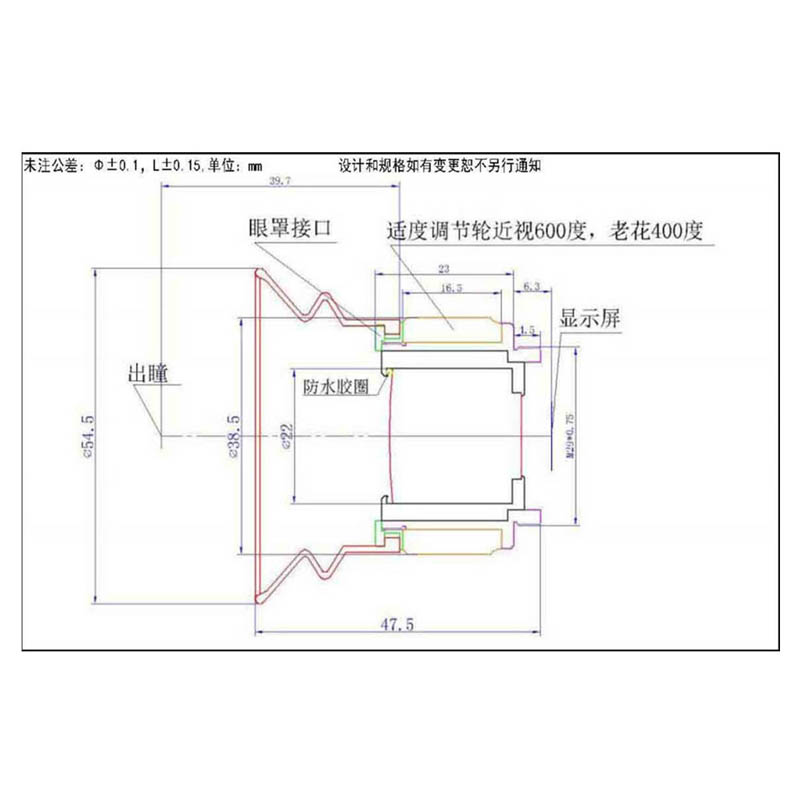

Dimension:Φ38.5*27.5
BFL:5.8
MBF:6.3
Weight:69g
Mount:M29*0.75
Apply to:0.39" microdisplay
Lens Construction:Metallic+glass
Material:Several pieces of glass with metal structure
Operating Temerature:-20℃~+80℃
