Optical Prism Eyepieces 12X magnifying 21mm focal length optical Lens for Thermal Imagering fpv drones

Category： OPTICAL MODULES
Manification:12X
Focal Length:21MM
Entrance Pupil Diamerer:6MM
Exit Pupil Distance:26MM
INQUIRY EMAIL

Product Details

Description of 12X magnifying Optical lens

This Optical lens can magnify the images/video of what the devices display, with 12X Manification and Focal Length 21MM ,which is applicable for the Microdisplays (0.5"Micro lcos Display/LCD Display) that used in the AR Glasses /VR Headsets/HDMS/EVF/Thermal Imagering/Night Vision Goggles.

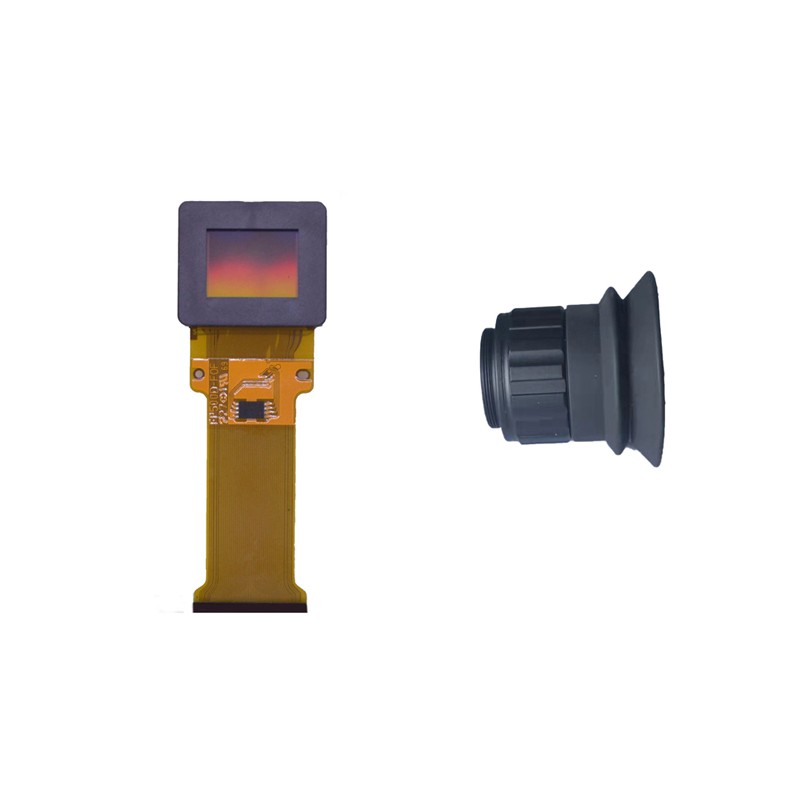

This Specification is ideal to the 0.5"Micro lcos Display/LCD Display

Specifications of 12X magnifying Optical lens

About This Item:

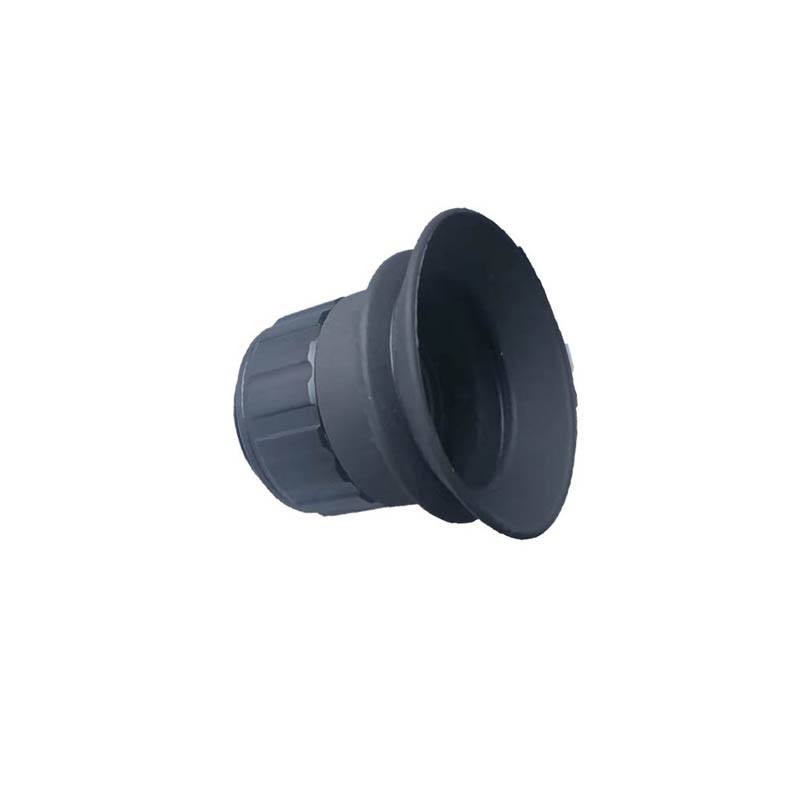

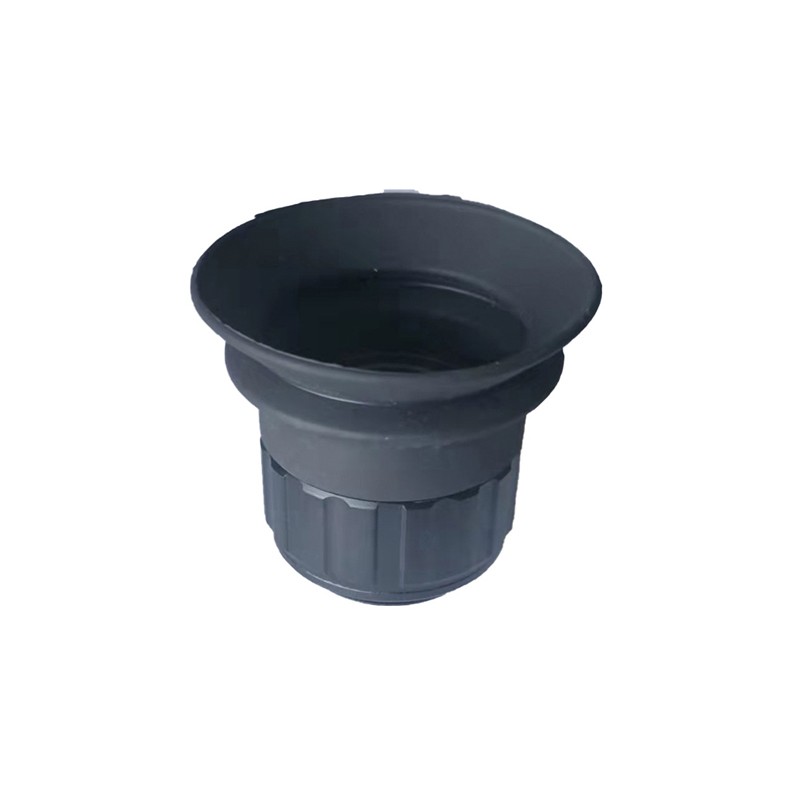

Quality aluminum stock and black anodized body with M29*0.75mm Thread mount: Work as a T-adapter;
12X Magnifications;Entrance pupil diameter of 6mm, which can maginify image or video displayed the microdisplays.
21mm focal length; Exit pupil distance of 26MM,Dimension of Φ38.5*49, enabling lower magnification with a wider field of view;
Used in microdisplays in multiple fields: AR VR, Night Vision goggles, Drones,EVF,HDMS,Thermal Imagering...

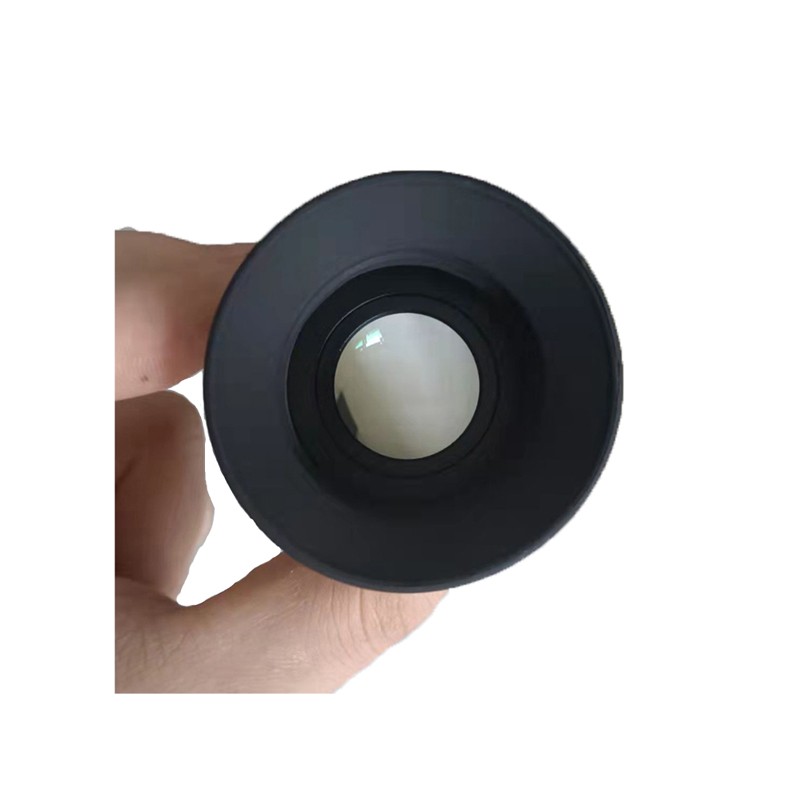

Made of genuine optically processed glass; premium optical prism inside rather than mirror which makes image clear and sharp

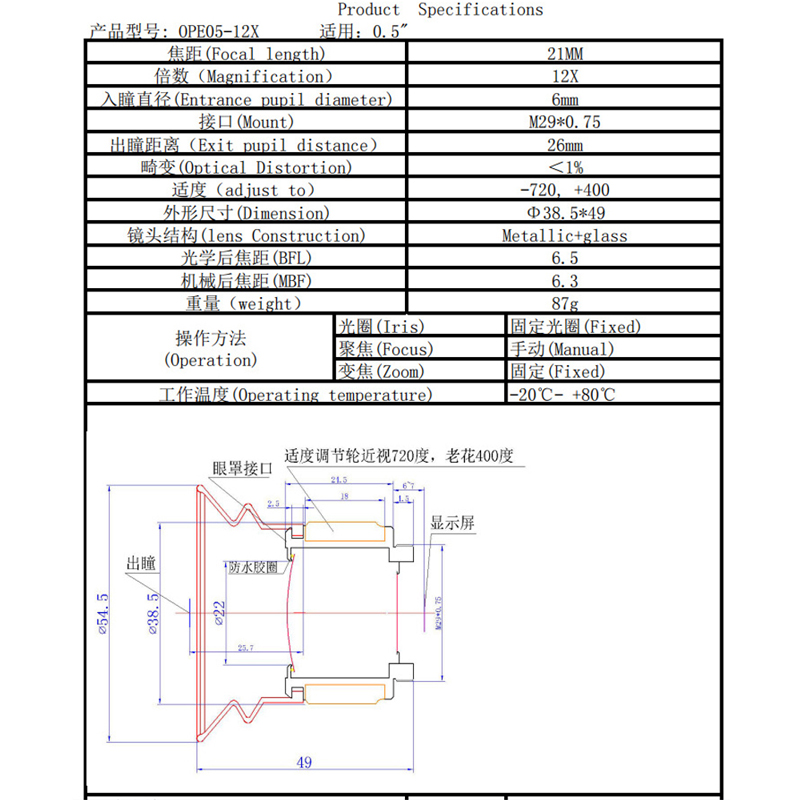

12X magnifying Optical lens Parameter

Model No:0PE05-12X
Focal Length:21MM
Manification:12X
Entrance Pupil Diamerer:6MM
Exit Pupil Distance:26MM
Optical Distrtion:<1%
Adjust to:-720,+400
Dimension:Φ38.5*49
BFL:6.5
MBF:6.3
Weight:87g
Mount:M29*0.75
Apply to:0.5" microdisplay
Lens Construction:Metallic+glass
Diopter adjustment range:-7.2,+4 SD
Material:Several pieces of glass with metal structure
Operating Temerature:-20℃~+80℃
