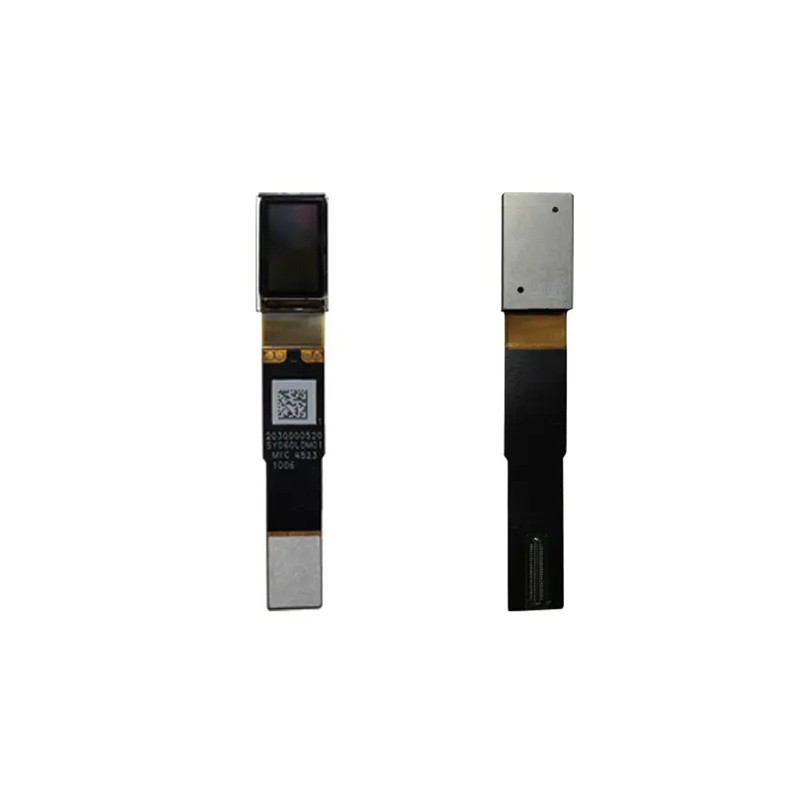

0.6 inch Micro OLEDoS Display 1920x1080 120Hz 6000nits

Category： MICRODISPLAY
Size: 0.6 inch OLED Display
Resolution:1920(RGB) ×1080
Brightness:6000nits(Typ.)/3000nits

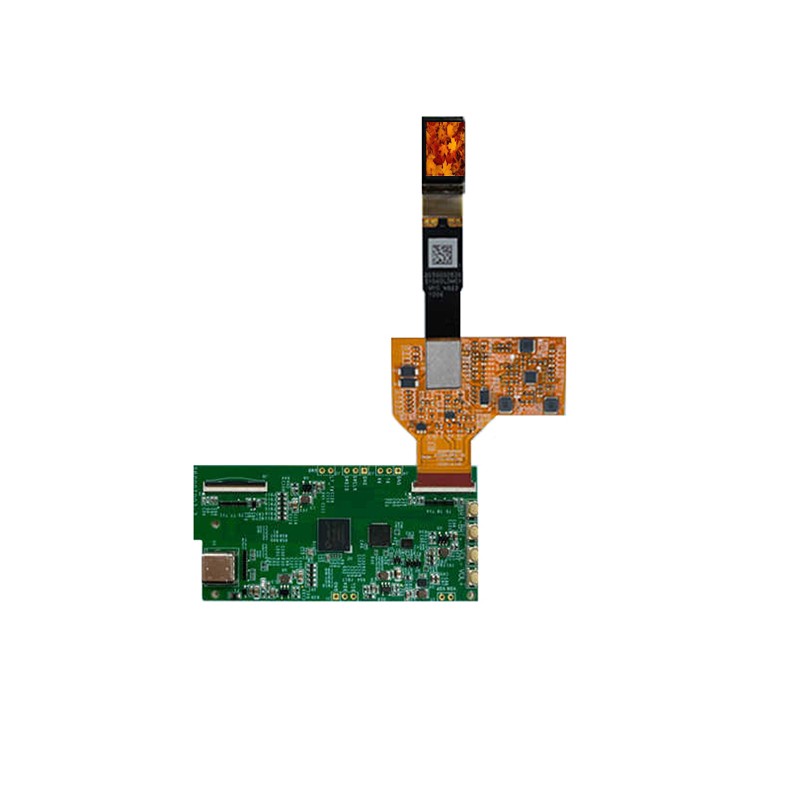

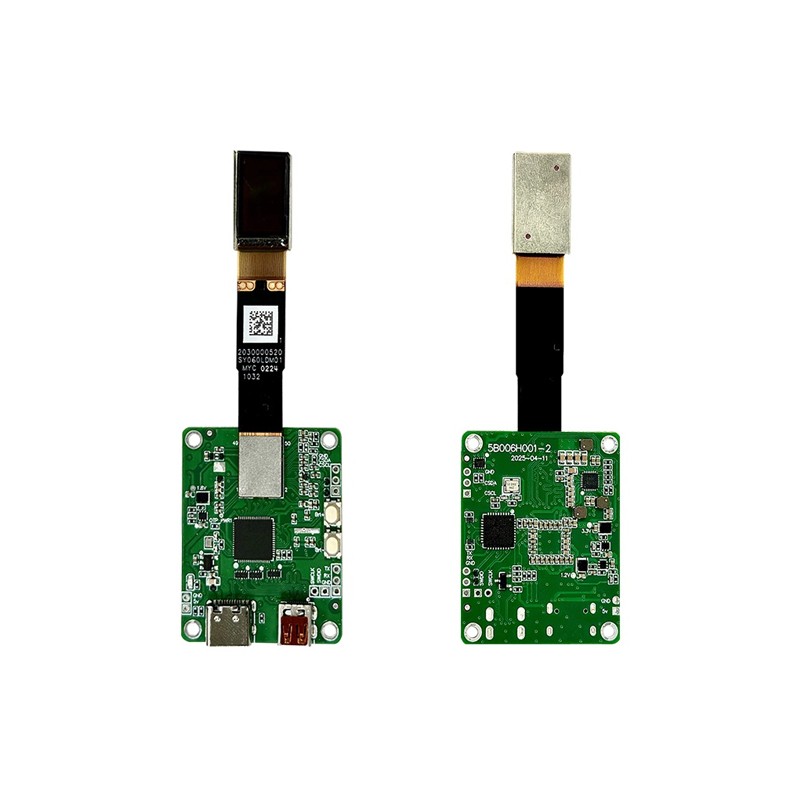

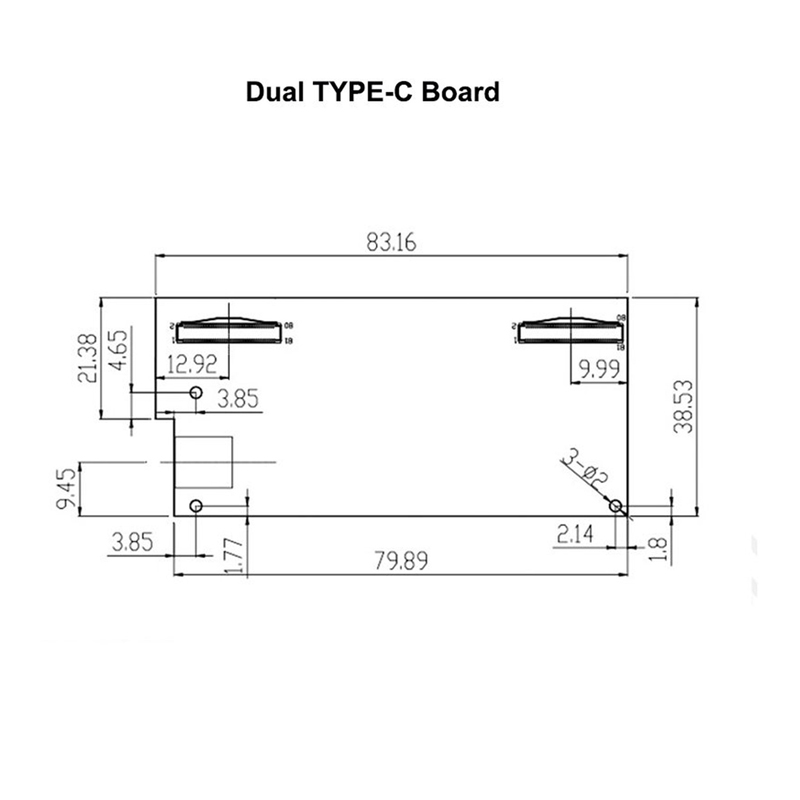

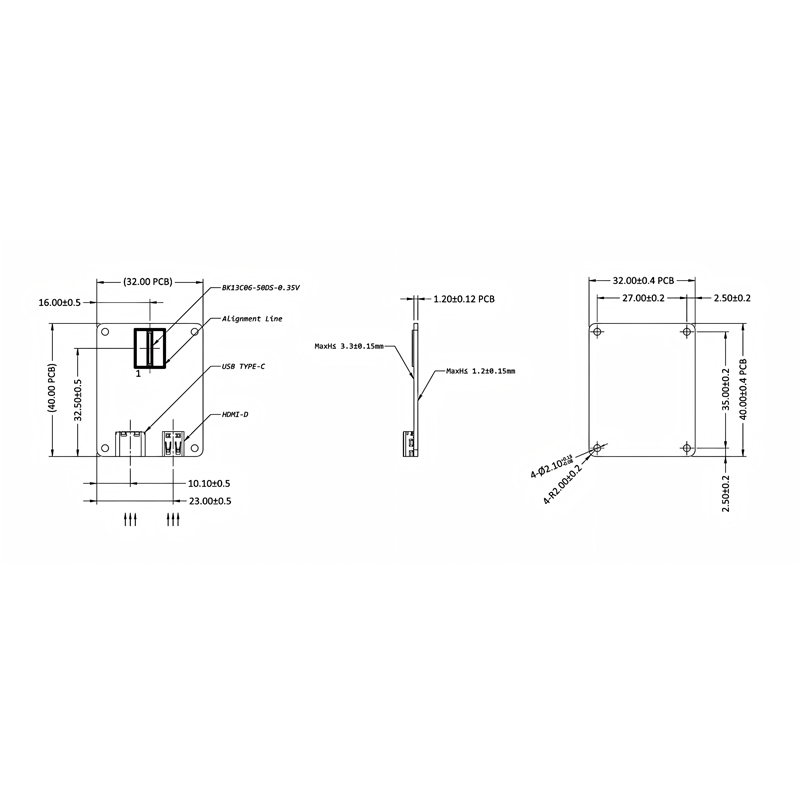

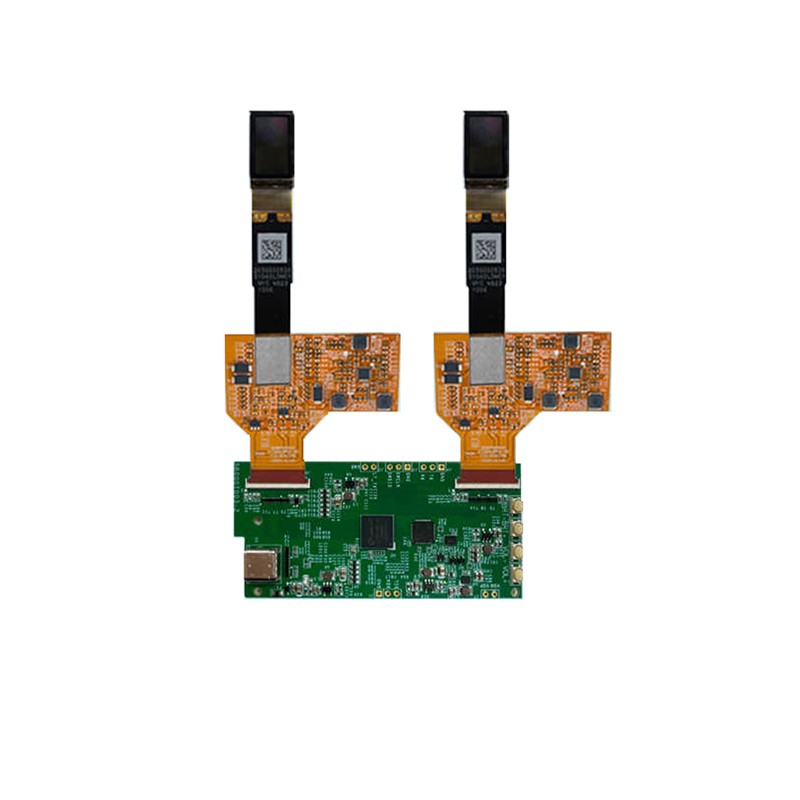

Driver Board: HDMI /type-c Port
INQUIRY EMAIL

Product Details

The 0.6 inch Micor OLED Display is a coloful 1920*1080 AMOLED Grayscale micro display, with FHD 1920*1080 High resolution and high luminance level up 6000cd/m2, popular used in virtual devices such as AR Glasses and VR Headset, thanks to its micro Si-OLED (Silicon Organic Light Emitting Diode) technology, this micro screen is with very impact size, light weight and low power consumption, also applicable for the medical and military industry such as Head-mounted Displays (HMD),viewfinder,Head-Mounted Displays (HMD) etc.

0.6 inch Micro OLED Display parameter

Product Number:JKSY060LDM01(6000NITS)/JKSY060MDM01(3000NITS)
Display Type:Micro OLED
Resolution:1920 x 1080

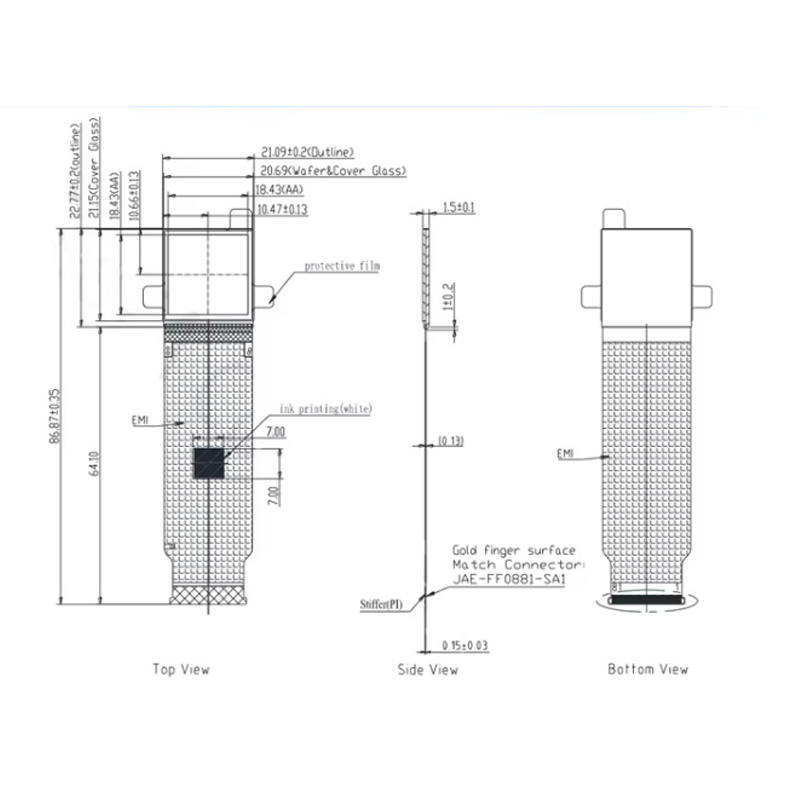

Screen Size:21.087mm x 22.765mm x 1.475mm
Active Area:13.22mm x 7.43mm/ 0.6" diagonal
Luminance(Brightness):6000nits(Typ.)/3000nits
Color:Full RGB
Contrast Ratio:10,0000:1
Interface:MIPI+I2C
Frame Rate:up to 120Hz
Operating Temperature:-20℃ to +70℃
Storage Temperature:-40℃ to +80℃
Plan:Mass Production
Application:AR VR devices, EVF, Night vision, sight...

0.6 inch Micro OLED 6000nits Features:

◆ Small size high definition type
◆ High contrast
◆ Wide color reproduction range
◆ High-speed response
◆ Thin type and light weight
◆ Power saving function
◆ Up/down and/or right/left inverse display function
◆ Orbit supported

0.6" 1920*1080 Micro display Screen Applications:

AR/VR display, electronic viewfinder of digital camera/video camera；
Portable equipment such as miniature projectors, video glasses, 3D displays, head-mounted entertainment equipment,etc；
Security monitoring /military:individual helmet display, electronic sight, infrared night vision device,Thermal imager displays,electronic telescopes,flight helmets,gun sights,life detection video devices；
Medical and industrial:human and machine video engineering research, endoscope, portable B-ultrasound machine,Vision correction equipment,multi-scope,various portable inspection and testing equipment;
Aircraft model:aerial photography:remote control aircraft parameter display system:remote control car video display terminal:etc.
