0.57 Inch 1600X1200 RESOLUTION Micro Display Oled Module Near-Eye NED Ar Vr Display

Category： MICRODISPLAY
Size: 0.57 inch OLED Display
Resolution:1600(RGB) ×1200
Brightness:1800nits(Typ.)

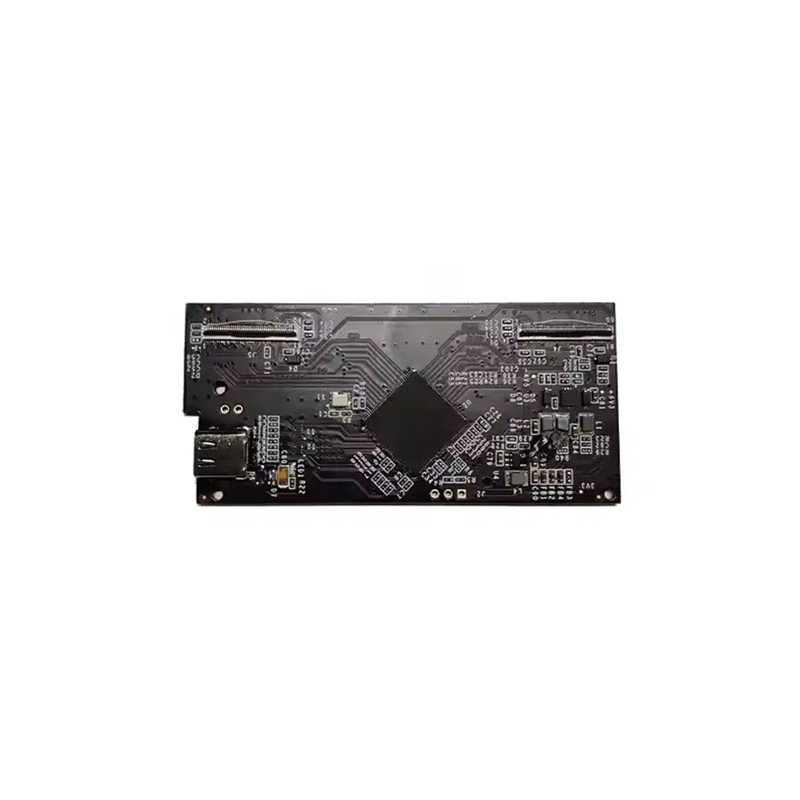

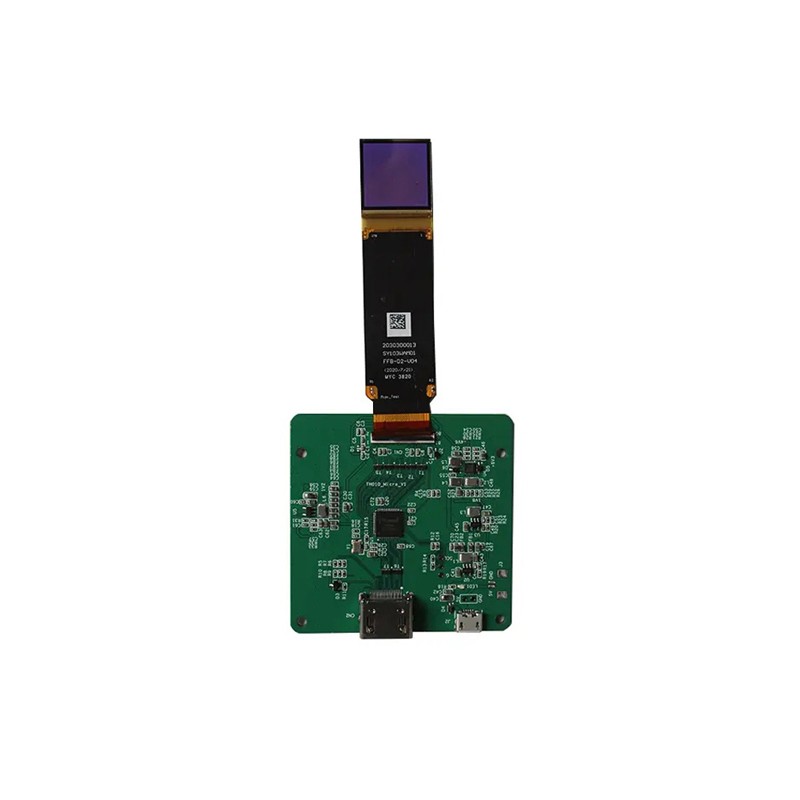

Driver Board: HDMI /type-c Port
INQUIRY EMAIL

Product Details

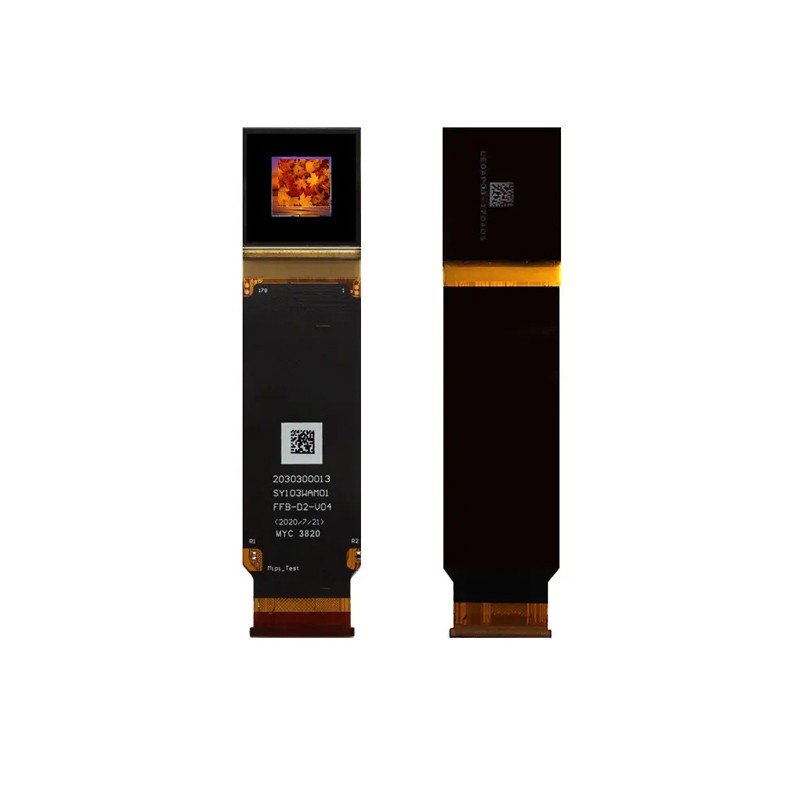

The 0.57 inch Micor OLED Display is a coloful 1600x1200 AMOLED Grayscale micro display, with FHD 1600x1200 High resolution and high luminance level up 1800cd/m2, popular used in virtual devices such as AR Glasses and VR Headset, thanks to its micro Si-OLED (Silicon Organic Light Emitting Diode) technology, this micro screen is with very impact size, light weight and low power consumption, also applicable for the medical and military industry such as Head-mounted Displays (HMD),viewfinder,Head-Mounted Displays (HMD) etc.

0.57 inch Micro OLED Display parameter

Product Number:JKSY057WAM01

Display Type:Micro OLED

Resolution:1600*1200

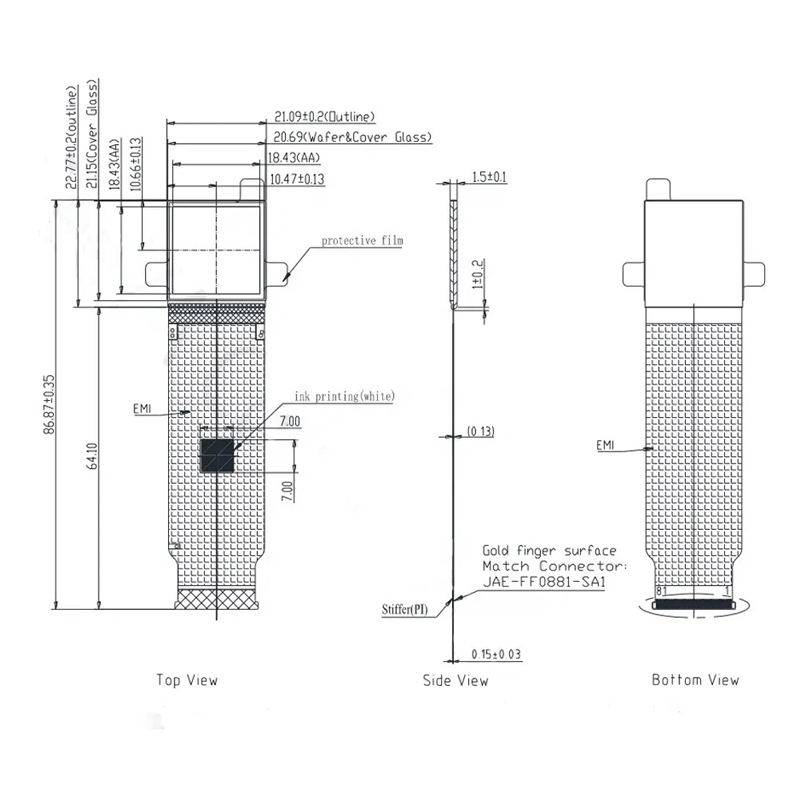

Screen Size:21.09mm x22.77mm x 1.5mm

Active Area:11.52mm x 8.64mm/ 0.57" diagonalLuminance

(Brightness):1800nits(Typ.)

Color:Full RGB

Contrast Ratio:50,000:1

Interface:MIPI+I2C

Frame Rate:30Hz~90Hz

Operating Temperature:-20℃ to +70℃

Storage Temperature:-40℃ to +80℃

Plan:Mass Production

Application:AR VR devices, EVF, Night vision, sight...

0.57 inch Micro OLED 1800nits Features:

◆ Small size high definition type
◆ High contrast
◆ Wide color reproduction range
◆ High-speed response
◆ Thin type and light weight
◆ Power saving function
◆ Up/down and/or right/left inverse display function
◆ Orbit supported

0.57" 2560*2560 Micro display Screen Applications:

AR/VR display, electronic viewfinder of digital camera/video camera；
Portable equipment such as miniature projectors, video glasses, 3D displays, head-mounted entertainment equipment,etc；
Security monitoring /military:individual helmet display, electronic sight, infrared night vision device,Thermal imager displays,electronic telescopes,flight helmets,gun sights,life detection video devices；
Medical and industrial:human and machine video engineering research, endoscope, portable B-ultrasound machine,Vision correction equipment,multi-scope,various portable inspection and testing equipment;
Aircraft model:aerial photography:remote control aircraft parameter display system:remote control car video display terminal:etc.
