Product Details

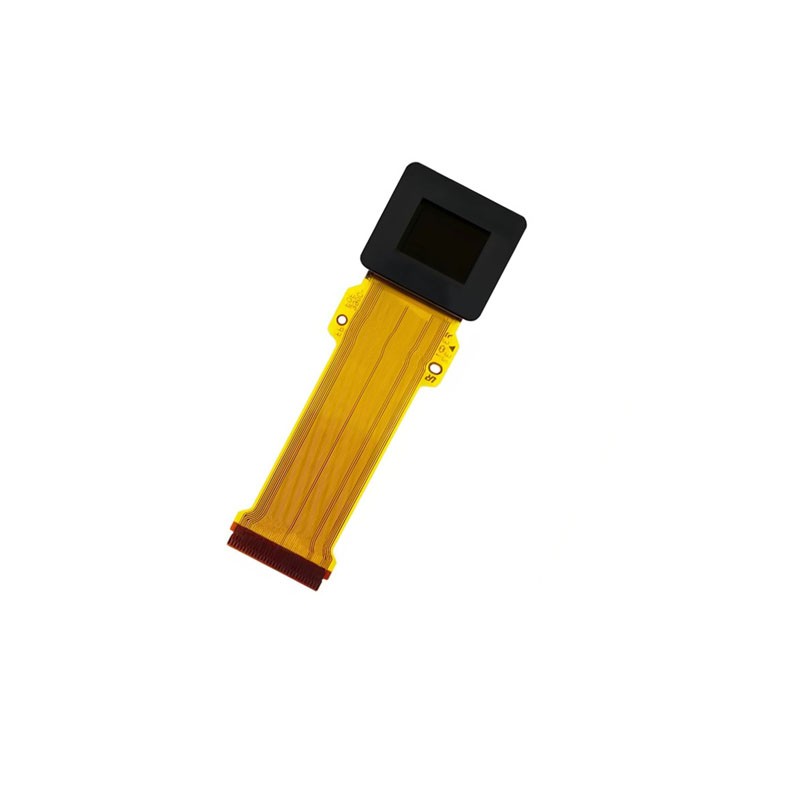

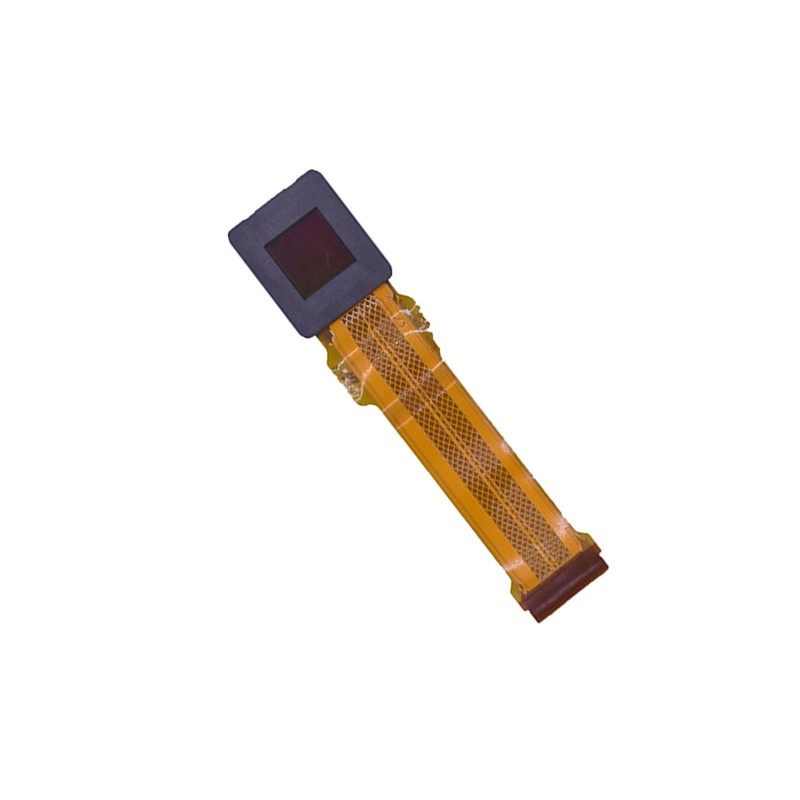

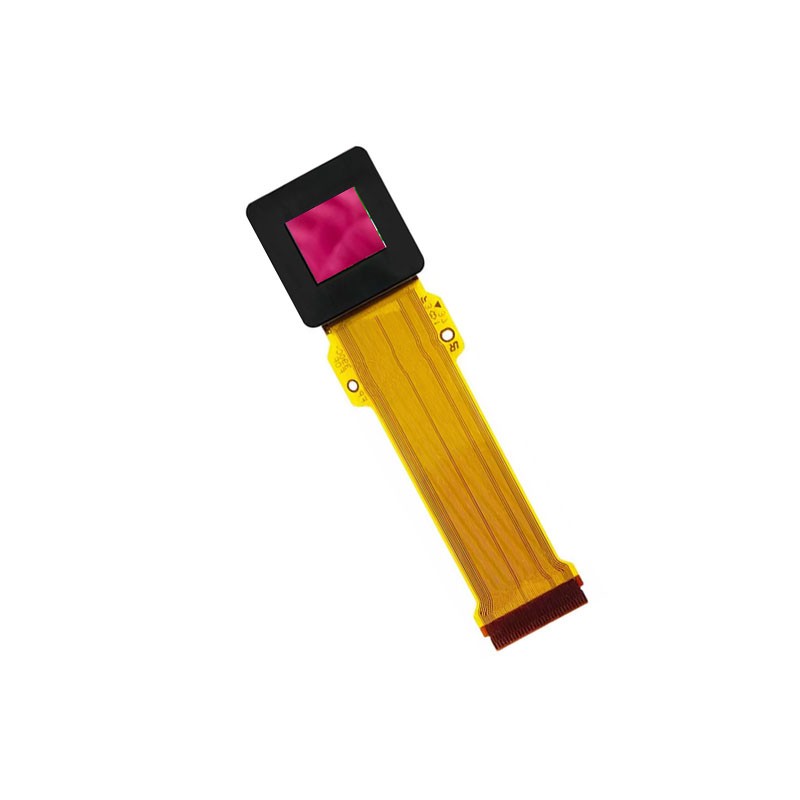

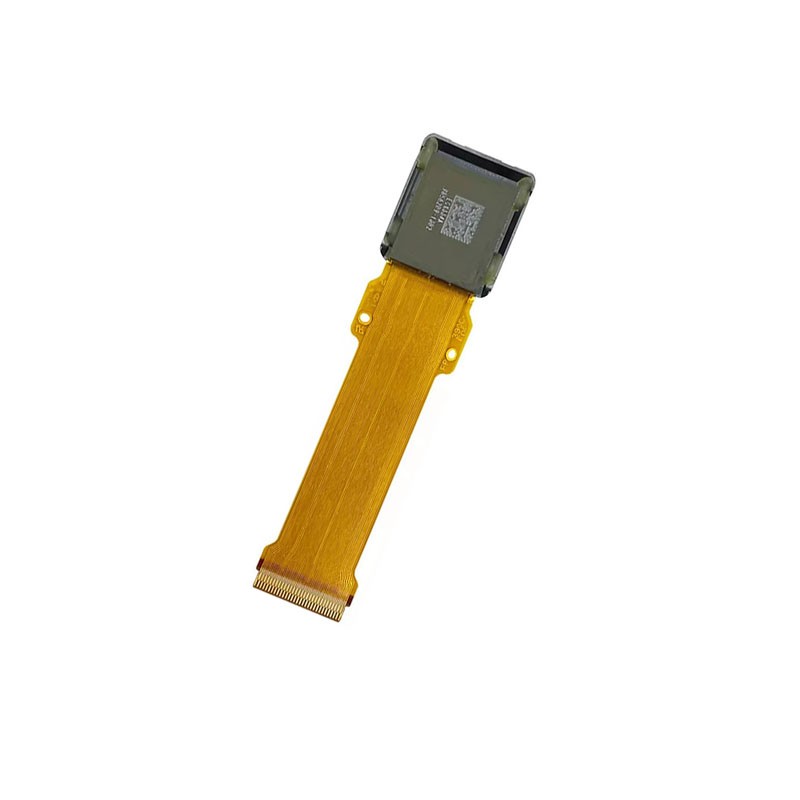

This Micro AR 0.39 inch microdisplay is a high resolution emissive OLED microdisplay and based on a CMOS backplane accessible through standard video interface, featuring a high-resolution of 1024x768 pixels active matrix =3.2M dots, high display contrast, wide temperature range;supporting RGB interface and frame rate can reach 60Hz in typically.thanks to MICROOLED's proprietary OLED-on-CMOS technology, this micro display embeds low-latency video processing capabilities and manages look-up tables, it will gives excellent uniformity and grey level rendering to an exceptional image /video quality, this micro-oled screen is industrial-grade and special for military industry applications.

0.39 inch microdisplay 1024x768 parameter:

Features	Specification	Unit
Display Type	OLED Display
Display Size(Diagonal)	0.39"	inch
Resolution	1024(RGB)*768	Pixels
Display Color	Full color
Pin No	61P	cd/m2
Brightness	1000
Interface Type	parallel RGB 24-bit, YCbCr 24-bit and YCbCr 16-bit input

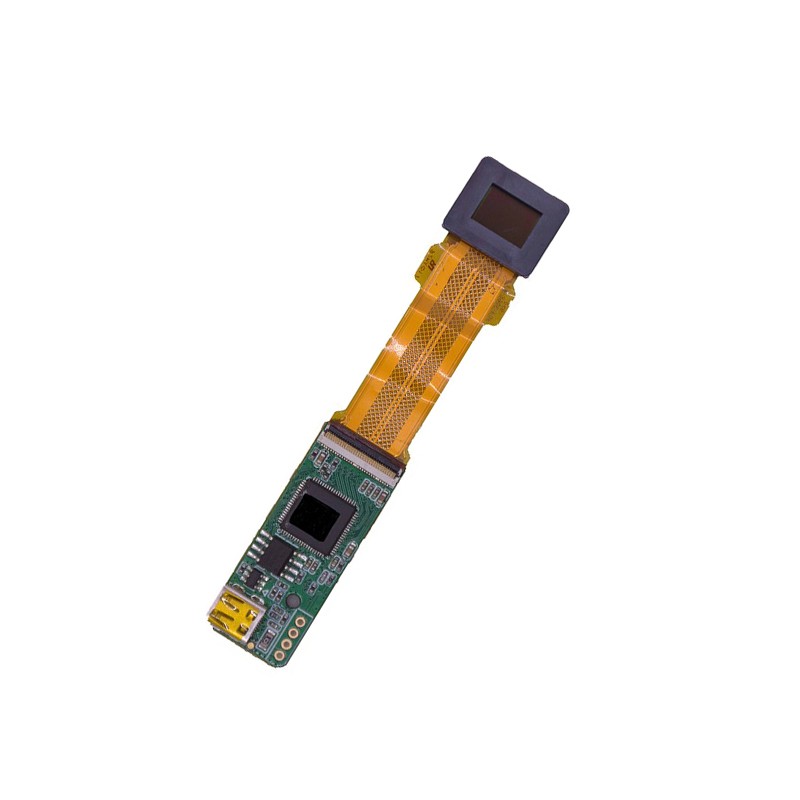

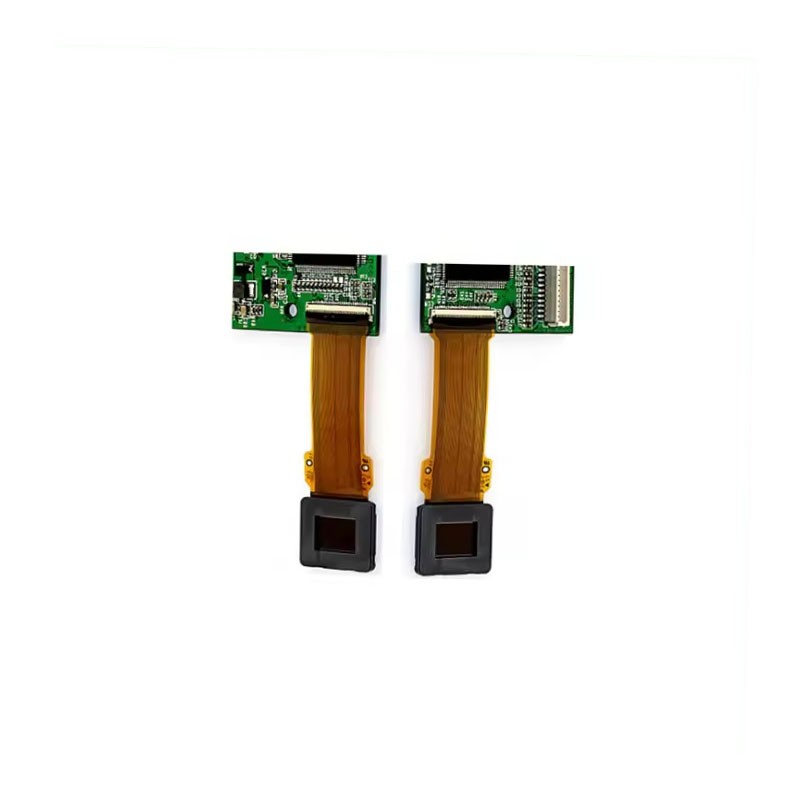

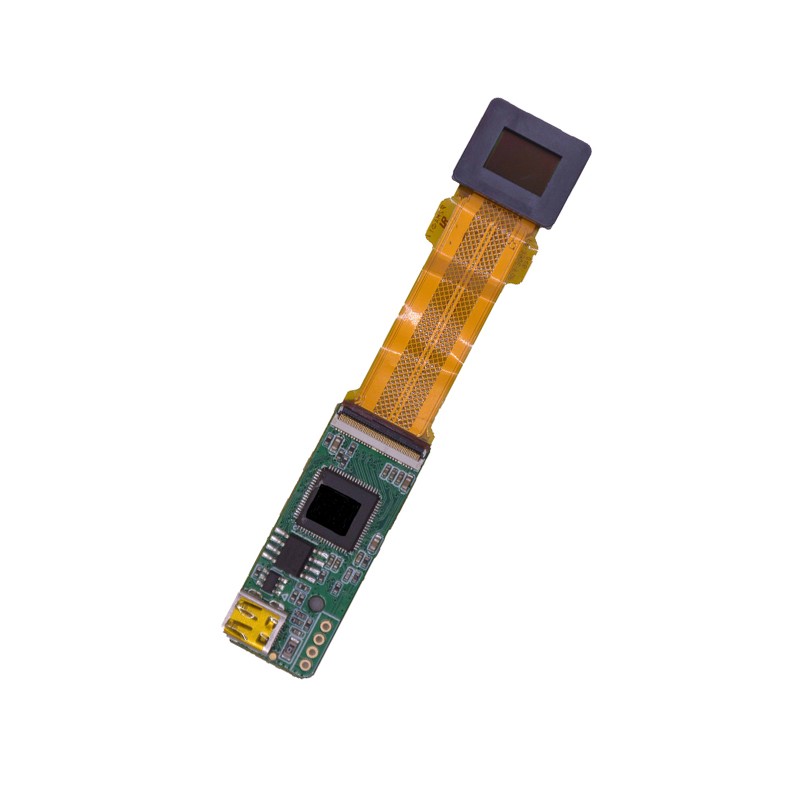

Driver Board Solution	HDMI PORT/CVBS/AV Board
Panel Size	15.6 x 13.6 x 0.2	(mm)
Active Area	8.143 x 6.146	(mm)
Frame Rate	60 Hz
Contrast Ratio	100,000:1
Mass Production	Available
Operation Temperature	-10℃~70℃
Storage Temperature	-30℃~80℃

0.39 inch micro display 1024x768 Features:

High-Resolution Display
The display features a resolution of 1024×768 pixels, providing sharp and clear images.

Low Power Consumption
Si OLED are known for their energy-efficient operation, the 0.39 inches Micro OLED module is only 150mW power consuption.

High Brightness
With a brightness rating of 1000nits, the 0.39 inch Micro OLED Display delivers vibrant and easily visible visuals, even in bright lighting conditions.

Contrast Ratio
The 0.39 inch Micro OLED 1024×768 with a high contrast ratio of 100000:1, ensuring consistent and amazing image quality.

◆ EVF (electronic viewfinders) for consumer cameras;
◆ AR and VR glasses/goggles,entertainment, industrial applications, and sports,headsets for consumer AR glasses and the metaverse
◆ Drones and FPV
◆ All types of scopes
◆ Medical care (medical headset displays for surgery support and as displays for assistive auxiliary glasses for the vision-impaired)
◆ Other EVFs (for industrial microscopes and other professional devices that require high-quality image display.)
◆ head mounted displays
◆ very small monitors,etc

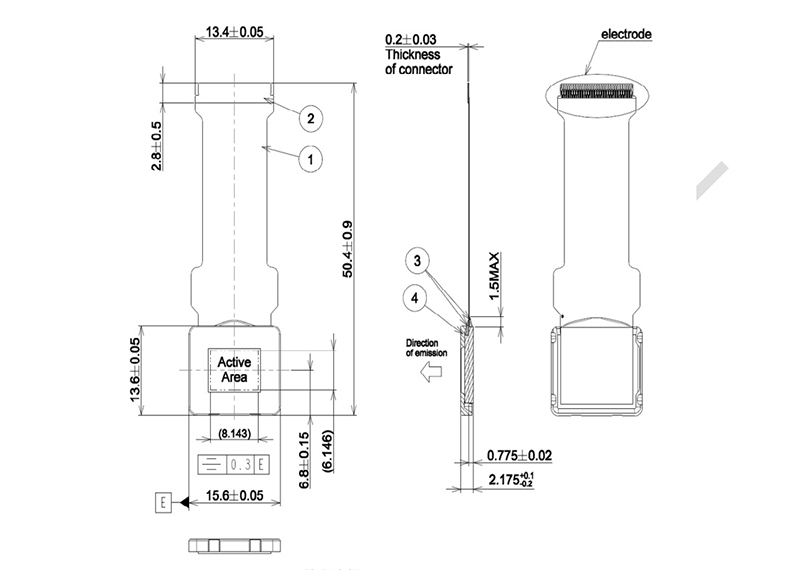

Dimensions

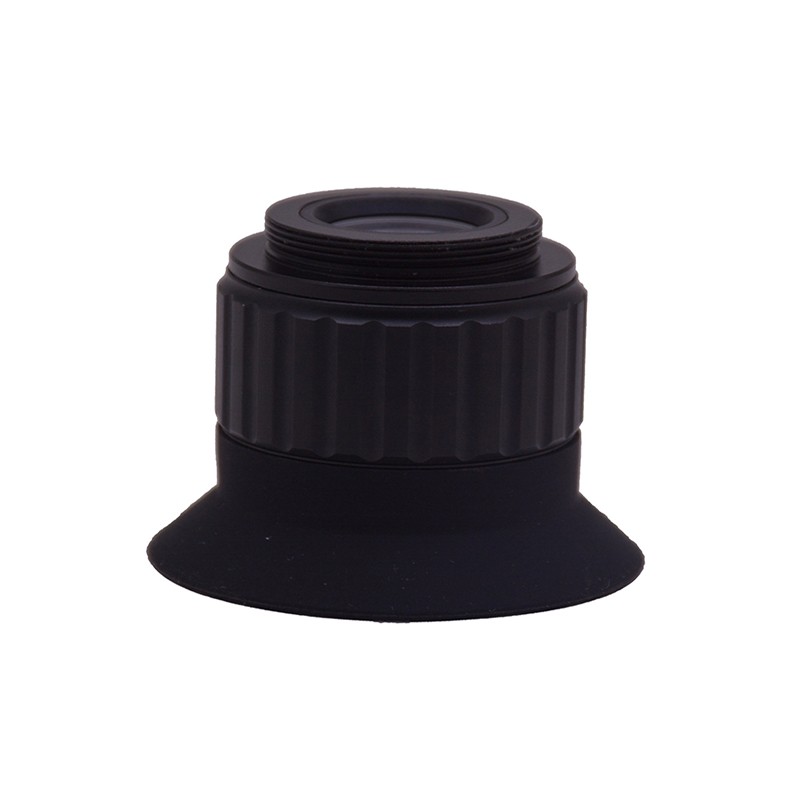

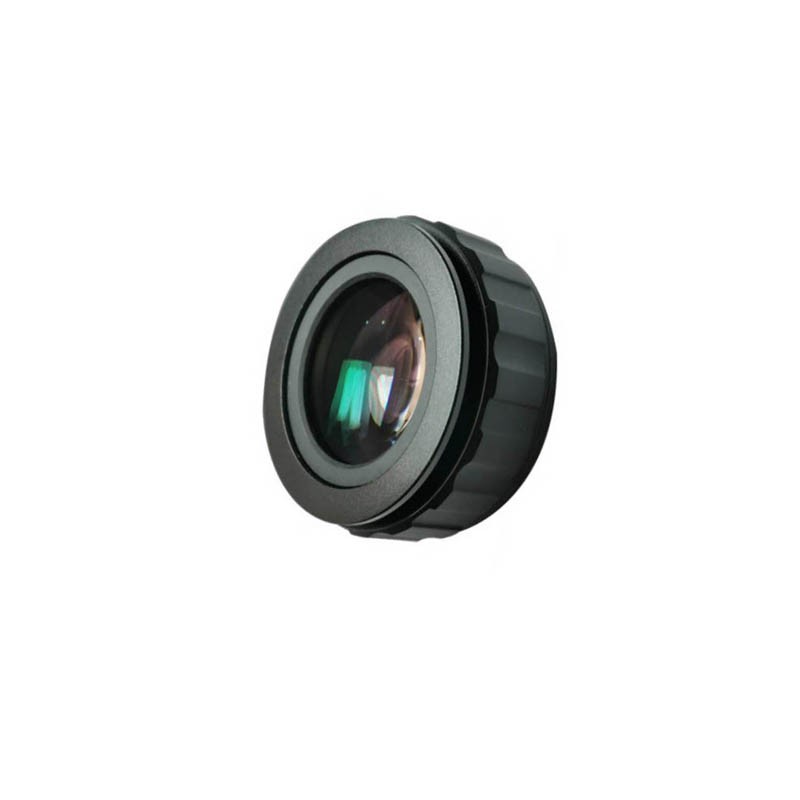

Optical Magnification Lens

0.39 inch microoled 1024x768
