Product Details

The 0.5"Micro OLED Display is a 1.3 cm (0.5inch) diagonal, 1280(RGB) × 960 dots active matrix color OLED (Organic Light Emitting Display) panel module based on single crystal silicon transistors. The module integrates panel driver and logic driver, and achieves smaller size, light in weight and high resolution.

The 0.5 inch Micor OLED Display is a coloful 1280(RGB) × 960 AMOLED Grayscale micro display, with FHD 1600*1200 High resolution and high luminance level up 1000cd/m2, popular used in virtual devices such as AR Glasses and VR Headset, thanks to its micro Si-OLED (Silicon Organic Light Emitting Diode) technology, this micro screen is with very impact size, light weight and low power consumption, also applicable for the medical and military industry such as Head-mounted Displays (HMD),viewfinder,Head-Mounted Displays (HMD) etc.

Parameter for the 0.5" 1280x960 Micro screen

Features	Specification	Unit
Display Type	OLED Display
Display Size(Diagonal)	0.5"	inch
Resolution	1280(RGB)*960	Pixels
Display Color	Full color
Pin No	61P	cd/m2
Brightness	1000
Interface Type	parallel RGB 24-bit, YCbCr 24-bit and YCbCr 16-bit input

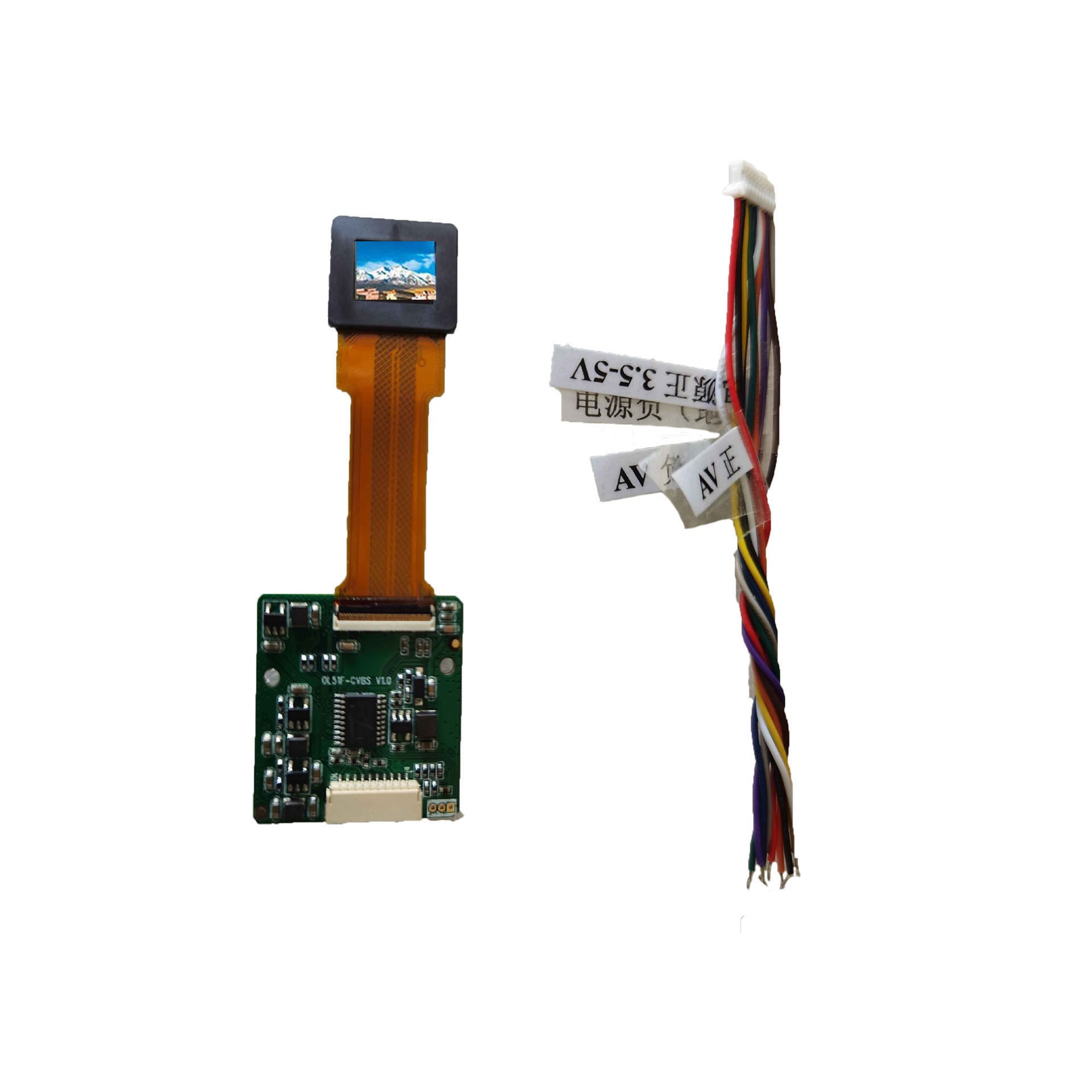

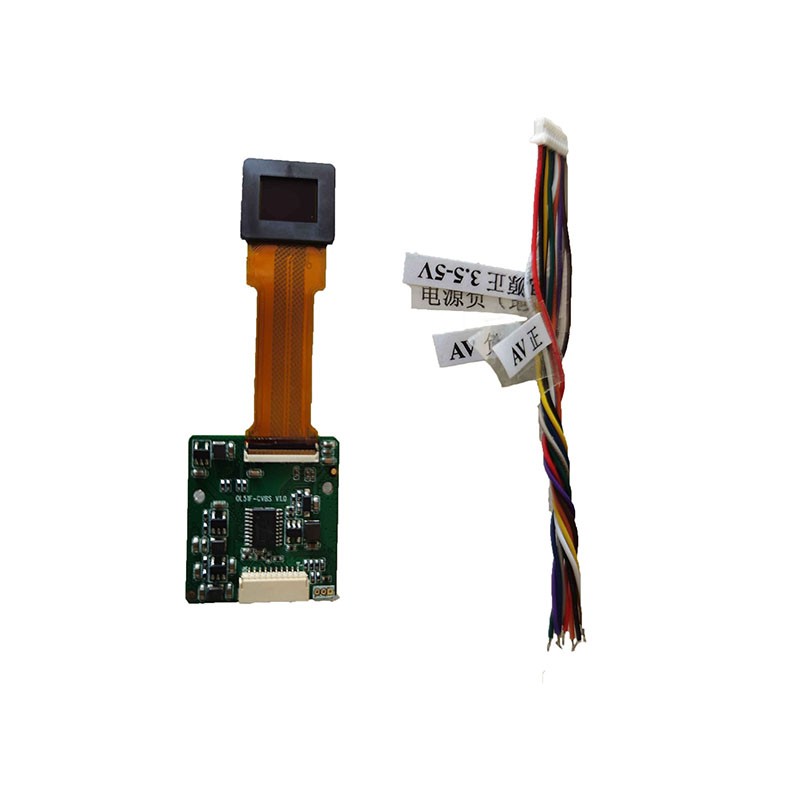

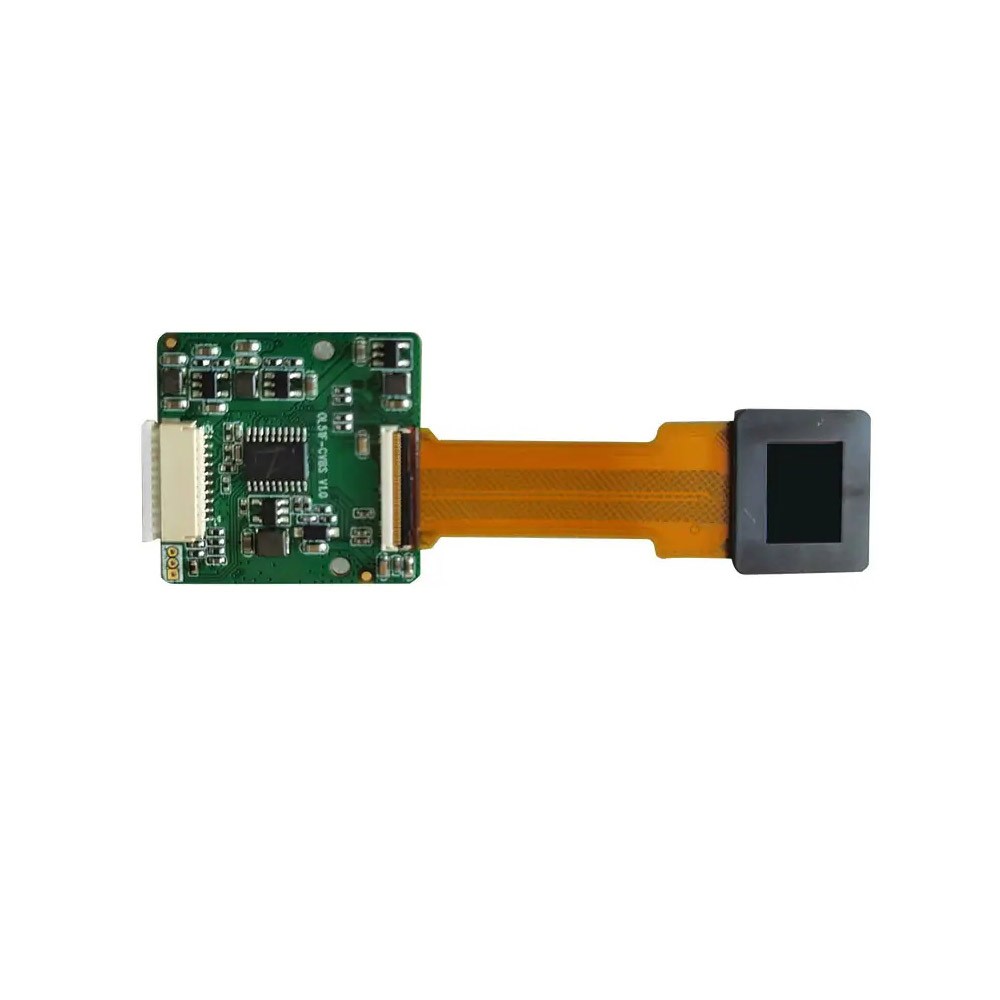

Driver Board Solution	HDMI PORT/CVBS/AV Board
Panel Size	17.8(H) × 15.2(V)	(mm)
Active Area	10.14(H) × 7.644(V)	(mm)
Frame Rate	60Hz
Contrast Ratio	100,000:1
Mass Production	Available
Operation Temperature	-10℃~70℃
Storage Temperature	-30℃~80℃

Applications fields of the 0.5" micro oled screen

◆ EVF (electronic viewfinders) for consumer cameras;
◆ AR and VR glasses/goggles,entertainment, industrial applications, and sports,headsets for consumer AR glasses and the metaverse
◆ Drones and FPV
◆ All types of scopes
◆ Medical care (medical headset displays for surgery support and as displays for assistive auxiliary glasses for the vision-impaired)
◆ Other EVFs (for industrial microscopes and other professional devices that require high-quality image display.)
◆ head mounted displays
◆ very small monitors,etc

Features of 0.5" micro screen 1280x960

◆ Small size high resolution type 0.5 inch display module
◆ Effective Dots: 1280 x RGB × 960 = 3.69 M dots
◆ Actual Dots including Orbit function: Total dots 1300 x RGB x 980 = 3.82 M dots
◆ Ultra high contrast
◆ Wide color gamut
◆ Fast response speed
◆ Thin and light in weight
◆ Power consumption Saving (PS) mode
◆ Scan direction selection, up or down and right or left.

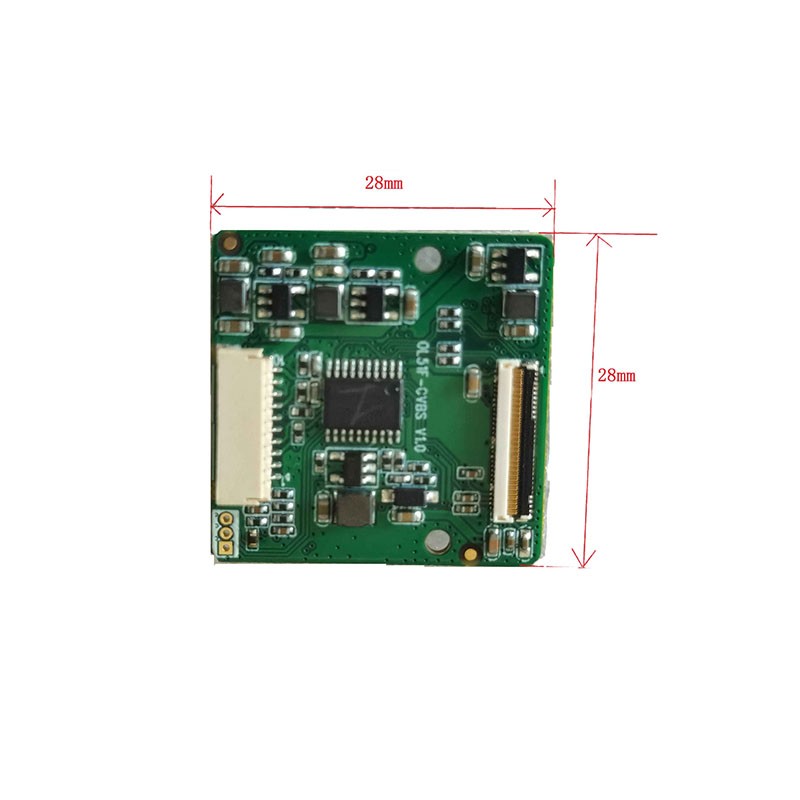

Dimensions

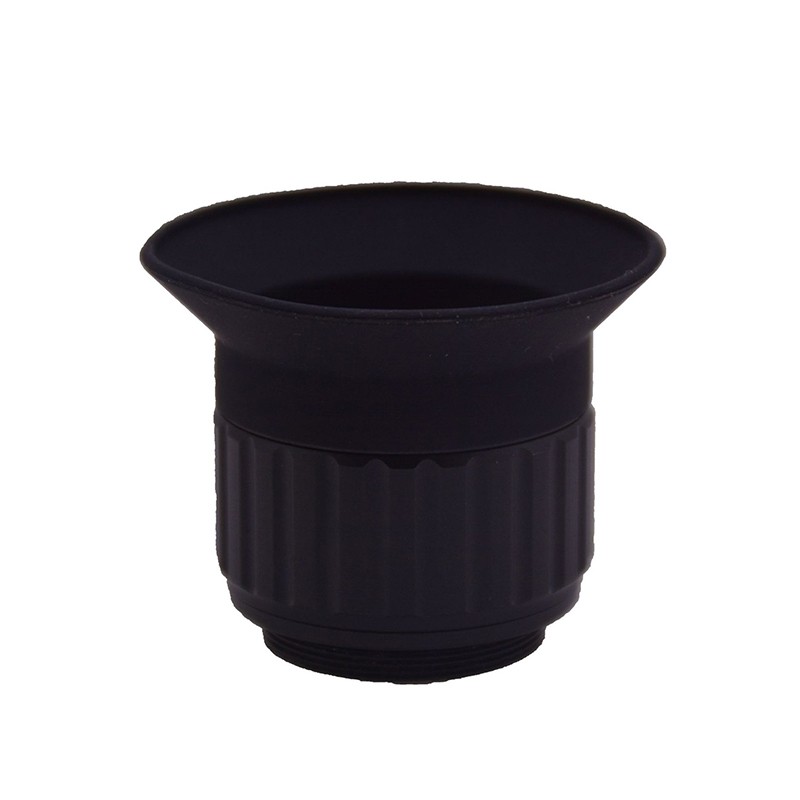

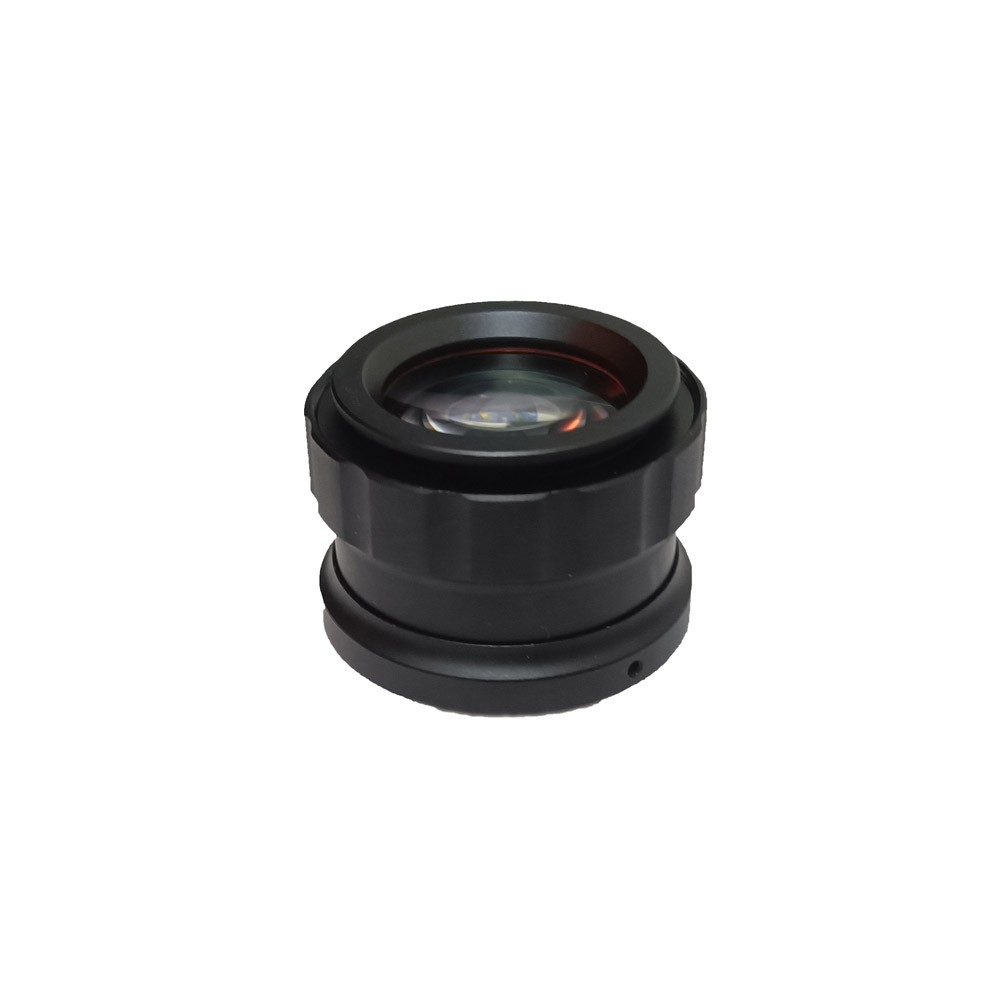

12X Magnifiering Lens

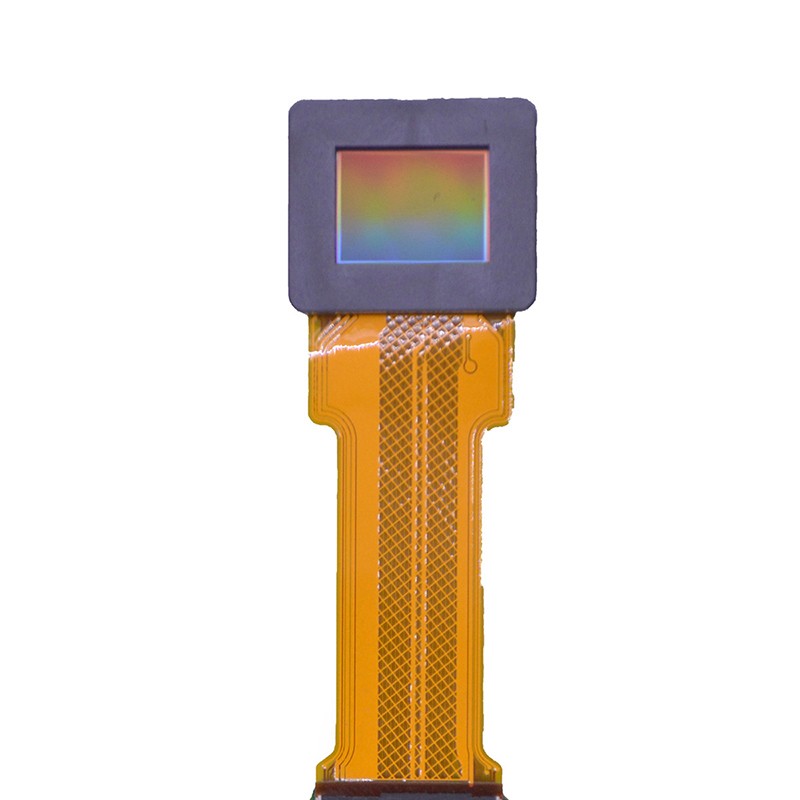

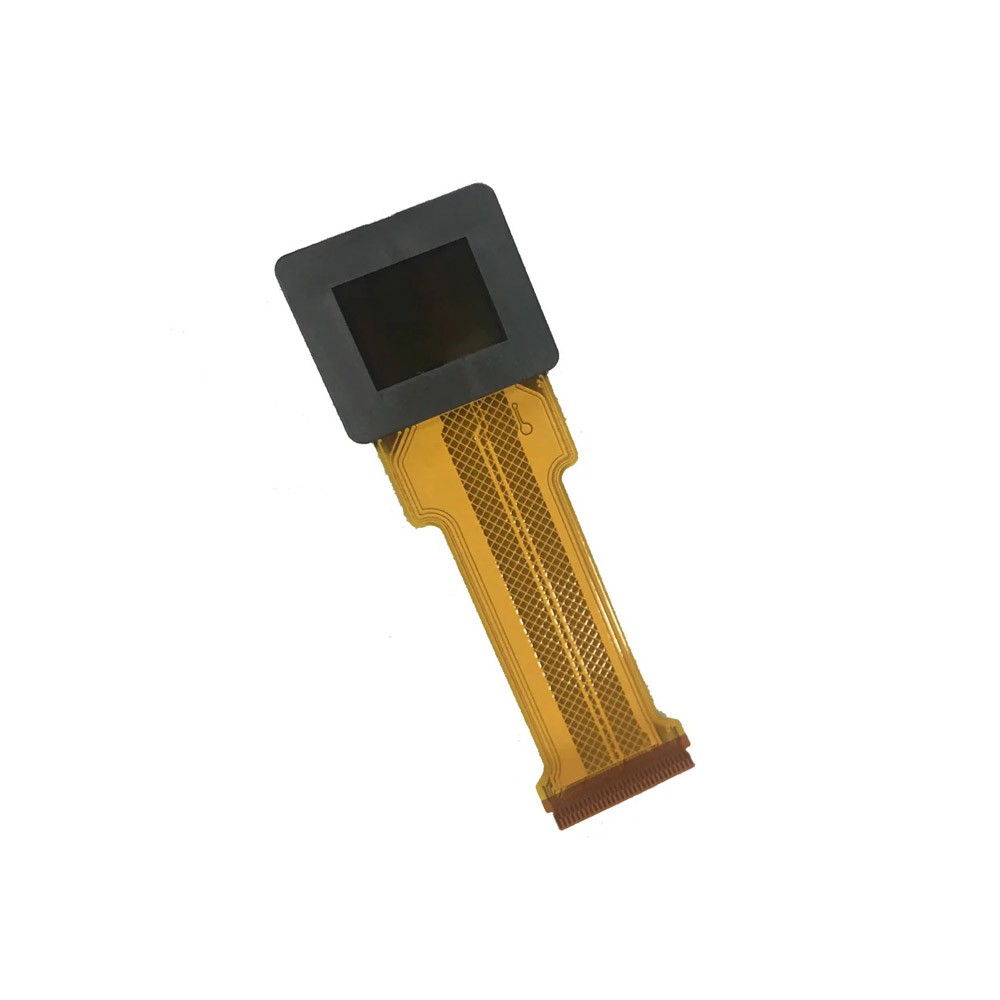

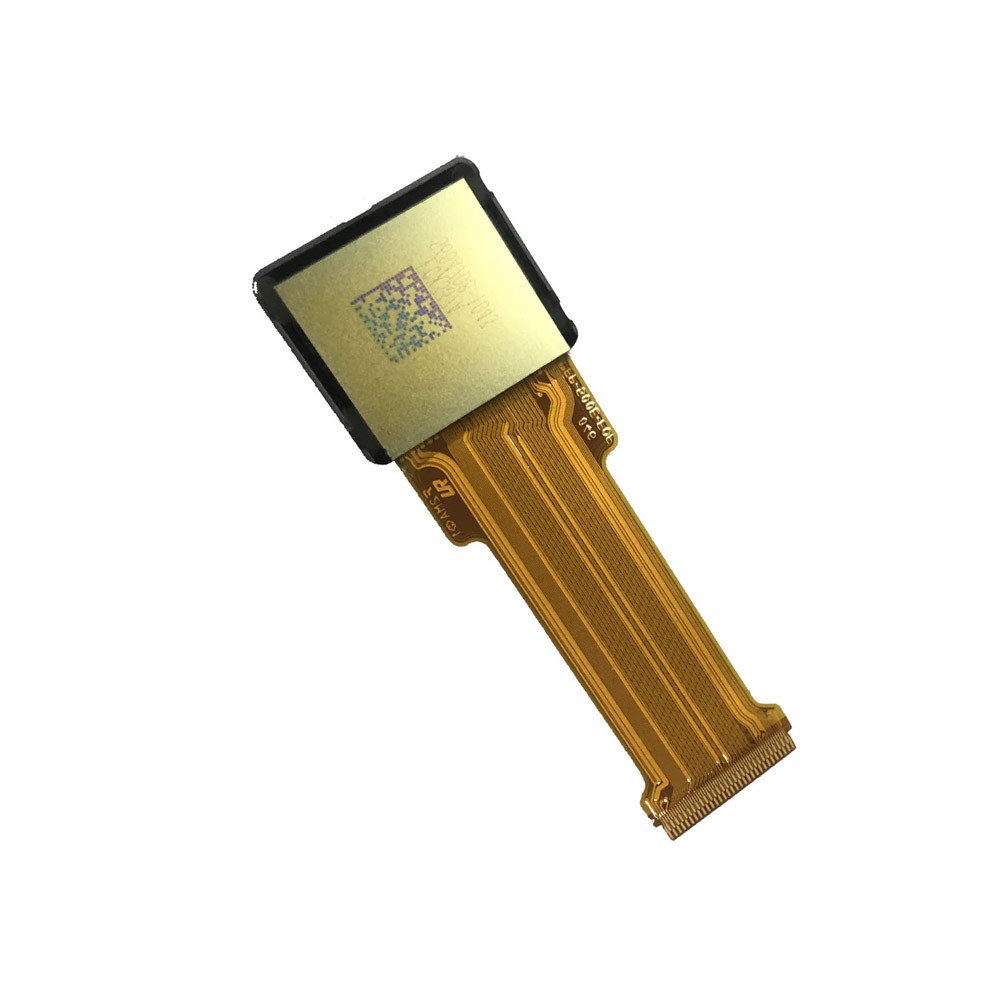

0.5" Micro oled screen
