Product Details

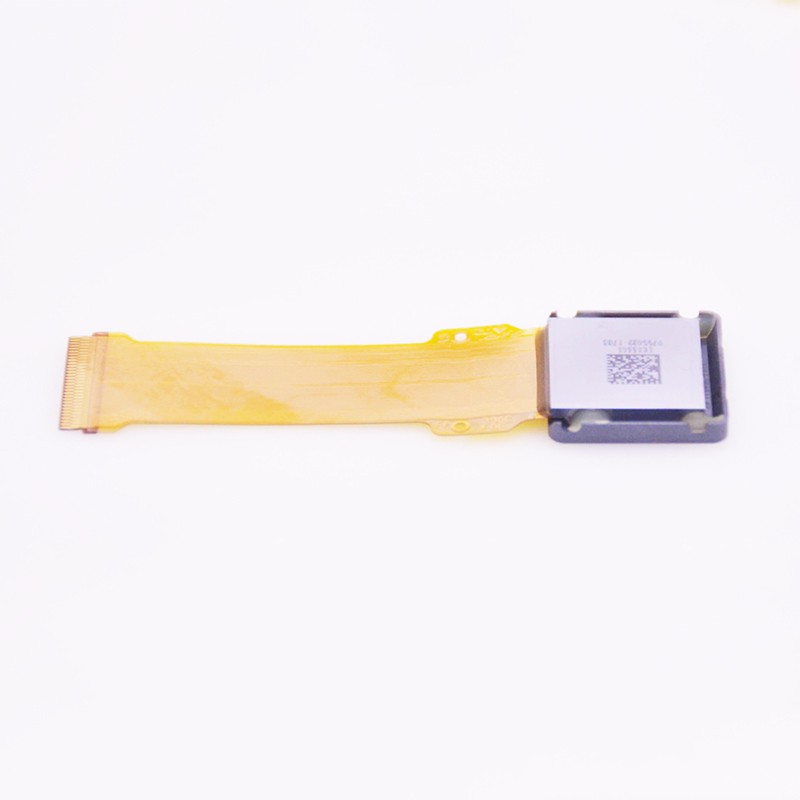

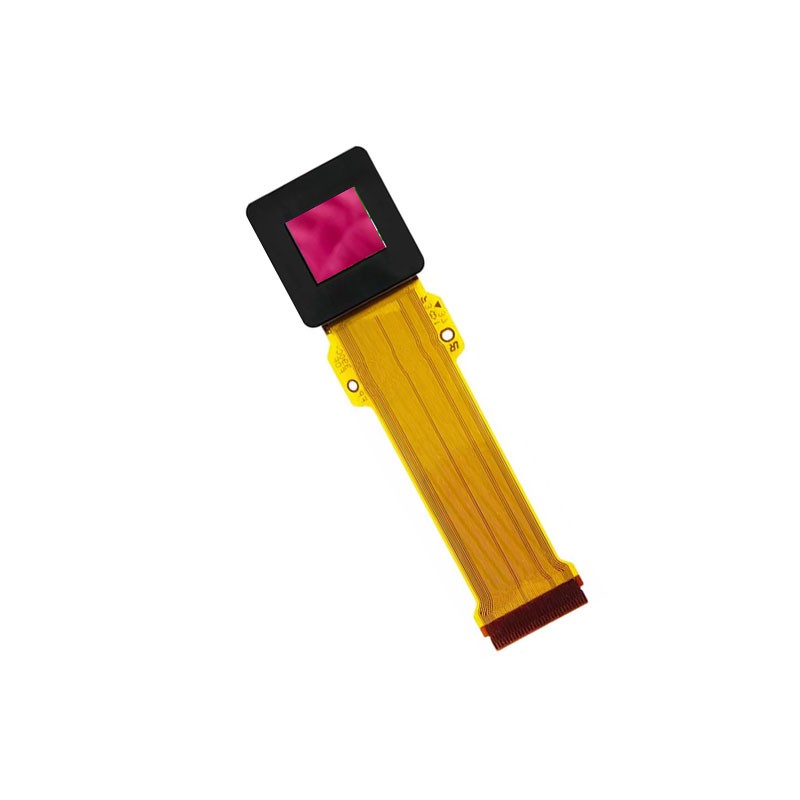

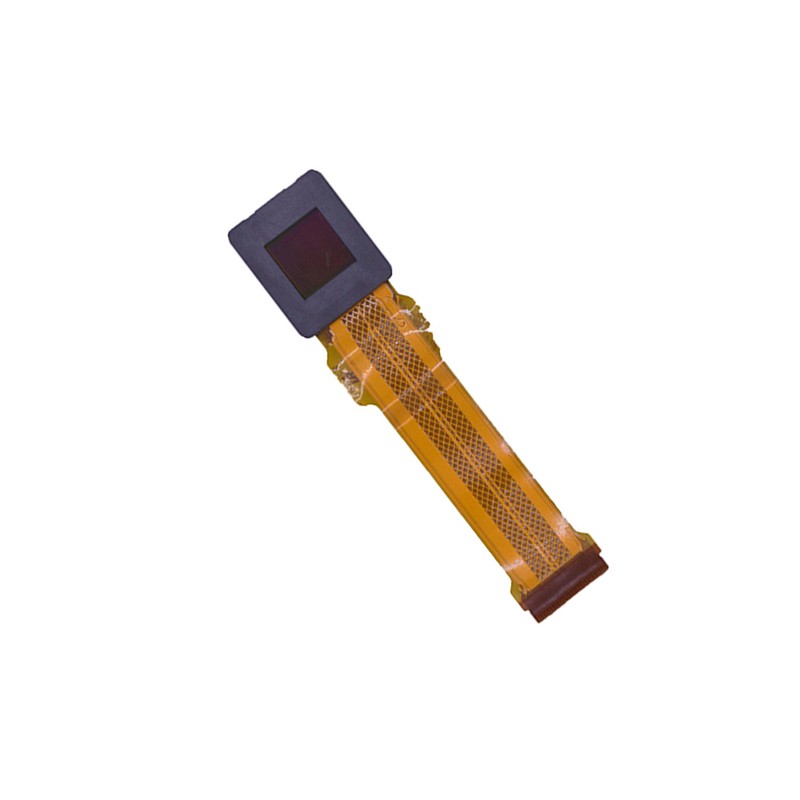

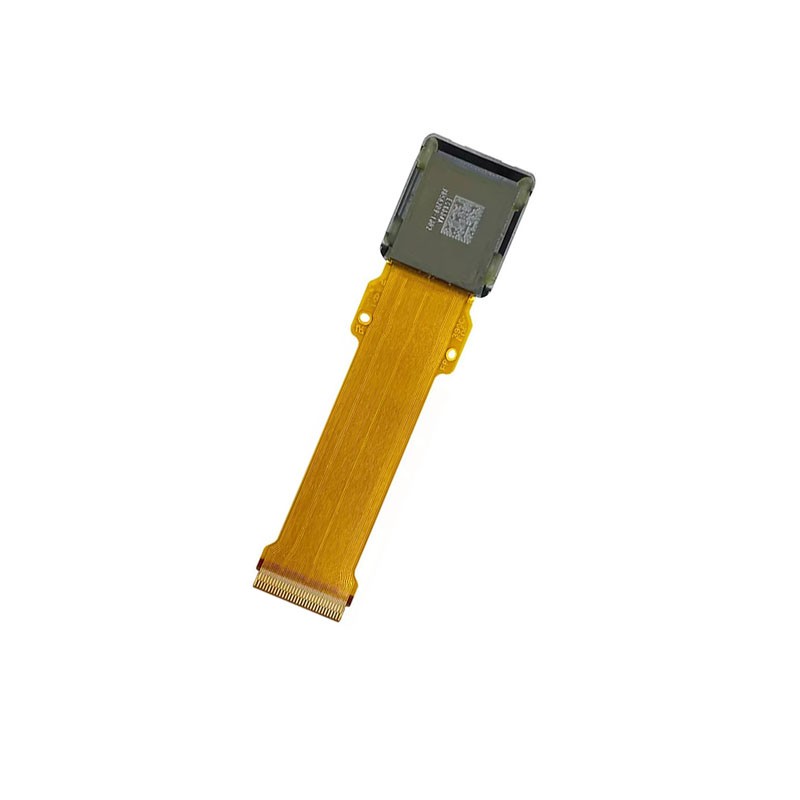

The 0.39 inch Micro Si OLED Display  1024×768 is is a high-quality, technologically advanced display solution that caters to a myriad of applications. Its superior resolution, high brightness, and compact design make it the go-to choice for various industries, particularly those involving VR and AR technologies.

Micro Si OLED is an advanced screen technology with superior features that offer an unparalleled virtual reality experience to its users. With its high resolution, this display is ideal for immersive VR experiences that require a high level of detail and clarity.

Mechanical Features

Features	Specification	Unit
Display Type	OLED Display
Display Size(Diagonal)	0.39"	inch
Resolution	1024(RGB)*768	Pixels
Display Color	Full color

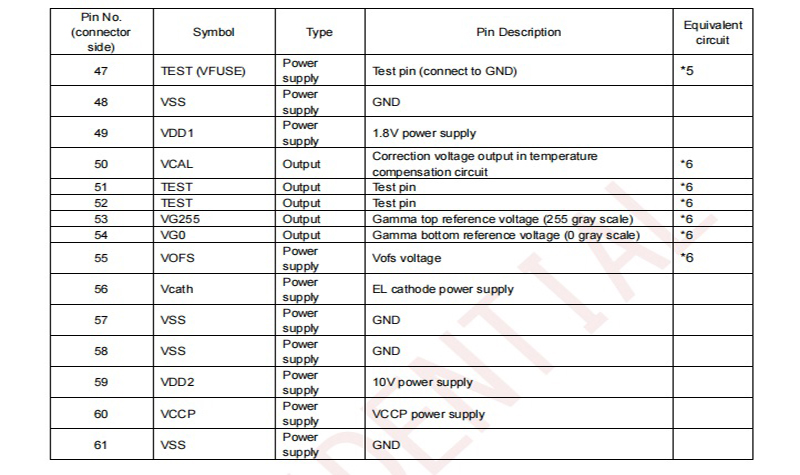

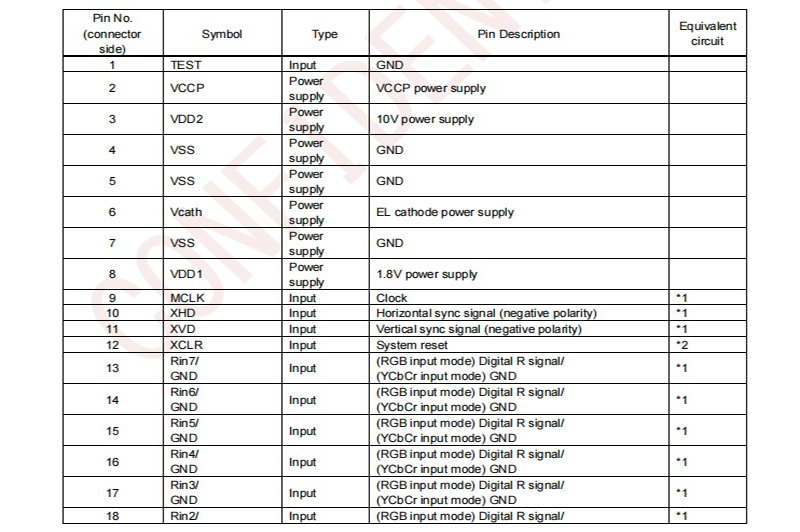

Pin No	61P	cd/m2
Brightness	1000

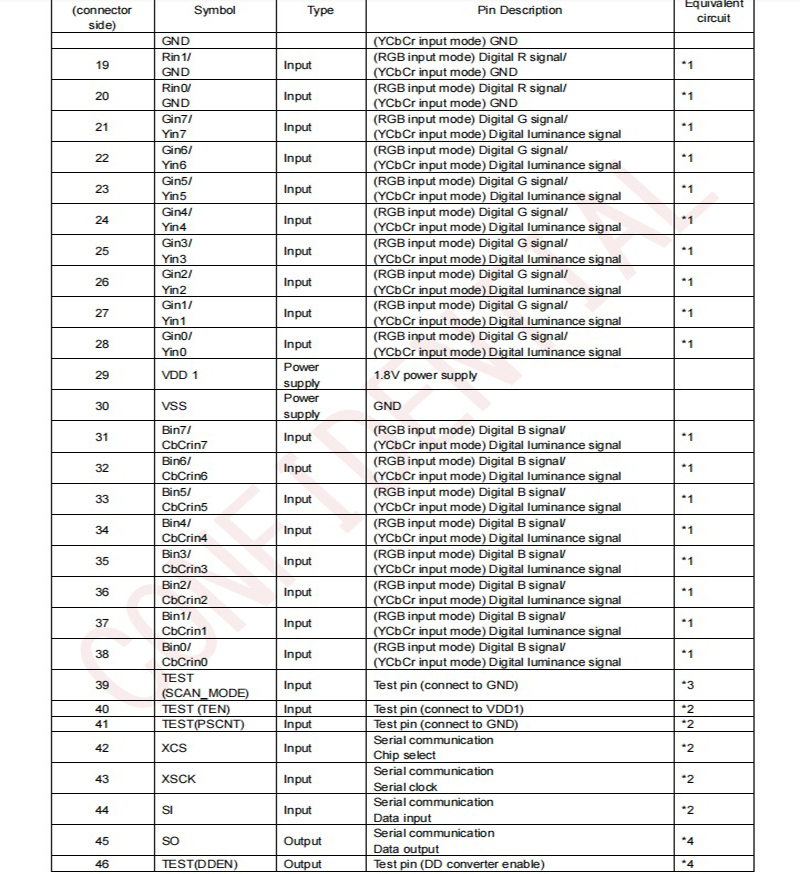

Interface Type	parallel RGB 24-bit, YCbCr 24-bit and YCbCr 16-bit input

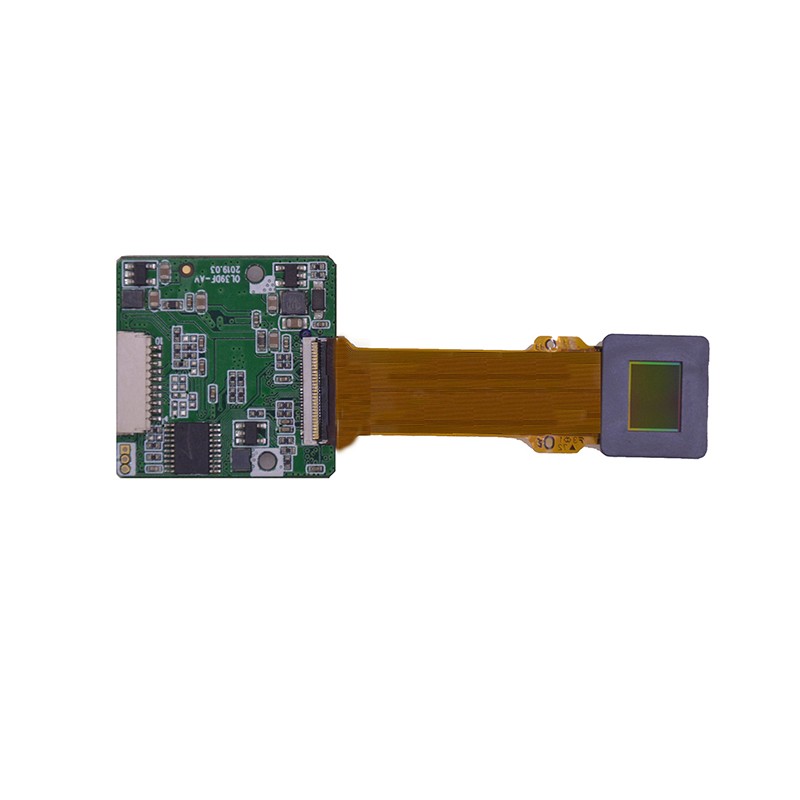

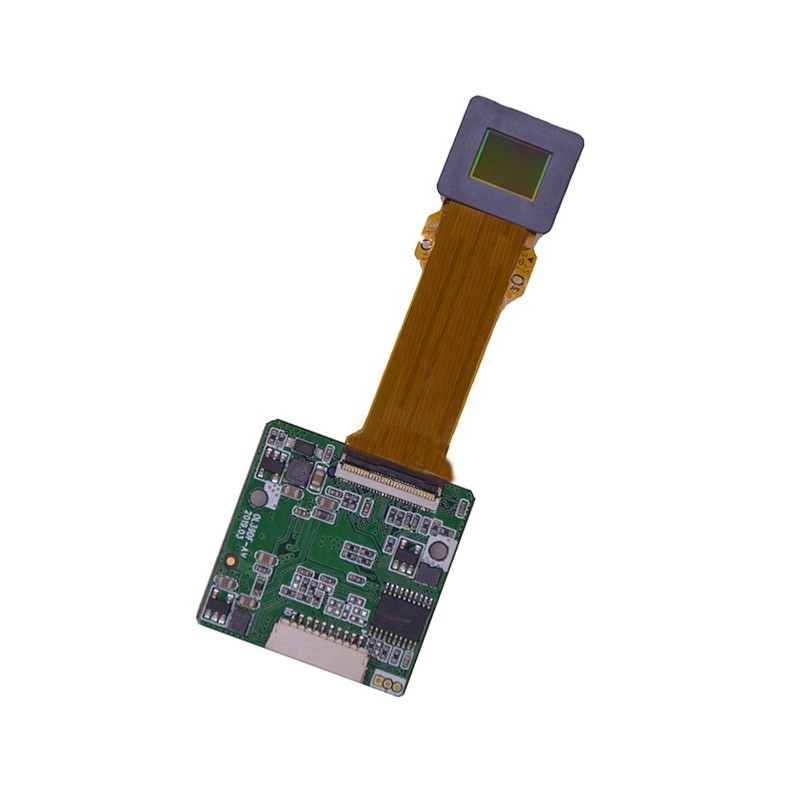

Driver Board Solution	HDMI PORT/CVBS/AV Board
Panel Size	15.6 x 13.6 x 0.2	(mm)
Active Area	8.143 x 6.146	(mm)
Frame Rate	60 Hz
Contrast Ratio	100,000:1
Mass Production	Available
Operation Temperature	-10℃~70℃
Storage Temperature	-30℃~80℃

Applications:

◆ EVF (electronic viewfinders) for consumer cameras;
◆ AR and VR glasses/goggles,entertainment, industrial applications, and sports,headsets for consumer AR glasses and the metaverse
◆ Drones and FPV
◆ All types of scopes
◆ Medical care (medical headset displays for surgery support and as displays for assistive auxiliary glasses for the vision-impaired)
◆ Other EVFs (for industrial microscopes and other professional devices that require high-quality image display.)
◆ head mounted displays
◆ very small monitors,etc

0.39 inch micro display 1024x768 Features:

◆ Small-size, high-definition-type 0.39 XGA display dots 1024 (RGB) × 768 = 2.38M dots
◆ High contrast
◆ Wide color reproduction range
◆ High-speed response
◆ Thin type and light weight
◆ Power-saving function
◆ Up/down and/or right/left inverse display function
◆ Orbit supported
◆ Input interface that supports parallel RGB 24-bit and YCbCr 16-bit input

Dimensions

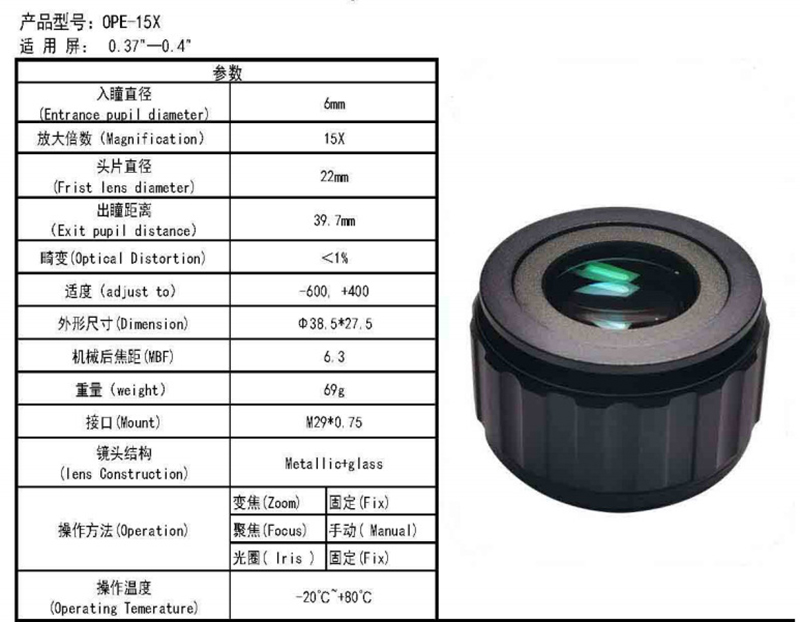

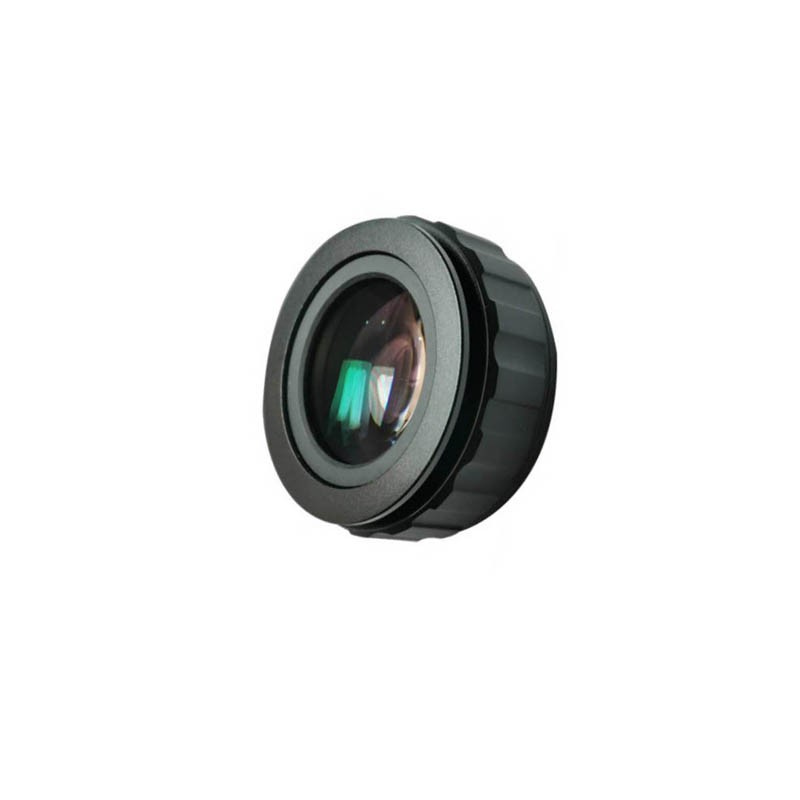

Optical Magnifering Lens

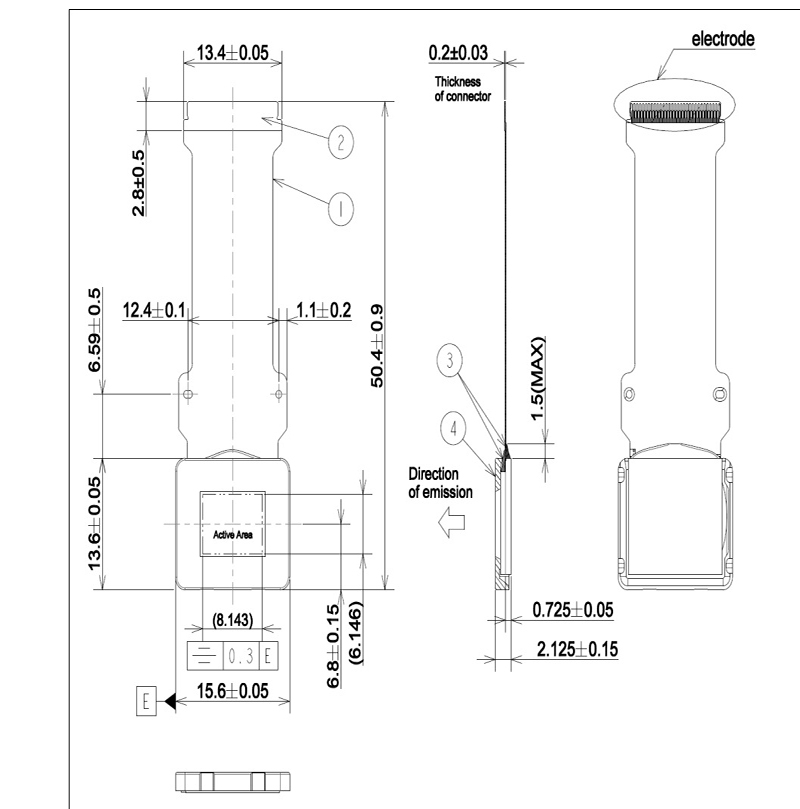

Mechanical Drawing
