Product Details

Description of  8X magnifying Optical lens

This Optical lens can magnify the images/video of what the devices display, with 8X Manification and Focal Length 34MM ,which is applicable for the Microdisplays (0.7" Micro OLED Display) that used in the AR Glasses /VR Headsets/HDMS/EVF/Thermal Imagering.

This Specification is ideal to the 0.7" Micro OLED Display.

About This Item:

Quality aluminum stock and black anodized body with M42x0.75mm Thread mount: Work as a T-adapter;

8X Magnifications;Entrance pupil diameter of 6mm, which can maginify image or video displayed the microdisplays.
34mm focal length; Exit pupil distance of 49.3mm,Dimension of Φ42*46.8, enabling lower magnification with a wider field of view;
Used in microdisplays in multiple fields: AR VR, Night Vision goggles, Drones,EVF,HDMS,Thermal Imagering...
Made of genuine optically processed BK7 glass; premium optical prism inside rather than mirror which makes image clear and sharp

8X magnifying Optical lens  Parameter

Applications of 8X magnifying Optical lens

High resolution 1080PMicrodisplays

Thermal Imager

Night Visions Goggles

PVF

Drones

HDMS

EVF

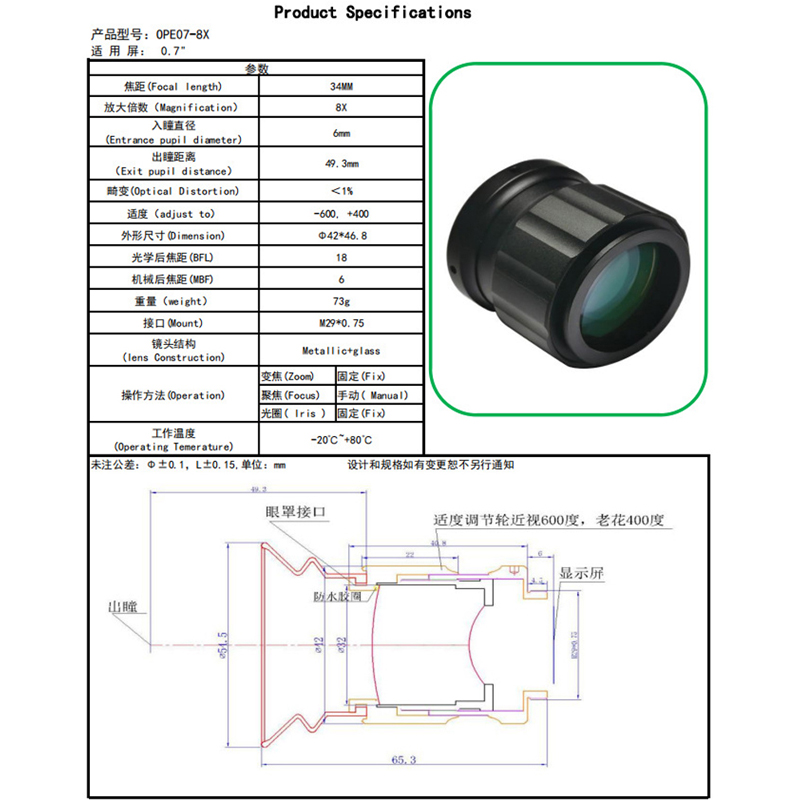

Mechanical Dimension
