0.83 inch 2560x1440 Micro OLED1800nits near-eye display

Category： MICRODISPLAY
Size:0.83 inch OLED MicroDisplay
Resolution:2560(RGB)x1440
Brightness1800nits
Interface: MIPI+I2C
INQUIRY EMAIL

Product Details

The 0.83 inch Micor OLED Display is a coloful 2560*1440 AMOLED Grayscale micro display, with FHD 2560*1440 High resolution and high luminance level up 1800cd/m2, popular used in virtual devices such as AR Glasses and VR Headset, thanks to its micro Si-OLED (Silicon Organic Light Emitting Diode) technology, this micro screen is with very impact size, light weight and low power consumption, also applicable for the medical and military industry such as Head-mounted Displays (HMD),viewfinder,Head-Mounted Displays (HMD) etc.

0.83 inch Micro OLED Display parameter

Product Number:JKSY083WAM01
Display Type:Micro OLED
Resolution:2560*1440

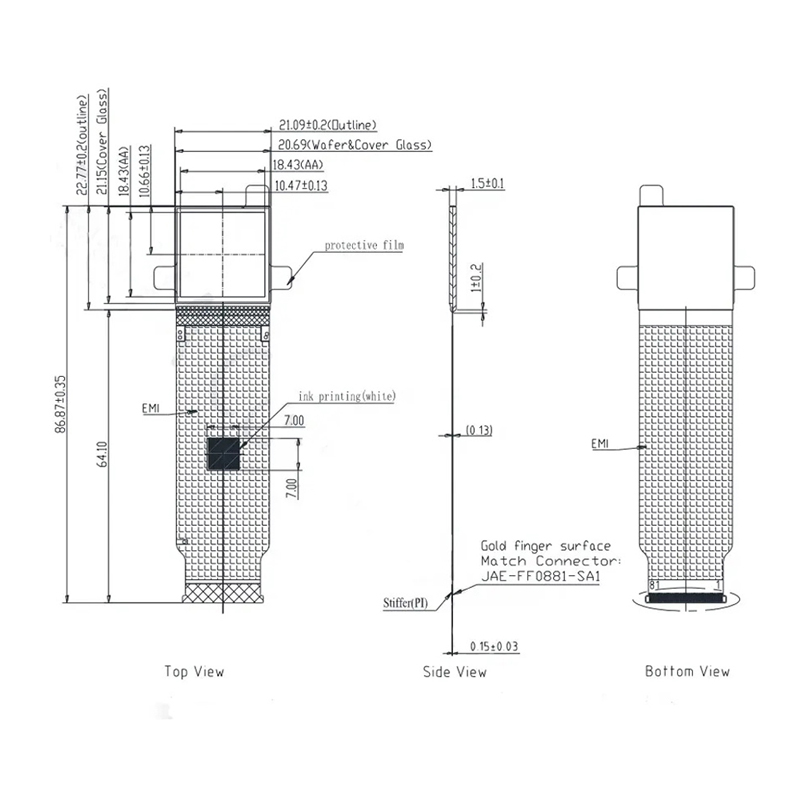

Screen Size:22.765mm x 21.087mm x 1.475mm
Active Area:18.432mm x 10.368mm/ 0.83" diagonal
Luminance(Brightness):1800nits(Typ.)
Color:Full RGB
Contrast Ratio:50,0000:1
Interface:MIPI
Frame Rate:60Hz~90Hz
Operating Temperature:-20℃ to +70℃
Storage Temperature:-40℃ to +80℃
Plan:WS
Application:AR VR devices, EVF, Night vision, sight...

0.83 inch Micro OLED 1800nits Features:

◆ High contrast◆ Small size high definition type ◆ Small size high definition type
◆ High contrast
◆ Wide color reproduction range
◆ High-speed response
◆ Thin type and light weight
◆ Power saving function
◆ Up/down and/or right/left inverse display function
◆ Orbit supported

0.83" 2560x1440 Micro display Screen Applications:

AR/VR display, electronic viewfinder of digital camera/video camera；
Portable equipment such as miniature projectors, video glasses, 3D displays, head-mounted entertainment equipment,etc；
Security monitoring /military:individual helmet display, electronic sight, infrared night vision device,Thermal imager displays,electronic telescopes,flight helmets,gun sights,life detection video devices；
Medical and industrial:human and machine video engineering research, endoscope, portable B-ultrasound machine,Vision correction equipment,multi-scope,various portable inspection and testing equipment;
Aircraft model:aerial photography:remote control aircraft parameter display system:remote control car video display terminal:etc.
