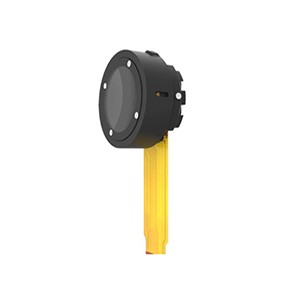

Pancake optics 2560x2560 VR (Virtual Reality)Optical Module FOV 90°

20X times pancake optics FOV 90 degree with 1.03 inch Micro OLED 2560X2560 for VR Headsets.

Description

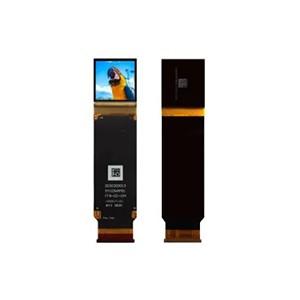

The pancake optics offers a side FOV 90°,working with the seeya 1.03 inch Micro OLED display 2560x2560, which is ideal to be used for VR (Virtual Reality) headsets, due to this pancake lens can be compatible with high resolution 2560x2560 and high brightness 1800nits of the 1.03 inch Micro display, it can provide the users with an immersive VR experiences without any visual distortion.

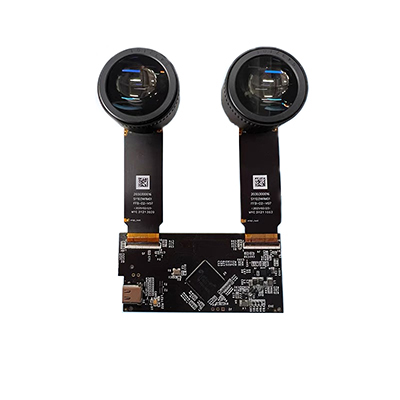

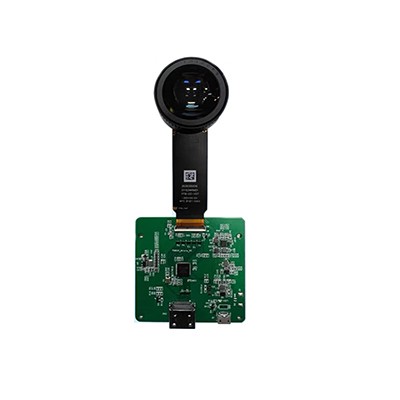

 display controller board (TYPE-C Board and HDMI Board) for demo.

Pancake Optics parameter

• FOV:90°
• Magnification:20X
• Diopter：1D~ -5D
• Eye Box: 8MM
• Eye Relief: 12MM
• Distortion: -25.3%
• Resolution:2560x2560

• Resolution：2560(H)x2560(V)
• Number of dots：19.66M (2560x2560x3)
• Pixel Size：7.2µm x 7.2µm
• Useable Display Area ：18.432mm x 18.432mm / 1.03" diagonal
• Luminance：1800cd/m² typical
• Contrast Ratio：500,000:1 typical
• Power Consumption Total (1800nits,100%): 1600mW
• Gray Levels：256
• Interface：MIPI (1 or 2-port D-PHY)
• Frame Rate90Hz
• Operating Temperature：-20℃~70℃
• Storage Temperature：-40℃~80℃
• Weight: 2g
• Driver Board: HDMI Board,TYPE-C Board
