Product Details

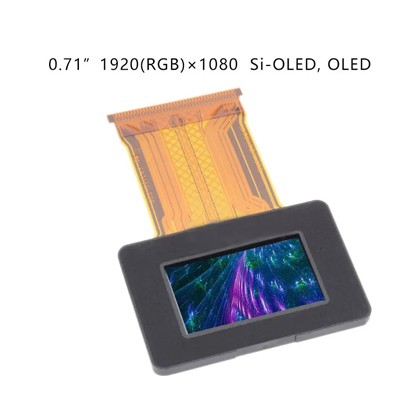

The 0.71" micro oled display is a 1.8 cm (type 0.71) diagonal active matrix color Microdisplay, this Microoled is original brand Sony ECX335AF and has a high-resolution of 1920(RGB) × 1080 dots and the typical brightness is up into the 500nits, through using single crystal silicon transistors, this micro display panel incorporates panel driver and logic driver,that get this micro screen realizes small size, light weight, high definition,etc various features, that is why this 0.71" microoled display is hot used in the market in education, medical , military, entertainment such as Augmented Reality and virtual Reality headsets, head-mounted displays, EVF camera, since this micro display screen can give a high-quality display efect for the image and video and bring a lifelike virtual Reality word from 2D to 3D.

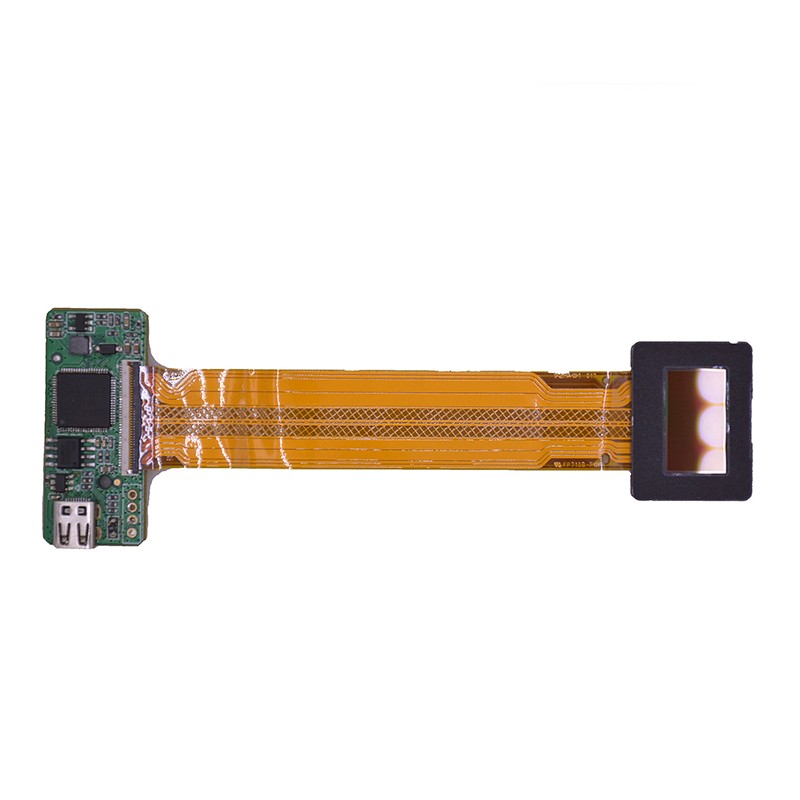

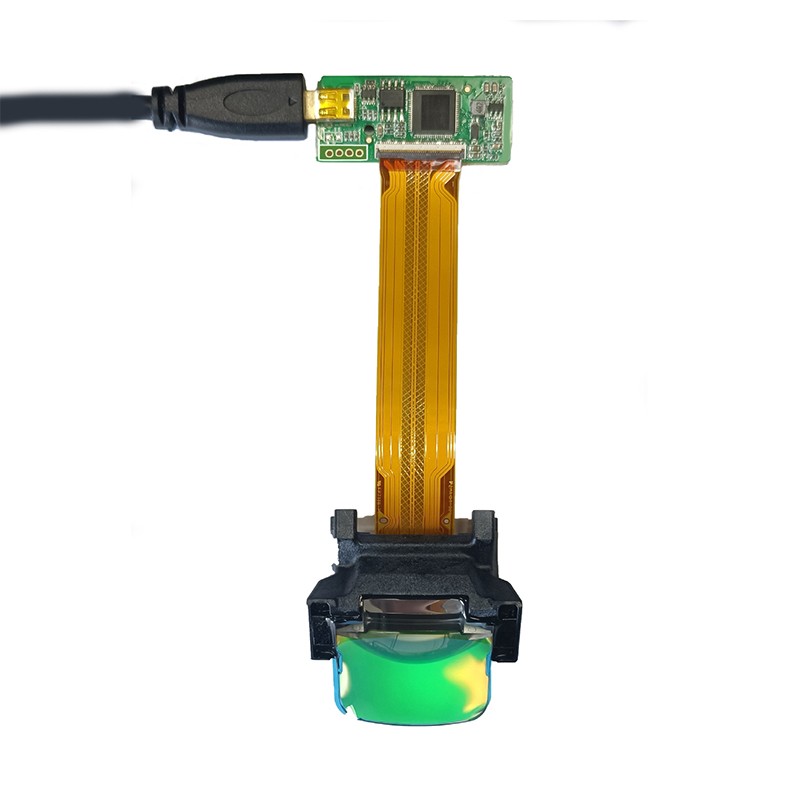

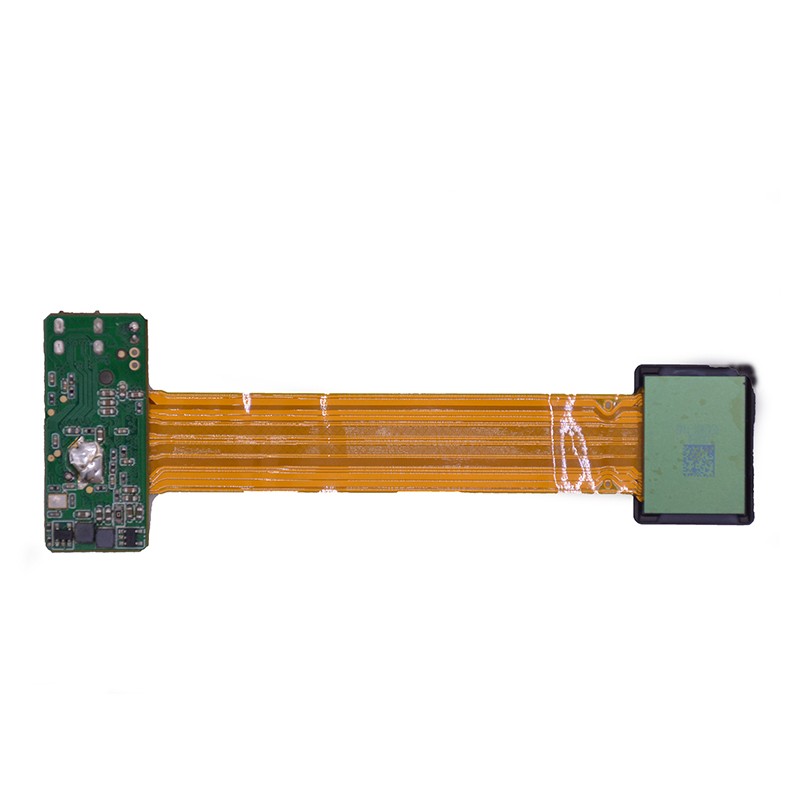

The 0.71" oled microdisplay goes with designed display driver board in micro-HDMI port and magnifying optical lens, that can help to developer test display effect and save much time in some degreen, and the display HDMI driver adapter can provide function of brightness adjustment via the button in the board...

071" FHD 1920x1080 Micro display Parameter

Features	Specification	Unit
Display Type	OLED Display
Display Size(Diagonal)	0.7"	inch
Resolution	1920(RGB)*1080	Pixels
Display Color	Full color
Pin No	81P	cd/m2
Brightness	500
Interface Type	LVDS
Driver Board Solution	HDMI PORT
Panel Size	25.24x99.50x0.15	(mm)
Active Area	15.8x8.99	(mm)
Frame Rate	60Hz
Contrast Ratio	100,000:1
Mass Production	Available
Operation Temperature	0℃~70℃
Storage Temperature	-30℃~80℃

071" FHD 1920x1080 Micro display Screen Features

◆ Small size high definition type 0.70 display dots: 1920 (RGB)×1080 = 6.22 M dots
◆ High contrast
◆ Wide color reproduction range
◆ High-speed response
◆ Thin type and light weight
◆ Power saving function
◆ Up/down and/or right/left inverse display function
◆ Orbit supported

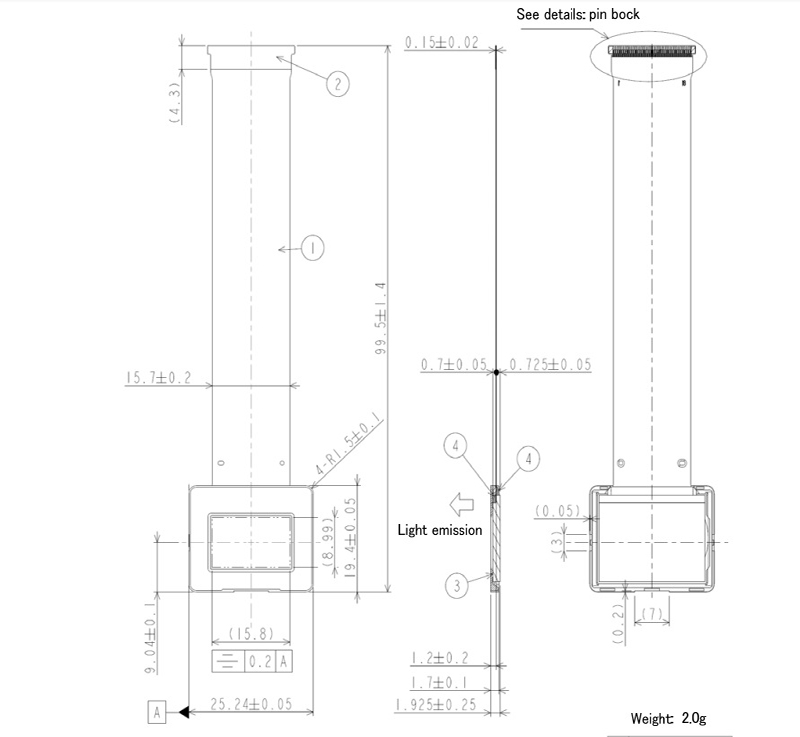

Dimensions

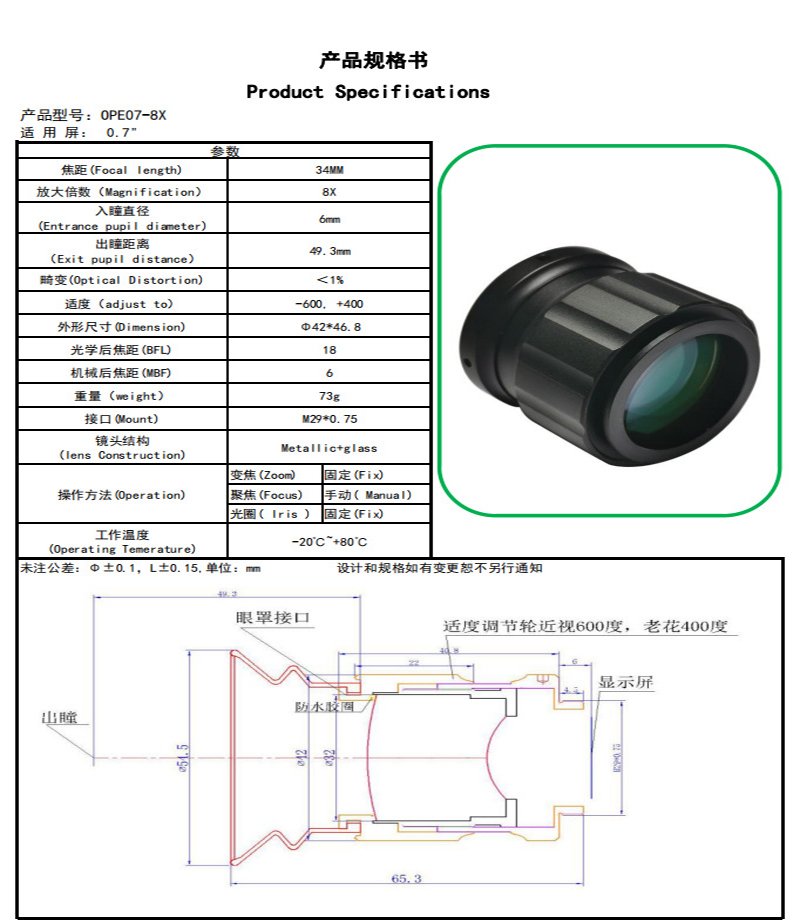

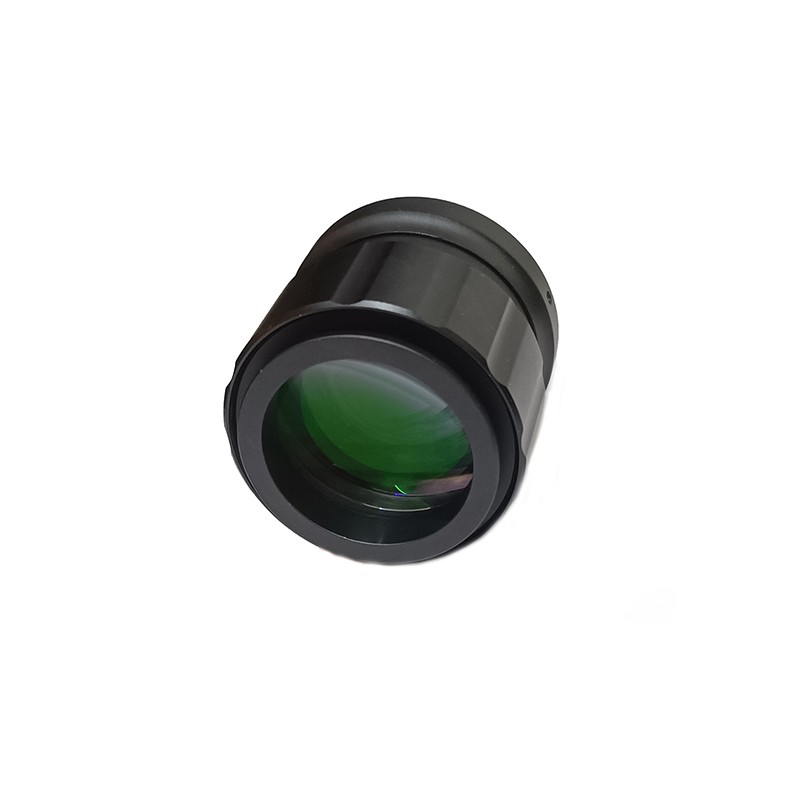

Magnifying optical prism

0.71" Micro-oled display
