E paper screen 2.66 inch e ink display 296×152

Category： ePaper
Size:2.66 inch eink display
Display Resolution:152(H)×296(V) Pixel
Chip lC:SSD1680
Interface: SPI
INQUIRY EMAIL

Product Details

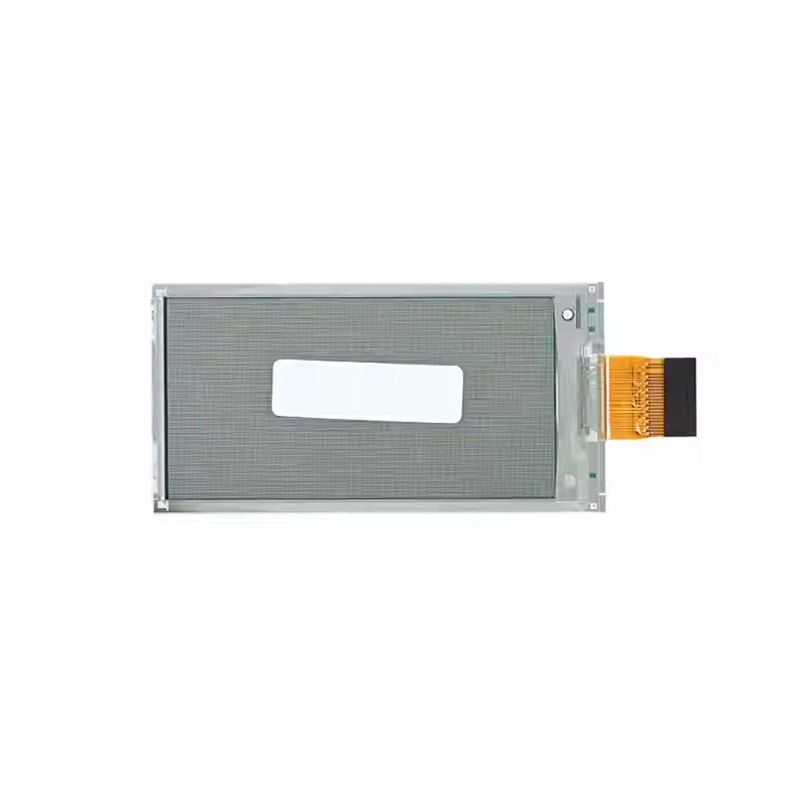

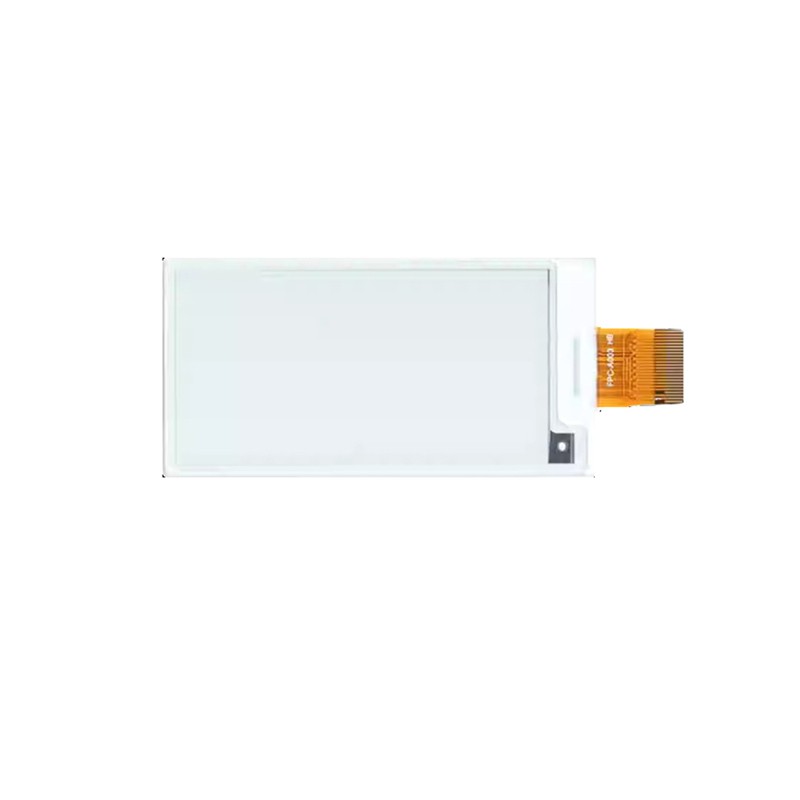

this 2.66" E-ink display is an Active Matrix Electrophoretic Display (AM EPD), with interface and a reference system design. The display is capable to display images at 1-bit white,black full display capabilities( capable to display images at 1-bit white,black and red full display capabilities). The 2.66 inch active area contains 296×152 pixels. The module is aTFT-array driving electrophoresis display, with integrated circuits including gate driver, source driver, MCU interface, timing controller, oscillator, DC-DC, SRAM, LUT, VCOM. Module can be used in portable electronic devices, such as Electronic Shelf Label (ESL) System.

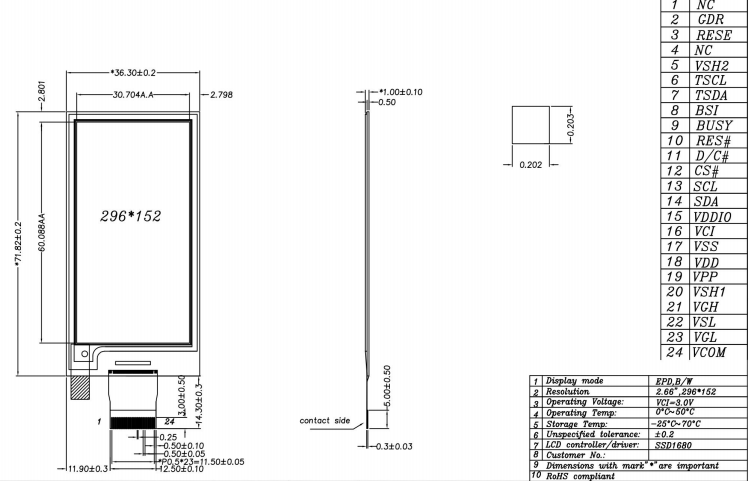

2.66 inch 296×152 epaper screen Mechanical parameter

Features	Specification	Unit
Display Type	Active Matrix Electroph oretic Display;
Display Size(Diagonal)	2.66 "	inch
Display Resolution	152(H)×296(V) Pixel	Pixels

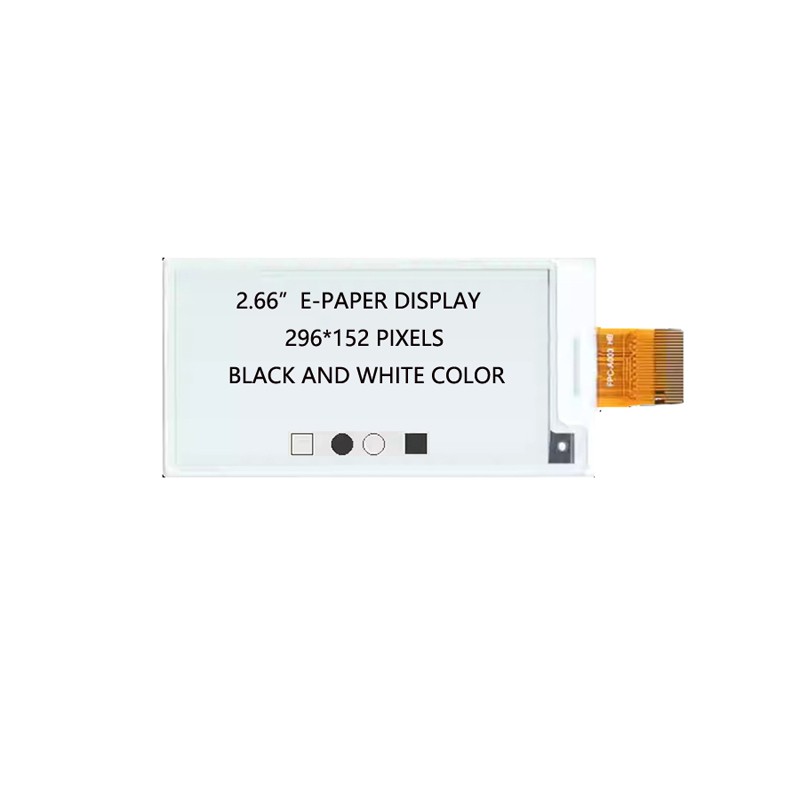

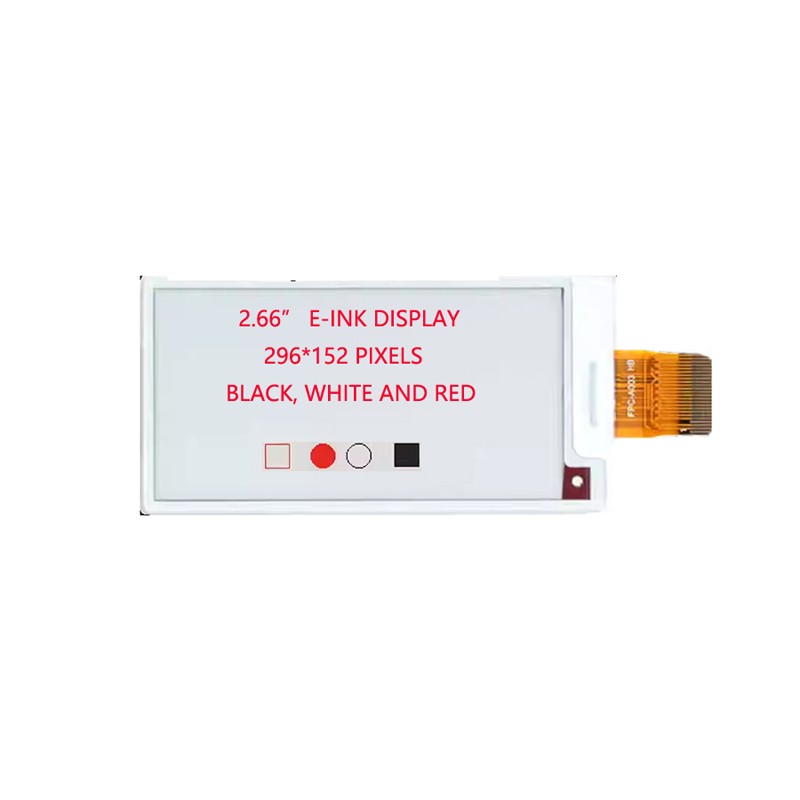

Display Color	black/white,black/white/red/
Pin No	24 P	cd/m2
structure	COG
Interface Type	SPI
Driver ic	SSD1680
Panel Size	36.30(H)×71.82(V) ×1.0(D)	(mm)
Active Area	30.704×60.088	(mm)
Logic supply voltage	3.3 V	(mm)
-	-	(mm)
Pixel Pitch	0.202×0.203	(mm)
Pixel Configuration	Rectangle	(mm)
Operation Temperature	-0~50℃
Storage Temperature	-25~70℃
Weight	4.7	g

2.66 inch 296×152 epaper screen Mechanical features

Highlight Red and Yellow color
 High contrast
 High reflectance
 Ultra wide viewing angle
 Ultra low power consumption
 Pure reflective mode
 Bi-stable display
 Antiglare hard-coated front-surface
 Low current deep sleep mode
 On chip display RAM
 Waveform stored in On-chip OTP
 Serial peripheral interface available
 On-chip oscillator
 On-chip booster and regulator control for generating VCOM, Gate and Source driving
voltage
 I2C signal master interface to read external temperature sensor
 Available in COG package
