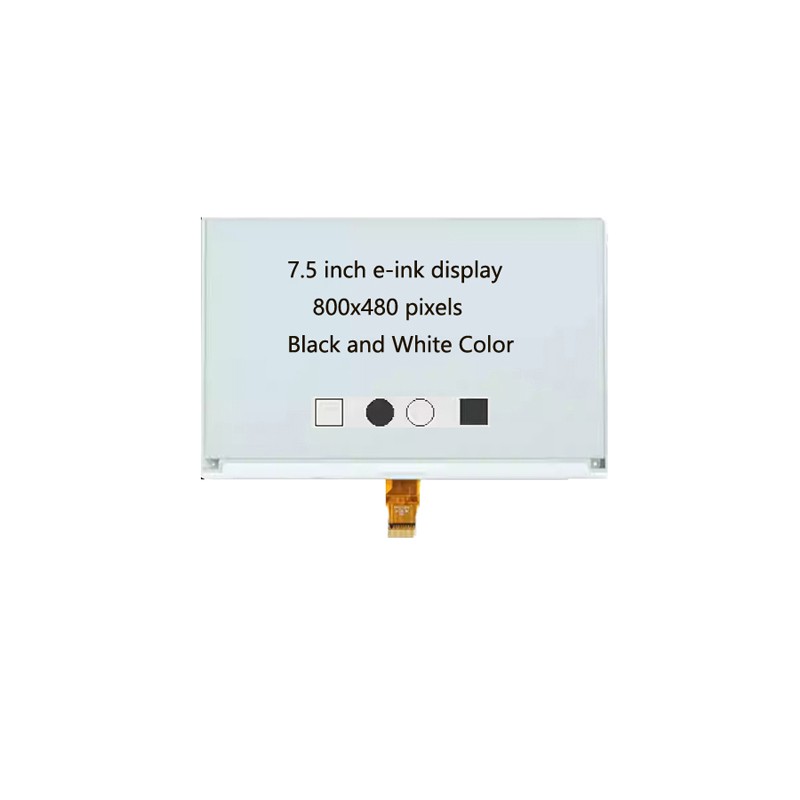

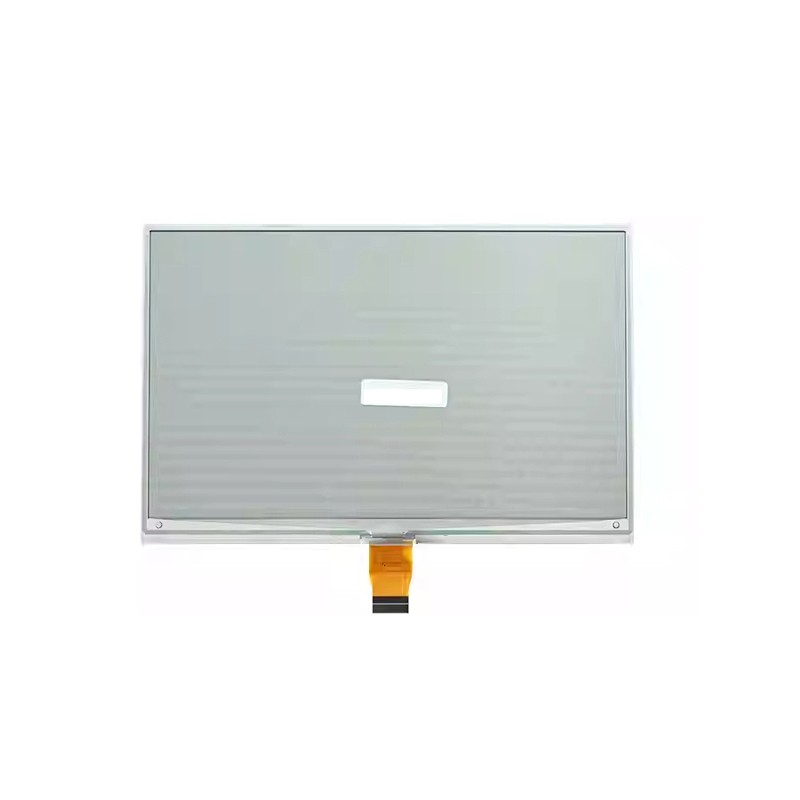

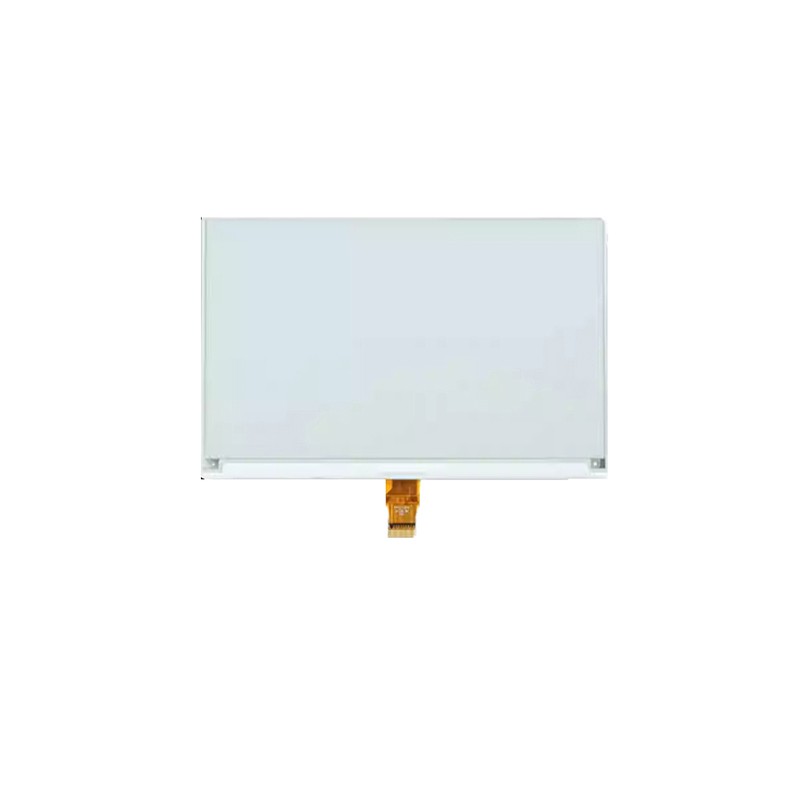

7.5 inch E-Paper E-Ink Display 800×480 Resolution SPI For Raspberry Pi

Category： ePaper
Size:7.5 inch eink display
Display Resolution:800 (H)×480(V) Pixel
Chip lC: UC8179
Interface: SPI
INQUIRY EMAIL

Product Details

7.5 inch E-Ink Display HAT Compatible with Raspberry Pi 5/4B/3B+/Zero/Zero W/Zero 2W/Pico/Pico W/Pico 2/Pico 2W/Jetson Nano, 800×480 Resolution SPI Interface,Black White Two-Color SPI Interface E-Paper

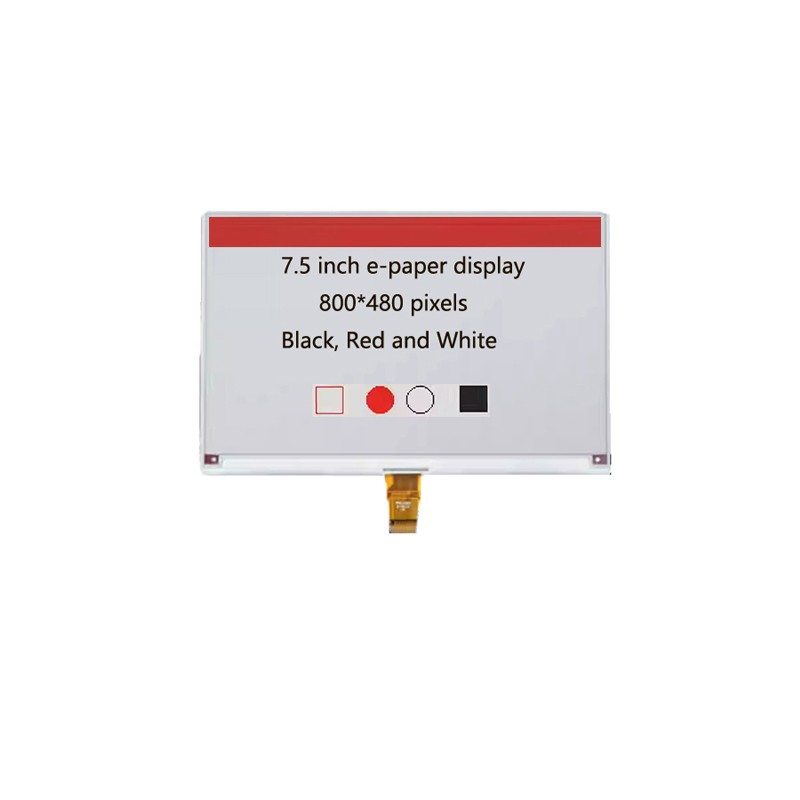

this 7.5" E-ink display is is an Active Matrix Electrophoretic Display (AMEPD), with interface and a reference system design. The 7.5” active area contains 800×480 pixels, and has 1-bit B/W/R full display capabilities(Black/White/Red) or has 1-bit B/W full display capabilities (Black/White). An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM and border are supplied with each panel.

7.5 inch 800x480 epaper screen Mechanical parameter

Features	Specification	Unit
Display Type	Active Matrix Electroph oretic Display;
Display Size(Diagonal)	7.5"	inch
Display Resolution	800 (H)×480(V) Pixel	Pixels
Display Color	B/W; B/W/R
Pin No	24 P	cd/m2
structure	COG
Interface Type	SPI
Driver ic	UC8179
Panel Size	170.20(H)×111.20 (V) ×1.25 (D)	(mm)
Active Area	147.50 × 11.5091.14 × 18.98163.20(H)×97.92(V)	(mm)
Logic supply voltage	3.3 V	(mm)
-	-	(mm)
Pixel Pitch	0.204×0.204	(mm)
Pixel Configuration	Square	(mm)
Operation Temperature	-0~50℃
Storage Temperature	-25~70℃
Weight	44g	g

7.5 inch 800X480 epd display Mechanical features

800×480 pixels display
 High contrast
 High reflectance
 Ultra wide viewing angle
 Ultra low power consumption
 Pure reflective mode
 Bi-stable display
 Commercial temperature range
 Landscape, portrait modes
 Hard-coat antiglare display surface
 Ultra Low current deep sleep mode
 On chip display RAM
 Waveform stored in flash memory
 Serial peripheral interface available
 On-chip oscillator
 On-chip booster and regulator control for generating VCOM,Gate and Source driving voltage
 I2C Signal Master Interface to read external temperature sensor/ built-in temperature sensor
 Available in COG package IC thickness 300um
