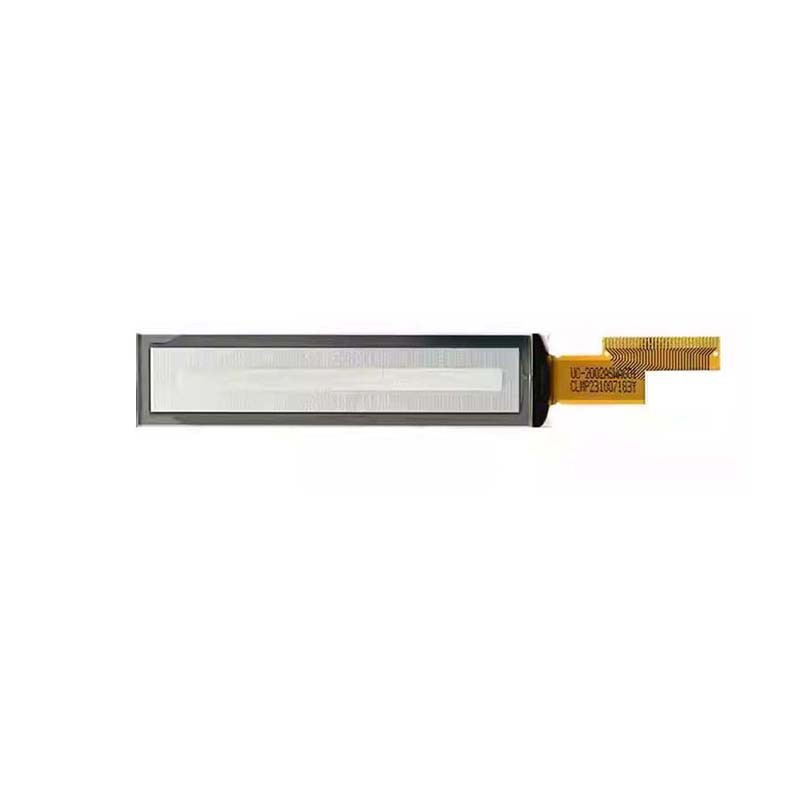

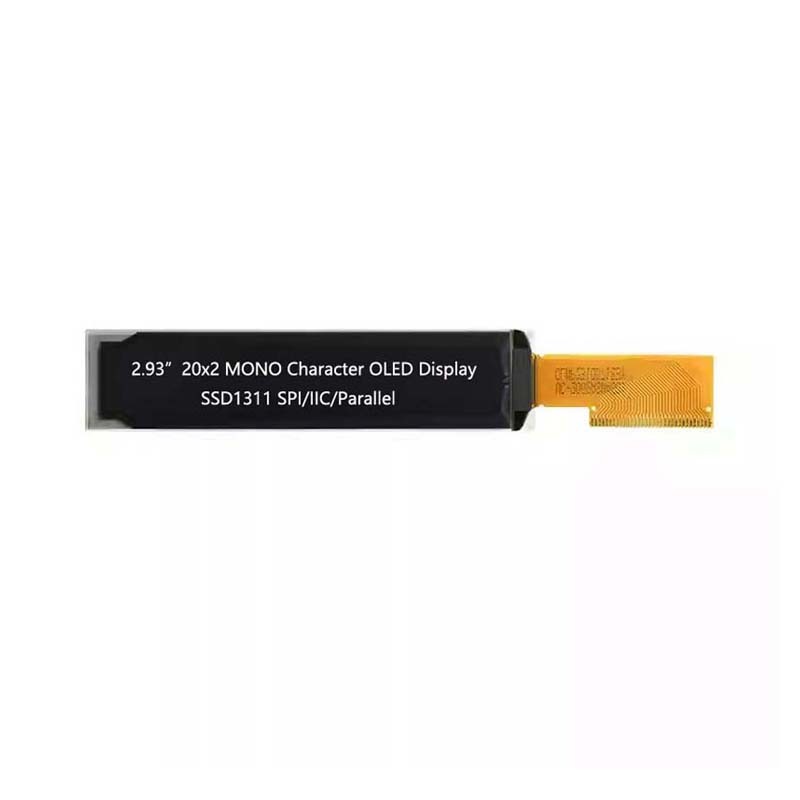

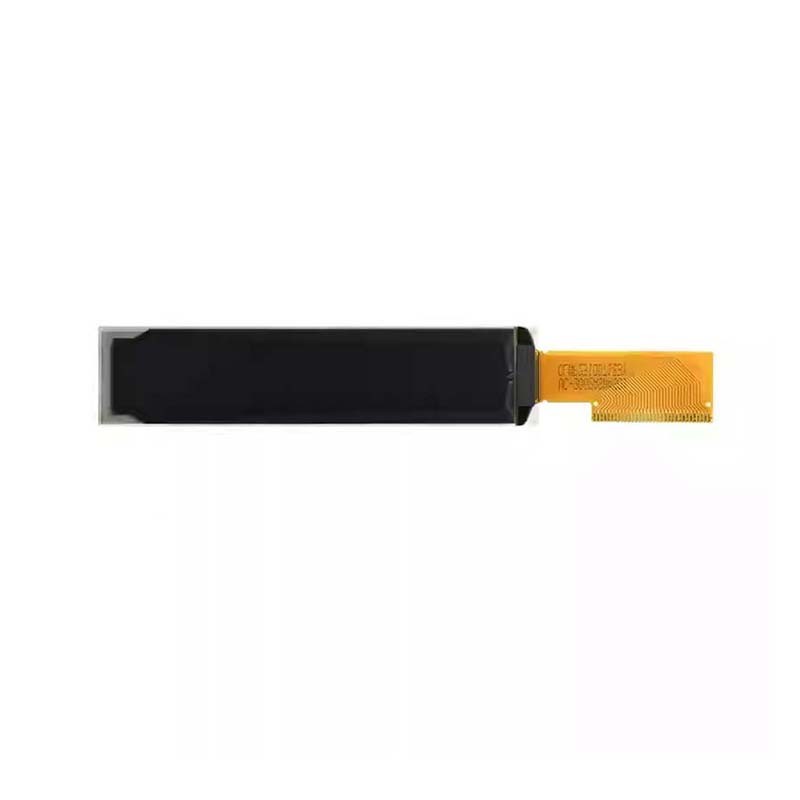

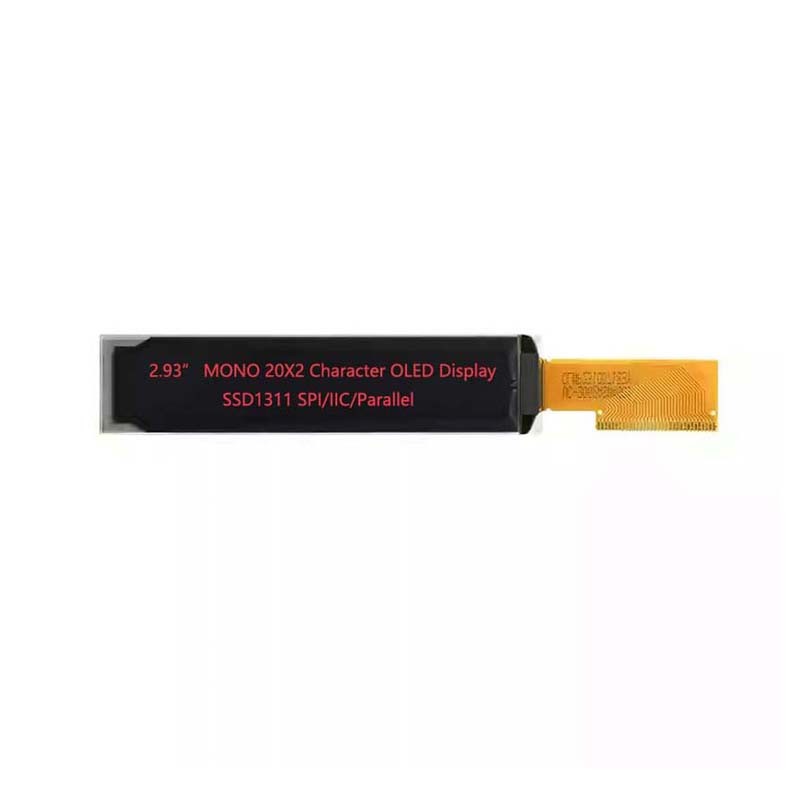

SPI 2002 Character OLED 2.93 inch 20x2 2002 character oled display US2066

  • Category: OLED CHARACTER
  • Size:2.93 inch OLED Character
  • Number of Characters:20 Characters ( 5 × 8 ) × 2 Lines
  • Chip lC: US2066(SSD1311)
  • Interface: 4-/8-bit 68XX/80XX Parallel, SPI, I2C
  • INQUIRY   EMAIL


Product Details


2.93 inch monochrome character oled display module which is made with 20x2 characters. This mono 20x2 character oled screen sizes is 2.93 inch in diagonal. This 2.93 inch oled display is passive matrix micro OLED display with mono white/blue/red 3 colors options. The driver IC is US2066/SSD1311, 2.93 oled screen communicates via 4-/8-bit 68XX/80XX Parallel, SPI, I2C interface, using 3.3V power supply. The 20x2 oled character screen is a COG structure OLED panel, as the oled cmakes its own light without backlight is required, So the power required to run the OLED is low, and is why the display has such high contrast, extremely wide viewing angle and operating temperature. OLED 20x2 module can be operating at temperatures from -40℃ to +80℃, storage temperatures is from -40℃ to +85℃. The oled 20x2 character 2.93" is commonly used for smart watch, MP3, function cellphone, portable health device and many others application.




2.93 inch 2002 20X2 character oled display Mechanical parameter



Features
Specification
Unit
Display Type
Passive Matrix

Display Size(Diagonal)
2.93 "
inch
Number of Characters
20 Characters ( 5 × 8 ) × 2 Lines
Pixels
Display Color
Monochrome(white/blue/RED)Monochrome(white/blue/RED)

Pin No
33 P
cd/m2
structure
COG

Interface Type
4-/8-bit 68XX/80XX Parallel, SPI, I2C

Driver ic
US2066(SSD1311)

Panel Size
84.50 × 19.28 × 2.00
(mm)
Active Area
73.52 × 11.52
(mm)
Character Pitch
3.70 × 5.95
(mm)
Character Size
3.22 × 5.57
(mm)
Pixel Pitch
0.65 × 0.70
(mm)
Pixel Size
0.62 × 0.67
(mm)
Operation Temperature
-40~85℃

Storage Temperature
-40~90℃

Weight
7.01
g






3.67 inch 16x2 character oled display Mechanical features


2.93 inch monochrome character OLED.
Embedded Independent Driver Chip,
Using 4-/8-bit 68XX/80XX Parallel, SPI, I2C Interfaces.
emitting light by itself without backlight
Low power consumption





Product Application:


Smart phones
smart watch
portable health device
intelligent on-board camera
real-time display pictures
battery management equipment
IPC controller
MP3/MP4 player
mobile phone function
portable medical equipment, game, etc.

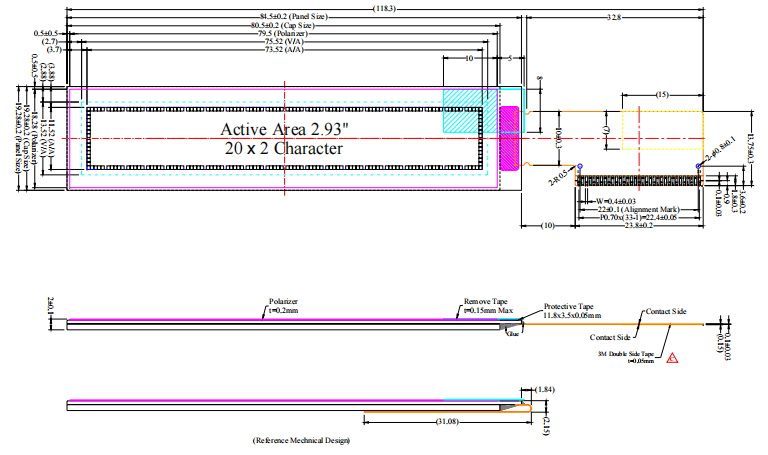

Mechanical Dimensions

2002 OLED CHARACTER DISPLAY
