2.26 inch 16x2 1602 character oled display module 4P

Category： OLED CHARACTER
Size:2.26 inch OLED Character COB
Number of Characters: 16 Characters ( 5 × 8 ) × 2 Lines
Chip lC:KS0066(SH1111)
Interface: 4-/8-bit 68XX/80XX Parallel, SPI, I2C
INQUIRY EMAIL

Product Details

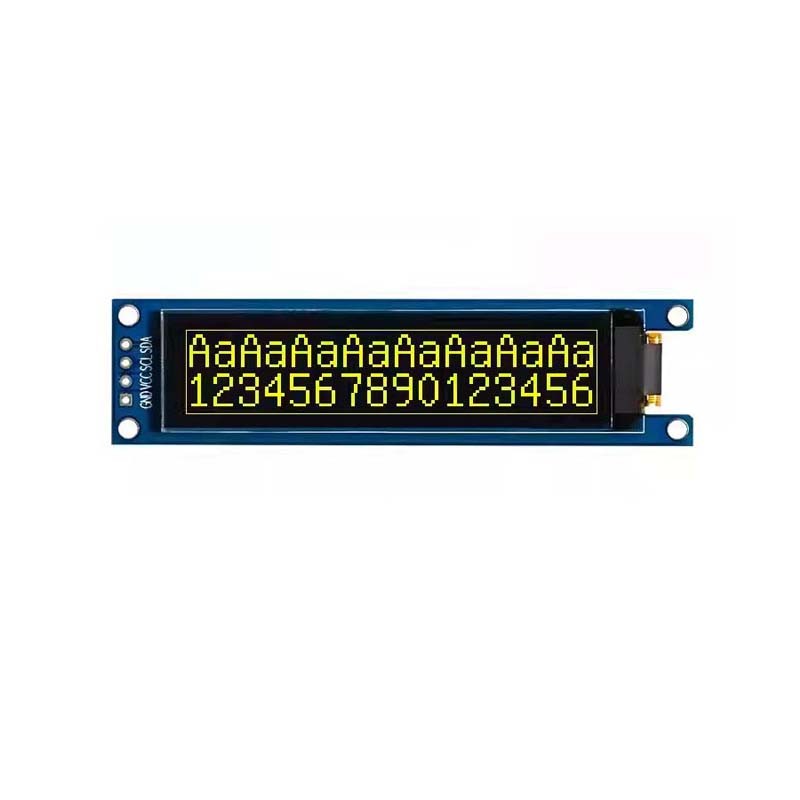

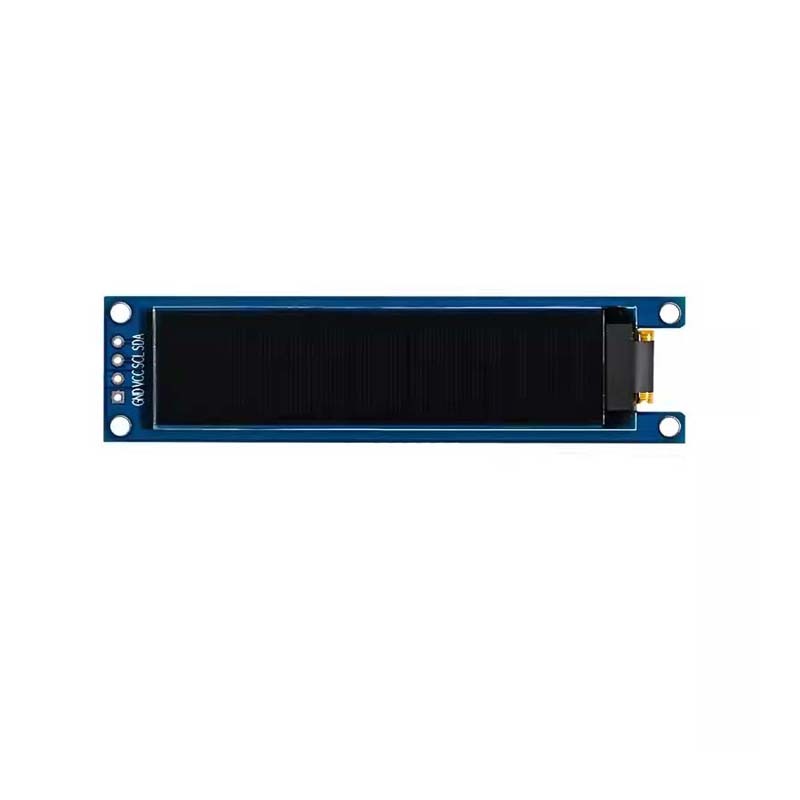

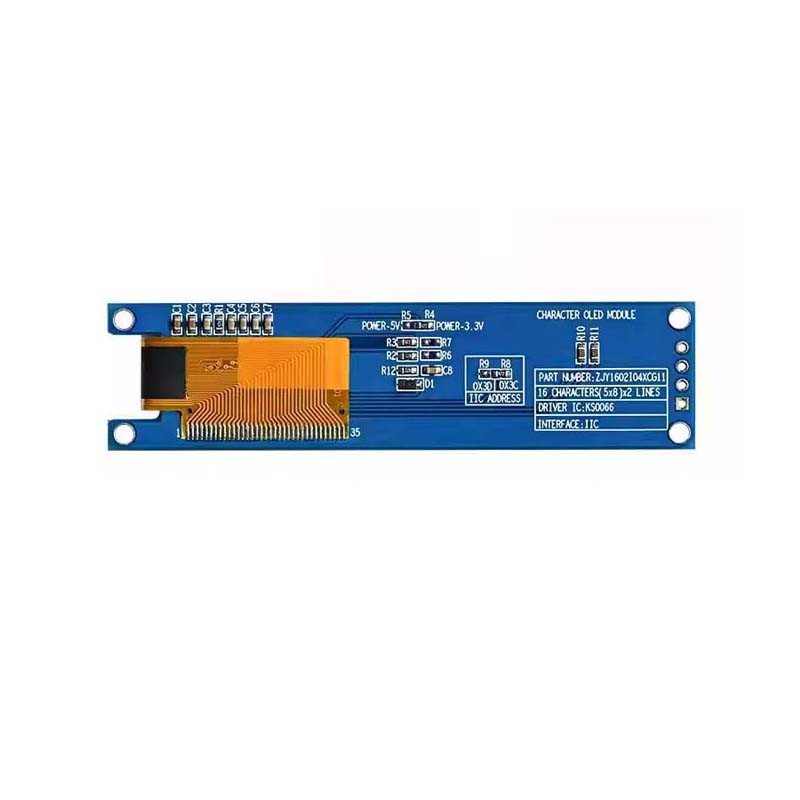

OLED 16x2 character is a monochrome character oled display with PCB, 16x2 characters oled display.

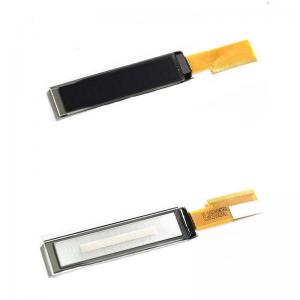

The 2.26 inch oled module, is a character passive matrix oled display, with FPC connection, it is a COG structure OLED display, it have 16x2 characters, white/blue color available, wide viewing angle, wide temperature, high brightness, high contrast, fast response time and with PCB.

since it is OLED display module, oled could be emitting light by itself, no need for backlight, so oled display module would be thinner than tft lcd module,and it isn't like tft lcd, oled display have no viewing angle limited, OLED display is wide/full viewing angle, oled display have excellent display performance in all viewing angle.16x2 characters OLED display module with PCB could be displayed in wide temperature, its working temperature could be reached to -40 degree, and 80 degree.

2.26 inch 16x2 character OLED display module with PCB is the best display solution in the outdoor display, such as sunlight environment, and also for industrial or medical application that need the wide viewing angle and high brightness display.

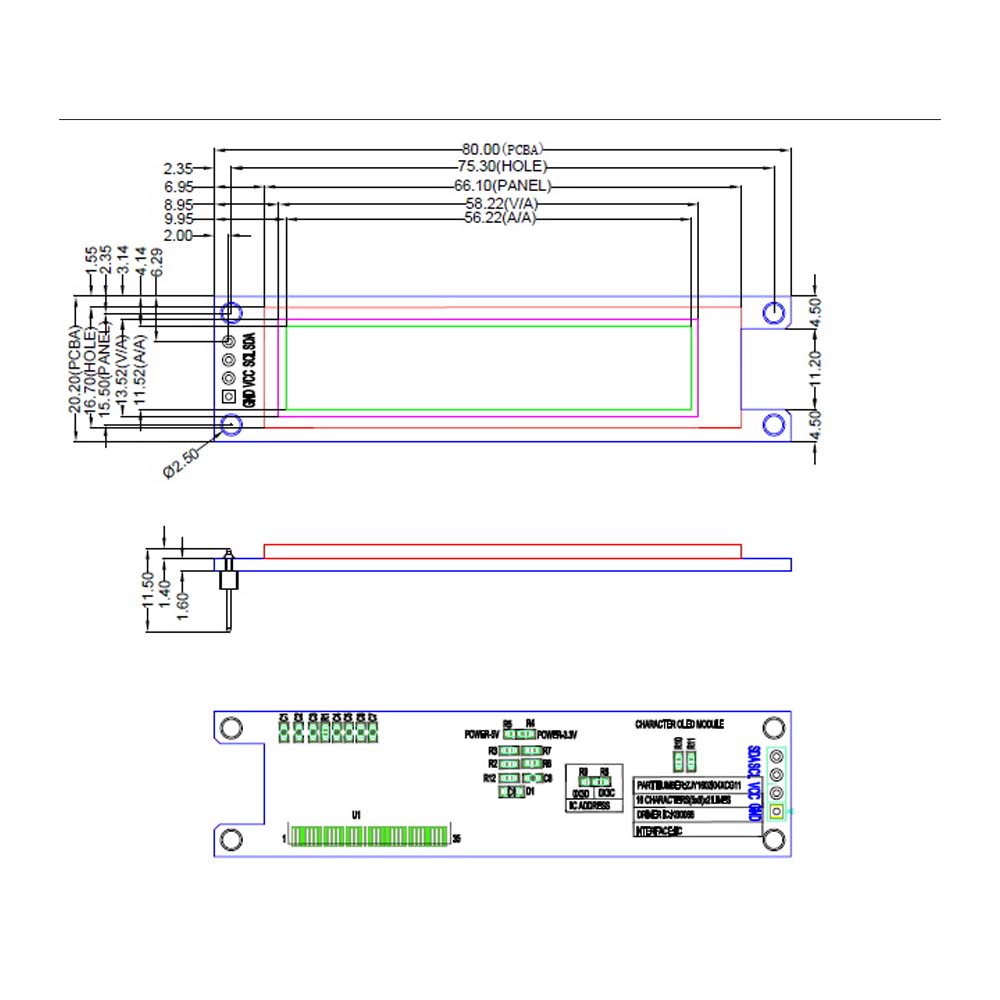

2.26 inch Character OLED Display 1206 Mechanical parameter

Features	Specification	Unit
Display Type	Passive Matrix
Display Size(Diagonal)	2.26 "	inch
Number of Characters	16 Characters ( 5 × 8 ) × 2 Lines	Pixels
Display Color	Monochrome(white/Yellow)
Pin No	4P	cd/m2
Interface Type	4-/8-bit 68XX/80XX Parallel, SPI, I2C
Driver ic	KS0066(SH1111)
Module Size	80.00 × 36.00 × Max. 9.70
Panel Size	66.10 × 16.70 × 2.00 (mm) including “Anti-Glare” Polarizer	(mm)
Active Area	56.22 × 11.52	(mm)
Character Pitch	3.55 × 5.95	(mm)
Character Size	2.97 × 5.57	(mm)
Pixel Pitch	0.60 × 0.70	(mm)
Pixel Size	0.57 × 0.67	(mm)
Operation Temperature	-40~85℃
Storage Temperature	-40~90℃
Weight	21.88	g

2.26 inch Character OLED Display 1206 Mechanical features

2.26 inch monochrome character OLED Moule.
Embedded Independent Driver Chip,
Using SPI/I2C Interfaces.
emitting light by itself without backlight
Low power consumption

Product Application:

Smart phones
smart watch
portable health device
intelligent on-board camera
real-time display pictures
battery management equipment
IPC controller
MP3/MP4 player
mobile phone function
portable medical equipment, game, etc.
