2.89 inch 2004 character oled display module with PCB

Category： OLED CHARACTER
Size:.2.89 inch OLED Character COB
Number of Characters:20 Characters ( 5 × 8 ) × 4 Lines
Chip lC: US2066(SSD1311)
Interface:8-bit 68XX Parallel
INQUIRY EMAIL

Product Details

OLED 20x4 character is a monochrome character oled display with PCB, 20x4 characters oled display.

The 2.89 inch oled module, is a character passive matrix oled display, with FPC connection, it is a COG structure OLED display, it have 20x4 characters, white/blue color available, wide viewing angle, wide temperature, high brightness, high contrast, fast response time and with PCB.

since it is OLED display module, oled could be emitting light by itself, no need for backlight, so oled display module would be thinner than tft lcd module,and it isn't like tft lcd, oled display have no viewing angle limited, OLED display is wide/full viewing angle, oled display have excellent display performance in all viewing angle.2004 characters OLED display module with PCB could be displayed in wide temperature, its working temperature could be reached to -40 degree, and 80 degree.

2.89 inch 20x4 character OLED display module with PCB is the best display solution in the outdoor display, such as sunlight environment, and also for industrial or medical application that need the wide viewing angle and high brightness display.

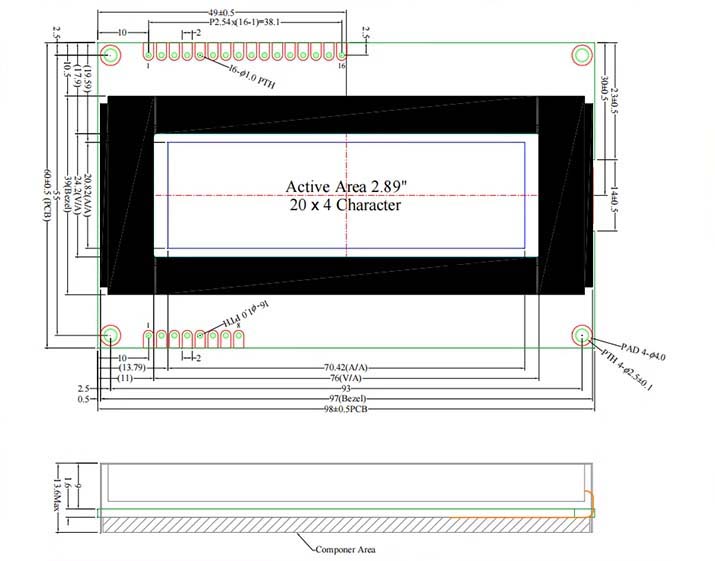

2.89 inch 2004 20X4 character oled display COB Mechanical parameter

Features	Specification	Unit
Display Type	Passive Matrix
Display Size(Diagonal)	2.89 "	inch
Number of Characters	20 Characters ( 5 × 8 ) × 4 Lines	Pixels
Display Color	Monochrome(white/blue/RED)
Pin No	16 P	cd/m2
structure	COB
Interface Type	4-/8-bit 68XX/80XX Parallel, SPI, I2C
Driver ic	US2066(SSD1311)
Panel Size	84.50 × 27.50 × 2.00 (mm) including “ Anti-Glare polarizer ”	(mm)
Active Area	56.22 × 11.52	(mm)
Character Pitch	3.55 × 5.35	(mm)
Character Size	2.97 × 4.77	(mm)
Pixel Pitch	0.60 × 0.60	(mm)
Pixel Size	0.57 × 0.57	(mm)
Operation Temperature	-40~85℃
Storage Temperature	-40~90℃
Weight	47.10	g

2.89 inch 2004 character oled display Module Mechanical features

2.89 inch monochrome character OLED Moule.
Embedded Independent Driver Chip,
Using 8-bit 68XX Parallel Interfaces.
emitting light by itself without backlight
Low power consumption

Product Application:

Smart phones
smart watch
portable health device
intelligent on-board camera
real-time display pictures
battery management equipment
IPC controller
MP3/MP4 player
mobile phone function
portable medical equipment, game, etc.
