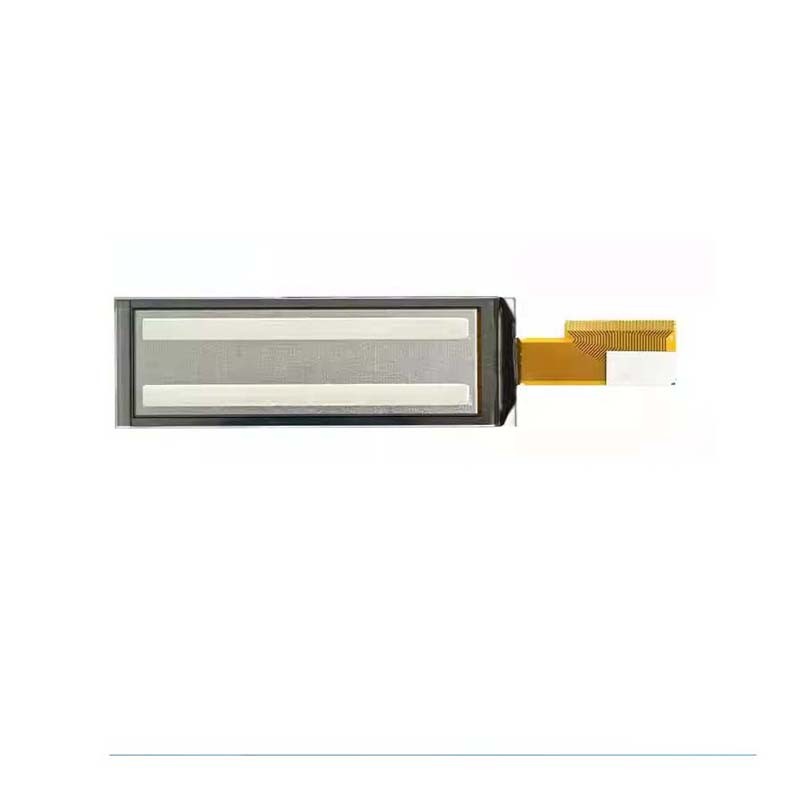

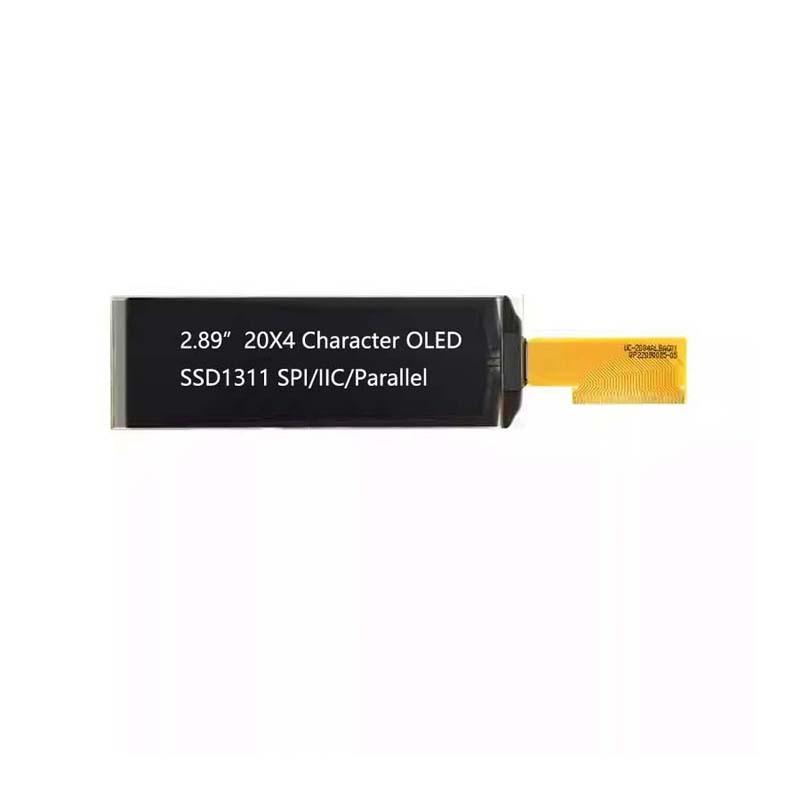

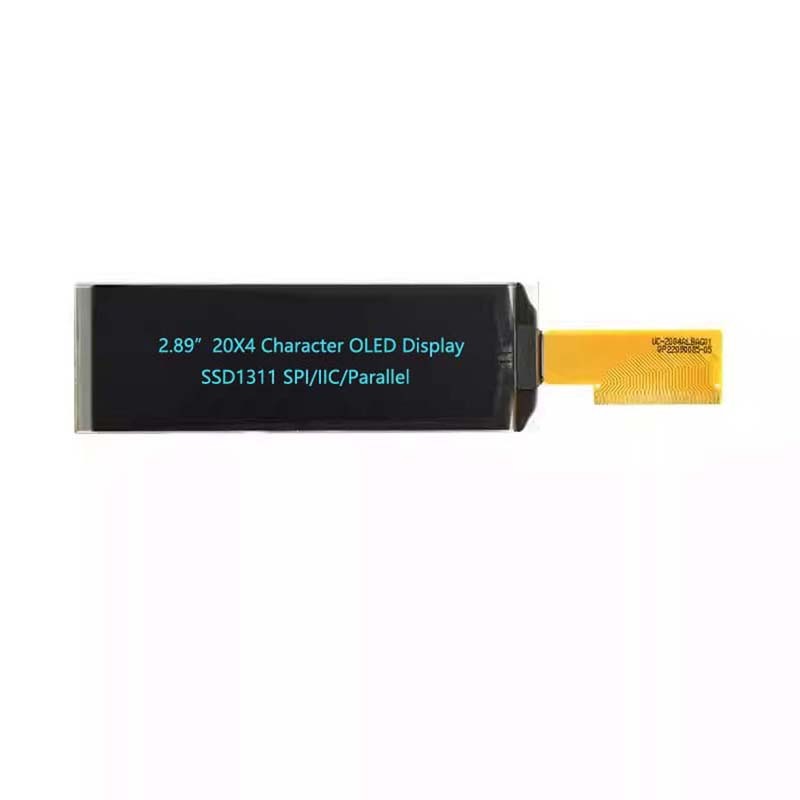

2.89 inch 20x4 character oled display US2066

Category： OLED CHARACTER
Size:.2.89 inch OLED Character COG
Number of Characters:20 Characters ( 5 × 8 ) × 4 Lines
Chip lC: US2066(SSD1311)
Interface: 4-/8-bit 68XX/80XX Parallel, SPI, I2C
INQUIRY EMAIL

Product Details

2.89 inch monochrome character oled display module which is made with 20x4 characters. This mono 20x4 character oled screen sizes is 2.89 inch in diagonal. This 2.89 inch oled display is passive matrix micro OLED displayand with whit blue two mono colors for options. The controller IC is US2066(SSD1311), 2.89" oled screen communicates via 4-/8-bit 68XX/80XX Parallel, SPI, I2C interface, 3.3V power supply. The 20x4 oled is a COG structure OLED panel, Because the display makes its own light, no backlight is required, So the power required to run the OLED is low, and is why the display has such high contrast, extremely wide viewing angle and operating temperature. this OLED 20x4 module can be operating at temperatures from -40℃ to +80℃, storage temperatures is from -40℃ to +85℃. The oled 20x4 character 2.89" is often used for smart watch, MP3, function cellphone, portable health device ,embedded systems,industrial device,security,medical and hand-held device.

2.89 inch 2004 20X4 character oled display COG Mechanical parameter

Features	Specification	Unit
Display Type	Passive Matrix
Display Size(Diagonal)	2.89 "	inch
Number of Characters	20 Characters ( 5 × 8 ) × 4 Lines	Pixels
Display Color	Monochrome(white/blue/RED)
Pin No	33P	cd/m2
structure	COG
Interface Type	4-/8-bit 68XX/80XX Parallel, SPI, I2C
Driver ic	US2066(SSD1311)
Panel Size	84.50 × 27.50 × 2.00	(mm)
Active Area	70.42 × 20.82	(mm)
Character Pitch	3.55 × 5.35	(mm)
Character Size	2.97 × 4.77	(mm)
Pixel Pitch	0.60 × 0.60	(mm)
Pixel Size	0.57 × 0.57	(mm)
Operation Temperature	-40~85℃
Storage Temperature	-40~90℃
Weight	9.61	g

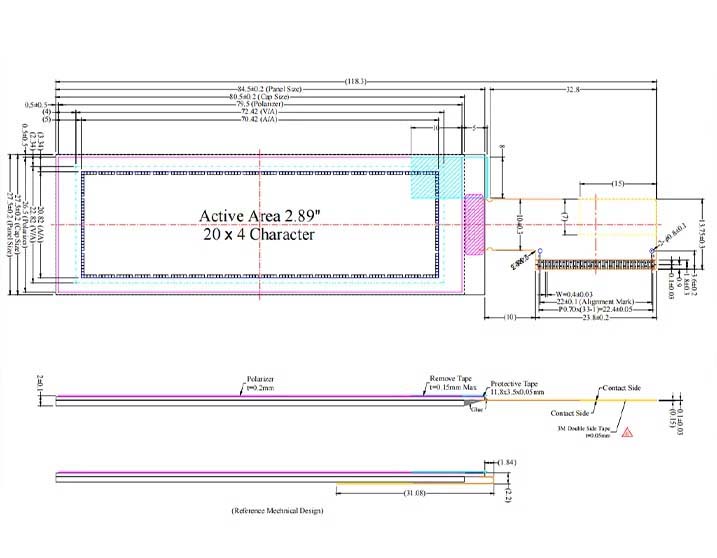

2.89 inch 2004 character oled display Module Mechanical features

2.89 inch monochrome character OLED.
Embedded Independent Driver Chip,
Using 4-/8-bit 68XX/80XX Parallel, SPI, I2C Interfaces.
emitting light by itself without backlight
Low power consumption

Product Application:

Smart phones
smart watch
portable health device
intelligent on-board camera
real-time display pictures
battery management equipment
IPC controller
MP3/MP4 player
mobile phone function
portable medical equipment, game, etc.
