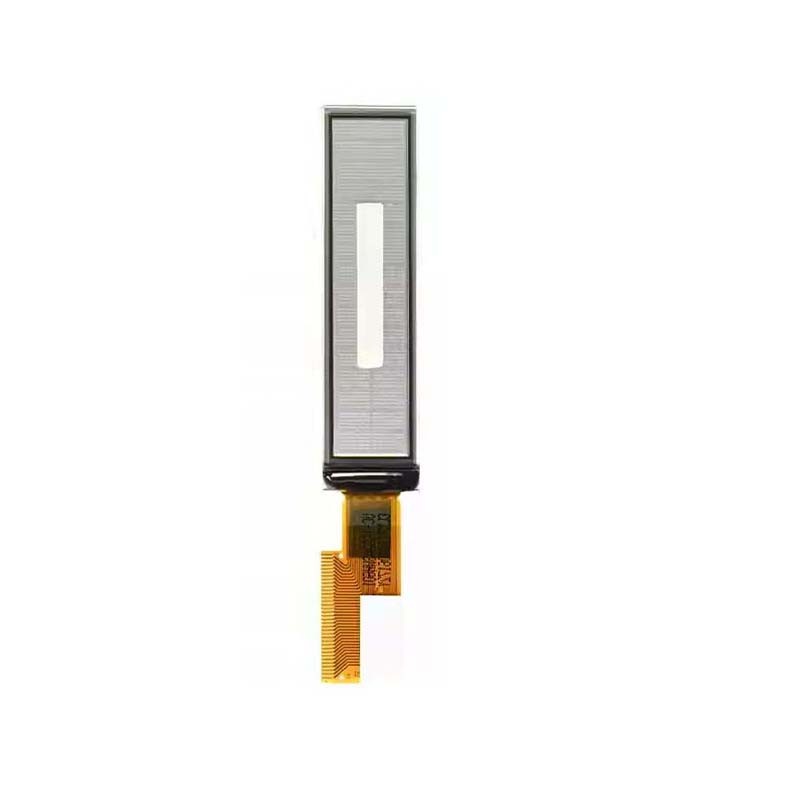

SPI 2.26 inch 16x2 character oled display module KS0066(SH1111)

Category： OLED CHARACTER
Size:2.26 inch OLED Character
Number of Characters:16 Characters ( 5 × 8 ) × 2 Lines
Chip lC:KS0066(SH1111)
Interface: 4-/8-bit 68XX/80XX Parallel, SPI, I2C
INQUIRY EMAIL

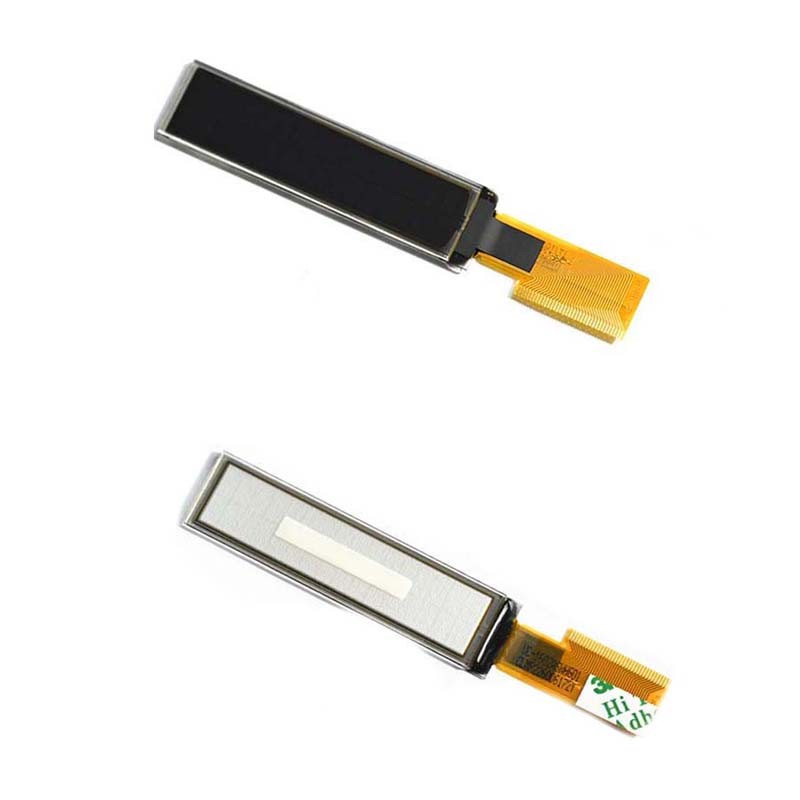

Product Details

2.26 inch monochrome character oled display module which is made with 16x2 characters. This mono 16x2 character oled screen sizes is 2.26 inch in diagonal. This 2.26 inch oled display is passive matrix micro OLED display. The controller IC is US2066, 2.26"oled screen supports SPI/Parallel/I2C interface, 3.3V power supply. The 2.26 oled is a COG structure OLED panel, oled could be emitting light by itself, no need for backlight, So the power required to run the OLED is low, and is why the display has such high contrast, extremely wide viewing angle and operating temperature. OLED 16x2 module can be operating at temperatures from -40℃ to +80℃, storage temperatures is from -40℃ to +85℃.

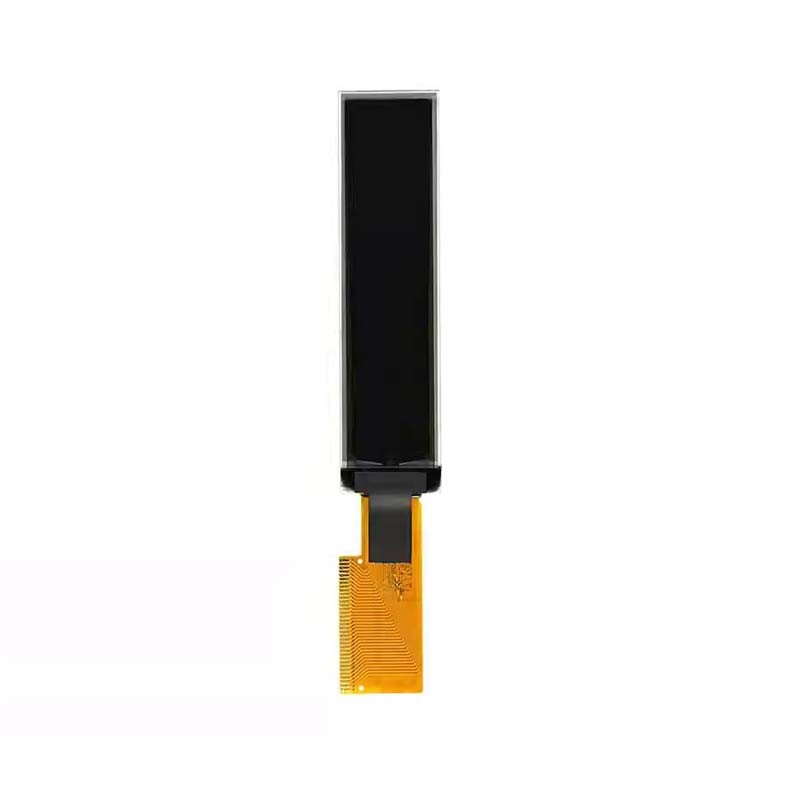

2.26 inch Character OLED Display 1206 Mechanical parameter

Features	Specification	Unit
Display Type	Passive Matrix
Display Size(Diagonal)	2.26 "	inch
Number of Characters	16 Characters ( 5 × 8 ) × 2 Lines	Pixels
Display Color	Monochrome(white/blue/yellow)

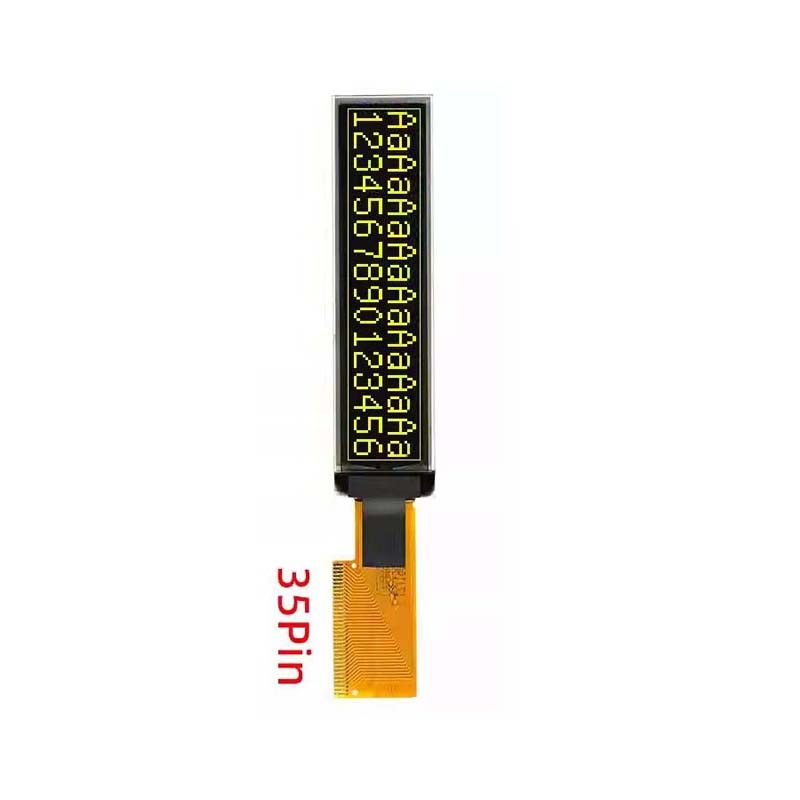

Pin No	35 P	cd/m2
structure	COG
Interface Type	4-/8-bit 68XX/80XX Parallel, SPI, I2C
Driver ic	KS0066(SH1111)

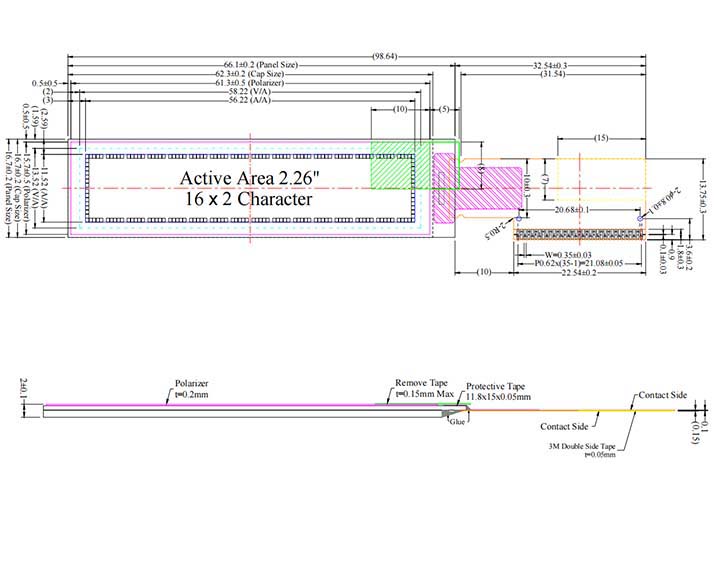

Panel Size	66.10 × 16.70 × 2.00	(mm)
Active Area	56.22 × 11.52	(mm)
Character Pitch	3.55 × 5.95	(mm)
Character Size	2.97 × 5.57	(mm)
Pixel Pitch	0.60 × 0.70	(mm)
Pixel Size	0.57 × 0.67	(mm)
Operation Temperature	-40~85℃
Storage Temperature	-40~90℃
Weight	4.98	g

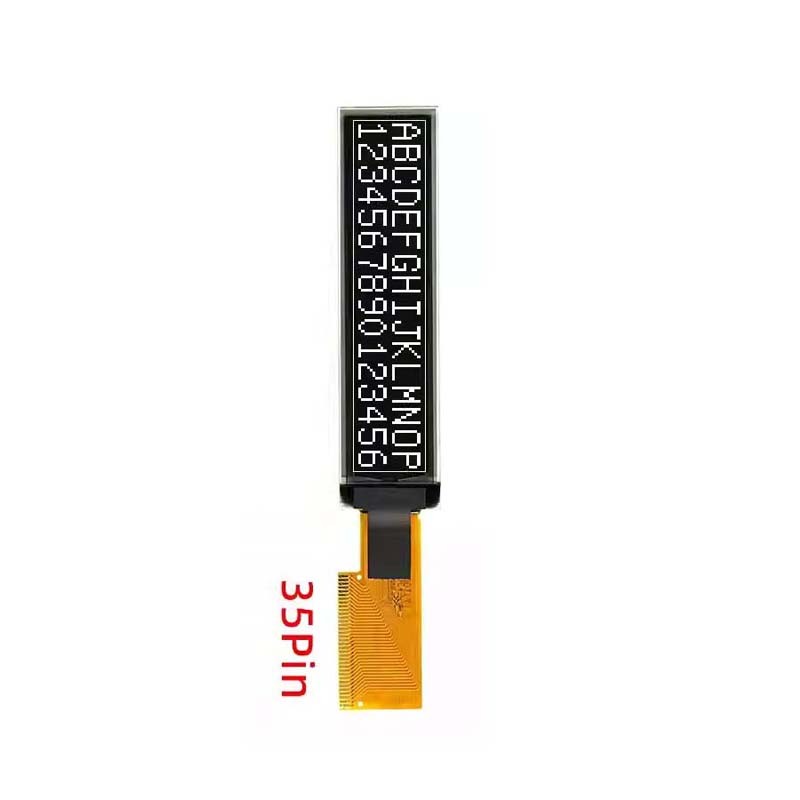

2.26 inch Character OLED Display 1206 Mechanical features

2.26 inch monochrome character OLED.
Embedded Independent Driver Chip,
Using SPI/I2C Interfaces.
emitting light by itself without backlight
Low power consumption

Product Application:

Smart phones
smart watch
portable health device
intelligent on-board camera
real-time display pictures
battery management equipment
IPC controller
MP3/MP4 player
mobile phone function
portable medical equipment, game, etc.
