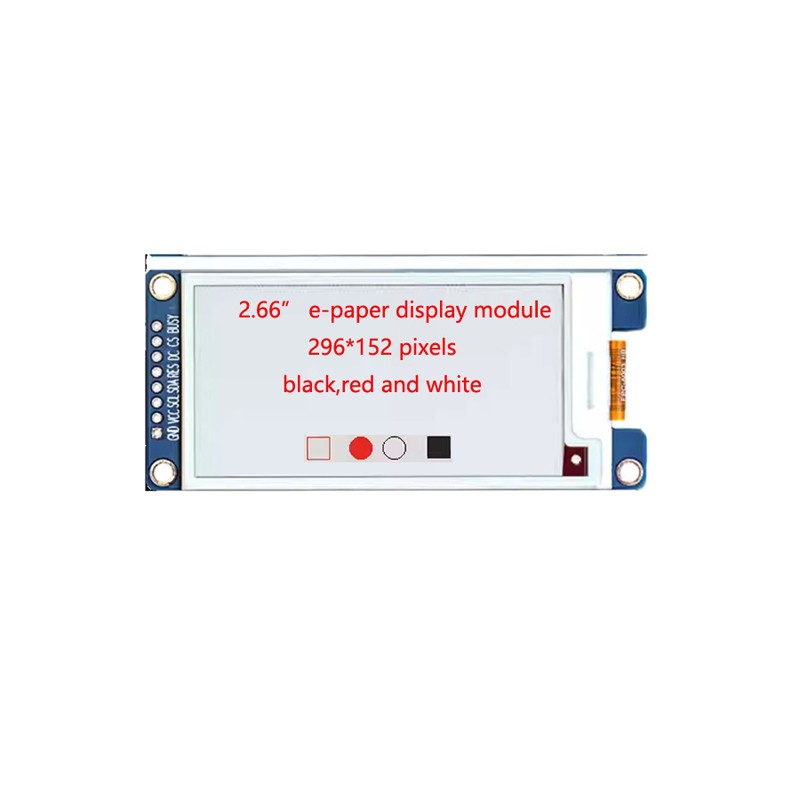

296×152 epaper 2.66 inch E-Paper E-Ink Display Module, Black / White/Red

Product Details

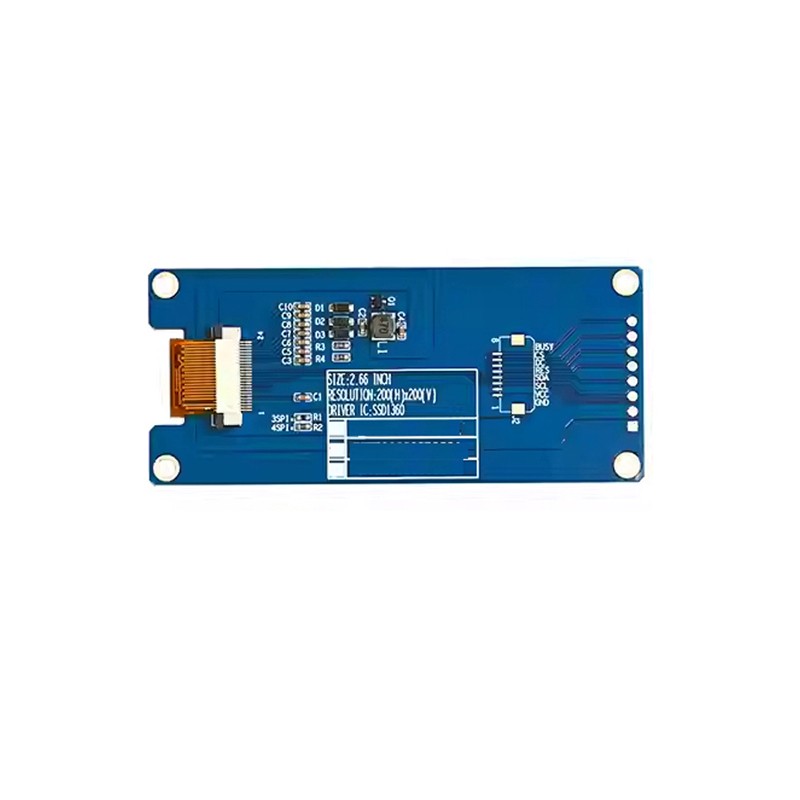

this 2.66" E-ink display is s an Active Matrix Electrophoretic Display (AM EPD), with interface and a reference system design. The display is capable to display images at 1-bit white, black and red full display capabilities(capable to display images at 1-bit white, black full display capabilities). The 2.66 inch active area contains 296×152 pixels. The module is a TFT-array driving electrophoresis display, with integrated circuits including gatedriver, source driver, MCU interface, timing controller, oscillator, DC-DC, SRAM, LUT, VCOM. Module can be used in portable electronic devices, such as Electronic Shelf Label (ESL) System.

2.66 inch  296×152 epaper screen Mechanical parameter

2.66 inch  296×152 epaper screen Mechanical features

Highlight Red and Yellow color
 High contrast
 High reflectance
 Ultra wide viewing angle
 Ultra low power consumption
 Pure reflective mode
 Bi-stable display
 Antiglare hard-coated front-surface
 Low current deep sleep mode
 On chip display RAM
 Waveform stored in On-chip OTP
 Serial peripheral interface available
 On-chip oscillator
 On-chip booster and regulator control for generating VCOM, Gate and Source driving
voltage
 I2C signal master interface to read external temperature sensor
 Available in COG package

Product Application:

Electronic Shelf Label System
Electronic price tags
Electronic conference board

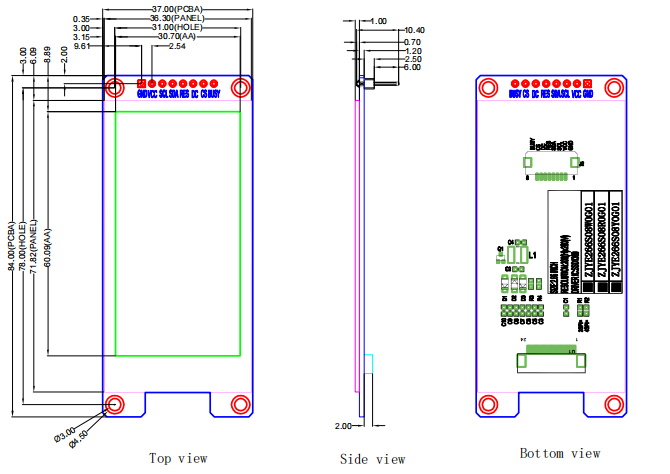

Mechanical Dimensions
