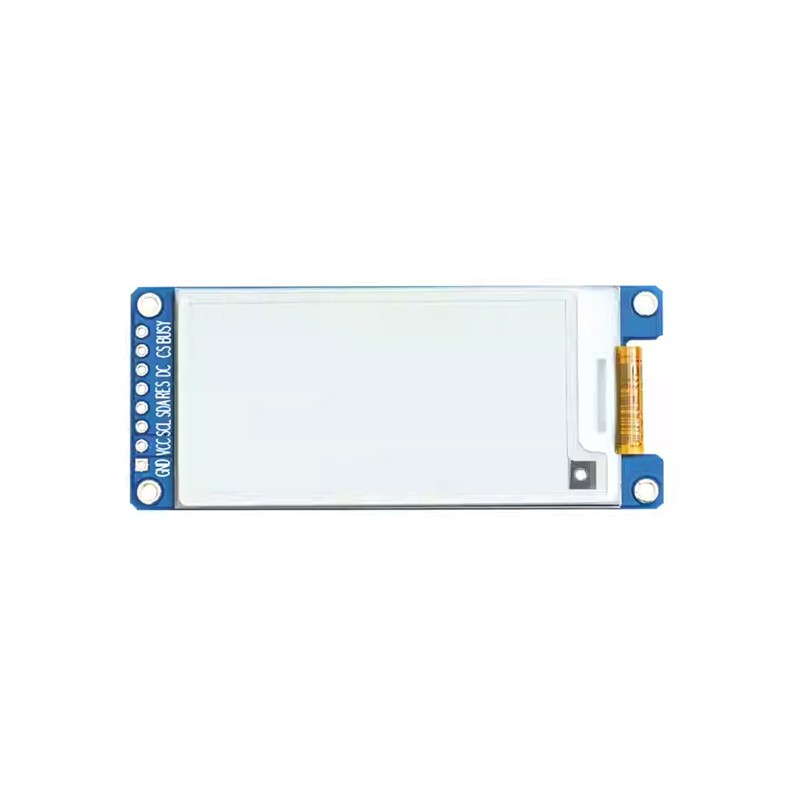

2.9 inch E-Ink Display Module 128x296 Compatible with Raspberry Pi

Product Details

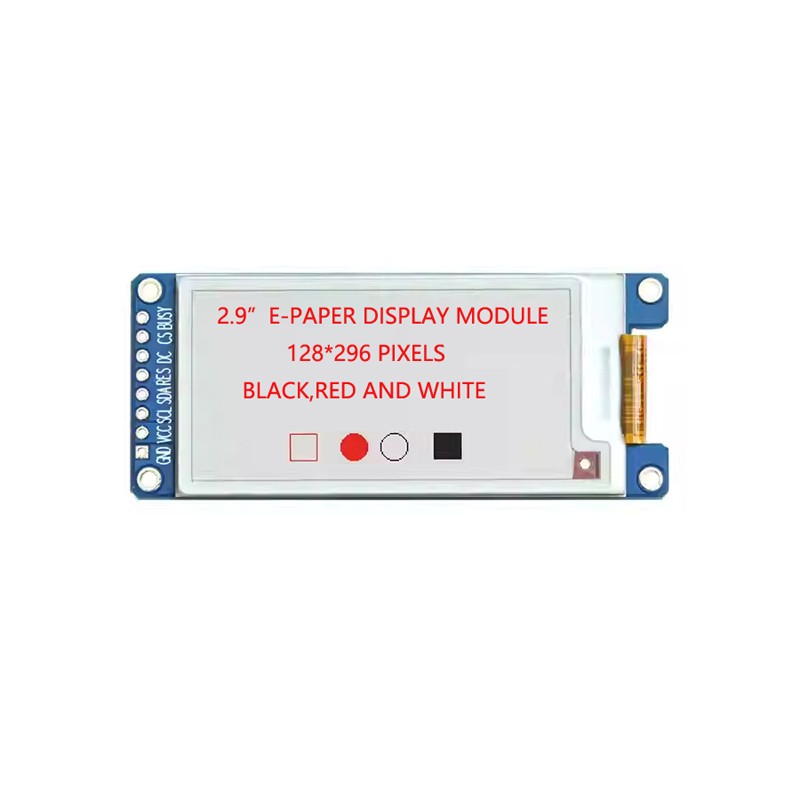

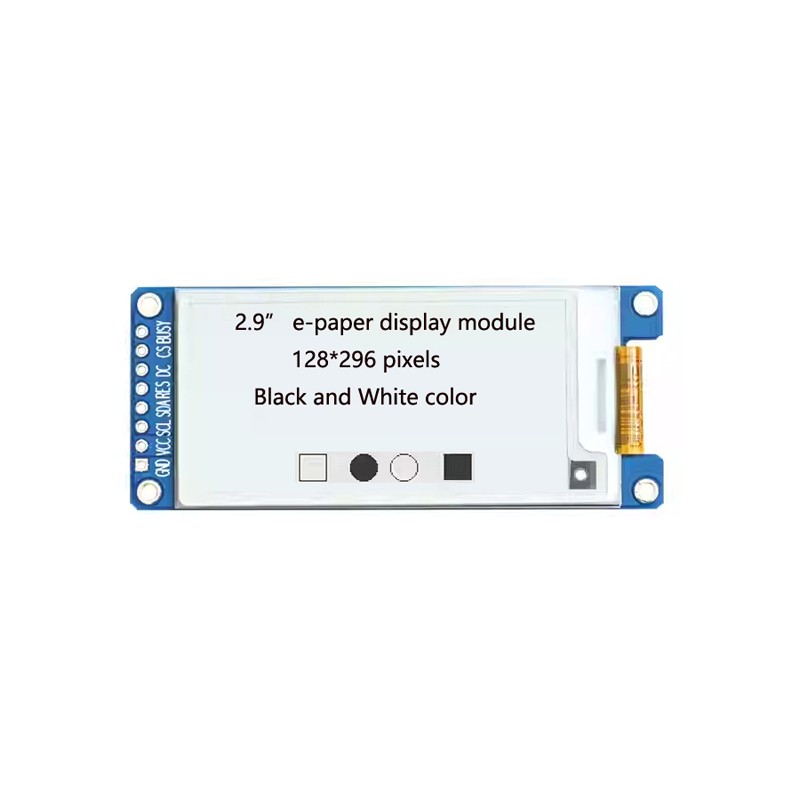

this 2.9" E-ink display is an Active Matrix Electrophoretic Display (AM EPD), with interface and a reference system design. The display is capable to display images at 1-bit white, black full display capabilities(or capable to display images at 1-bit white, black full and Red display capabilities). The 2.9 inch active area contains 296×128 pixels. The module is a TFT-array driving electrophoresis display, with integrated circuits including gate driver, source driver, MCU interface, timing controller, oscillator, DC-DC, SRAM, LUT, VCOM. Module can be used in portable electronic devices, such as Electronic Shelf Label (ESL) System.

2.9 inch  296×128 epaper screen Mechanical parameter

2.9 inch 296×128 epaper screen Mechanical features

296×128 pixels display
 High contrast High reflectance
 Ultra wide viewing angle Ultra low power consumption
 Pure reflective mode
 Bi-stable display
 Commercial temperature range
 Landscape portrait modes
 Hard-coat antiglare display surface
 Ultra Low current deep sleep mode
 On chip display RAM
 Waveform can stored in On-chip OTP or written by MCU
 Serial peripheral interface available
 On-chip oscillator
 On-chip booster and regulator control for generating VCOM, Gate and Source driving voltage
 I2C signal master interface to read external temperature sensor
 Built-in temperature sensor

Product Application:

Electronic Shelf Label System
Electronic price tags
Electronic conference board

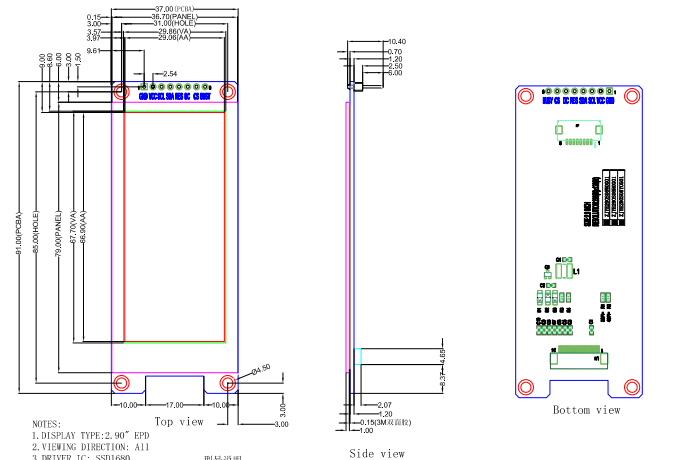

Mechanical Dimensions
