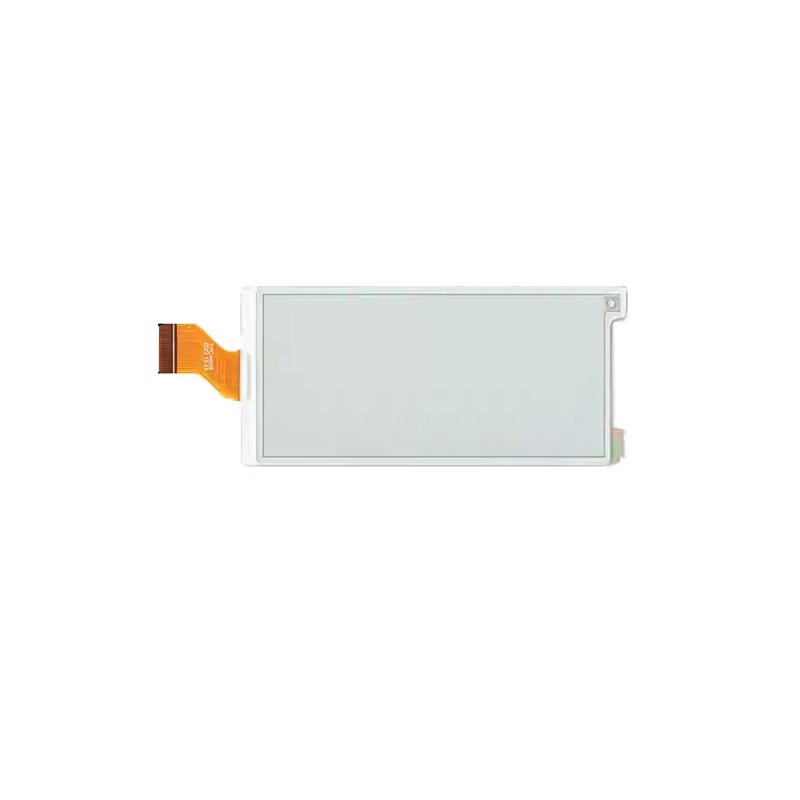

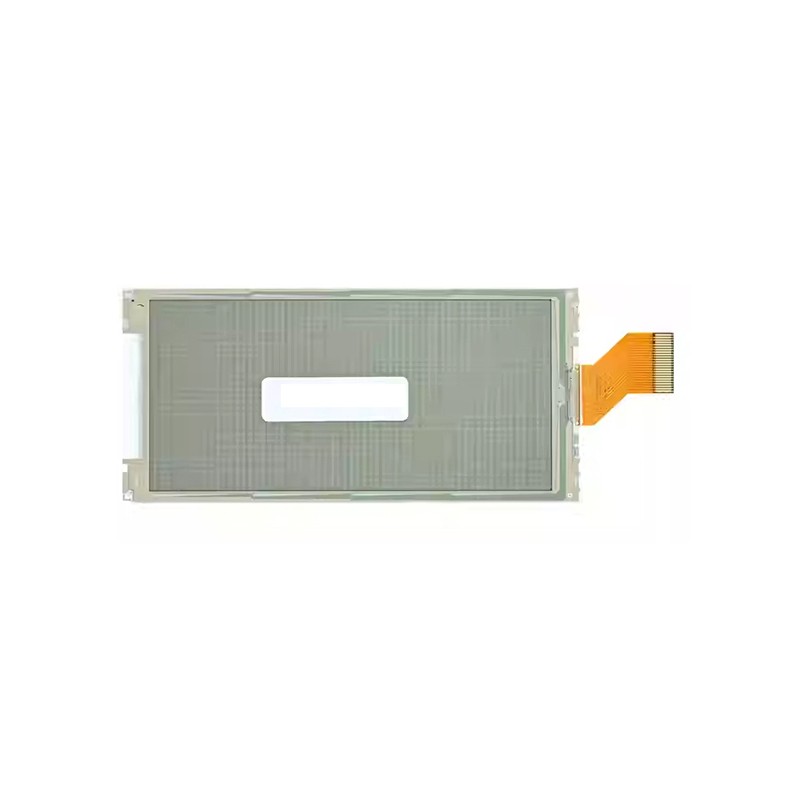

3.52 inch e-Paper Display Eink screen HAT 180(H)×384 (V) SPI Interface

Product Details

this 3.52" E-ink display is a reflective electrophoretic technology display module onan active matrix TFT substrate. The panel is capable of displaying black, white, yellow and red images depending on the associated lookup table used. The circuitry on the panel includes an integrated gate and source driver, timing controller, oscillator, DC-DC boost circuit, and memoryto store the frame buffer and lookup tables, and additional circuitry to control VCOM and BORDER settings.

3.52 inch 180x384 epaper screen Mechanical parameter

3.52 inch 180x384 epaper screen Mechanical features

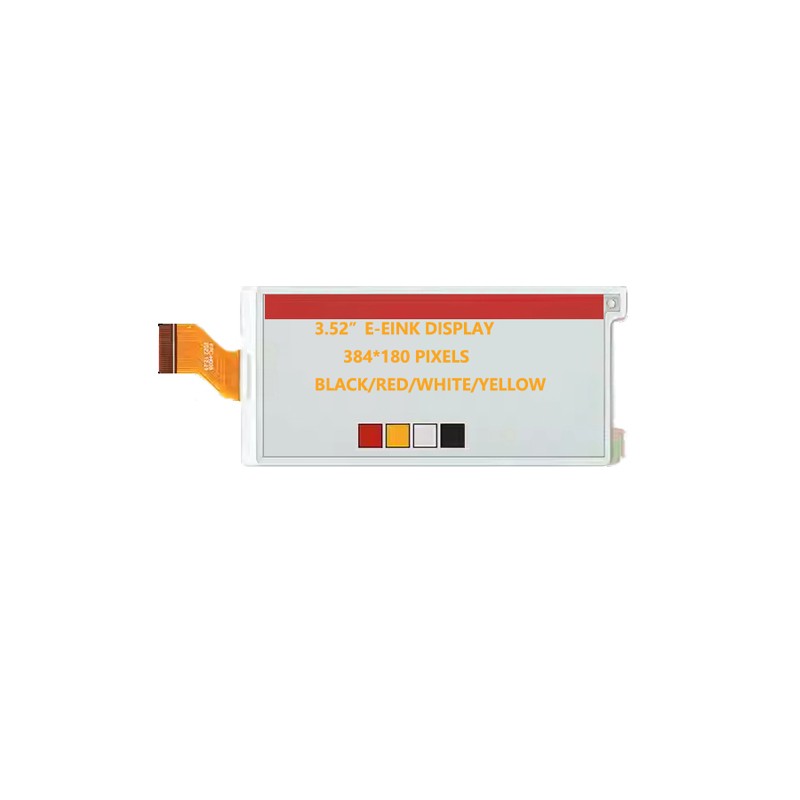

 Highlight Red and Yellow color
 High contrast
 High reflectance
 Ultra wide viewing angle
 Ultra low power consumption
 Pure reflective mode
 Bi-stable display
 Antiglare hard-coated front-surface
 Low current deep sleep mode
 On chip display RAM
 Waveform stored in On-chip OTP
 Serial peripheral interface available
 On-chip oscillator
 On-chip booster and regulator control for generating VCOM, Gate and Source driving
voltage
 I2C signal master interface to read external temperature sensor
 Available in COG package

Product Application:

Electronic Shelf Label System
Electronic price tags
Electronic conference board

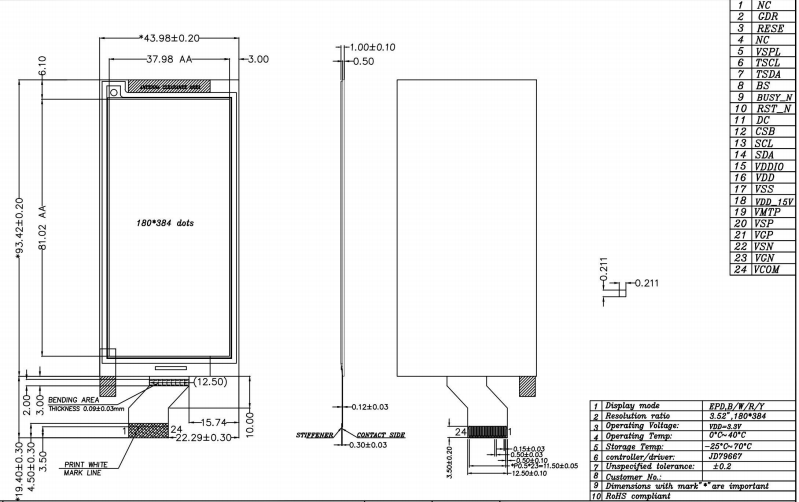

Mechanical Dimensions
