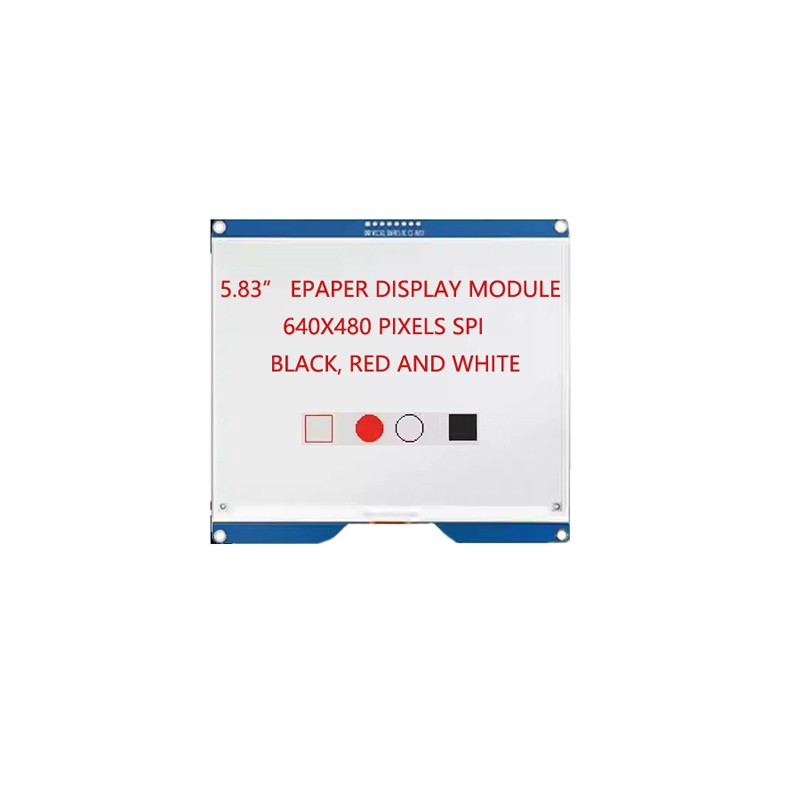

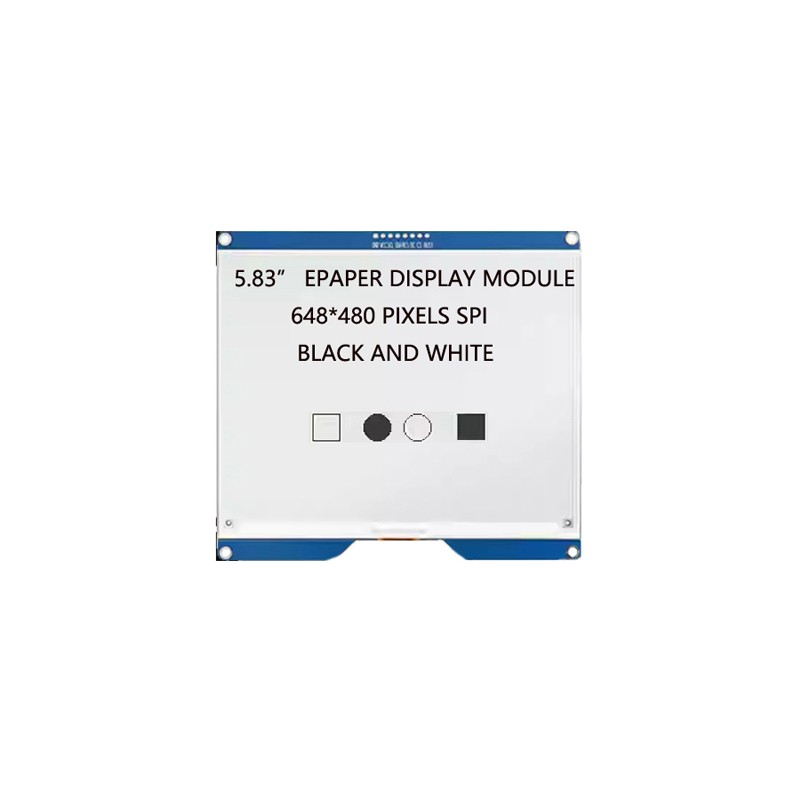

5.83 inch eInk ePaper Display Module with 648x480 Pixels SPI interface

Category： ePaper
Size:5.83 inch eink display
Display Resolution:648(H)×480(V) Pixel
Chip lC:UC8179
Interface: SPI
INQUIRY EMAIL

Product Details

this 5.83" E-ink display is a TFT active matrix electrophoretic display, with interface and a referencesystem design. The 5.83 inch active area contains 648×480 pixels, and has 1-bit white, black full display capabilities. An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM and border are supplied with each panel.

5.83 inch 648×480 epaper screen Mechanical parameter

Features	Specification	Unit
Display Type	Active Matrix Electroph oretic Display;
Display Size(Diagonal)	5.83 "	inch
Display Resolution	648(H)×480(V) Pixel	Pixels
Display Color	B/W; B/W/R
Pin No	8 P	cd/m2
structure	COB
Interface Type	SPI
Driver ic	UC8179
Panel Size	125.4(H)×99.5 (V) ×1.20(D)	(mm)
Active Area	118.78×88.22	(mm)
Logic supply voltage	3.3 V	(mm)
-	-	(mm)
Pixel Pitch	0.1833×0.1833	(mm)
Pixel Configuration	Square	(mm)
Operation Temperature	-0~50℃
Storage Temperature	-25~70℃
Weight	28.6	g

5.83 inch 648x480 epd display Mechanical features

648×480 pixels display
 High contrast
 High reflectance
 Ultra wide viewing angle
 Ultra low power consumption
 Pure reflective mode
 Bi-stable display
 Commercial temperature range
 Landscape, portrait modes
 Hard-coat antiglare display surface
 Ultra Low current deep sleep mode
 On chip display RAM
 Waveform can stored in On-chip OTP or written by MCU
 Serial peripheral interface available
 On-chip oscillator
 On-chip booster and regulator control for generating VCOM, Gate and Source driving voltage
 I2C signal master interface to read external temperature sensor
 Built-in temperature sensor
