EPD Screen 5.83 inch SPI E-Paper E-Ink Display HAT 648×480 For Raspberry Pi

Product Details

5.83 inch E-Paper E-Ink Display HAT Compatible with Raspberry Pi 4B/3B+/3B/2B/B+/A+/Zero/Zero W/WH/Zero 2W Series Boards 648×480 Pixels Black/White Dual-Color SPI Interface

this 5.83" E-ink display is a TFT active matrix electrophoretic display, with interface and a reference system design. The 5.83 inch active area contains 648×480 pixels, and has 1-bit white, black full display capabilities (or and has 1-bit white, black and red full display capabilities). An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM and border are supplied with each panel.

5.83 inch 648×480 epaper screen Mechanical parameter

5.83 inch 648x480 epd display Mechanical features

 648×480 pixels display

 High contrast
 High reflectance
 Ultra wide viewing angle
 Ultra low power consumption
 Pure reflective mode
 Bi-stable display
 Commercial temperature range
 Landscape, portrait modes
 Hard-coat antiglare display surface
 Ultra Low current deep sleep mode
 On chip display RAM
 Waveform can stored in On-chip OTP or written by MCU
 Serial peripheral interface available
 On-chip oscillator
 On-chip booster and regulator control for generating VCOM, Gate and Source driving voltage
 I2C signal master interface to read external temperature sensor
 Built-in temperature sensor

Product Application:

Electronic Shelf Label System
Electronic price tags
Electronic conference board

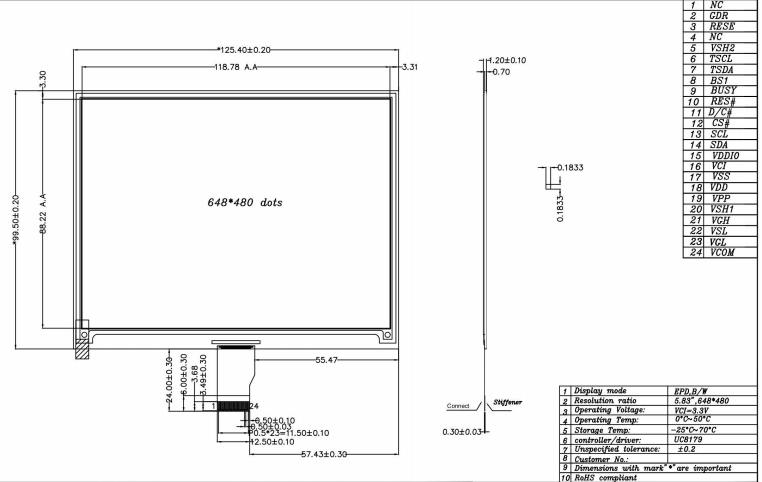

Mechanical Dimensions
