Product Details

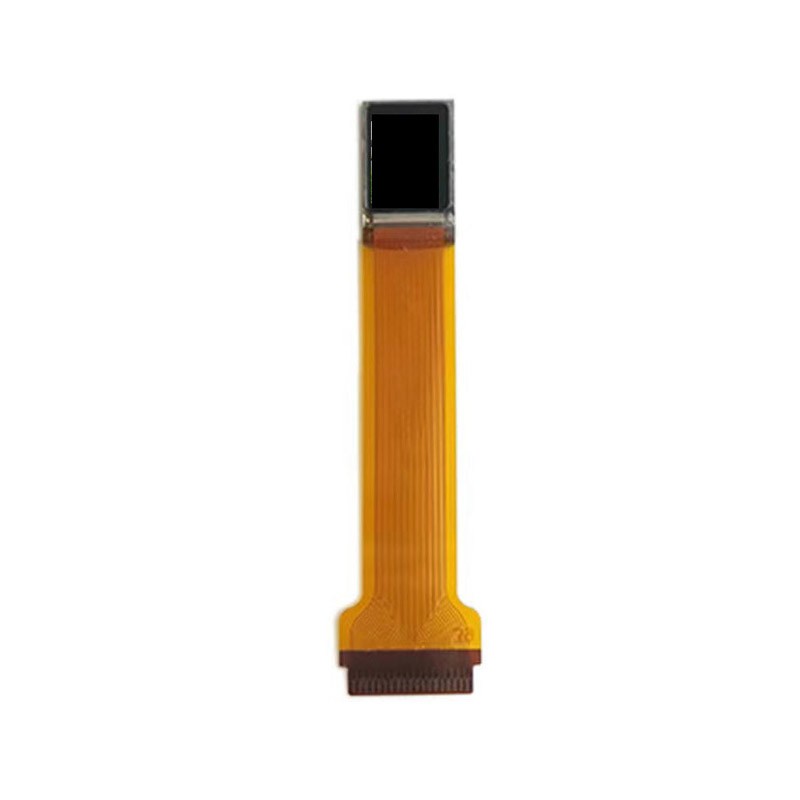

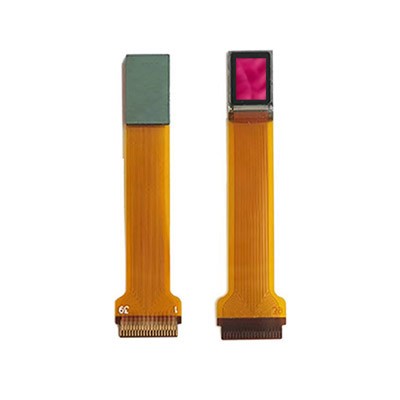

This 0.23 inch Micro OLED is a coloful silicon-based display, featuring a high resolution of 640X400 pixels, high brightness of 5000nits and the frame rate is up 90Hz, this micro oled display offers excellent visibility experiences to the VR Glasses users even in challenging lighting conditions; based on its single-crystal silicon transistors technology, this micro display also features small-sized, light weight ,high definition, low power consumption and high contrast, which makes this microoled display screen be popular among applications in Augmented Reality (AR glasses), Virtual Reality (VR Headset) and head-mounted displays, etc.
For better demo in purpose and there is designed screen adapter HDMI driver board for this Micro-oled Screen.
0.23 inch Micro OLED Display 640x400 parameter:
⚫Display Panel Type:Micro OLED, Si-OLED
⚫Diagonal A/A Size：0.23 inch
⚫Resolution/Dot Matrix: nHD+640(RGB)×400
⚫Dot Size:7.8×7.8μm2
⚫Display Area:5.06×3.29 mm2
⚫Outline Size:9.35×5.97 mm2
⚫Module Size（FPC）:38.33×9.0 mm2
⚫Frame rate：90Hz
⚫Brightness:5000 cd/m² (Typ.)
⚫Contrast Ratio:100000:1
⚫Interface:Support I²C(up to 400K bps) configuration interface
⚫Module Weight :0.2 gram
⚫Power Supply:1.8V (logic) 3.3V, -6.6V (analog)
⚫Application: AR headsets;VR AR Display, head-mounted displays
0.23 inch Micro OLED Display 640x400 Features:
⚫ Display Color：Full color
⚫ Small size high-Definition display：0.23" 3255PPI
⚫ Support up to 90hz frame rate.
⚫ Support MIPI input video interface: 2 data lanes/1 clock lanes, speed up to 800M bps
⚫ Support I²C(up to 400K bps) configuration interface
⚫ Operating ambient temperature：-40℃~65℃

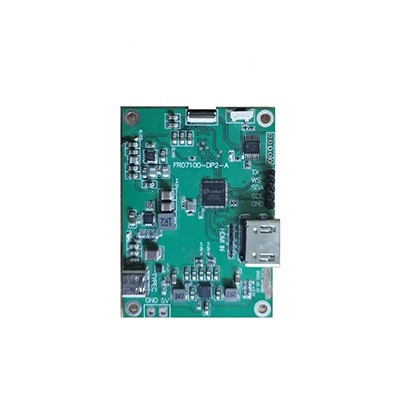

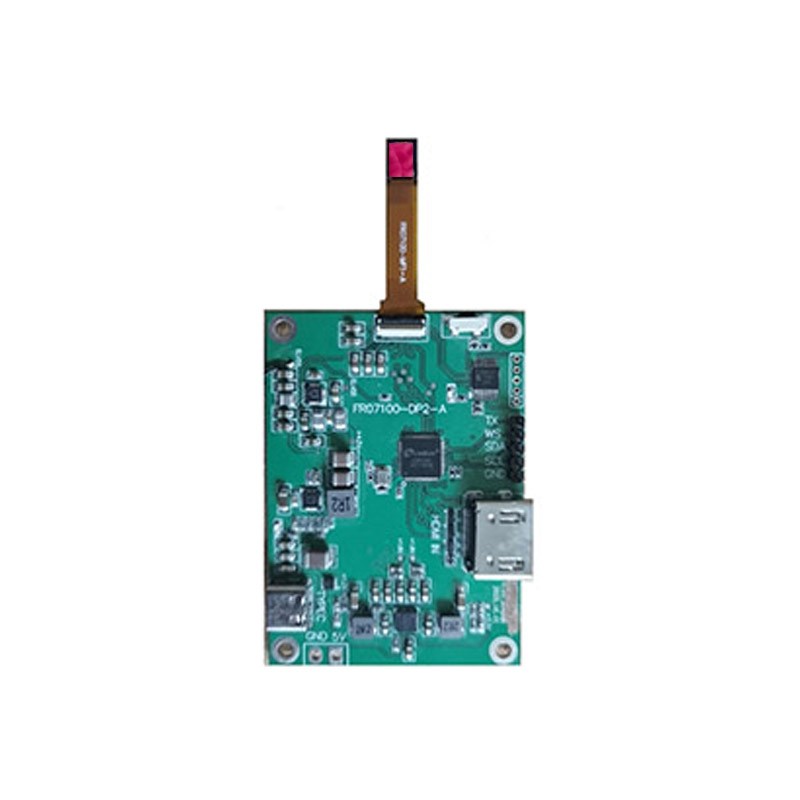

Screen Adapter HDMI Driver board for the 0.23" Microoled :
⚫dapter Function: to light up the screen
⚫Input Interface: micro-HDMI,Disension :70.x50.MM
⚫Maximum Resolution: 640X400
⚫Support Brightness:5000nits
Product Application:
-
AR/VR display, electronic viewfinder of digital camera/video camera；
-
Portable equipment such as miniature projectors, video glasses, 3D displays, head-mounted entertainment equipment,etc；
-
Security monitoring /military:individual helmet display, electronic sight, infrared night vision device,Thermal imager displays,electronic telescopes,flight helmets,gun sights,life detection video devices；
-
Medical and industrial:human and machine video engineering research, endoscope, portable B-ultrasound machine,Vision correction equipment,multi-scope,various portable inspection and testing equipment;
-
Aircraft model:aerial photography:remote control aircraft parameter display system:remote control car video display terminal:etc.

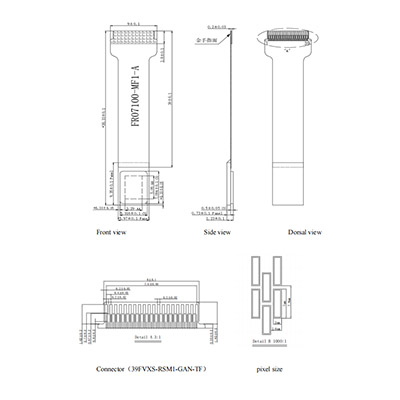

Dimensions:
